Page 1

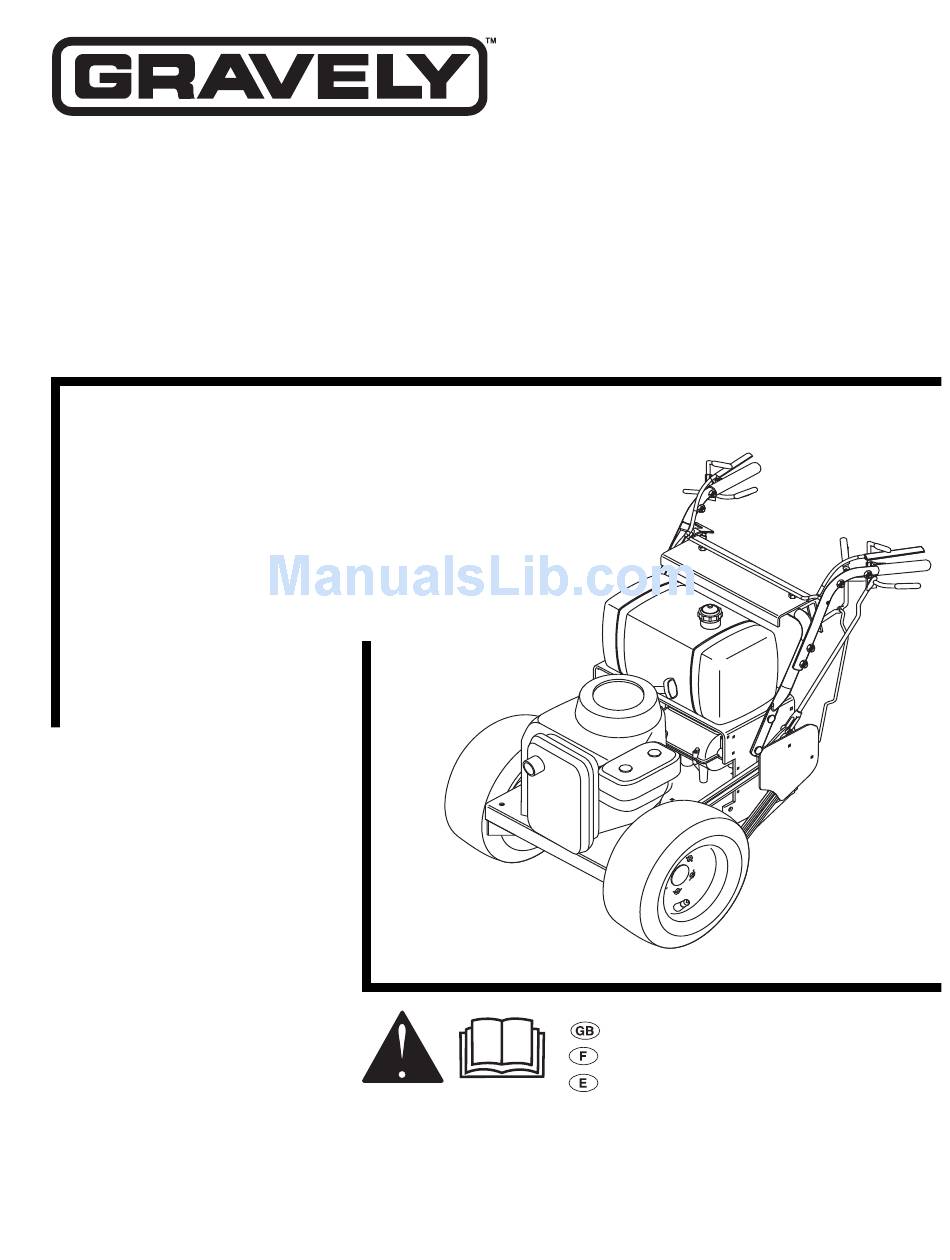

Pro 150 Owner/Operator Manual Model 988088 988091 988092 988309 ENGLISH FRANÇAIS ESPAÑOL 08478400A 10/00 Supercedes 08478400 Printed in USA...
Page 2
- bevitner at gressklippertraktor - intygar att intygar att åkrotorklippare - vakuutamme, että lumilinko Ajoleikkuri: Category: WIDE-AREA COMMERCIAL WALK-BEHIND ROTARY MOWER Make and Trade Name: GRAVELY Model: 988309 with 888301 Serial # Range: From – To 000101 – 000999 conform to the specifications of directive 98/37/EC, and council directive 84/538/EEC as amended by 87/252/EEC, 83/180/EEC and 88/181/EEC,...
CONTROLS AND FEATURES OG0741 OG1131 Figure 1 ENGLISH FRANÇAIS ESPAÑOL 1. Shift Lever 1. Levier de vitesses 1. Palanca de cambios 2. Steering Lever Latches 2. Verrouillage des poignées 2. Trabas de las palancas 3. Steering Levers de direction de la dirección 4.
SAFETY SAFETY ALERTS SAFETY DECALS AND LOCATIONS Look for these symbols to point out ALWAYS replace missing or damaged Safety Decals. important safety precautions. They mean: Refer to figure below for Safety Decal locations. Attention! Personal Safety Is Involved! Become Alert! Obey The Message! The safety alert symbols above and signal words below are used on decals and in this manual.
OPERATIONAL SAFETY RULES ALWAYS keep hands and feet away from all rotating parts during operation. Rotating parts can cut off body Walk Around Inspection parts. Complete a walk around inspection of unit and work ALWAYS keep hands away from all pinch points. area to understand: DO NOT touch unit parts which might be hot from •...
Avoid uneven and rough terrain. DO NOT operate near NEVER fill fuel tank when engine is running or hot from drop offs, ditches, or embankments. Unit can suddenly operation. turn over if a wheel is over the edge of a cliff or ditch, or NEVER fill or drain fuel tank indoors.
ACCESSORY AND ATTACHMENT SAFETY Use extra care with grass catchers and other attachments. These can change the stability of the unit. RULES Use only approved hitch points. Use only attachments or accessories designed for your ALWAYS be aware of attachments when turning. unit.
Page 9
Throttle/Choke Lever (Recoil Start 3. Release both steering levers slowly. Models) PTO Clutch The Throttle/Choke lever changes the speed Push the PTO (power take off) lever On of the engine and chokes the engine for cold (1) to engage the mower. Pull the PTO starts.
Page 10
TO START AND SHUT OFF ENGINE TO OPERATE UNIT Operate the unit only when in the operator’s position Before Each Use directly behind the handlebars. Check each item in Before Each Use in the Maintenance Schedule. WARNING: When the engine is running and NOTE: The engine will not start unless the shift lever is the speed control lever is engaged, holding in neutral and the Power Take Off (PTO) is Off.
Page 11
• To turn to the right; pull the right hand lever up. 3. Pull both levers all the way up and engage both steering latches. The brake is applied when the steering levers are in neutral. 4. Chock or block the wheels if parked on a slope. TO PUSH UNIT BY HAND OG1210 •...
MAINTENANCE The engine MUST stop whenever the operator WARNING: AVOID INJURY. Read and removes both hands from controls while the PTO or understand Maintenance and Service and transmission is engaged. To test: Battery Safety Rules before proceeding. 1. Start engine and engage PTO. 2.
4. Apply a thin coat of grease or petroleum jelly to terminals and cable ends to retard corrosion. 5. Reinstall battery. Electrolyte Level Check electrolyte level every 25 hours of operation. Check each cell: 1. Remove caps one at a time. The electrolyte level should be at level indicated.
ADJUSTING THE BRAKES 2. Release the steering levers. 3. Raise the rear of the unit so that the drive wheels NOTE: The traction belt must disengage as the brake are off the ground. starts to engage. 4. Remove traction belt guard. 1.
Page 15
REPLACING THE TRANSMISSION BELT To adjust: 1. Stop the engine. Remove ignition key. Put PTO 1. Stop the engine. Remove ignition key. Put PTO lever in the ”OFF” position. Put the shift lever in lever in the ”OFF” position. Put the shift lever in neutral.
Page 16
1. Put unit into service position. 3. Connect the other end of the same jumper cable to the positive (+) terminal of the booster battery. 2. Disconnect negative (–) cable first, then positive (+) cable. 4. Connect one end of the second jumper cable to the negative (–) terminal of the booster battery.
STORAGE IMPORTANT: Never spray unit with water or store unit WARNING: AVOID INJURY. Read and outdoors. Store unit in a cool, dry, protected location. understand Maintenance and Service and NOTE: Do not use harsh or abrasive cleaners on any Storage Safety Rules before proceeding. painted surface.
50” Mower 78802900 Mulching Kit (36” mower) 78800800 Mulching Kit (50” mower) * CE Certified SERVICE PARTS Be sure to always use genuine Gravely parts to keep your unit running like new. Part no. Description 78801800 Battery 21391300 Paper Element - Kawasaki - 14 hp...
Product Registration covered by this warranty. • The Gravely dealer must fill out and return the warranty • Service completed by someone other than an authorized registration card to validate the warranty.
Page 21
GRAVELY A Division of Ariens Company 655 West Ryan Street P.O. Box 157 Brillion, WI 54110-0157 920-756-2141 Fax 920-756-2407 www.gravely.com...
