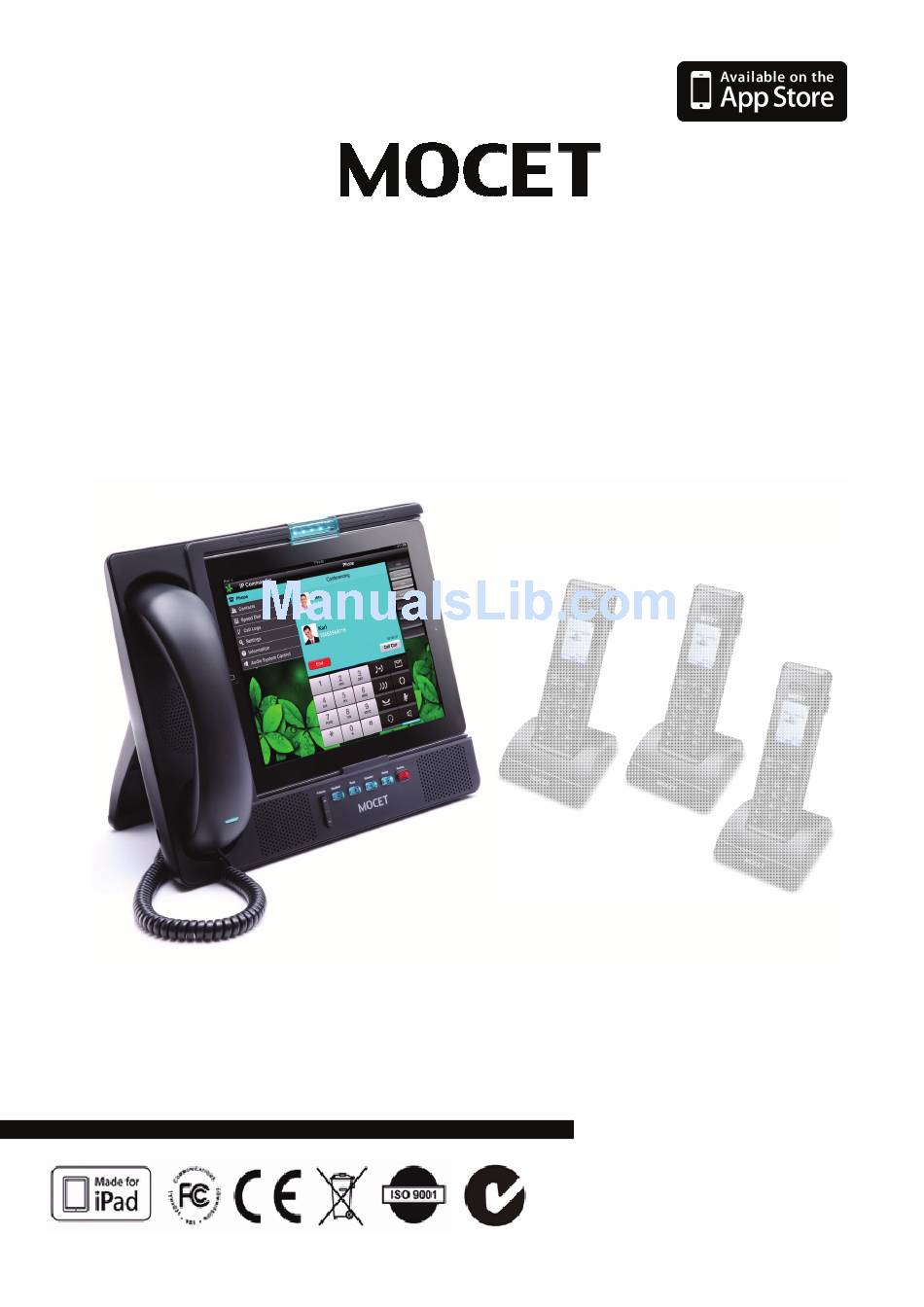

Page 1: Quick User Guide
Communicator IP3092-D/ IP3092L-D IP3092-DE / IP3092L-DE Quick User Guide Copyright © 2014, All Rights Reserved. Ver: R13 D/C: 103-0404... -
Page 2: Fcc Statement
MOCET IP3092 Communicator DECT Series Quick User Guide FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause interference to radio communications. This equipment as been tested and found to comply with the limits for a Class B computing device pursuant to Part 15J, as well as Part15B/15D, and OET65c for DECT 6.0... - Page 3 Yes not inclu. Optional IP3092D-K Included Yes 3 sets Optional IP3092LD-K No Included Yes 3 sets Optional [Note]: White housing models which follows with "(w)" : IP3092 (w), IP3092L (w), IP3092-D (w), IP3092L-D(w), IP3092-DK (w), and IP3092L-DK(w). Page...
- Page 4 Communicator allowing calls to be directed to the handset or speakerphone for better call quality and comfort as well. One USB host port and one micro-SD port on the IP3092 allow user to connect USB WiFi dongle, memory devices, keyboard or other supported peripherals.
-
Page 5: Hardware Installation
Embedded VoIP phone Hardware Installation The IP3092-D Series Communicator comes with accessories in the box, including a Quick Guide, handset, handset cord, power supply adapter, and an Ethernet cable. Please check on the Communicator and proceed the following sections of this Quick Guide. - Page 6 MOCET IP3092 Communicator DECT Series Quick User Guide Connect the Power: - Then plug the barrel plug of the included power adapter to the port marked 12VDC. Make sure you use the right power adaptor with a label showing 12V and 2A.
- Page 7 MOCET IP3092 Communicator DECT Series Quick User Guide Appearance & Function Description The appearance of Communicator is shown in the figure below. The handset will be mounted on the left cradles and an iPad will be inserted from the right side. There are 2 stereo speakers are located at the bottom side with a control panel.
- Page 8 MOCET IP3092 Communicator DECT Series Quick User Guide iPad4 8-pin Need No need IP3092-L, IP3092L-C, IP3092L-DE, (Config.A) IP3092L-DK iPad Air 8-pin Need Required IP3092-L, IP3092L-C, IP3092L-DE, (Conf. B) IP3092L-DK iPad mini, 8-pin Need Required IP3092-L, IP3092L-C, IP3092L-DE, iPad mini2 (Conf. C) IP3092L-DK Different tray with side-holder configurations are shown below.
-
Page 9: Communicator Keys
MOCET IP3092 Communicator DECT Series Quick User Guide (Configuration C): The side-holders are installed on the inner top and bottom sides. When you remove the side-holders, please reserve them in a safe place. And when you want to use with other iPad model, they can be used. -
Page 10: I/O Port Functions
MOCET IP3092 Communicator DECT Series Quick User Guide Steady System is under upgrade or abnormal state Handset Fast Flashing Network is disconnected Steady Support HD audio quality. Blue HD audio quality not supported Normal condition Blue Steady On Home Blue-green LED indicates that speakerphone is enabled... - Page 11 MOCET IP3092 Communicator DECT Series Quick User Guide Micro SD Card Port For Communicator local use only (upgrade image, configure, voice mails, melody, IVR greeting, etc. USB 2.0 Host Port For Communicator local use only: Allows to support memory, keyboard and peripheral device to be connected to the Communicator.
- Page 12 MOCET IP3092 Communicator DECT Series Quick User Guide Figure 5. I/O Ports on Back Shell and Sides The Contents of Product Package: 1 x IP3092-D series unit 1 x wideband Handset with cord 1 x power adaptor 1 x Ethernet cable...
-
Page 13: Software Installation
Communicator. You will see a device ID like IP3092-xxxxxxxxxxx when finished scanning. When the iPad, iPhone or other mobile phone is properly paired with the Communicator, you will see it in the Information page of the Communicator web interface or on the Commander app interface on the iPad.. - Page 14 MOCET IP3092 Communicator DECT Series Quick User Guide Installing The Commander App on Your iPad When an iPad is inserted into the Communicator, the Communicator will scan the iPad to determine whether it has been well-connected and whether it has the IP Commander app installed previously.
- Page 15 MOCET IP3092 Communicator DECT Series Quick User Guide DECT Handset Operation with the Communicator Communicator IP3092D series models (IP3092-D / IP3092-DE and IP3092L-D / IP3092L- DE) include a DECT Base Station inside which supports DECT GAP and CATiq-2.0 compatible handsets.
- Page 16 MOCET IP3092 Communicator DECT Series Quick User Guide Receive a call from SIP line to the corresponding DECT handset (Direct Inward Dial call feature). See the picture above right side. Up to four concurrent calls can be made on the registered DECT handsets through the SIP lines on the Communicator.
- Page 17 MOCET IP3092 Communicator DECT Series Quick User Guide Configuring The Communicator Through The Web The Communicator can be configured using a web browser. The factory default Network type is DHCP. To access the web interface, please follow the following steps: Plug your iPad into the Communicator and follow the popup dialog to install the Commander App.
- Page 18 MOCET IP3092 Communicator DECT Series Quick User Guide There is also, a “Reset Configuration” button to clear the current configuration and reset the phone to its default configuration, but will leave any personalized user settings and phonebook entries. Upgrading the Communicator Normally, upgrading the Communicator can be done through the Web interface of the Communicator.
-
Page 19: More Information
MOCET IP3092 Communicator DECT Series Quick User Guide More Information Please refer to related User Manuals of the Communicator for more information or contact your administrator or supplier for advanced configuration support. Thank you for your choice of product. Remember to register your Communicator at first and record down your Communicator information below for further support service, if needed. - Page 20 MOCET IP3092 Communicator DECT Series Quick User Guide Notes This device has Model number, MAC Address and Serial Number which are located on the back of Base Unit. Please record down them for service check. Model Number: MAC :...
