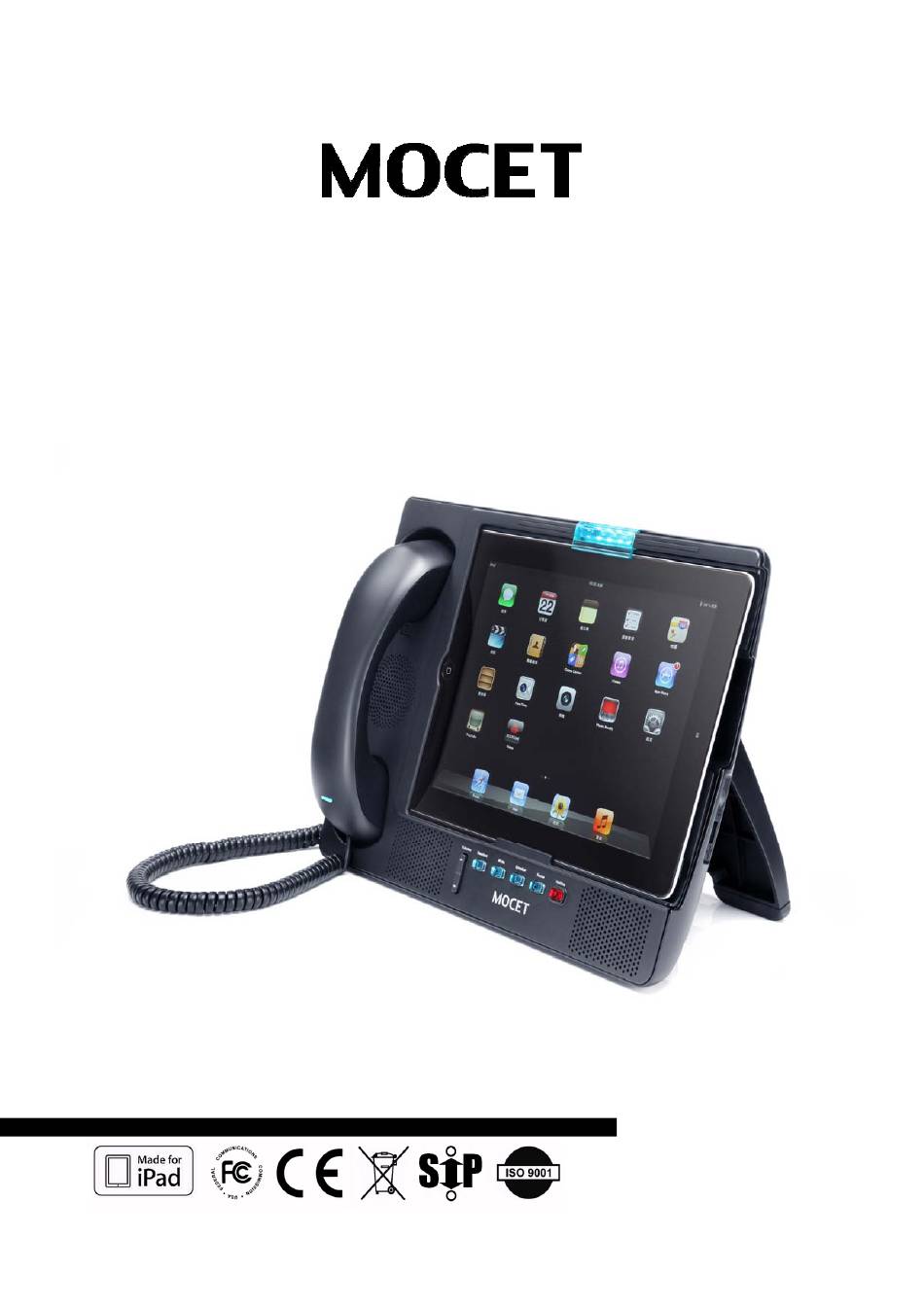

- Page 1 IP3092 Communicator App User Quick Guide Copyright © 2012, All Rights Reserved. Ver: R04 D/C: 101-1016...
-
Page 2: Ce Declaration Of Conformity
MOCET IP3092 Communicator Series Quick User Guide CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN55022 class B for ITE and EN 50082-1. This meets the essential protection requirements of the European Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility. -
Page 3: Federal Communication Commission Interference Statement
MOCET IP3092 Communicator Series Quick User Guide Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Hardware Installation
MOCET IP3092 Communicator Series Quick User Guide Introduction The MOCET™ Communicator™ is an innovative accessory for the Apple™ iPad™ that will enable you to use your iPad as your desk phone with popular APPs including FaceTime™ and Skype™. Use the high definition audio-enabled handset and speakerphone on the Communicator to enhance your communication and ensure privacy and comfort. - Page 5 MOCET IP3092 Communicator Series Quick User Guide the Figure 2 and the back shell ports of the Communicator. Figure 1. To Set up the Communicator with a proper stand angle Connect the Power: - Then plug the barrel plug of the included power adapter to the port marked 12VDC.
- Page 6 MOCET IP3092 Communicator Series Quick User Guide operation. [Remarks]: There are some ports not necessary for general App users. (1) External Mic: this is for VoIP conferencing use. Need to order special Microphone set IP-MIC. No other MIC device is allowed.
- Page 7 MOCET IP3092 Communicator Series Quick User Guide Communicator Keys Name of Key Description Press this key to enable or disable the Speakerphone; a blue LED is used to indicate status Speakerphone Press this key to mute a call (the other party will not be able to hear you).
-
Page 8: I/O Port Functions
MOCET IP3092 Communicator Series Quick User Guide Flashing 3 sec. iPad inserted or removed Besides, there is other LED that has nothing to do with App user mode. Please don’t care for them. N/A (Only supported in VoIP mode) Hotline... - Page 9 MOCET IP3092 Communicator Series Quick User Guide Figure 4. The 30-pin Connector for Docking Figure 5. I/O Ports on Back Shell and Sides Page...
-
Page 10: Software Installation
MOCET IP3092 Communicator Series Quick User Guide Software Installation Installing The Commander App on Your iPad When an iPad is inserted into the Communicator, the Communicator will scan the iPad to determine whether it has been connected to the Communicator and whether it has the Commander app installed. - Page 11 MOCET IP3092 Communicator Series Quick User Guide In addition, the user can charge his iPhone or other mobile phone by connect it to the USB port on the right side of the Communicator. (2) Tununing the Stand Angle for Video Player: The user can adjust the screen angle by holding the stand and the base unit and opening or closing the stand to a comfortable angle, ranging from 30 to 75 degrees (see the figure above).
- Page 12 MOCET IP3092 Communicator Series Quick User Guide handset or headset and volume can be adjusted independently for all three modes. To Pickup The APP Calls During Playing Music : (1) When you are playing the music, you can go to the Social Networking APP’s screen for standby.
- Page 13 MOCET IP3092 Communicator Series Quick User Guide Notes This device has Model number, MAC Address and Serial Number which are located on the back of Base Unit. Please record down them for service check. Model Number: IP3092 MAC :...
