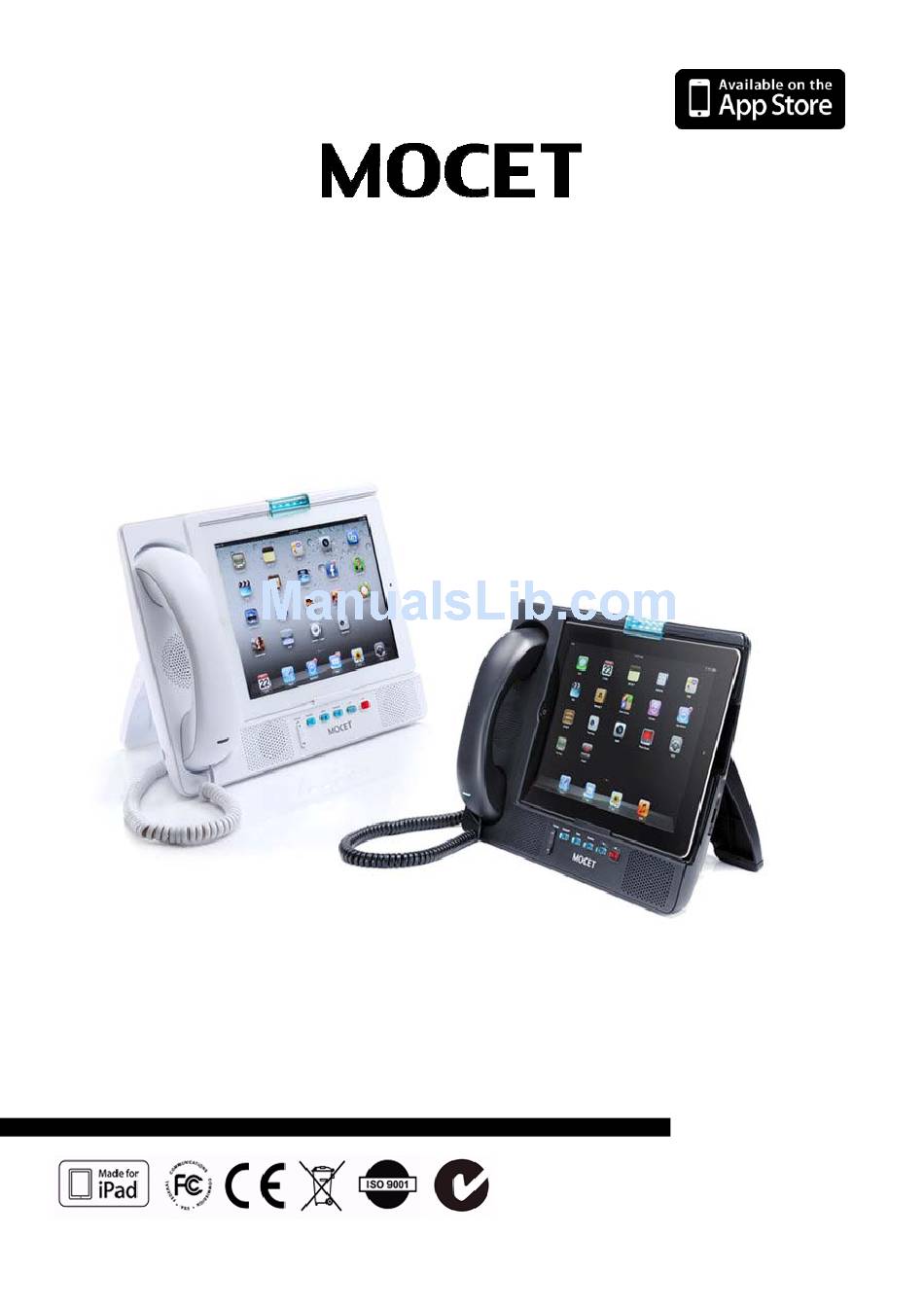

- Page 1 IP3092/IP3092L Communicator Quick User Guide Copyright © 2013, All Rights Reserved. Ver: R12 D/C: 102-1216...
-
Page 2: Ce Declaration Of Conformity
MOCET IP3092/IP3092L Communicator Quick User Guide CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN55022 class B for ITE and EN 50082-1. This meets the essential protection requirements of the European Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility. -
Page 3: Federal Communication Commission Interference Statement
MOCET IP3092/IP3092L Communicator Quick User Guide Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Hardware Installation
VoIP engine. If you wish to use social media or business communication Apps such as Skype, Facetime or Jabber etc., disregard the VoIP software installation section. (1) One micro-SD and one USB host port on the IP3092/IP3092L allows user to connect WiFi dongle, keyboard or other supported devices. - Page 5 Figure 1. To Set up the Communicator with a proper stand angle [Remark]: In the carton the hinge of IP3092 stand is set at 0 . To adjust the stand position, open the hinge by pulling firmly out from the stand. The first position of hinge is placed at 30 .
- Page 6 Communicator untill the MWI LED is extinguished. InsertingThe iPad: - Except iPad 1, keep the add-on tray in the dock no matter IP3092 (for iPad 2 and iPad 3) or IP3092L (for iPad 4). To dock the iPad 1, remove the add-on tray first. (see figure below).
-
Page 7: Communicator Keys
MOCET IP3092/IP3092L Communicator Quick User Guide Figure 3. The Communicator Front Appearance and Add-on Trays Communicator Keys Name of Key Description Press this key to enable or disable the Speakerphone; a blue LED is used to indicate status Speakerphone Press this key to mute a call (the other party will not be able to... -
Page 8: I/O Port Functions
MOCET IP3092/IP3092L Communicator Quick User Guide Press this key to make an emergency call no matter the iPad is attached or not; requires subscription to a VoIP service provider Hotline or connection to an IP PBX. A red LED is used to indicate its... - Page 9 MOCET IP3092/IP3092L Communicator Quick User Guide Handset Port RJ9 jack for attaching handset with curly phone cord Microphone Input Port RJ9 jack to connect an external microphone pair for hands free (conferencing) mode Ethernet LAN Port RJ45 Ethernet port for VoIP applications Note: This port is not necesary for App user.
- Page 10 MOCET IP3092/IP3092L Communicator Quick User Guide Figure 5. I/O Ports on Back Shell and Sides Page...
-
Page 11: Software Installation
MOCET IP3092/IP3092L Communicator Quick User Guide Software Installation If you are not a VoIP user or want to use VoIP later, you can skip this section, there is no need to install the Commander app. However, the system will always display a dialog box for asking you to install the Commander app if you haven’t installed the app in your iPad. - Page 12 You can pair your iPad, iPhone or another mobile phone to the Communicator by using the Bluetooth discovery process on your iPad, iPhone or another mobile phone to find and associate it to the Communicator. You will see a device ID like IP3092-xxxxxxxxxxx when finished scanning.
-
Page 13: More Information
MOCET IP3092/IP3092L Communicator Quick User Guide Speaker, Headset or Handset just by pressing the Speaker key, Headset key, or handset off-hook. To Run Social Networking APP Many users like to run social networking and communications apps, like Facetime Skype , Hookflash™ and other apps on their iPads. The Communicator’s high quality audio system greatly enhances the user experience for voice and video calls. - Page 14 MOCET IP3092/IP3092L Communicator Quick User Guide Notes This device has Model number, MAC Address and Serial Number which are located on the back of Base Unit. Please record down them for service check. Model Number: IP3092 MAC :...
