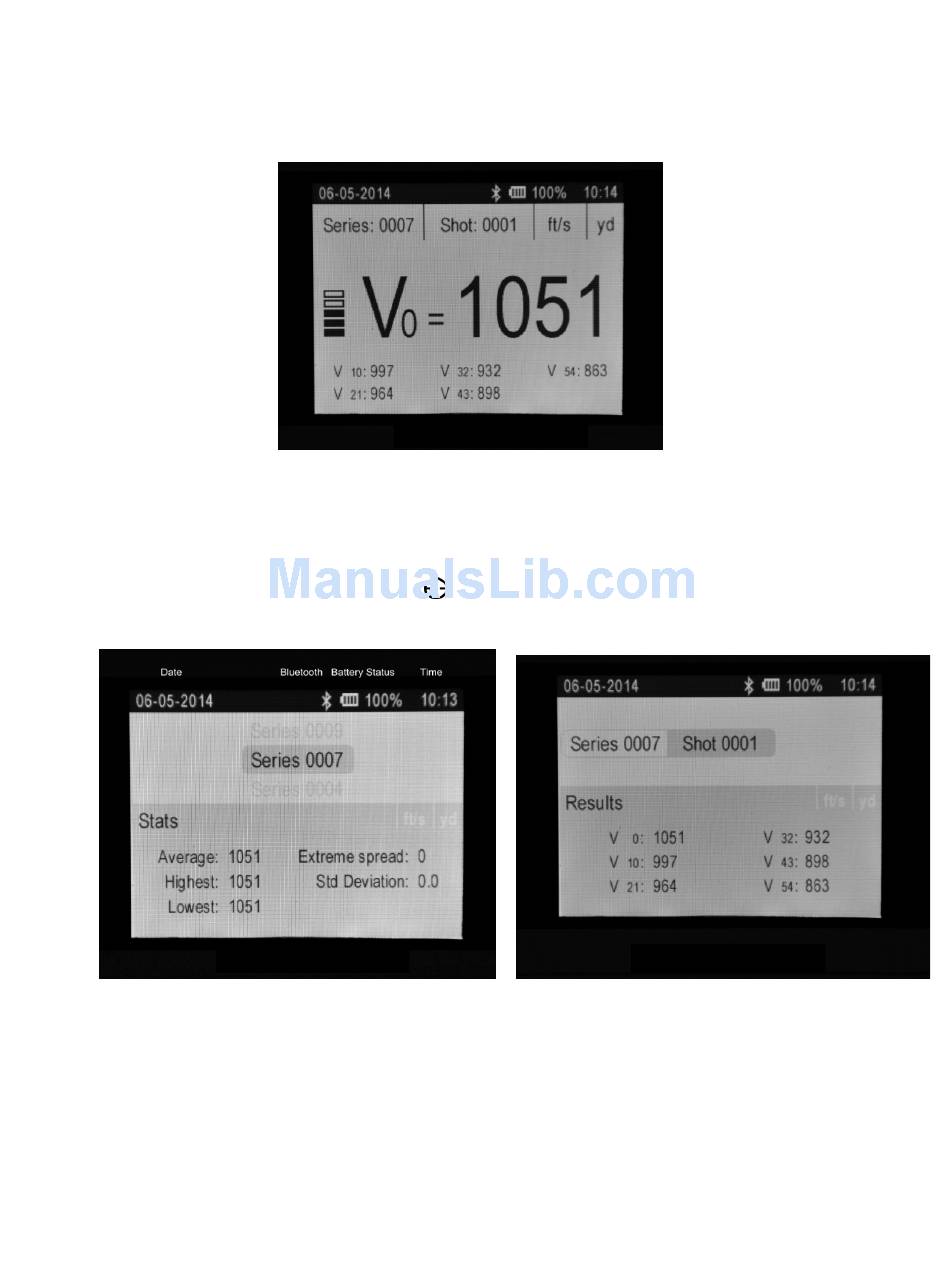

4.3.4 Armed View mode (Red indicator)
When the system is armed, the indicator turns Red. The last shot of the current series is displayed and if a
Trigger is received, the system will display the new shot on screen. The screen displayed is identical to the
Last shot review.
4.3.5 Review Mode (Blue indicator)
The review mode allows the user to navigate through all the results available in the LabRadar. When it it
turned ON, the LabRadar starts in Review mode. To access the Review mode from the Last shot review or
the Armed view, the user should hold the arm
look like that:
Infinition Inc. Rev. 02
button for 2 seconds. The Review mode display should
