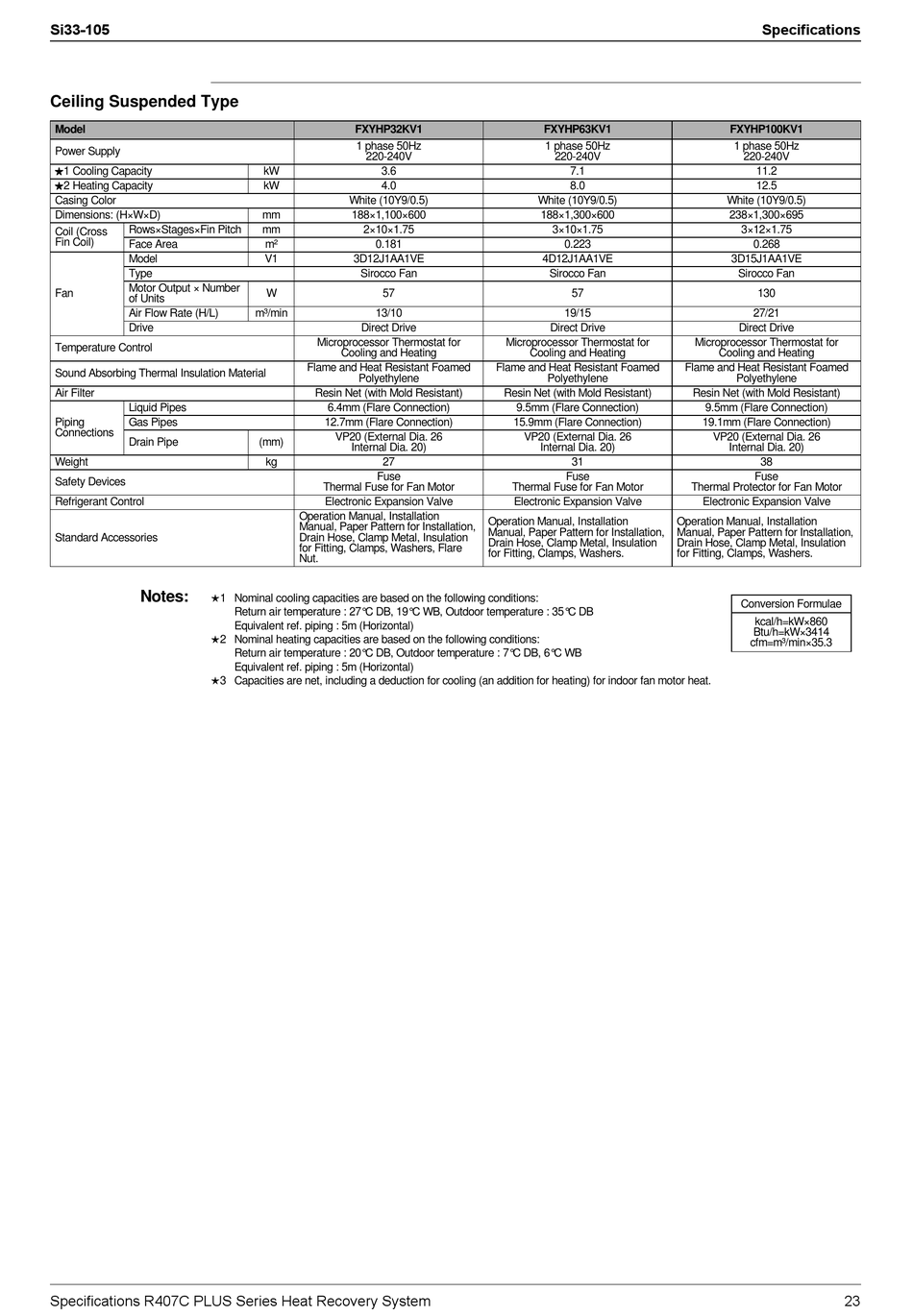

Daikin R407C PLUS Service Manual page 34

Si33-105
Ceiling Suspended Type
Model
Power Supply
" " " " 1 Cooling Capacity
" " " " 2 Heating Capacity
Casing Color
Dimensions: (H×W×D)
Rows×Stages×Fin Pitch
Coil (Cross
Fin Coil)
Face Area
Model
Type
Motor Output × Number
Fan
of Units
Air Flow Rate (H/L)
Drive
Temperature Control
Sound Absorbing Thermal Insulation Material
Air Filter
Liquid Pipes
Piping Gas Pipes
Connections
Drain Pipe
Weight
Safety Devices
Refrigerant Control
Standard Accessories
Notes:
"
1 Nominal cooling capacities are based on the following conditions:
" 2 Nominal heating capacities are based on the following conditions:
" 3 Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat.
Specifications R407C PLUS Series Heat Recovery System
FXYHP32KV1
1 phase 50Hz
220-240V
kW 3.6
kW 4.0
White (10Y9/0.5)
mm 188×1,100×600
mm 2×10×1.75
m² 0.181
V1 3D12J1AA1VE
Sirocco Fan
W 57
m³/min 13/10
Direct Drive
Microprocessor Thermostat for
Cooling and Heating
Flame and Heat Resistant Foamed
Polyethylene
Resin Net (with Mold Resistant)
6.4mm (Flare Connection)
12.7mm (Flare Connection)
VP20 (External Dia. 26
(mm)
Internal Dia. 20)
kg 27
Fuse
Thermal Fuse for Fan Motor
Electronic Expansion Valve
Operation Manual, Installation
Manual, Paper Pattern for Installation,
Drain Hose, Clamp Metal, Insulation
for Fitting, Clamps, Washers, Flare
Nut.
Return air temperature : 27°C DB, 19°C WB, Outdoor temperature : 35°C DB
Equivalent ref. piping : 5m (Horizontal)
Return air temperature : 20°C DB, Outdoor temperature : 7°C DB, 6°C WB
Equivalent ref. piping : 5m (Horizontal)
FXYHP63KV1
1 phase 50Hz
220-240V
7.1
8.0
White (10Y9/0.5)
188×1,300×600
3×10×1.75
0.223
4D12J1AA1VE
Sirocco Fan
57
19/15
Direct Drive
Microprocessor Thermostat for
Cooling and Heating
Flame and Heat Resistant Foamed
Polyethylene
Resin Net (with Mold Resistant)
9.5mm (Flare Connection)
15.9mm (Flare Connection)
VP20 (External Dia. 26
Internal Dia. 20)
31
Fuse
Thermal Fuse for Fan Motor
Electronic Expansion Valve
Operation Manual, Installation
Manual, Paper Pattern for Installation,
Drain Hose, Clamp Metal, Insulation
for Fitting, Clamps, Washers.
Specifications
FXYHP100KV1
1 phase 50Hz
220-240V
11.2
12.5
White (10Y9/0.5)
238×1,300×695
3×12×1.75
0.268
3D15J1AA1VE
Sirocco Fan
130
27/21
Direct Drive
Microprocessor Thermostat for
Cooling and Heating
Flame and Heat Resistant Foamed
Polyethylene
Resin Net (with Mold Resistant)
9.5mm (Flare Connection)
19.1mm (Flare Connection)
VP20 (External Dia. 26
Internal Dia. 20)
38
Fuse
Thermal Protector for Fan Motor
Electronic Expansion Valve
Operation Manual, Installation
Manual, Paper Pattern for Installation,
Drain Hose, Clamp Metal, Insulation
for Fitting, Clamps, Washers.
Conversion Formulae
kcal/h=kW×860
Btu/h=kW×3414
cfm=m³/min×35.3
23
