UHF Wireless System
Owners Manual

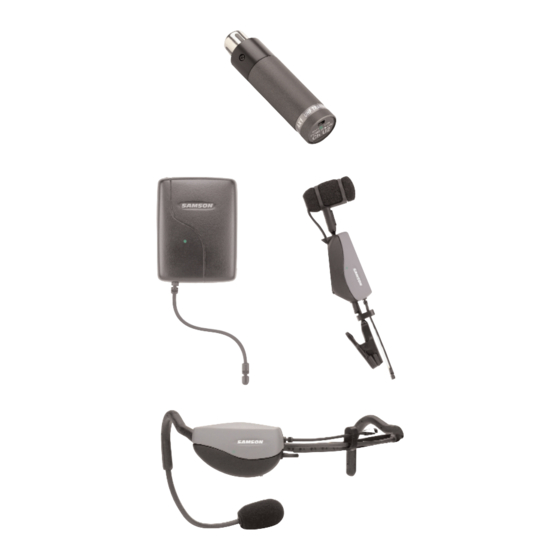

• AX1 Handheld Transmitter
• AL1 Presentation Transmitter
• AH1/QE Aerobics Headset Transmitter
• AH1/QV Vocal Headset Transmitter
• AH1/35X Wind Instrument Transmitter
• AR1 Receiver
®
Handheld Transmitter
Wind
Presentation
Instrument
Transmitter
Transmitter
Headset Transmitter
Advertisement
Related Manuals for Samson AirLine
Summary of Contents for Samson AirLine
- Page 1 UHF Wireless System Handheld Transmitter Owners Manual • AX1 Handheld Transmitter • AL1 Presentation Transmitter • AH1/QE Aerobics Headset Transmitter Wind • AH1/QV Vocal Headset Transmitter Presentation Instrument Transmitter Transmitter • AH1/35X Wind Instrument Transmitter • AR1 Receiver ® Headset Transmitter...
-
Page 2: Table Of Contents
Configuration et utilisation des systèmes AirLine 31 Ajuste y uso de su sistema AirLine 65 Annexe A : Système AirLine Wind Instrument 70 Apéndice A: Sistema para instrumentos de viento AirLine 72 Spécifications 73 Especificaciones 73 Tableau de conversion de fréquence 75 Tabla de conversión de frecuencias 75... -
Page 3: Introduction
AirLine UHF Wind Instrument System combines the AH1 with an Audio-Technica Pro 35X horn microphone. In this manual, you’ll find a more detailed description of the features of all AirLine systems, as well as a guided tour through all components, step-by-step instructions for setting up your system and full specifications. -
Page 4: Quickstart
If you’ve had some prior experience using wireless systems, these QuickStart instructions will get you up and running with your AirLine system in a matter of minutes! Detailed instructions for setting up and using your AirLine system can be found on page 14 of this manual, and the “Guided Tour”... - Page 5 11. Do a walkaround through the intended area of coverage while observing the AR1’s “Power/RF” LED; it should be lit steadily green in all areas of coverage. Reposition it (or its antenna) as necessary. If extended range coverage is required, a Samson UR1 true diversity receiver (set to the same channel) can be substituted.
-
Page 6: Guided Tour - Ar1 Receiver
It can be folded inward for convenience when transporting the AR1. See the “Setting Up and Using Your AirLine System” section on page 14 in this manual for more information about antenna positioning. - Page 7 See the “Setting Up and Using Your AirLine System” section on page 14 in this manual for more information. 9: DC input - Connect the supplied 12 volt 200 mA power adapter here.
-
Page 8: Guided Tour - Ax1 Handheld Transmitter
Guided Tour - AX1 Handheld Transmitter Samson AirLine 1: XLR connector - Connect this standard female XLR connector into any standard wired dynamic microphone in order to make it a wireless mic. 2: Rubber gasket - If necessary, use this provided rubber gasket... - Page 9 6: Microphone Input Level control (trimpot) - Use the supplied plastic screwdriver to raise or lower the input level sensitivity of the AX1 as required. See the “Setting Up and Using Your AirLine System” section on page 14 in this manual for more information.
-
Page 10: Guided Tour - Al1 Body Pack Transmitter
2: Antenna - This permanently attached flexible antenna should be fully extended during normal operations. See the “Setting Up and Using Your AirLine System” section on page 14 in this manual for more information about antenna positioning. -
Page 11: Setting Up And Using Your Airline System
5: Gain control (trimpot) - Use the supplied plastic screwdriver to raise or lower the input level sensitivity of the AL1 as required. See the “Setting Up and Using Your AirLine System” section on page 14 in this manual for more information. - Page 12 For more information on positioning the AL1, see the “Setting Up and Using the AirLine System” section on page 14 in this manual.
- Page 13 2: Antenna - This permanently attached flexible antenna should be fully extended during normal operations. See the “Setting Up and Using the AirLine System” section on page 14 in this manual for more information about antenna positioning. 3: Battery compartment - Insert a standard AAA alkaline battery here, being sure to observe the plus and minus polarity markings shown.
- Page 14 Guided Tour - AH1 Headset Transmitter Samson AirLine 4: Mute switch - Move this switch in the direction of the arrow to mute the AH1; move it away from the arrow to unmute it and trans- mit audio signal. Because the carrier signal remains during muting, no “pop” or “thud” will be heard. Note that turning this off does not turn off the transmitter power—it is simply a way to temporarily mute the transmission of audio signal.
- Page 15 Guided Tour - AH1 Headset Transmitter Samson AirLine AH1 transmitter with Samson QV Headset Mic (UHF Performance System) or Samson QE Headset Mic (UHF Fitness System) As shown in the illustration above, the correct way to wear your QV / QE Headset is over the ears, as you would wear a pair of eyeglasses.
-
Page 16: Channel Plan
The basic procedure for setting up and using your AirLine System takes only a few minutes: 1. For your AirLine system to work correctly, both the receiver and transmitter must be set to the same channel. Remove all packing materials (save them in case of need for future service) and check to make sure that the supplied AR1 receiver and AX1, AL1 or AH1 transmitter are set to the same channel (page 71 in this manual presents a complete channel plan). - Page 17 Setting Up and Using Your AirLine System Samson AirLine the AR1, then plug the adapter into any standard AC outlet. Slide the Power switch in the direction of the arrow to turn on the AR1; the “Power/ RF” LED will light steadily red.
- Page 18 Setting Up and Using Your AirLine System Samson AirLine 11. If you hear distortion at the desired volume level, first check to see whether the red “Peak” LED on the AR1 is lit. If it is not, make sure that the gain structure of your audio system is correctly set (consult the owners manual of your mixer and/or amplifier for details).
- Page 19 “Min” position (so as to have the greatest overall range available). 14. When first setting up your AirLine System in a new environment, it’s always a good idea to do a walkaround in order to make sure that coverage is provided for your entire performance area.
- Page 20 Samson AirLine The AirLine UHF Wind Instrument System is the first wireless system designed for brass and reed instruments that eliminates the need for a body pack and unwieldy microphone cables that limit your movement. Here is a guided tour of its features: 1: Audio-Technica Pro 35X horn microphone - This microphone is “hard-wired”...
-
Page 21: Specifications
Specifications Samson AirLine AR1 Receiver Receiving Frequencies: USA 801-805MHz (U1-U6), One frequency in Channel Plan Frequency Type: Modulation Type: Type of Reception: Single superheterodyne OSC (Oscillator) System: Crystal controlled OSC (oscillator) Local Oscillator Frequency: 79MHz Range Intermediate Frequency: 10.7 MHz... - Page 22 Specifications Samson AirLine Output Impedance: Unbalanced output 5K – 10K ohms, Balanced output 600K – 2.5K ohms Power: AC adapter (12DVC/more than 200mA) Current Consumption: Less than 70mA Max Peak LED Lighting div. frequency: Div. f23kHz ±3kHz (at AF output approx. +7dBv)
- Page 23 AirLine Channel Plan Samson AirLine Mid frequencies: Channel Frequency 801.375 MHz 801.875 MHz 803.125 MHz 803.750 MHz 804.500 MHz 804.750 MHz...
- Page 24 FCC Rules and Regulations Samson wireless systems are type accepted under FCC rules parts 90, 74 and 15. Licensing of Samson equipment is the user’s responsibility and licensability depends on the user’s classification, application and frequency selected. This device complies with RSS-210 of Industry &...
