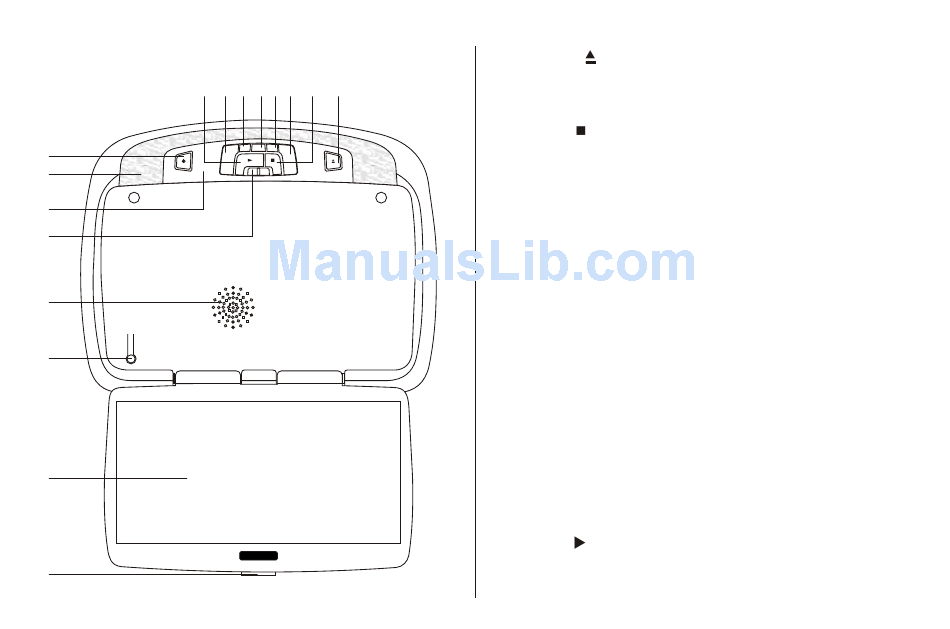

CONTROLS AND INDICATORS DIAGRAM (FRONT VIEW)

9
10
11
12
13
14
15
16
8 7 6 5 4 3 2 1
– P +
FMM S
ON OFF AUTO
1. EJECT ( ) Button
This Button is used for ejecting discs from the disc
compartment.
2. STOP ( ) Button
This button is used to stop playback.
3. Source Select
Use to select one of the four sources: DVD, AV1, AUX / GAME,
AV2 / *TV (Optional).
4. Volume (+)
To increase the volume of wired headphone and level of
picture control.
5. Picture Select Button
Allows the user to adjust the picture adjustment mode.
6. Volume (–)
To decrease the volume of wired headphone and level of
picture control.
7. FMM Source Select Switch
Used to select the frequency in sequence rotation: FM OFF,
88.3MHz, 88.7MHz, 89.1MHz, 89.5MHz or 89.9MHz.
8. PLAY ( ) Button
This button is used to start playback of a disc.
4
