WCB-200 Admin Guide
2. Click Bridge port in the table.
3. Under Assign IP address via, select the option you want to use. and click Configure.
4. Define addressing settings are required.

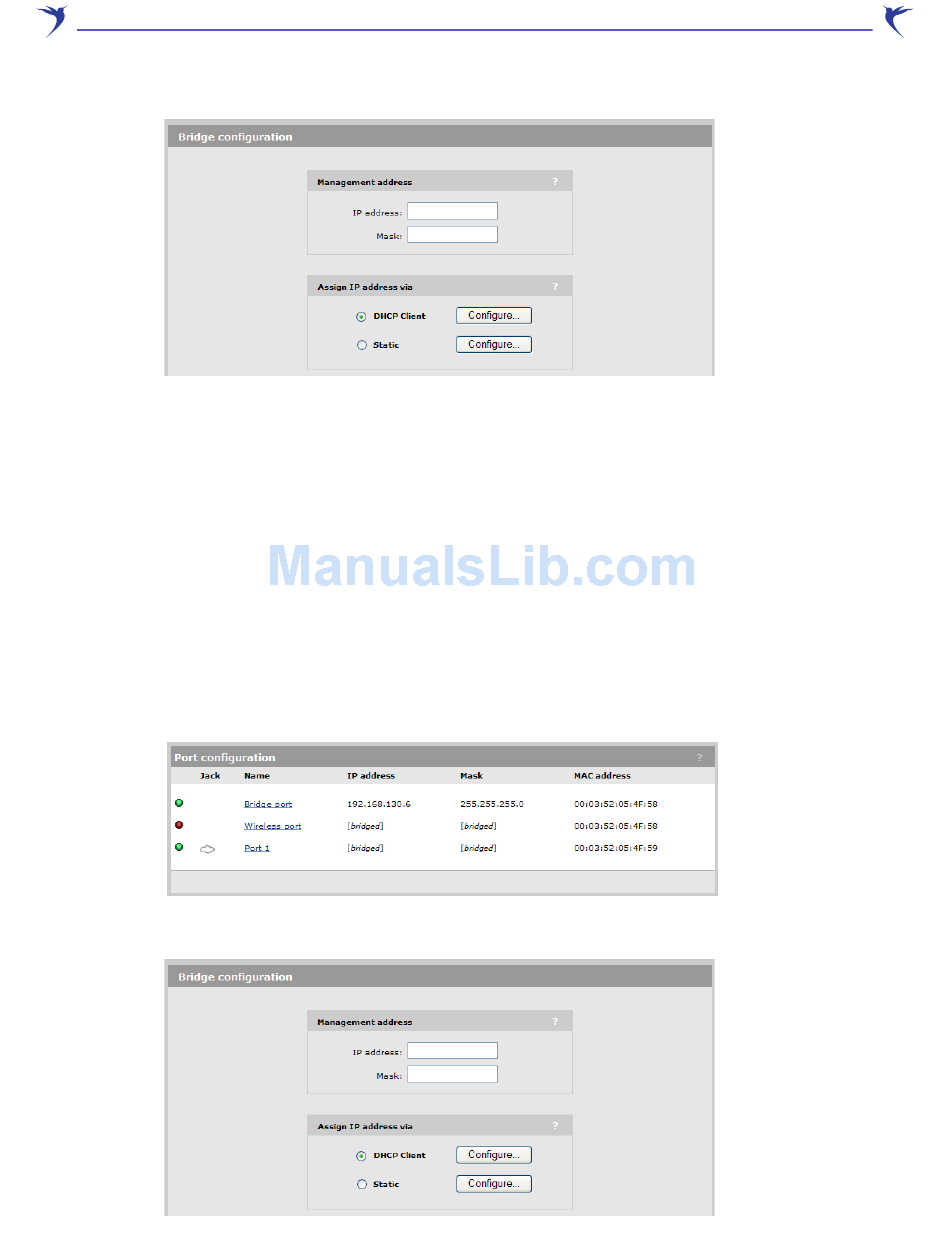

Management IP address

The WCB-200 lets you assign a second, static, IP address to port 1. This provides easy access to
the management tool when using a DHCP server.
This address must not be on the same subnet as the address already assigned to
Note:
port 1.
To assign a static IP address to the WCB-200:
1. Select Network > Ports.
2. Click Bridge port in the table.
23 4 Working with the WCB-200
