WCB-200 Admin Guide
The WCB-200
This chapter describes the WCB-200 hardware features and its installation.
Before permanently installing devices, it is recommended that you first become familiar with their
basic functionality as described in
Caution:
You must use shielded Ethernet cables for all connections.
Package contents
WCB-200, two 2.4-GHz (2-dBi) / 5-GHz (2-dBi) dual-band omnidirectional antennas,
Documentation CD, power supply, mounting bracket, spring clip. The WCB-200 ships fully
assembled and ready to operate.
Antennas
The WCB-200 has a single radio with two antennas for diversity. The Main antenna connector is
located on the front panel and the Auxiliary antenna connector is located on the back panel.
The antenna connectors are reverse-polarity SMA jacks. Antennas or cable connectors must use
RP-SMA plugs. Antennas can be mounted directly on the WCB-200 or an external antenna can be
connected to the Main antenna connector.

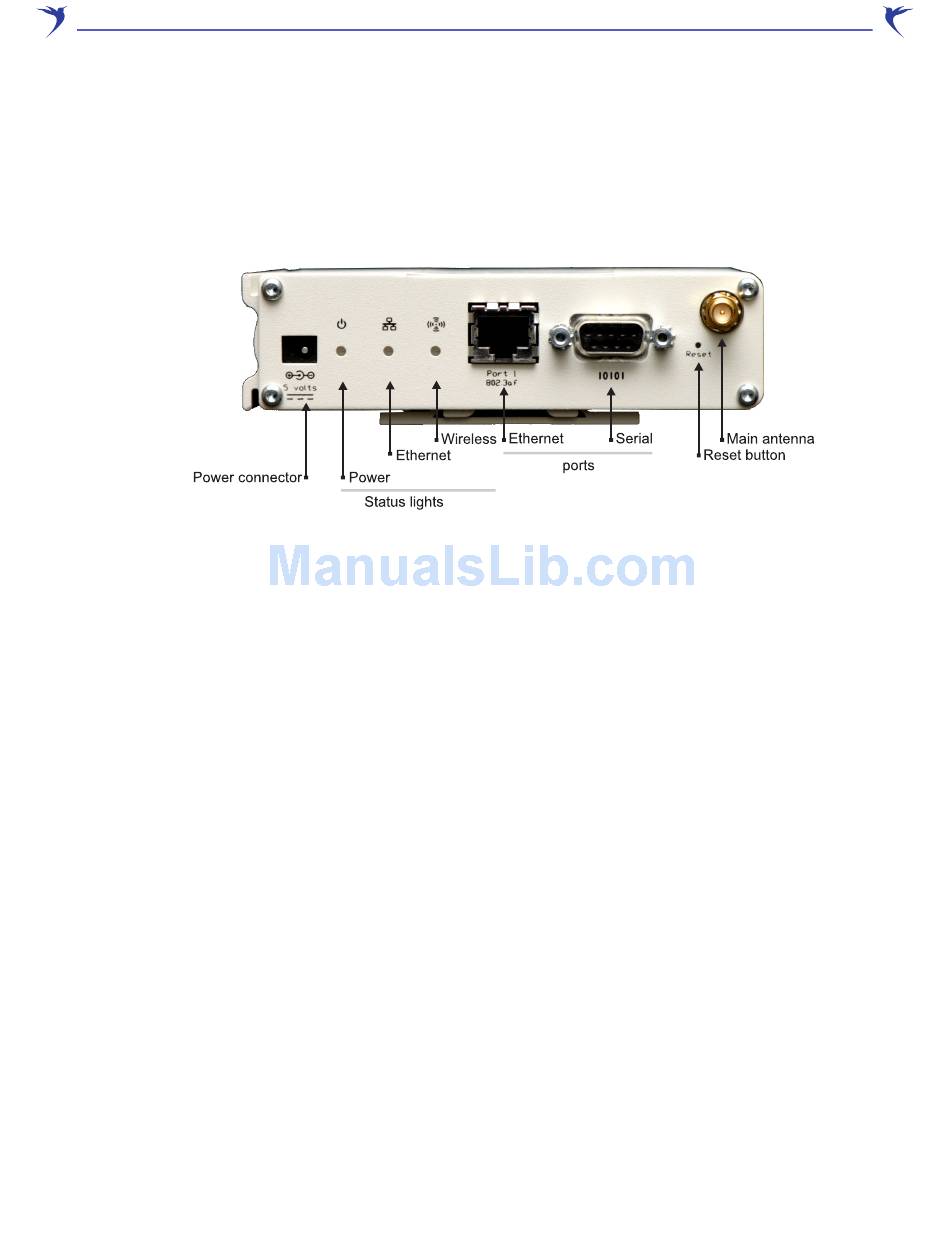

Ports
The WCB-200 has a single 10/100 Mbps Ethernet port with an RJ-45 connector and a serial
(Console) port with a DB-9 connector.
12
"Chapter 3: Getting started" on page
2 WCB-200 hardware
15.
