Philips HD7630/01 Service Manual

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
Voltage : 100 V, 120 V, 220 - 240 V
Frequency : 50 - 60 Hz
Power consumption : 1400 W
Coloursetting : White / vapour dusk
Contents : 1200 cc
Colour code identifi cation:
To determine which service manual is suitable for the
appliance that has to repaired please check the following.
Look at the type plate identifi cation from the appliance on
the second row.
The fi rst sledge number is the colour code for that
appliance. ( /99 )
(for example below the colour code is /01)
Example of a type plate:
TYPE HD7624
/01 /A
...
...
At the service manual heading, the type and colour code
are also mentioned for example HD7624/01
/01 is the colour code.
This product meets the requirements regard-
ing interference suppression on radio and TV.
Published by Philips Domestic Appliances and Personal Care
4322 277 00950
03/08

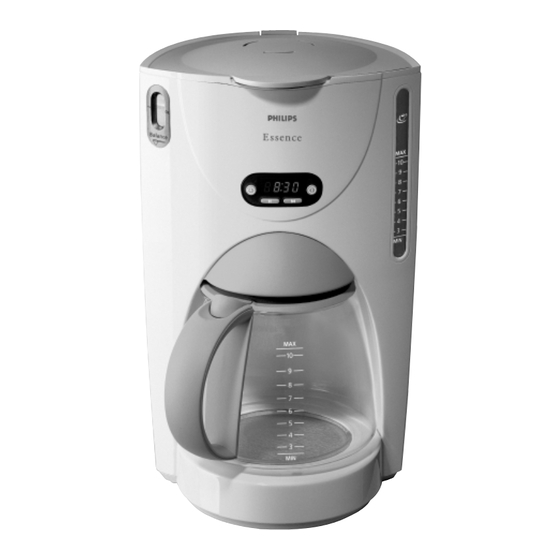

Coffee maker Essence II
L
Clock
Timer
Module
N
Descaling:
Regular de-scaling will prolong the life of your appliance and
will guarantee optimal brewing results.
Follow below steps to de-scale the appliance.
1. Fill the water tank with white vinegar.
2. Let the appliance complete two runs.
3. Let the appliance complete two more fl ushing cycles
with clean water to rinse away all vinegar.
If the above procedure does not restore the function, then
switch off the coffee maker when the acid passed through
during appr. 3 min.
Keep the appliance in this condition overnight and continue
the steps see above procedure.
After the product has been repaired, it should
function properly and has to meet the safety
requirements as offi cially laid down at this
moment.
Printed in the Netherlands © Copyright reserved
HD7630/01
SAP coding HD7630/01
Thermostat
Power
Element
Module
1400 W
Thermal
fuse
Subject to modification
