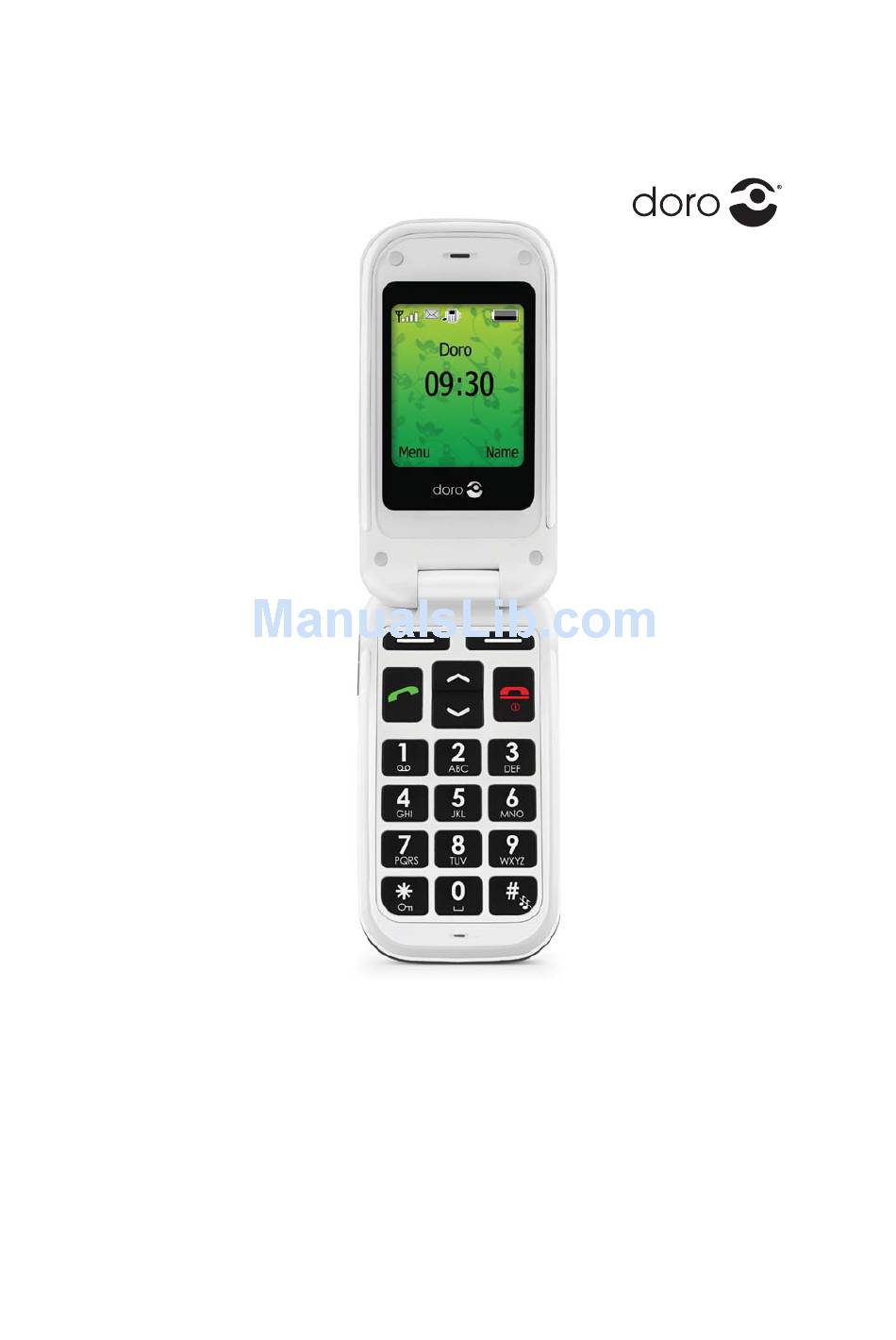

- Page 1 Doro PhoneEasy 409s gsm ®...
- Page 3 English 1. Side key (volume) 11. Charging contacts, for use with charging stand (not 2. Display 3. Left soft key included) 4. Call key 12. Emergency call key 5. 1 / Voice mail 13. Battery cover 6. Numeric keypad 14. Headset socket 7.
-
Page 4: Table Of Contents
English Contents Installation ........3 Installing the SIM card and battery . - Page 5 English Settings ........21 Time and date .
-
Page 6: Installation
English Installation Warning! Turn off the phone and disconnect the charger before removing the battery cover. Installing the SIM card and battery The SIM card holder is located behind the battery. 1. Remove the battery cover by pressing it carefully down and sliding away from the emergency call key. -
Page 7: Charging
English Charging Warning! Only use batteries, charger and accessories that have been approved for use with this particular model. Connecting other accessories may be dangerous and may invalidate the phone’s type approval and guarantee. When the battery is running low, is displayed and a warning signal is heard. -
Page 8: Phone Indicators
English Save energy When you have fully charged the battery and disconnected the charger from the device, unplug the charger from the wall outlet. Phone indicators When 5 CUJGU [QW JCXG C PGY OGUUCIG QT C OKUUGF ECNN When ] CUJGU VJG DCVVGTKGU KU TWPPKPI NQY... -
Page 9: Operation
English Operation Activating the phone Press and hold the red button on the phone to turn it on/off. The following messages may be displayed: SIM card missing or SIM card damaged or not incorrectly inserted. valid. If the SIM card is valid but protected with a PIN code (Personal +FGPVK ECVKQP 0WODGT is displayed. -
Page 10: Making A Call
English Making a call 1. Enter the phone number. Delete with Clear 2. Press q to dial. Press to cancel dialling. Abort 3. Press L to end the call. Note! When making international calls, press twice for the KPVGTPCVKQPCN RTG Z #NYC[U WUG q q DGHQTG VJG EQWPVT[ code (instead of 00 or similar) for best operation. -
Page 11: Display Symbols
English Display symbols Signal strength Headset connected Ring only Battery level Ring + vibration New SMS Vibration only Silent Alarm active Roaming (in other network) SIM card missing Charger connected SIM card error Charger disconnected Mute Headset connected New SMS message Headset disconnected SOS calls only Handsfree on... -
Page 12: Additional Functions
English Additional functions Call options During a call the soft keys give access to additional functions: Options (left soft key) A menu with the following options is displayed: Hold single call Hold the current call End the current call (same as L ) End single call Call another number (three-party call) New call... -
Page 13: Call Waiting
English Call waiting An alert tone will be heard if there is an incoming call while talking. To put the current call on hold and answer the incoming call, press Options This service must be activated, see Settings/Call setup. Call information During a call, the called or calling phone number and the elapsed call time is displayed. -
Page 14: Phonebook
English Phonebook The phonebook can store 100 entries with 3 phone numbers in each entry. Creating a phonebook entry 1. Press , scroll to and press Menu 2. Select and press -New contact- 3. Enter a name for the contact, see 6GZV KPRWV. - Page 15 English Send SMS Press to write a SMS message, see messaging. Top 10 setting 5GV VJG GPVT[ CU QPG QH VJG TUV PWODGTU NKUVGF KP VJG phonebook. 1. Select one of the empty entries and press 2. Use the arrow keys to scroll through the phonebook, or quick search by pressing the key corresponding VQ VJG TUV NGVVGT QH VJG GPVT[...
-
Page 16: Silent Mode
English Storage Select (default) and press to select the Phone default storage for new phonebook entries. 100 contacts with 3 phone numbers each Mobile, Phone Home number 2I¿FH QXPEHU. 1 phone number per contact. Number of entries and length of the phone numbers/contacts that can be stored will vary depending on SIM card. -
Page 17: Sos Calls
English SOS calls As long as the phone is switched on, it is possible to place an SOS call by entering the main local emergency number followed by q . Some networks accept calls to SOS numbers without a valid SIM card. -
Page 18: Games
English Games 1. Press , scroll to and press Menu 2. Select a game (e.g. ) then press for the following Robot settings: Start game Press to start a new game. 5GNGEV FKH EWNV[ NGXGN CPF RTGUU OK. Game level Back Shows your best results. -
Page 19: Calendar
English Calendar 1. Press , scroll to and press Menu 2. Select Options 3. Select one of the following options and press View tasks Show tasks for the selected date. Add task 1. Enter a date for the task, then press 2. -
Page 20: Text Input
English Text input Text is entered by pressing the numerical keys repeatedly to select characters. When writing SMS messages in some languages you can use the Smart ABC (eZiType™) input method which uses a dictionary to suggest words. Settings on how to change input method. Entering text Press the key repeatedly until the desired character is shown. -
Page 21: Sms Messaging
English SMS messaging Creating and sending SMS 1. Press , scroll to and press Menu 2. Select and press Write message 3. Type your message (see 6GZV KPRWV) then press Done 4. Select one of the sending options below and press EQP TO Save and send Send the message and save it in the Outbox... -
Page 22: Incoming Sms (Inbox)
English Incoming SMS (Inbox) 1. Press , scroll to and press Menu 2. Select and press Inbox 3. Select a message from the list and press Read to scroll the message up/down. 4. Press , see 1WVIQKPI 5/5 1WVDQZ . Options Outgoing SMS (Outbox) 1. - Page 23 English Call Press to call the contact. Delete Press to delete the message, or to return to the menu. Edit Edit the message, then press to show the sending options Done (see Creating and sending SMS). Forward (Inbox) Forward a message from your Inbox. Press to show the Done sending options.
-
Page 24: Settings
English Settings Note! The settings described in this chapter are carried out in standby mode. Time and date Setting the time and date 1. Press , scroll to and press Menu 2. Select and press Time & date 3. Select and press Set time 4. -
Page 25: User Setup
English To set the phone to automatically update the time and date according to the current time zone, select Automatic update of date and time does not change the time you have set for the alarm clock, calendar or the alarm notes. They are in local time. - Page 26 English Owner number The phone numbers assigned to your SIM card are saved in Owner numbers if this is allowed by the card. To view/edit/delete the numbers: 1. Press , scroll to and press Menu 2. Select and press User setup 3.
-
Page 27: Tone Settings (Rings & Tones)
English Tone settings (rings & tones) Tone setup 1. Press , scroll to and press Menu 2. Select and press Tone settings 3. Select and press Tone setup 4. Select and press Ring Tone 5. Select one of the available tones, the tone will be played. Press VQ EQP TO QT RTGUU to discard changes. -
Page 28: Silent
English Warning and error tones Warning and error tones are used to alert the user of low battery power, phone and SIM card errors, etc. 1. Press , scroll to and press Menu 2. Select and press Tone settings 3. Select and press Extra tone 4. -
Page 29: Emergency
English Emergency Settings for the Emergency Call key function. See also Operation/Emergency call. 1. Press , scroll to and press Menu 2. Select and press for the following settings: Emergency Activation Select one of the following options and press Emergency call key disabled. Emergency Call key enabled. -
Page 30: Voice Mail
English To edit or delete an existing entry, select it and press Options then select and press Edit Delete Message The SMS text message to be sent when the Emergency Call key is pressed. Press and enter text, then press to save. -
Page 31: Speed Dial
English Edit To edit an existing entry, select it and press , then select Options and press Edit Delete To delete an existing entry, select it and press , then Options select and press Delete Speed dial The numerical keys –... -
Page 32: Call Setup
English Call setup Depending on network support and subscription. 1. Press , scroll to and press Menu 2. Select and press for the following settings: Call setup Caller ID Controls display of your phone number on the recipients phone. Select an option and press Use default setting by the network Set by network Hide ID... -
Page 33: Sms Settings
English Call barring The phone can be restricted to disallow certain types of calls. Note! To change these settings a password is needed. Contact your network operator to get the password. Outgoing calls Press then select: All calls User can answer incoming calls but not dial out. Internat. - Page 34 English Memory status Displays the percentage of memory space used in the SIM card and phone memory. Pref. storage 1. Select to store messages on the SIM card, or Phone store messages in the phone memory. 2. Press VQ EQP TO Predictive text (Smart ABC) 1.
-
Page 35: Network Setup
English Network setup 1. Press , scroll to and press Menu 2. Select and press Network setup 3. Select one of the following options and press VQ EQP TO Automatic Network is selected automatically. A list of available network operators is displayed (after a Manual short delay). - Page 36 English Fixed dial (FDN) You can restrict calls to certain numbers saved on the SIM card. The list of restricted numbers is protected by your PIN2-code. On/Off and press OK. Enter PIN2 and press Select Mode VQ EQP TO Options Press for the following settings: Fixed...
-
Page 37: Safety Instructions
English Safety instructions Warning! The unit and the accessories can contain small parts. Keep all of the equipment out of the reach of small children. The mains adapter is the disconnect device between the product and mains power. The mains socket outlet must be close to the equipment and easily accessible. -
Page 38: Areas With Explosion Risk
English Pacemakers The Health Industry Manufacturers Association recommends that a minimum separation of 15 cm be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. Persons with pacemakers: r Should always keep the phone more than 15 cm from their pacemaker when the phone is turned on r Should not carry the phone in a breast pocket r Should use the ear opposite the pacemaker to minimize the potential... -
Page 39: Emergency Calls
English Emergency calls Important! Mobile phones use radio signals, the mobile phone network, the terrestrial network and user-programmed functions. This means that connection cannot be guaranteed in all circumstances. Therefore, never rely only on a mobile phone for very important calls such as medical emergencies. Hearing aids This device should work with most hearing aid equipment in the market. - Page 40 English RF exposure information (SAR) This model phone meets the government’s requirements for exposure to radio waves. This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
- Page 41 English FCC/INDUSTRY CANADA NOTICE This device complies with part 15 of the FCC Rules. This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 42: Troubleshooting
English Troubleshooting Phone cannot be switched on Battery charge low Connect the power adapter and charge the battery for 3 hours. Check the installation of the Battery incorrectly installed battery. Failure to charge the battery Check the battery and charger. Battery or charger damaged Battery recharged in temperatures Improve the charging environment. - Page 43 English SIM card error Check the condition of the SIM SIM card damaged card. If it is damaged, contact the network operator. SIM card incorrectly installed Check the installation of the SIM card. Remove the card and reinstall Wipe the contact surfaces of the SIM card dirty or damp SIM card with a clean cloth.
-
Page 44: Care And Maintenance
English Care and maintenance Your unit is a technically advanced product and should be treated with the greatest care. Negligence may void the warranty. r Protect the unit from moisture. Rain/snowfall, moisture and all types of liquid can contain substances that corrode the electronic circuits. If the unit gets wet, you should remove the battery and allow the unit to dry completely before you replace it. -
Page 45: Warranty And Technical Data
Battery: 3.7V/800 mAh Li-ion battery Declaration of Conformity Doro hereby declares that Doro PhoneEasy 409s gsm conforms to the essential requirements and other relevant regulations contained in the Directives 1999/5/EC (R&TTE) and 2002/95/EC (RoHS). A copy of the Declaration of Conformity is available at www.doro.com/dofc... - Page 46 English This device have been tested to comply with the Sound Pressure Level requirement laid down in the applicable EN 50332-1 standards. Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Logo Warning statement: A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille de...
- Page 47 English...
- Page 48 English (A3) 0700 Version 1.1...
