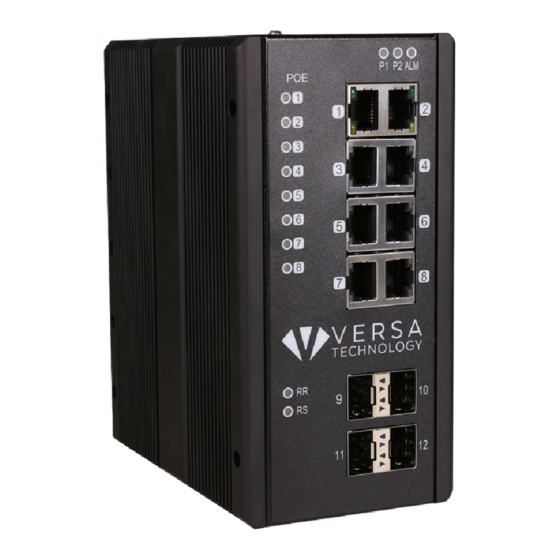

- Page 1 VX-IGP-1204F 8~12-Port Managed Industrial Ethernet Switch CLI Command User Guide Version Number: 1.0 Issue: 1.1r1, July 2015...
-
Page 3: Table Of Contents
Contents CONTENTS SCOPE ..................................3 ................................... 3 COPE ................................3 UDIENCE ............................. 3 REQUIRED NOWLEDGE ..........................3 CCESS TO ARDWARE NTERFACE ............................. 3 ELATED OCUMENTS OPERATOR INTERFACE ........................... 7 ............................... 7 NTRODUCTION ............................... 7 ONNECT NTERFACE ............................... 7 CREEN ESCRIPTION ..............................8 XECUTION ODES ................................ 8 ETTING HELP ............................9 ERMINAL UNCTION . - Page 4 Contents 3.2.29 show version ............................... 18 3.2.30 show system inventory ..........................18 3.2.31 show mac address table aging-time ......................18 3.2.32 show mac address table ..........................18 3.2.33 show mac address table conf ........................18 3.2.34 show mac address table count ........................18 3.2.35 show mac address table learning .......................
- Page 5 Contents 3.2.88 show dot1x status ............................29 3.2.89 show dot1x statistics ........................... 29 3.2.90 show radius-server [ statistics ] ......................... 29 3.2.91 show rfc2544 profile [ <word32> ] ......................29 3.2.92 show voice ..............................30 3.2.93 show web ..............................30 ..........................31 ONFIGURE ODE...
- Page 6 Contents 3.3.53 login level ..............................39 3.3.54 login on ............................... 39 3.3.55 logout ................................39 3.3.56 mac address-table aging-time ........................39 3.3.57 mac address-table static ..........................39 3.3.58 more ................................39 3.3.59 no ................................40 3.3.60 ping ................................40 3.3.61 port-security ...............................
- Page 7 Contents 3.5.7 ip dhcp server ............................. 51 3.5.8 ip dhcp relay ............................... 51 3.5.9 ip dhcp relay information option ........................ 51 3.5.10 ip dhcp retry interface vlan ........................51 3.5.11 ip dhcp snooping ............................51 3.5.12 ip helper-address ............................51 3.5.13 ipv6 address ..............................
- Page 8 Contents 3.9.14 snmp-server location ..........................59 3.9.15 snmp-server security-to-group ........................60 3.9.16 SNMP trap receive ipv4 host ........................60 3.10 ............................ 60 UNCTION OMMAND 3.10.1 qos qce ................................ 60 3.10.2 qos storm ..............................60 3.10.3 qos cos ................................ 60 3.10.4 qos dscp-classify ............................61 3.10.5 qos dscp-remark ............................
- Page 9 Contents 3.13.10 ipv6 mld snooping vlan ..........................68 3.13.11 ipv6 mld ssm-range ............................ 68 3.13.12 ipv6 mld unknown-flooding ........................68 3.13.13 ipv6 route ..............................69 3.14 .......................... 69 UTHENTICATE ODE OMMANDS 3.14.1 radius-server attribute 32 ........................... 69 3.14.2 radius-server attribute 4 ..........................69 3.14.3 radius-server attribute 95 ...........................
- Page 10 Contents 3.18.5 gvrp time { [ join-time <1-20> ] [ leave-time <60-300> ] [ leave-all-time <1000-50>] ......77 3.19 VLAN ........................77 OICE ONFIGURE OMMANDS 3.19.1 voice vlan ..............................77 3.19.2 voice vlan aging-time ..........................77 3.19.3 voice vlan class ............................77 3.19.4 voice vlan oui ..............................
- Page 11 Contents...
- Page 13 1. Scope 1.1 Scope 1.2 Audience 1.3 Pre-required Knowledge 1.4 Access to Hardware Interface 1.5 Related Documents...
-
Page 15: Scope
Scope Scope This user guide describes the commands and parameters of the Command Line Interface (CLI) as implemented in the current version of the VX-IGP-1204F software. These commands are used to set-up, administer and maintain the system. Audience The guide is intended for Operating personnel (sometimes called craft persons). - Page 16 Scope...
- Page 17 2. Operator Interface 2.1 Introduction 2.2 Connect Interface 2.3 Authorization Level 2.4 Screen Description 2.5 Execution Modes 2.6 Getting Help 2.7 Terminal Key Function 2.8 Notation Conventions...
-
Page 19: Operator Interface
Operator Interface Operator Interface Introduction Access to the Switch is protected by a logon security system. You can log on to the switch with the user name and password. After three failed logon attempts, the system refuses further attempts. After you log on, the system monitors the interface for periods of inactivity. If the interface is inactive for too long, you are automatically logged off. -
Page 20: Execution Modes
192.0.2.1 Figure 2-1 Screen Description Execution Modes The CLI contains several execution modes. Users will see different set of commands under different execution modes. Table 2-1 lists all the execution modes and their purposes. When users enter a certain execution mode, the corresponding mode prompt will be displayed automatically on the screen. -
Page 21: Terminal Key Function
Operator Interface Terminal Key Function Following is the list of all the terminal keys and their function. Table 2-2 List of Terminal Keys ENTER Run a CLI config script CTRL-M Tab completion. If tab is pressed after a non-whitespace character, complete the word before the Tab. - Page 23 3. Commands Descriptions Initialize Mode Commands Enable Mode Commands Configure Mode Commands VLAN Mode Commands Interface VLAN Mode Commands Ring Group Mode Commands Spanning Tree Configure Commands sFlow Configure Command SNMP Configure Command 3.10 Qos Function Command 3.11 IGMP Functional Commands 3.12 MVR Functional Commands 3.13...
-
Page 24: Commands Descriptions
Commands Descriptions Initialize Mode Commands The commands in this section (except ‘enable’ command) can be executed under all command modes. These commands are global commands. 3.1.1 exit Description Exit current mode and quit CLI. Syntax exit Parameter None 3.1.2 configure terminal Description Enter configuration mode. -
Page 25: Enable Mode Commands
Enable Mode Commands All the “show - -” commands in this section can also be executed under any other command mode except Initialize Mode. 3.2.1 configure terminal Description Enter configuration mode. Syntax configure Parameter None 3.2.2 disable Description Enter init mode. Syntax disable Parameter... -
Page 26: Show Aggregation
dhcp The ACEs that are configured by DHCP module conflicts The ACEs that did not get applied to the hardware due to hardware limitations arp-inspection The ACEs that are configured by ARP Inspection module 3.2.6 show aggregation Description Aggregation Syntax show aggregation [ mode ] Parameter Name... -
Page 27: Show Ipmc
Address Resolution Protocol dhcp Dynamic Host Configuration Protocol http Hypertext Transfer Protocol igmp Internet Group Management Protocol interface IP interface status and configuration name-server Domain Name System route Display the current ip routing table source source command Secure Shell statistics Traffic statistics verify verify command... -
Page 28: Show Logging
3.2.15 show logging Description Logging information Syntax show logging <log_id> [ switch <switch_list> ] show logging [ info ] [ warning ] [ error ] [ switch <switch_list> ] Parameter Name Description log_id <logging_id: 1-4294967295> Logging ID error Error info Infomation warning Warning... -
Page 29: Show Running-Config Feature
3.2.23 show running-config feature Description Show running config feature Syntax show running-config feature <feature_name> [ all-defaults ] Parameter Name Description feature_name CWORD Valid words 'GVRP' 'access' 'access-list' 'aggregation' 'alm_profile' 'arp-inspection' 'auth' 'clock' 'dhcp' 'dhcp-snooping' 'dhcp_server' 'dns' 'dot1x' 'green-ethernet' 'http' 'icli' 'ip-igmp-snooping' 'ip-igmp-snooping-port' 'ip-igmp-snooping-vlan'... -
Page 30: Show Version
3.2.29 show version Description Show version information. Syntax show version Parameter None 3.2.30 show system inventory Description Show system inventory. Syntax show system inventory Parameter None 3.2.31 show mac address table aging-time Description Show aging time for MAC learning table (system-wide). Syntax show aging time Parameter... -
Page 31: Show Mac Address Table Static
3.2.36 show mac address table static Description All static mac addresses Syntax show mac address-table [ conf | static | aging-time | { { learning | count } [ interface ( <port_type> [ <v_port_type_list> ] ) ] } | { address <v_mac_addr>... -
Page 32: Show Fdbstatic Vlan
Parameter Name Description <port_type> Port type in Fast, Giga or Tengiga ethernet <portNo> Valid values: 1 ~ 10 Type: Mandatory 3.2.42 show fdbstatic vlan <vlanid> Description Show static MAC forwarding table per VLAN index. Syntax show mac address-table { learning | count } vlan <vlanid> Parameter Name Description... -
Page 33: Show Interface Port
3.2.44 show interface port <portNo> statistics Description Show Ethernet counter per gigabit port. Syntax show interface <port_type> [ <port_type_list> ] statistics Parameter Name Description <port_type> Port type in Fast, Giga or Tengiga ethernet <portNo> Valid values: 1 ~ 10 Type: Mandatory counter Show Gigabit Ethernet counter.Statistics -
Page 34: Show Profile Alarm
3.2.48 show profile alarm Description Profile alarm Syntax show profile alarm Parameter None 3.2.49 show sflow Description Sflow information Syntax show sflow show sflow statistics { receiver [ <rcvr_idx_list> ] | samplers [ interface [ <samplers_list> ] ( <port_type> [ <v_port_type_list> ] ) ] } Parameter Name Description... -
Page 35: Show Spanning-Tree
configuration AAA event group interface Interface event group switch Switch event group system System event group MIB(Management Information Base) context MIB context ifmib IF-MIB ifIndex The IfIndex that is defined in IF-MIB security-to-group security-to-group configuration security_name <SecurityName : word32> security group name user User username... -
Page 36: Show Vlan Id
3.2.55 show vlan id Description Show bridge port member set/status per VLAN index (1~4094). Syntax show vlan id <vlanid> Parameter Name Description <vlanid> Valid values: 1~4094 Type: Mandatory. 3.2.56 show vlan name Description Show bridge port member set/status per VLAN name ( 32 words ). Syntax show vlan name <vword32>... -
Page 37: Show Vlan Status
Ether Type is IPX Ether Type is AppleTalk LLC-based VLAN status dsap <0x0-0xff> DSAP (Range: 0x00 - 0xFF) ssap <0x0-0xff> SSAP (Range: 0x00 - 0xFF) snap SNAP-based VLAN status <0x0-0xffffff> SNAP (Range 0x000000 0XFFFFFF) rfc-1042 SNAP OUI is rfc-1042 snap-8021h SNAP OUI is 8021h 3.2.61 show vlan status Description... -
Page 38: Show Queue-Shaper
3.2.65 show queue-shaper Description Show queue shaper information. Syntax show queue-shaper Parameter None 3.2.66 show port-shaper Description Show port shaper information. Syntax show port-shaper Parameter None 3.2.67 show pvlan [ <pvlan_list> ] Description PVLAN ID Syntax show pvlan [ <pvlan_list> ] Parameter Name Description... -
Page 39: Show Qos Interface
3.2.72 show qos interface Description QoS interface information Syntax show qos [ { interface [ ( <port_type> [ <port> ] ) ] } Parameter Name Description interface Interface port_type GigabitEthernet, 1 Gigabit Ethernet Port port PORT_LIST, Port list in 1/1-14 3.2.73 show qos maps Description MAPS... -
Page 40: Show Rmon
Parameter None 3.2.78 show rmon Description Syntax show rmon alarm [ <id_list> ] show rmon event [ <id_list> ] show rmon history [ <id_list> ] show rmon statistics [ <id_list> ] Parameter Name Description alarm Display the RMON alarm table event Display the RMON event table history... -
Page 41: Show Vlan-Trans
Parameter Name Description <portNo> Gigabit port. Valid values: 1 ~ 10 Type: Mandatory 3.2.85 show vlan-trans Description Show VLAN translation table for all Syntax show vlan-trans Parameter None 3.2.86 show multicast-fdb Description Show IGMP group membership table Syntax show multicast-fdb Parameter None 3.2.87 show dot1x... -
Page 42: Show Voice
Name Description <word32> rfc2544 profile name 3.2.92 show voice Description Vlan for voice traffic Syntax show voice vlan [ oui <oui> | interface ( <port_type> [ <port_list> ] ) ] Parameter Name Description vlan Vlan for voice traffic OUI configuration OUI value interface Select an interface to configure... -
Page 43: Configure Mode Commands
Configure Mode Commands Commands that can be executed under Configure Mode 3.3.1 interface gigabit <portNo> Description Gigabit Ethernet interface. (enter gigabit interface mode) Syntax interface gigabit <portNo> Parameter Name Description <portNo> Valid values: 1 ~ 10 Type: Mandatory 3.3.2 interface vlan <vlanid> Description Vlan Ethernet interface (enter mode of interface vlan) Syntax... -
Page 44: Alarm History Clear
3.3.7 alarm history clear Description Clear alarm history Syntax alarm history clear Parameter Name Description 3.3.8 banner Description Banner control Syntax banner { LINE | exec | login | motd } Parameter Name Description LINE c banner-text c, where 'c' is a delimiting character exec Set EXEC process creation banner login... -
Page 45: Clock Summer-Time Set [Start-Time] [End-Time]
Name Description < word16> Valid values: please see 'list timezone' Type: Mandatory default Set time zone to default (GMT/UTC). Type: Mandatory 3.3.14 clock summer-time set [start-time] [end-time] Description Set date/time. Syntax clock summer-time <word16> date [ <1-12> <1-31> <2000-2097> <hhmm> <1-12> <1-31> <2000-2097> <hhmm> [ <1-1440> ] ] Parameter Name Description... -
Page 46: Configuration Save And Replace
3.3.18 configuration save and replace Description Save and install configuration Syntax copy { startup-config | running-config | <Filename> } { startup-config | running-config | < Filename > } [ syntax-check ] Parameter Name Description running-config Currently running configuration startup-config Startup configuration syntax-check Perform syntax check on source configuration Filename... -
Page 47: Duplex
3.3.25 do Description To run exec commands in config mode Syntax do <line> Parameter Name Description <line> Exec Command 3.3.26 duplex Description Set duplex mode Syntax duplex { half | full | auto [ half | full ] } Parameter Name Description half... -
Page 48: Green-Etherneteee
9600 Enable testing with 9600-byte TST PDUs 3.3.31 green-etherneteee Description Powering down of PHYs when there is no traffic. Syntax green-etherneteee Parameter 3.3.32 green-etherneteee optimize-for-power Description Set if EEE shall be optimized for least power consumption (else optimized for least traffic latency). Syntax green-etherneteee optimize-for-power Parameter... -
Page 49: Ip Arp Inspection Vlan
vlan_var Select a VLAN id to configure mac_var Select a MAC address to configure ipv4_var Select an IP Address to configure 3.3.38 ip arp inspection vlan Description IP ARP inspection vlan setting Syntax ip arp inspection vlan<vlan_list> Parameter Name Description vlan_list arp inspection vlan list 3.3.39 ip dns proxy... -
Page 50: Ip Route
3.3.45 ip route Description IP Route Syntax ip route <v_ipv4_addr> <v_ipv4_netmask> <v_ipv4_gw> Parameter Name Description v_ipv4_addr Network v_ipv4_netmask Netmask v_ipv4_gw Gateway 3.3.46 ip routing Description IP routing Syntax ip routing Parameter 3.3.47 ip verify Description IP verify Syntax ip verify [source] [translate] Parameter Name Description... -
Page 51: Login Host
Name Description <0~16> List of line numbers console Console terminal line Virtual terminal 3.3.52 login host Description Domain name and IP address Syntax logging host { <v_ipv4_ucast> | <v_word45> } Parameter Name Description hostname Donain name of the log server ipv4_ucast IP address of the log server 3.3.53 login level... -
Page 52: Ping
Parameter 3.3.59 no Description Function disable Syntax no { debug | port-securit | terminal } Parameter Name Description debug Debugging functions port-securit Port security (psec limit) terminal Set terminal line parameters 3.3.60 ping Description The ping function Syntax ping { ip | ipv6 } Parameter Name Description... -
Page 53: Rmon
cold Reload cold defaults Reload defaults without rebooting 3.3.64 rmon Description RMON Syntax rmon {alarm | event} Parameter Name Description alarm Configure an RMON alarm event Configure an RMON event 3.3.65 rmon alarm Description RMON Alarm Syntax rmon alarm <id> <oid_str> <interval> { absolute | delta } rising-threshold <rising_threshold>... -
Page 54: Rmon Alarm
both Trigger alarm when the first value is larger than the rising threshold or less than the falling threshold (default) falling rigger alarm when the first value is less than the falling threshold rising Trigger alarm when the first value is larger than the rising threshold 3.3.66 rmon alarm Description... -
Page 55: Vlan Disable
3.3.70 vlan disable <vlanid> Description Delete VLAN memberset/setting. Syntax vlan disable <vlanid> Parameter Name Description <vlanid> Valid values: 1 ~ 4094 Type: Mandatory 3.3.71 mac address-table aging-time <time> Description Configure aging time for a bridge port. Syntax mac address-table aging-time <time> Parameter Name Description... -
Page 56: Monitor Source Cpu
3.3.76 monitor source cpu Description Mirror Interface traffic Syntax monitor source { cpu [ <cpu_switch_range> ] } } { both | rx | tx } Parameter Name Description both Setting source port to both will mirror both ingress and egress traffic Setting source port to rx will mirror ingress traffic Setting source port to tx will mirror egress traffic... -
Page 57: Traps
3.3.81 traps Description trap event configuration Syntax traps [ aaa authentication ] [ system [ coldstart ] [ warmstart ] ] [ switch [ stp ] [ rmon ] ] Parameter Name Description aaa authentication AAA authentication fail event coldstart Cold start event warmstart Warm start event... -
Page 58: Flow-Control {Enable|Disble
Parameter Name Description privilege Web privilege group Web privilege group group_name Valid words are 'Aggregation' 'DHCP' 'Debug' 'Dhcp_Client' 'Diagnostics' 'EEE' 'Green_Ethernet' 'IP2' 'IPMC_Snooping' 'LACP' 'LLDP' 'Loop_Protect' 'MAC_Table' 'MVR' 'Maintenance' 'Mirroring' 'NTP' 'Ports' 'Private_VLANs' 'QoS' 'RPC' 'Security' 'Spanning_Tree' 'System' 'Timer' 'VCL' 'VLANs' 'Voice_VLAN' 'XXRP' 'sFlow' level Web privilege group level... -
Page 59: Date/Time
3.3.90 Date/Time Description Set device date and time Syntax clock datetime <2000-2037> <1-12> <1-31> <0-23> <0-59> <0-59> Parameter Name Description <2000-2037> year <1-12> month <1-31> Date <0-23> Hour <0-59> minute <0-59> Second VLAN Mode Commands 3.4.1 vlan Description VLAN commands Syntax vlan <vlan_list>... -
Page 60: Switchport Access Vlan
Parameter 3.4.5 switchport access vlan Description Set switch access mode of the interface Syntax switchport access vlan <vlan_id> Parameter Name Description vlan_id VLAN ID of the VLAN when this port is in access mode 3.4.6 switchport forbidden vlan Description Adds or removes forbidden VLANs from the current list of forbidden VLANs Syntax switchport forbidden vlan { add | remove } <vlan_list>... -
Page 61: Switchport Hybrid Ingress-Filtering
3.4.10 switchport hybrid ingress-filtering Description VLAN Ingress filter configuration Syntax switchport hybrid ingress-filtering Parameter 3.4.11 switchport mode Description Set switching mode Syntax switchport mode { access | trunk | hybrid } Parameter Name Description access Set mode to ACCESS unconditionally trunk Set mode to TRUNK unconditionally hybrid... -
Page 62: Interface Vlan Mode Commands
Interface VLAN Mode Commands 3.5.1 interface Description Interface configuration Syntax interface <port_type> [ <port_type_list> ] Parameter Name Description port_type Port type in Fast, Giga or Tengigaethernet port_type_list List of Port ID, ex, 1/1,3-5;2/2-4,6 3.5.2 interface vlan Description VLAN interface configurations Syntax interface vlan<vlan_list>... -
Page 63: Ip Dhcp Server
3.5.7 ip dhcp server Description DHCP Server Syntax ip dhcp server Parameter 3.5.8 ip dhcp relay Description DHCP relay agent configuration Syntax ipdhcp relay Parameter 3.5.9 ip dhcp relay information option Description IP DHCP relay information option(Option 82) Syntax ipdhcp relay information option Parameter 3.5.10 ip dhcp retry interface vlan Description... -
Page 64: Ringv2 Group Mode Command
RingV2 Group Mode Commands 3.6.1 ringv2 protect Description To configure ring protection. Syntax ring protect Parameter Name Description group1 Configure ring protection v2 group1 (Ring) group2 Configure ring protection v2 group2 (Ring) group3 Configure ring protection v2 group3 (Chain) 3.6.2 guard-time Description Set guard time Syntax... -
Page 65: Spanning-Tree
dual-homing Set role to dual homing chain-head Set role to chain head chain-member Set role to chain member chain-tail Set role to chain tail b-chain-central-block Set role to balancing chain central block b-chain-member Set role to balancing chain member b-chain-terminal-1 Set role to balancing chain terminal 1 b-chain-terminal-2 Set role to balancing chain terminal 2... -
Page 66: Spanning-Tree Mode
3.7.8 spanning-tree mode Description mode STP protocol mode 802.1D Spanning Tree rstp Rabid Spanning Tree (802.1w) mstp Multiple Spanning Tree (802.1s) Syntax spanning-tree mode { stp | rstp | mstp } Parameter Name Description 802.1D Spanning Tree rstp Rabid Spanning Tree (802.1w) mstp Multiple Spanning Tree (802.1s) 3.7.9 spanning-tree mst cost... -
Page 67: Spanning-Tree Mst Forward-Time
Name Description <0-7> instance 0-7 (CIST=0, MST2=1...) <vlan_list> Range of VLANs 3.7.13 spanning-tree mst forward-time Description forward-time Delay between port states Syntax spanning-tree mst forward-time <4-30> Parameter Name Description <4-30> Delay between port states 3.7.14 spanning-tree mst max-age Description Max bridge age before timeout. Syntax spanning-tree mst max-age <6-40>... -
Page 68: Spanning-Tree Recovery
3.7.18 spanning-tree recovery Description Recovery Syntax spanning-tree recovery interval <interval> Parameter Name Description interval The interval interva Interval : 30-86400> Range in seconds 3.7.19 spanning-tree transmit Description Transmit Syntax spanning-tree transmit hold-count <holdcount> Parameter Name Description hold-count Max number of transmit BPDUs per sec holdcount <Holdcount : 1-10>... -
Page 69: Sflow Collector-Port
Parameter Name Description < range_list > Sampler instance <200-1468> packet byte 3.8.6 sflow collector-port Description Collector UDP port Syntax sflow collector-port [ receiver <rcvr_idx_list> ] <collector_port> Parameter Name Description collector_port <Collector Port : 1-65535> Port number 3.8.7 sflow sampling-rate Description Specifies the statistical sampling rate. -
Page 70: Snmp-Server Community V2C
noAuthNoPriv Security Level authPriv Security Level read specify a read view for the group <word255> read view name 3.9.3 snmp-server community v2c Description Set the SNMP v2c community Syntax snmp-server community v2c <word127> [ ro | rw ] Parameter Name Description <... -
Page 71: Snmp-Server Location
Set MD5 protocol Set SHA protocol <word8-40> SHA password priv Set Privacy { des | aes } Set DES/AES protocol <word8-32> Set privacy password 3.9.9 snmp-server version Description Set the SNMP server's version Syntax snmp-server version { v1 | v2c | v3 } Parameter Name Description... -
Page 72: Snmp-Server Security-To-Group
3.9.15 snmp-server security-to-group Description SNMP server security Syntax snmp-server security-to-group model { v1 | v2c | v3 } name <security_name> group <group_name> Parameter Name Description model security model v1 security model v2c security model v3 security model name security user security_name <SecurityName : word32>... -
Page 73: Qos Dscp-Classify
Syntax qos cos <0-7> Parameter Name Description <0-7> Specific class of service 3.10.4 qos dscp-classify Description Set qos dscp-classify. Syntax qos dscp-classify { zero | selected | any } Parameter Name Description 3.10.5 qos dscp-remark Description Set qos dscp-remark Syntax qos dscp-remark { rewrite | remap | remap-dp } Parameter Name... -
Page 74: Qos Map Dscp-Egress-Translation
20,22) af31~33 Assured Forwarding PHB 31~33(DSCP 26,28,30) Af41~43 Assured Forwarding PHB 41~43(DSCP 34,36,38) cs1~7 Class Selector PHB CS1~7 precedence 1~7(DSCP 8*(cs value)) Expedited Forwarding PHB(DSCP 46) Voice Admit PHB(DSCP 44) <0~1> Specific drop precedence level 3.10.9 qos map dscp-egress-translation Description Configure dscp egress-translation Syntax qos map dscp-egress-translation { <0~63>... -
Page 75: Qos Policer
26,28,30) Af41~43 Assured Forwarding PHB 41~43(DSCP 34,36,38) cs1~7 Class Selector PHB CS1~7 precedence 1~7(DSCP 8*(cs value)) Expedited Forwarding PHB(DSCP 46) Voice Admit PHB(DSCP 44) <0~1> Specific drop precedence level 3.10.11 qos policer Description Configure qos policer Syntax qos policer <unit> [ fps ] [ flowcontrol ] Parameter Name Description... -
Page 76: Ip Igmp Snooping
3.11.2 ip igmp snooping Description Snooping igmp Syntax ip igmp snooping Parameter 3.11.3 ip igmp snooping immediate-leave Description IP IGMP snooping immediate leave configuration Syntax Ip igmp snooping immediate-leave Parameter 3.11.4 ip igmp snooping last-member-query-interval Description IP IGMP snooping Last Member Query Interval in tenths of seconds Syntax ip igmp snooping last-member-query-interval <0-31744>... -
Page 77: Ip Igmp Ssm-Range
3.11.10 ip igmp ssm-range Description SSM range Syntax ip igmp ssm-range <v_ipv4_mcast> <ipv4_prefix_length> Parameter Name Description v_ipv4_mcast Valid IPv4 multicast address ipv4_prefix_length Length 3.11.11 ip igmp unknown-flooding Description IP IGMP flooding unregistered IPv4 multicast traffic Syntax ip igmp unknown-flooding Parameter 3.11.12 clear ip igmp snooping statistics Description clear ip igmp snooping statisti... -
Page 78: Mvr Name
3.12.6 mvr name <word16> igmp-address <ipv4_ucast> Description MVR address configuration used in IGMP Syntax mvr name <word16> igmp-address <ipv4_ucast> Parameter Name Description name <word16> MVR multicast VLAN name <ipv4_ucast> A valid IPv4 unicast address 3.12.7 mvr name <word16> last-member-query-interval <0-31744> Description Configure last Member Query Interval in tenths of seconds Syntax...Igmp-Address -
Page 79: Mvr Vlan
Parameter Name Description < vlan_list > MVR multicast VLAN list 3.12.14 mvr vlan <vlan_list> igmp-address Description Set tagged IGMP/MLD frames will be sent Syntax mvr vlan <vlan_list> igmp-address <ipv4_ucast> Parameter Name Description < vlan_list > MVR multicast VLAN list <ipv4_ucast> A valid IPv4 unicast address for IGMP 3.12.15 mvr vlan <vlan_list>...Igmp-Address -
Page 80: Ipv6 Mld Snooping Last-Member-Query-Interval
Parameter 3.13.5 ipv6 mld snooping last-member-query-interval Description ipv6 mld snooping last member query interval in tenths of seconds Syntax ipv6 mld snooping last-member-query-interval <0-31744> Parameter Name Description 0-31744 0 - 31744 tenths of seconds 3.13.6 ipv6 mld snooping max-groups Description IPv6 MLD group throttling configuration Syntax ipv6 mld snooping max-groups <1-10>... -
Page 81: Ipv6 Route
Parameter 3.13.13 ipv6 route Description IPv6 Route Syntax ipv6 route <v_ipv6_subnet> { <v_ipv6_ucast> | interface vlan <v_vlan_id> <v_ipv6_addr> } Parameter Name Description v_ipv6_subnet IPv6 prefix x:x::y/z v_ipv6_ucast IP address of the DHCP relay server v_vlan_id VLAN ID v_ipv6_addr IP address 3.14 Authenticate Mode Commands 3.14.1 radius-server attribute 32 Description... -
Page 82: Radius-Server Key
acct-port <0-65535> UDP port number for RADIUS accounting server timeout <1-1000> Wait time in seconds for this RADIUS server to reply (overrides default) retransmit <1-1000> 3.14.6 radius -server Description radius-server key Syntax radius-server key <key> Parameter Name Description <Key : line1-63> The shared key 3.14.7 radius-server retransmit Description... -
Page 83: Dot1X Feature
Syntax tacacs-server deadtime <1-1440> Parameter Name Description < <1-1440> Time in minutes 3.14.13 dot1x feature Description Globally enables/disables a dot1x feature functionality Syntax dot1x feature { [ guest-vlan ] [ radius-qos ] [ radius-vlan ] } Parameter Name Description guest-vlan Globally enables/disables state of guest-vlan radius-qos Globally... -
Page 84: Dot1X Guest-Vlan
tx-period the time between EAPOL retransmissions 3.14.19 dot1x guest-vlan Description G Enables/disables Guest VLAN globally or on one or more ports Syntax dot1x guest-vlan dot1x guest-vlan<1-4095> Parameter Name Description <1-4095> Guest VLAN ID used when entering the Guest VLAN. 3.14.20 dot1x initialize Description Forces a reinitialization of the clients on the port and thereby a reauthentication immediately. -
Page 85: End
secret Assign the privileged level secret 3.14.25 end Description Level exit Syntax Parameter 3.14.26 exit Description Level exit Syntax Parameter 3.14.27 hostname Description This system's network name Syntax hostname <hostname> Parameter 3.15 Loop-Protection Configure commands 3.15.1 loop-protect Description Loop protection configuration on port Syntax loop-protect Parameter... -
Page 86: Lldp Configure Commands
3.16 LLDP Configure commands 3.16.1 lldp holdtime Description Sets LLDP hold time (The neighbor switch will discarded the LLDP information after \"hold time\" multiplied with \"timer\" seconds ). Syntax lldp holdtime <2-10> Parameter Name Description <2-10> Holdtime 2-10 seconds 3.16.2 lldp med Description LLDP MED Syntax... -
Page 87: Lldp Timer <5-32768
Syntax lldp reinit <1-10> Parameter Name Description <1-10> Reinitialization delay time 3.16.5 lldp timer <5-32768> Description Sets LLDP TX interval (The time between each LLDP frame transmitted in seconds). Syntax lldp timer <5-32768> Parameter Name Description <5-32768> 5-32768 seconds. 3.16.6 lldp tlv-select Description Which optional TLVs to transmit. -
Page 88: Rfc2544 Rename Profile
<word32> Profile name up to 32 characters long 3.17.2 rfc2544 rename profile Description Rename an existing profile Syntax rfc2544 rename profile <word32> <word32> Parameter Name Description profile <word32> Old profile name <word32> New profile name 3.17.3 rfc2544 save <word32> <word> Description Save a report to a file on a TFTP server Syntax... -
Page 89: Gvrpleave Request Vlan
Syntax gvrp join-request vlan<vlan_list> Parameter Name Description vlan_list List of VLANs 3.18.3 gvrpleave request vlan Description Emit a leave-Request for test purpose Syntax gvrp leave-request vlan<vlan_list> Parameter Name Description vlan_list List of VLANs 3.18.4 gvrp max-vlans Description gvrpmaximum number of VLANs Syntax gvrp max-vlans<1-4095>... -
Page 90: Voice Vlan Oui
high Traffic class high (3) 3.19.4 voice vlan oui Description Set voice traffic OUI configuration Syntax voice vlan oui <oui> [ description <line32> ] Parameter Name Description OUI value description Set description for the OUI line32 Description line 3.19.5 voice vlan vid Description Set voice VLAN ID Syntax... -
Page 91: Poe Supply
consumption. class-reserved-power Max. port power determined by class, and power is managed according to reserved power. lldp-consumption Max. port power determined by LLDP Media protocol, and power is managed according to power consumption. lldp-reserved-power Max. port power determined by LLDP Media protocol, and power is managed according to reserved power. -
Page 92: Poe Priority
3.21.7 poe priority Description Set PoE port priority Syntax poe priority <priority> Parameter Name Description critical Set priority to critical. high Set priority to high. Set priority to low. 3.21.8 poe reset Description Set PoE power reset time. Syntax poe reset <Hour> <Minute> <range_list> Parameter Name Description...
