  • Page 1 DD-WMS 100 English Printed: 12.06.2017 | Doc-Nr: PUB / 5306525 / 000 / 02...
  • Page 2 Printed: 12.06.2017 | Doc-Nr: PUB / 5306525 / 000 / 02...
  • Page 3 Do not lift by crane 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
  • Page 4 ▶ Check to ensure that the supply cord does not lie in a puddle of water. ▶ Check the appliance’s supply cord at regular intervals and have it replaced by Hilti Service if damage is found. Check extension cords at regular intervals and replace them if found to be damaged.
  • Page 5 ▶ Never operate the appliance when it is dirty or wet. Dust (especially dust from conductive materials) or dampness adhering to the surface of the appliance may, under unfavorable conditions, lead to electric shock. Dirty or dusty appliances should thus be checked by Hilti Service at regular intervals, especially if used frequently for working on conductive materials.
  • Page 6 ▶ Have the appliance serviced by a qualified repair person using only genuine Hilti spare parts. The safety of the appliance can thus be maintained.
  • Page 7 3 Description 3.1 Overview of the product Toolbox retaining bar Water and waste material container & Handlebar Hook for the ratchet strap Ratchet strap Suction hose inlet fitting Gripping areas Water supply hose outlet fitting English Printed: 12.06.2017 | Doc-Nr: PUB / 5306525 / 000 / 02...

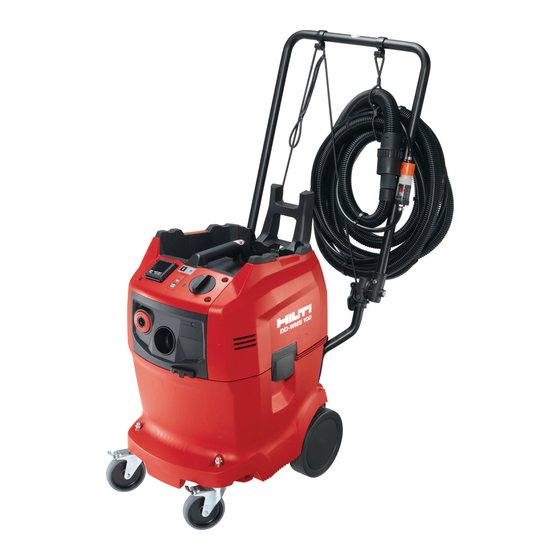

  • Page 8 The DD-WMS 100 electrically-powered water management system is designed for use with water-cooled diamond coring machines. Use the DD-WMS 100 to pick up and collect drilling slurry, to recycle the water and to supply water to diamond core drilling machines.
  • Page 9 The operating voltage of the transformer or generator must always be within +5% and -15% of the rated voltage of the power tool. DD-WMS 100 Protection class...
  • Page 10 5 Before use 5.1 Filling the water and waste material container 1. Open the two catches. 2. Remove the filter bag. → page 10 3. Fill the water container with water up to the MAX mark. Note When the “Water level too high” warning lamp lights, the appliance cannot be operated. The water and waste material container must be filled for the “Water supply”...
  • Page 11 5.3 Connecting the hose set to the diamond coring machine 1. Connect the suction hose to the suction hose inlet fitting. 2. Connect the water supply hose to the water supply hose outlet fitting. 3. Connect the other end of the suction hose to the water collector of the diamond core drilling machine. Note Use the tapered adapter if necessary.
  • Page 12 3. If the following equipment exists, also take this action: Option: Vacuum cleaner mode ▶ Set the control switch to Vacuum mode. Note The water management system is designed to be used only for small vacuum cleaning jobs such as cleaning up the working area. Do not use this appliance in vacuum cleaner mode for system applications in combination with electric tools.
  • Page 13 5. Clean the water and waste material container. 6. Insert the filter bag. → page 8 7. Fit the top section of the appliance onto the waste material container. 8. Close the two catches. 7 Care and maintenance 7.1 Checking the prefilter 1.
  • Page 14 4. Use the ratchet strap to secure the toolboxes and prevent them slipping out of place. 9 Troubleshooting If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service. 9.1 Troubleshooting Trouble or fault...
  • Page 15 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
  • Page 16 English Printed: 12.06.2017 | Doc-Nr: PUB / 5306525 / 000 / 02...
  • Page 17 Printed: 12.06.2017 | Doc-Nr: PUB / 5306525 / 000 / 02...
  • Page 18 Hilti = registered trademark of Hilti Corp., Schaan 20170606 Printed: 12.06.2017 | Doc-Nr: PUB / 5306525 / 000 / 02...
