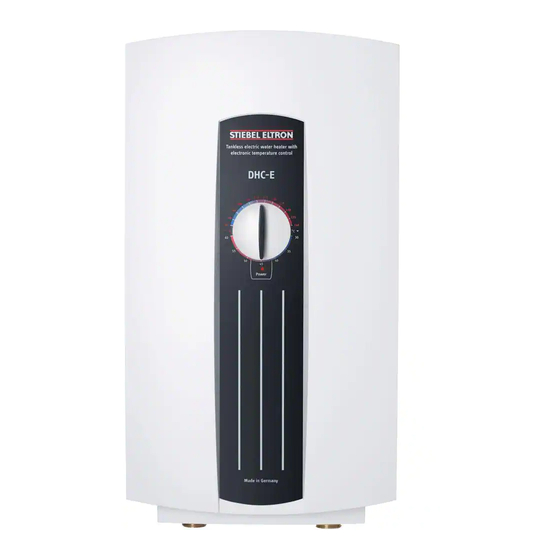

Electronically controlled instantaneous water heater
Hide thumbs Also See for DHC-E 8/10:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation & Operation, Operation & Installation Manual
OPERATION AND INSTALLATION
OPERACIÓN E INSTALACIÓN
UTILISATION ET INSTALLATION
ЭКСПЛУАТАЦИЯ И МОНТАЖ
Electronically controlled instantaneous water heater | Calentador instantáneo con
controlado electrónica | Chauffe-eau instantané à gestion électronique | Проточные
водонагреватели с электронным управлением
» DHC-E 8/10
» DHC-E 12
84335
The DHC series is tested and
certified by WQA against
NSF/ANSI 372 for lead free
compliance.

Advertisement

Table of Contents
loading

Related Manuals for STIEBEL ELTRON DHC-E 8/10

Summary of Contents for STIEBEL ELTRON DHC-E 8/10

  • Page 1 ЭКСПЛУАТАЦИЯ И МОНТАЖ Electronically controlled instantaneous water heater | Calentador instantáneo con controlado electrónica | Chauffe-eau instantané à gestion électronique | Проточные водонагреватели с электронным управлением » DHC-E 8/10 » DHC-E 12 84335 The DHC series is tested and certified by WQA against NSF/ANSI 372 for lead free compliance.

  • Page 2: Table Of Contents

    Here, possible consequences are listed that may re- Electrical connection �����������������������������������������6 sult from not observing the safety information. DHC-E 8/10 - Appliance with output power options ������ 6 f Steps to prevent the risk are listed. Temperature setting/anti-scalding protection ������������ 7 Commissioning �����������������������������������������������7...

  • Page 3: Operation

    OPERATION SAfETY Other symbols in this document Safety Precautions DANGER Injury Note Please read and follow these instructions. Notes are bordered by horizontal lines above and below Failure to follow these instructions could result in seri- the text. General information is identified by the symbol oius personal injury or death.

  • Page 4: General

    OPERATION GENERAL General The tankless water heater differs from conventional storage type water heaters in several ways. It does not store hot water. Instead, water is heated instantaneously as it flows through the appliance. Due to the absence of stand-by losses, the appliance offers greater energy efficiency than storage type water heaters.

  • Page 5: Installation

    A combination of two appliance can be used for whole apartment and house applications. Please contact STIEBEL ELTRON for special installation instructions. f Remove plastic cover. All areas with a ground water temperature likely to exceed 65 °F (18 °C) year round:...

  • Page 6: Water Connections

    PEX tubing or a braided stainless steel hose with a ½“ NPT female tapered thread. If soldering near the appliance is nec- For the DHC-E 8/10 instantaneous water heater, the output power essary, please direct the flame away from the plastic housing is adjustable in 2 stages.

  • Page 7: Temperature Setting/Anti-Scalding Protection

    Explain to the user how the appliance works and familiarise STIEBEL ELTRON is happy to provide technical assistance. In him or her with its use. most instances, we can resolve the problem over the phone.

  • Page 8: Normal Maintenance

    Normal maintenance 10.2 Wiring diagram DHC-E 8/10 STIEBEL ELTRON tankless water heaters are designed for a very 2/GRD ~ 208 / 240 V long service life. Actual life expectancy will vary with water qual- ity and use. The appliance itself does not require any regular 1/N/PE ~ 220 / 230 / 240 V maintenance.

  • Page 9: Temperature

    TECHNICAL DATA 10.3 Maximum temperature increase above ambient water temperature Warm water flow rate [ GPM ] Warm water outlet temperature 104 °f Cold water inlet temperature °F DHC-E 8/10 5.4 kW @ 208 V 0.57 0.68 0.82 1.02 1.36 2.04...

  • Page 10: Data Table

    INSTALLATION TECHNICAL DATA 10.4 Data table DHC-E 8/10 DHC-E 12 224201 230628 234450 234451 Electrical details Rated voltage Rated output 5.4/7.2 6.0/8.1 6.6/8.8 7.2/9.6 Rated current 28/35 30/50 31/39 32/40 Fuse 30/50 40/50 40/50 40/50 Frequency 50/60 50/60 Power connection...

  • Page 11: Spare Parts

    — Exclusively our spare parts have been used for repairs Environment and recycling Please help us protect the environment. Dispose of the appliance and its packaging in accordance with national regulations. No. No. Spare part DHC-E 8/10 DHC-E 12 Heating system 292575 292576...
  • Page 12   Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.

This manual is also suitable for:

Dhc-e 12

Table of Contents
