3. Installation
In this chapter all three electrical interfaces as well as the mechanical and optical interface are
described. If a lens and all interfaces are available, it is possible to refer to the quick start paragraph at
the end of this chapter. The other paragraphs describe the interfaces in detail.
3.1 Electrical interface - power
Chassis part
• Hirose type HR10A-7R-6PB(74)
1 6
5
2
3 4

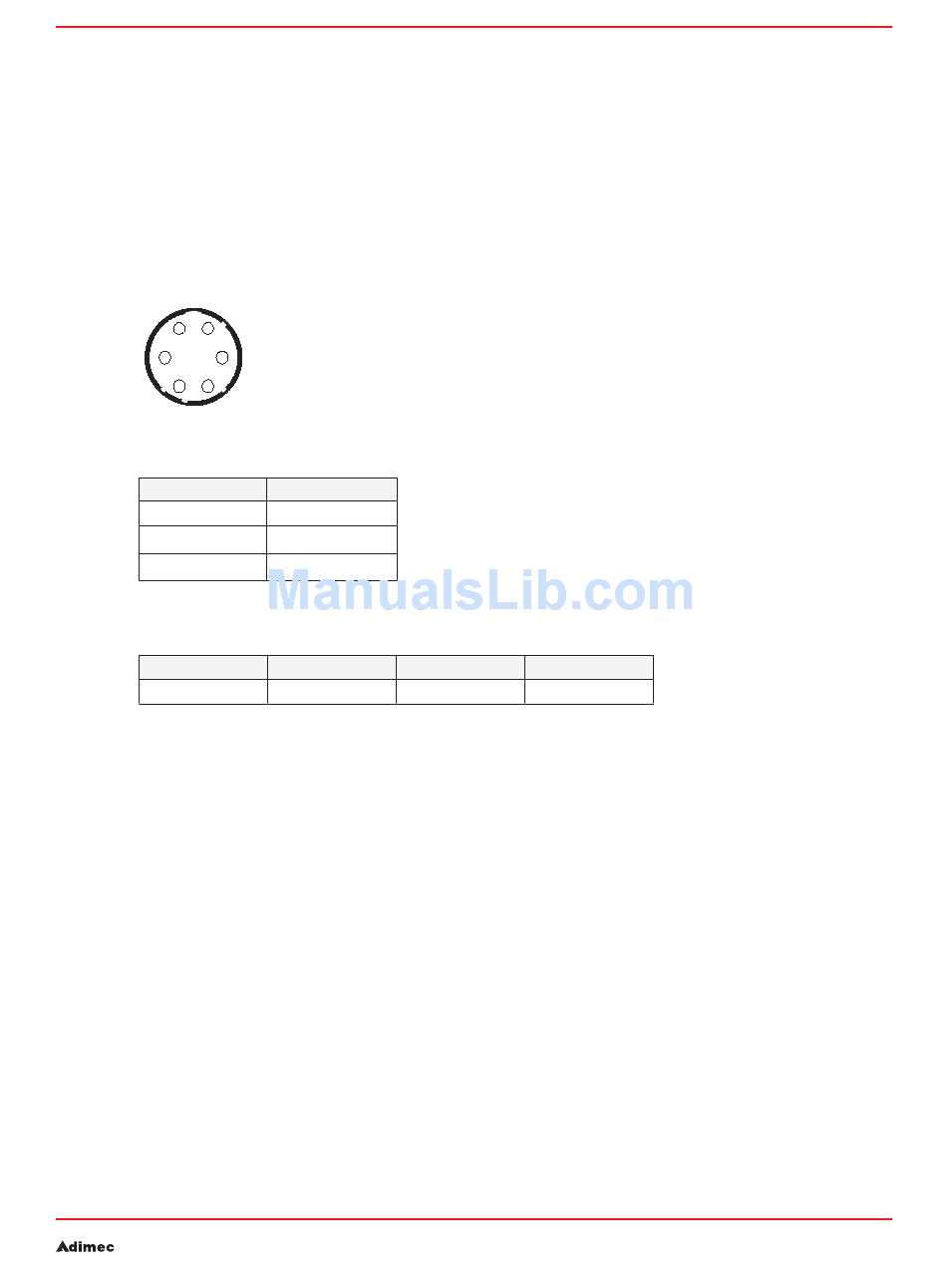

Figure 3.1: Camera male power connector
PIN
1,2
3,4
5,6
Table 3.1: Power pin configuration.
Q-2A340
<8 W
Table 3.2: Power consumption @ 12 Volt.
NOTE: The supply is reverse voltage protected. When applying power to the camera with the wrong
polarity it will not operate, but will not be damaged.
Mating cable connector
• Hirose type HR10A-7P-6S(74)
3.2

Electrical interface - strobe and trigger

An input for external triggering of the camera is available at the I/O connector.
Also a trigger output signal from the camera to control an external flash light is available at this
connector. The input and output are fully programmable. For reference see paragraph 7.5.
The input and output are galvanic isolated from the internal camera electronics by means of an
optocoupler.
OPERATING AND USER MANUAL QUARTZ SERIES
FUNCTION
10.2 to 13.8 Vdc
Not Connected
GND
Q-4A150 Q-4A180
<8 W <8 W
Q-12A65
< 8 W
