Summary of Contents for HiFiMAN EF2C

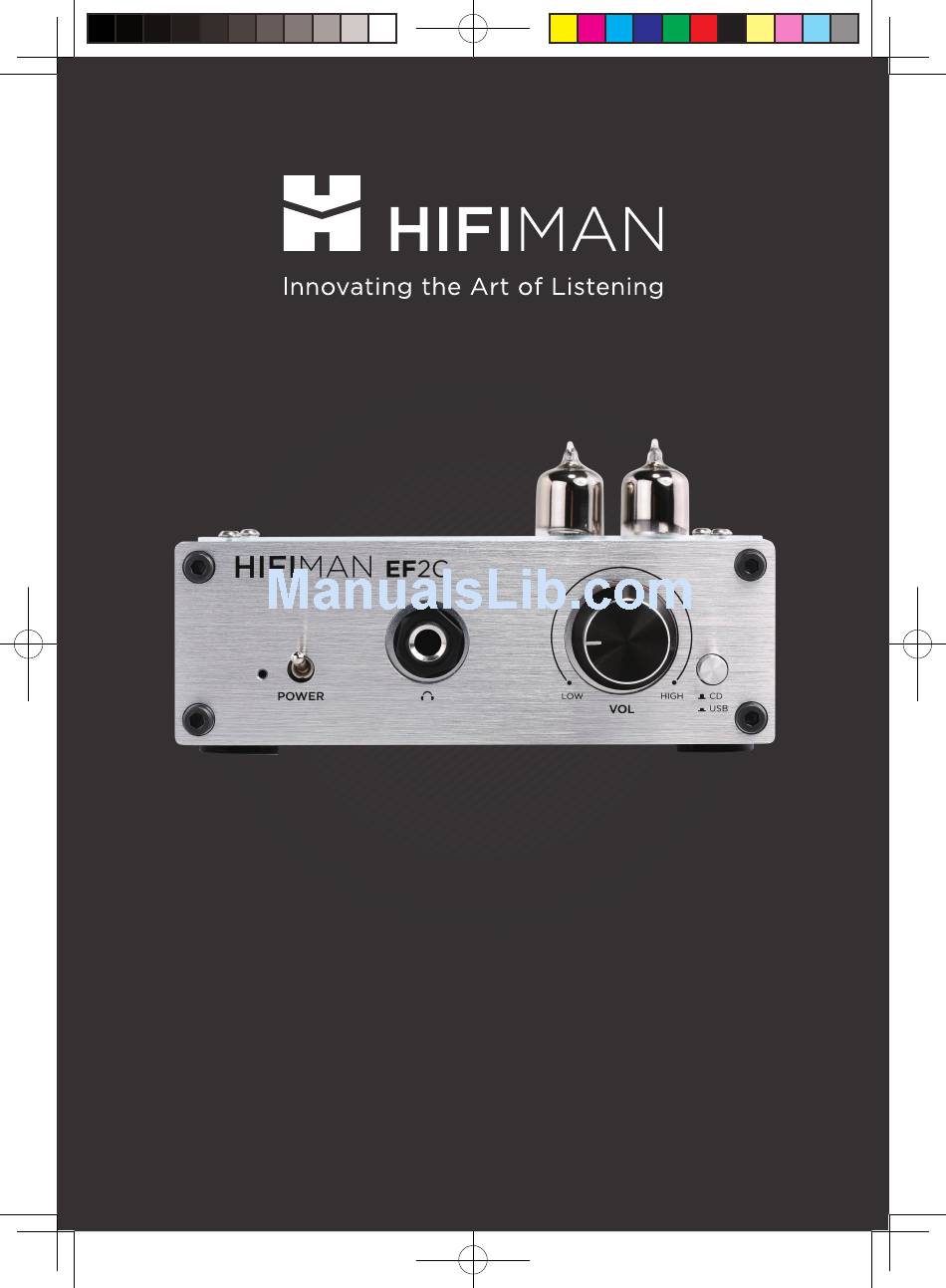

- Page 1 HIFIMAN EF2C Owner's Guide www.hifiman.com...
-
Page 2: Product Overview
This Owner's Guide is intended to provide a useful overview of your new EF2C and how to best install and operate it for many years of enjoyment, safety and satisfaction. Please take the time to familiarize yourself with its features. -
Page 3: Key Features
HIFIMAN EF2C Owner's Guide Key Features ● Hybrid design: Combines vacuum tube with solid state technology ● Advanced Step Potentiometer for precise volume control ● USB DAC chip: CM102S ● Vacuum tube: Chinese 6J1 x 2（6AK5） ● OP-amp: OPA2604 ● Separate power supply ●... -
Page 4: Front Panel Layout
HIFIMAN EF2C Owner's Guide Front panel layout 1) LED light: Turns to blue when the power is on 2) Power switch: Pull up to turn the amplifier on, pull down to turn off 3) Headphone jack: Connect with headphones 4) Volume control: Turn clockwise to increase volume, counter-clockwise... -
Page 5: Rear Panel Layout
HIFIMAN EF2C Owner's Guide Rear panel layout 6) L input: connect to the L channel of the audio cable 7) R input: connect to the R channel of the audio cable 8) USB input: for USB cable to connect to the computer... - Page 6 4. Make sure the supplied vacuum tube is correctly installed. 5. Use an audio cable to connect the audio input jack of EF2C and the output jack of the music source. Do not reverse the L/R channel orientation.
-
Page 7: Warranty
Return shipping to HIFIMAN or authorized service facility is owner's responsibility. ● For residential use only. facebook.com/hi manelectronics twitter.com/hi mano cial For any further information or questions, please contact your authorized HIFIMAN dealer. Or email us directly at customerservice@hifiman.com www.hifiman.com... - Page 8 Web: www.hifiman.com Phone: 1-201-HIFIMAN(443-4626) Email: customerservice@hifiman.com Shipping: 711 Dawson Drive, Newark, DE 19713 USA...
