Summary of Contents for HiFiMAN PRELUDE

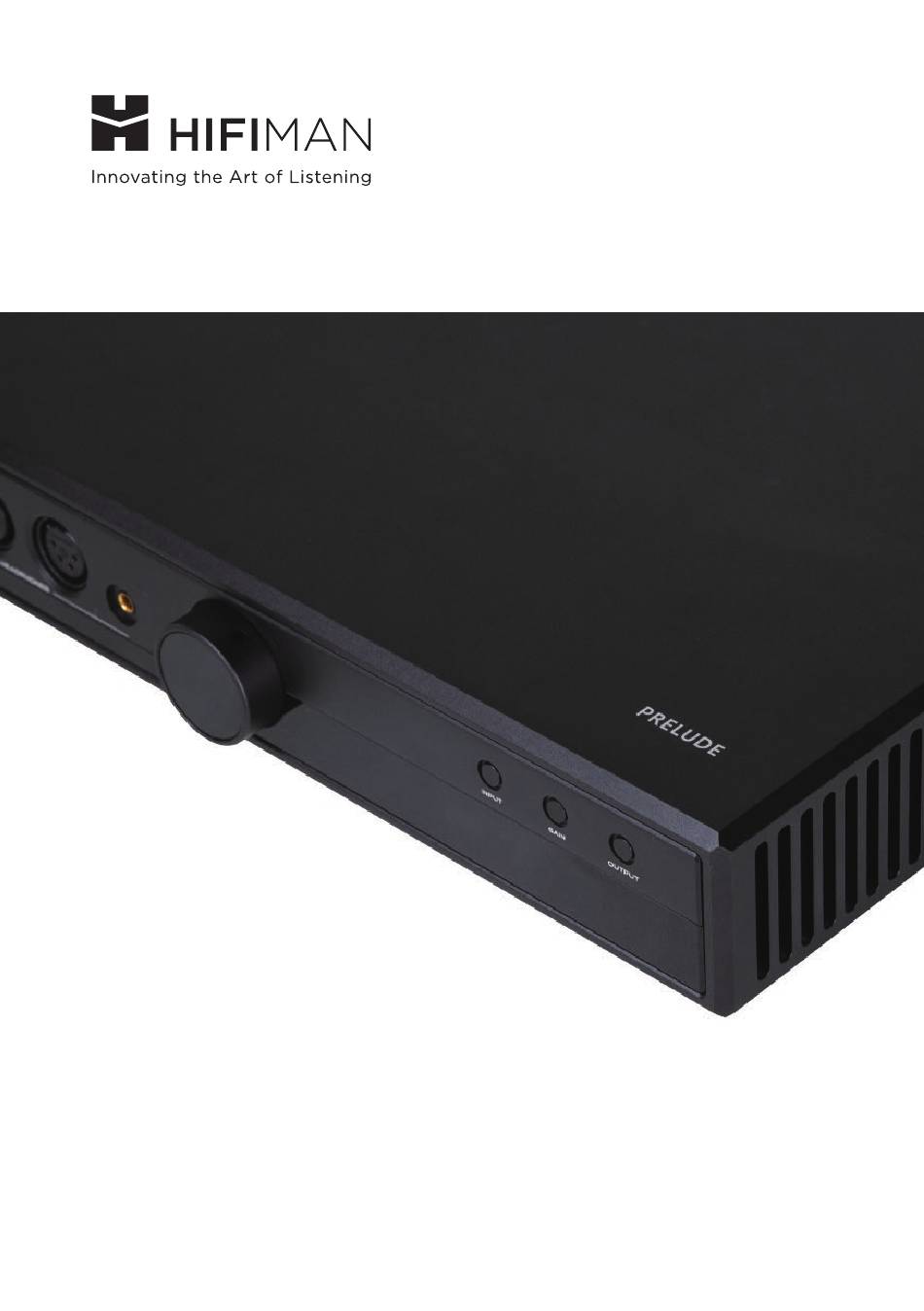

- Page 1 PRELUDE DAC and Headphone Amplifier PROFESSIONAL DIGITAL TO ANALOG CONVERTER...
-
Page 2: Front & Rear Panel Layout
To Connect an Audio Device 1) The Prelude Headphone Amplifier offers XLR balanced and RCA single-ended inputs. Input selection is made via the INPUT key on the front panel. 2) The Prelude Headphone Amplifier can simultaneously output multiple amplified analog signals. The Pre-amp signal output on the rear panel offers a choice between XLR balanced and RCA single-ended signal outputs. - Page 3 Listening at a high volume for an extended period may damage your hearing. Precautions 1. The Prelude Headphone Amplifier is a high-current pure Class A design that dissipates heat. Though it may feel warm to the touch, rest assured it is stable. Do not cover the chassis, and maintain a minimum of 5cm space above and on the sides at all times.
- Page 4 Specifications and Package Contents Specifications Frequency Response: 20-50KHz, ±1dB@1KHz Signal to Noise Ratio: -113dB @1KHz THD+N: 0.0009%, low gain, @1KHz Power Output: (0.1% @1KHz, balanced) 10W@32Ω, 6W@64Ω, 2.5W@150Ω, 1W@300Ω, 560mW@600Ω Total Power Consumption: <50W Dimension (L*H*W): 330*56*260mm, protrusions not included Net Weight: 6.5KG Package Contents Power Cable x1...
- Page 5 HIFIMAN Limited Warranty PRELUDE is warrantied for a period of one year beginning with the original date of purchase. If you join the official HIFIMAN group on Facebook, your product warranty will be extended for an additional six months. Please contact HIFIMAN customer service if you need any assistance.
