HPI Racing JUMPSHOT MT Instruction Manual

2.4 ghz radio system
Hide thumbs Also See for JUMPSHOT MT:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual

Instruction Manual

En
Инструкция
Ру
Fr
RTR JUMPSHOT MT
En
Ру
Fr
Jp
Vol.1 115145

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JUMPSHOT MT and is the answer not in the manual?

Questions and answers

Related Manuals for HPI Racing JUMPSHOT MT

Summary of Contents for HPI Racing JUMPSHOT MT

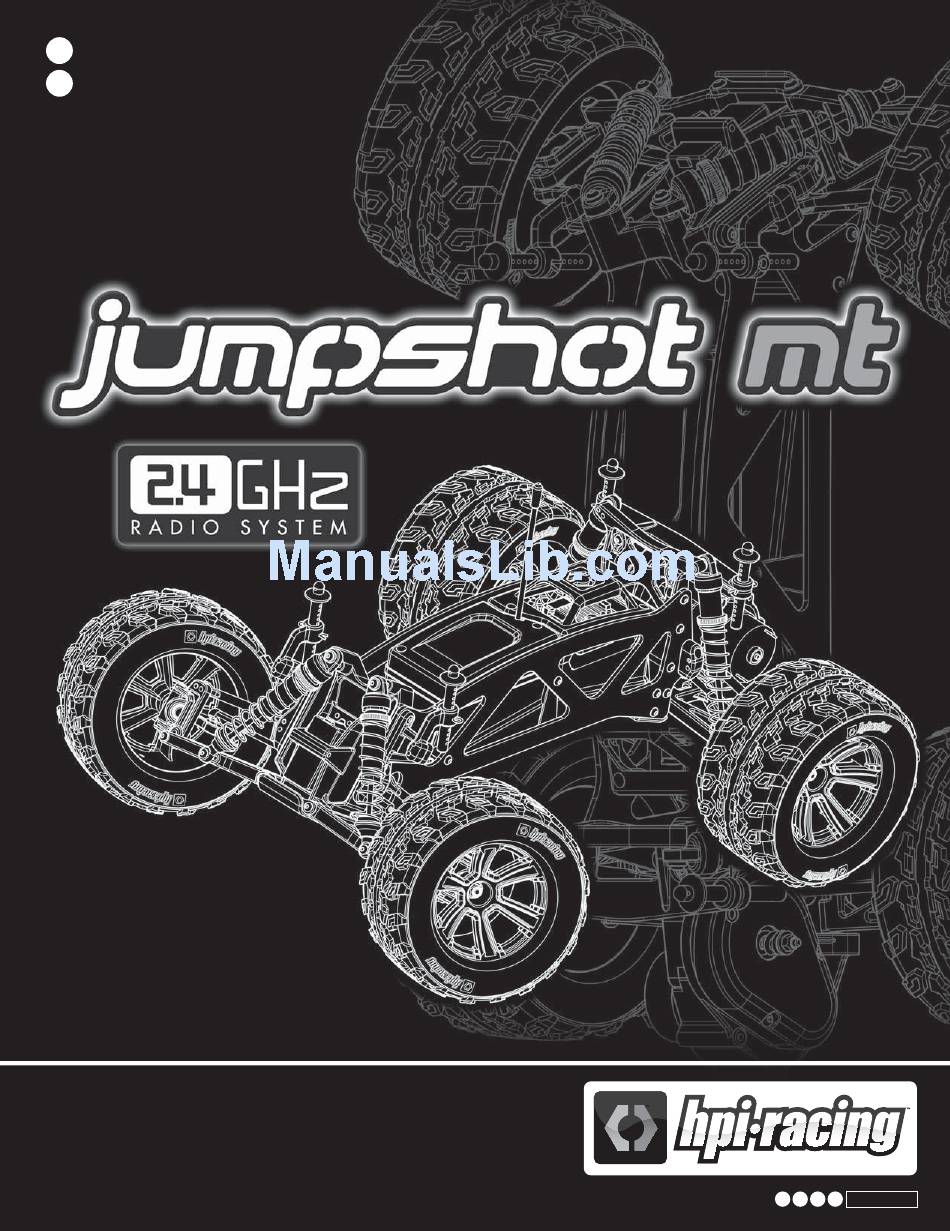

  • Page 1: Instruction Manual

    Instruction Manual Инструкция Ру RTR JUMPSHOT MT Ру Vol.1 115145...

  • Page 2: Thank You

    Thank you Thank you for selecting this HPI RACING product! This kit is designed to be fun to drive and uses top quality parts for durability and perfor- mance. The instruction manual you are reading was designed to be easy to follow yet thorough in its explanations. HPI Racing wants you to enjoy driving your new R/C kit.

  • Page 3: Table Of Contents

    Contents Section Contents Page Overview Start Up Guide Charging Battery Setup Before Starting Radio Control Car Operating Procedures Trouble Shooting Maintenance Chassis Maintenance Wheel Maintenance Motor and Pinion Gear Replacement Transmission Maintenance - Spur Gear Transmission Maintenance - Diff Gear Shock Maintenance Radio Maintenance Exploded View...

  • Page 4: Overview

    Overview Components Radio Control Car Parts Bag Transmitter Included Items 111833 Allen Wrench AC MULTIPLUG CHARGER Z901 Z904 101939 (US/EU) AA Alkaline Batteries (4pcs.) Z950 Cross Wrench 101929 PLAZMA 7.2V 2000mAh NI-MH BATTERY PACK AZMA 7.2 Equipment Needed Thin object (such as a paperclip)

  • Page 5: Start Up Guide

    Start Up Guide 2 - 1 Charging Battery US/JP Choose the correct plug for your adapter. Remove Plug into a wall outlet Cautions Caution Внимание! Charge time 6 hours. Overcharging can cause damage or explosion. Время зарядки 6 часов. Перезарядка может...

  • Page 6: Setup Before Starting

    2 - 2 Before tarting ransmitter Battery stallation Reverse Switc factory setting. 101939 PLAZMA 1.5 Alkaline AA Battery AZMA 1.5 Note Direction. Battery Cover t mix atteries f fferen ages r types. attery cover at the ttom f transmitter atteries rect f atteries esignate side of attery...
  • Page 7 Battery stallat 6203 PLAZMA 7 2 2000mA NI-MH BATTER AZMA 7 2 6203...
  • Page 8 ESC Setup There are two battery modes to choose from (NiMH or LiPo). Factory setting is set to NiMH mode. Lipo Battery Mode Mode batterie LiPo If the power is cutting off and on (pulsing) while driving, the LiPo battery cutoff has been activated in the speed control. Stop driving the car im- mediately and recharge or replace the battery.
  • Page 9 Checking Fail Safe Operation Fail Safe This car has a built-in fail safe system. If the radio glitches, because of interference or the car goes out of range, it will go into neutral to protect your car. The fail safe system has been setup at the factory, but you should become familiar with the function of the fail safe and check the operation before running. Situation when the fail safe will operate.
  • Page 10 Center throttle trim. Put the car on a stand. he fail safe is working properly. fail safe When fail safe is operat ED light will turn off. fail safe Cautions 31 and perform the fail-safe setup procedure . Reference Section...
  • Page 11 Allen Wrench Z904 103729 Z353 M3x10 M4 ( 115305 115305 Z950 103729...

  • Page 12: Radio Control Car Operating Procedures

    2 - 3 Radio Control Car Operating Procedures Turn on Switch Center throttle trim. Good Batteries Low Batteries (Light Blinks) Put the car on a stand. Do not touch throttle Stop (Neutral) If you hear a tone signal, the set-up of the speed control has been completed. Beep Sound 3 short Beeps The battery is 3S LiPo...
  • Page 13 Checking radio range To properly check the range, have a friend hold the truck and walk to the farthest distance that you plan to operate your model Operate the controls to make sure the model responds correctly Do not operate the model if there are any problems with the radio system If you switch on the R/C car Check Max Range Reference Section Caution...
  • Page 14 Transmitter Operat Steering Wheel Front Left turn Straight (Neutral) Right turn Left turn Right turn Steering Dual Rate To be used to adjust steering servo throw. Throttle Trigger If your vehicle is moving, adjust the throttle trim until it stops. Throttle Trim Reverse operation A and B show the two ways to go in reverse.
  • Page 15 Practice Turning Install body and enjoy! Allow the car to cool down for 15 minutes between each run. When the car is running toward the driver the directions of the steering wheel are reversed. Right turn Once you become comfortable driving your RC car practice driving on a track with pylons. Cautions Attention Cautions Attention Cautio...
  • Page 16 Attention Driving in Wet Conditions This HPI vehicle is designed to provide water protection for the on-board radio system components so it can be driven in wet conditions. The vehicle is not designed to be completely submerged in water. Driving in wet conditions will require additional vehicle maintenance. Notes: Never drive the vehicle in stormy conditions where lightning could be present.

  • Page 17: Trouble Shooting

    Trouble Shooting If R/C car does not move or you have no control, see below. Problem Cause Remedy Section Does Not Move. Battery is not placed properly in the transmitter. Place batteries in the transmitter properly. Weak or no battery in model. Install charged battery.

  • Page 18: Maintenance

    Maintenance Maintenance Chart For maintenance schedule, refer to bottom chart. After running, clean the chassis and check all moving parts for damage. If any parts are broken or damaged, repair or replace them before the next run. Regular maintenance is necessary to prevent damage to the car and maintain its performance. Spur Gear Diff Gear Refer to sellable number to purchase parts.

  • Page 19: Chassis Maintenance

    Necessary for Maintenance Needle Nosed Pliers Allen Wrench Instant Cement Side Cutters Z901 Z904 Screwdriver Z164 Oil Spray Grease 9062 (U EU) Z950 Z159 9063 (JP) Cross Wrench Brush Thread Lock (Green) Nitro Car Cleaner 4 - 1 Chassis Maintenance After r clean the car and lubricate metal to metal contacts.

  • Page 20: Wheel Maintenance

    Wheel Maintenance Z950 Cross Wrench Instant Cement Make sure the tires are secured on the wheels. Re-glue if necessary. This step is the same for front and rear shock maintenance. Use small amount to secure tire. Glue both sides. 30035 (JP) Z684 Front Instant Cement...
  • Page 21 Install Z 00 1146 FIREB 15 MOTOR (540 6919 Proper r ear Mesh st the motor et roper ear mesh et a erfect ear mes ace a ece f ape etwee the ears a tighte the motor m screws The s r ear may e amage f the ear mes is rong Paper for ear Mesh...

  • Page 22: Transmission Maintenance - Spur Gear

    Transmiss in nance - r ear Alle renc Z950 Cross rench Z901 Z904 Remove 115306 100559 115318 115316 115318 115318 1153 115318 115319 115318...

  • Page 23: Transmission Maintenance - Diff Gear

    Adjusting the Slipper Clutch After running, if slipper clutch is too loose, tighten 1/4 turn. ¼ Track Condition Slipper Clutch Characteristics Slippery Loosen Smoother power delivery. High Grip Tighten Quicker throttle response. Не скользкая Adjust the Slipper Clutch in 1/8 turn increments. If the Slipper is too loose, it can damage the Drive Gear. 4 - 5 Transmission Maintenance - Diff Gear Allen Wrench...
  • Page 24 Z354 M3x12 115311 115294 115311 Z354 M3x12 115294 Replace Axle when worn. 115295 115301 115301 5x8x0.3 115301 5x8x0.3 B022 5x11x4 115308 Z264 2x10...
  • Page 25 Z354 Black M3x12 Black Z353 M3x1 Z354 Z353 115310 115310 115322 115306 100559 Z087 M3x20...
  • Page 26 115318 115316 115318 115318 Z663 115319 115318 Z082 M3x8 115318 Adjusting the Slipper Clutch After running, if slipper clutch is too loose, tighten 1/4 turn. ¼ Track Condition Slipper Clutch Characteristics Slippery Loosen Smoother power delivery. High Grip Tighten Quicker throttle response. Не...
  • Page 27 B017 4x8x3 115299 B022 5x11x4 115299 115299 Z353 M3x10 115296 115307 B030 10x15x4 10 1 Z084 M3x12 Z259 2.5x15 115292 115292 115292 115292 115291 114761 M2.5x6 Replace Axle when worn. 115292 Installation is reverse of removal.

  • Page 28: Shock Maintenance

    Shock Maintenance Inspect shocks for oil leakage and for bent shock shafts. Repair or replace if necessary Allen Wrench Screwdriver Needle Nosed Pliers Z904 This step is the same for front and rear. Rear Front Z216 M3x15 115288 Z216 M3x15 115288 115311 100559...
  • Page 29 Filling Oil Shocks 115287 115287 Shock Oil ( Available separately ) Use a Rag. 6816 6816 Stock shock oil is equiv- alent to 50wt silicone oil. Move the shaft up 115287 and down slowly to remove all air bubbles. 6819 Check for leaking oil.

  • Page 30: Radio Maintenance

    Radio Maintenance Steering Dual Rate Steering Trim Throttle Trim To be used to adjust steering servo throw. To be used for Centering the steering. To be used for Centering the throttle. Reverse Switch Steering Wheel Straight (Neutral) Right turn Left turn Refer to the instruction of kit and check direction of reverse switch.
  • Page 31 Receiver Connections 114712 SC-3sWP2 Electronic Speed Controller 1146 FIREBOLT 15T MOTOR (540 TYPE) Black IREBOLT 15T ( 540) Black 104105 HPI SF-10W Receiver Switch Steering Servo CH2: :CH1 105407 HPI RF-11 Antenna Receiver 101929 PLAZMA 7.2V 2000mAh NI-MH BATTERY PACK NiMh LAZMA 7.2 2000 Attention...
  • Page 32 Binding and Fail Safe Fail-Safe c transmitter. Binding is pre-set from the factory. If you change transmitters or add a receiver, you must re-bind before operating your vehicle. If you change transmitters or add a receiver, you must re-bind before operating your vehicle. Caution Bring the transmitter and the receiver close to each other, within 0.5 meter.
  • Page 33 Radio Operation Check n to the neutral position and the vehicle will not move when you shut off the transmit- ter See page 12 and check the Fail Safe function to see if it is working properly ot need to repeat this procedure every time you run When fail safe is operat ED light will turn off fail safe...

  • Page 34: Exploded View

    Exploded View Chassis Assembly Z150 Z702 Z353 Z353 115302 115305 75106 Z353 75106 Z354 75106 Z353 115302 Z353 75106 115302 Z353 Z353 Z353 115314 Z353 Z354 Z353 Z353 115305 115317 115312 Z353 Z353 Z354 Z353 Z084 115285 115302 Z676 103729 75106 6203 115317...
  • Page 35 11528 15287 6816 6816 Задний амортизатор Задний дифференциал Передний амортизатор 115288 115289 Z242 Z242 114761 11528 15286 115292 115291 6819 Z259 6819 Z259 115290 115287 115287 103729 115311 115303 100559 Z354 106719 115308 115311 100559 106719 115311 B020 Z264 115303 B020 115295 115301...

  • Page 36: Parts List

    Parts List Parts List Parts # Description Parts # Description 1146 Firebolt 15T Motor (540 Type) 115308 12Mm Wheel Hex Hub Set (4Pcs) 6203 Body Pin (8Mm/Black/Large/20Pcs) 115309 Kick-Up Plate 6816 Silicone O-Ring S10 (6Pcs) 115310 Rear Arm Mount/Rear Skid Plate 6819 Silicone O-Ring P-3 (Red/5Pcs) 115311 Linkage Pivot (10Pcs)

  • Page 37: Список Деталей

    Список деталей 1146 Firebolt 15T ( 540) 115308 6203 115309 6816 S10 (6 115310 6819 P-3 ( 115311 6919 19 ( 115312 75106 115313 86896 4.8X12 115314 100559 M3X14 115315 Jump T2.8M (4 100864 M2.5X4 115316 90 ( 103729 M4 ( / 10 115317 106719...
  • Page 38 Option Parts List 48 PITCH 115325 115327 6920 6925 6930 86951 86956 10wt 35wt 6921 6926 6931 86952 86957 15wt 40wt 6-SHOT MT (WHITE/2pcs) 6-SHOT MT (BLACK/2pcs) 6922 6927 6932 86953 86958 MT ( 20wt 45wt 6923 6928 86954 86959 25wt 50wt 6924...
  • Page 39 101289 101914 101941 74151 PLAZMA POUCH LIPO SAFE BAG PRO-SERIES TOOLS POUCH PLAZMA 7.4V 4000mAh 20C HPI RACING TEMP GUN HPI RACING (18x22cm) LIPO BATTERY PACK PRO-SERIE HPI RACING LIPO LAZMA 7.4 4000 (18x22c ) 112851 112850 102777 105366 FLUX EMH-3S BRUSHLESS ESC...
  • Page 44 Serial Number www .hpiracing.com www .hpi-europe.com www .hpiracing.co.jp www .hpiracing.net.cn HPI Racing USA HPI Europe HPI Japan HPI China 70 Icon 19 William Nadin Way, 105-1 Shimoiidacho, B01-02, No.68 Guanghua Rd. Foothill Ranch, CA 92610 USA Swadlincote, Derbyshire, Minami-ku, Hamamatsu-shi,...
