IP Address: Set IP address for the virtual server.
•
Port Range: Set port numbers for the virtual server.
•
Protocol: Set protocol for the virtual server.
•
Comment: Type comment for the virtual server settings.
•
Select Enable, and input the detailed information in the Port Forwarding Settings area, then click Apply
to add a new rule.
Click Delete to delete the rule which you selected.
Router Settings

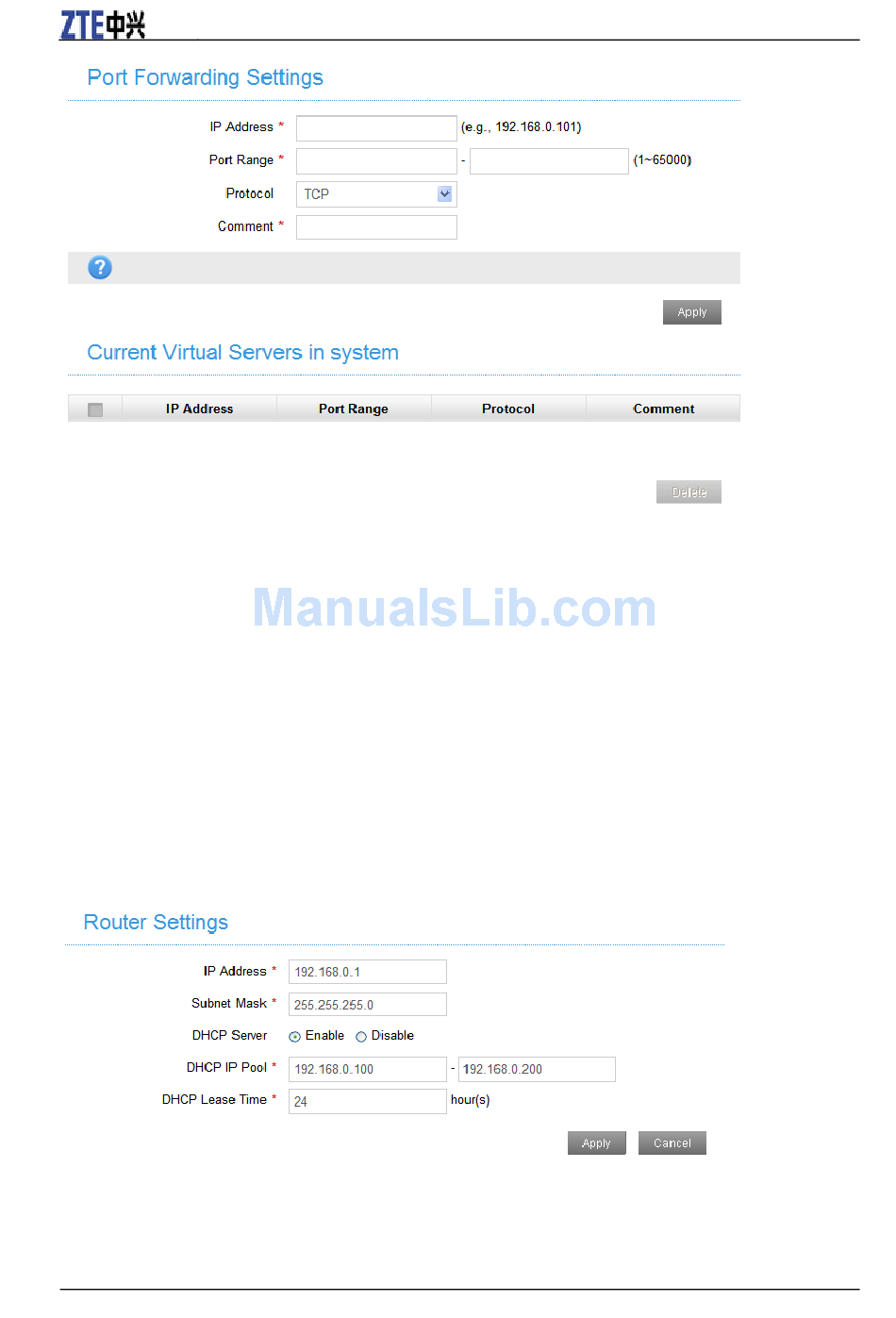

Select Settings > Router Settings, and the router information is shown in the following figure:
• IP Address: IP address for LAN interface.
• Subnet Mask: Subnet mask for the IP address.
