Page 1: User Manual
Z288L User Manual ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26779999 URL: www.ztedevice.com E-mail: mobile@zte.com.cn... - Page 2 ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice.
-
Page 3: Getting Started

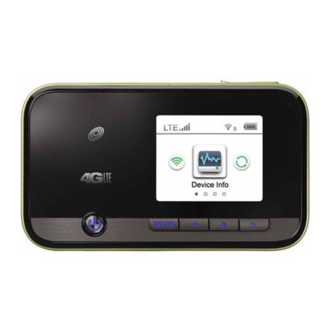

Getting Started Introduction ZTE Z288L is a 4G hotspot device, working in 1X/HRPD/eHRPD/LTE network. The client devices can connect to it via Wi-Fi. The device supports data services, enabling you to communicate anytime and anywhere. Outline and Parts The following figure shows the appearance of the device. It is only for your reference. The actual device may be different. - Page 4 Settings Set your device. Set the WPS function. Installing Your Device Inserting the SIM Card and Battery 1. Remove the back cover. 2. Insert the SIM card into the SIM card slot. 2 Confidential and Proprietary Information of ZTE CORPORATION...
- Page 5 Do not pull the cover rudely, as it is connected with the device. 2. Insert the microSDHC card into the microSDHC card slot. The following picture shows the correct inserting direction. You will hear a click when the microSDHC card locks in place. Confidential and Proprietary Information of ZTE CORPORATION 3...
- Page 6 The plug only fits one way to connect your device. Do not use excessive force to insert the plug. Resetting Your Device There are two ways to reset your device. Reset your device on web UI. 4 Confidential and Proprietary Information of ZTE CORPORATION...
-
Page 7: Internet Access
For the detailed operations about the client, please refer to the client’s instruction. NOTE: Internet Access Connection Scenario The following picture is the application example. All of the client devices can surf on the Internet at the same time. Confidential and Proprietary Information of ZTE CORPORATION 5... - Page 8 Wireless Network Connection is used for Wi-Fi connection. 1. Right-click My Network Places, and then select Properties. 2. Right-click the Wireless Network Connection, and then select Properties. 3. Select Internet Protocol (TCP/IP), and then click Properties. 6 Confidential and Proprietary Information of ZTE CORPORATION...
- Page 9 1. Power on your device directly. It will take 1~2 minutes to initialize. 2. Use your normal Wi-Fi application on the client to search for available wireless networks. 3. Select the SSID of your device, and then click Connect. Confidential and Proprietary Information of ZTE CORPORATION 7...
-
Page 10: Accessing The Internet
Navigating the Device Press and hold the Power button to turn on the device. The screen lights up to indicate the device has turned on and the following icons will appear after initialization. 8 Confidential and Proprietary Information of ZTE CORPORATION... - Page 11 Screen Timeout: Set time for screen timeout. Language: Select the language you want. Wi-Fi: Set whether to display the Wi-Fi password or not. Select and press the ENTER Key to launch the Wi-Fi Protection Setup. Confidential and Proprietary Information of ZTE CORPORATION 9...
-
Page 12: Web Ui Configuration
• Index area: Shows the configuration list for your device. • Content area: Shows the detailed configuration. • System Information Area: Shows the system status and different kinds of tips. 10 Confidential and Proprietary Information of ZTE CORPORATION... - Page 13 If you want to modify the PIN Status, please select Management to do the actions. Quick Setups 1.In the main interface click Settings > Quick Settings. 2. Read the guide carefully, and then click Next. Confidential and Proprietary Information of ZTE CORPORATION 11...
- Page 14 Encryption will keep your traffic from being unauthorized monitored and accessed, select one encryption mode from the list, and then set key and/or algorithm for it. 5.Show the Configuration in the following figure: 12 Confidential and Proprietary Information of ZTE CORPORATION...
- Page 15 SSID. If you want someone to connect, you need to tell them the SSID, and let them setup manually. Security Mode: The security modes are described below: Mode Description OPEN Authentication and encryption won't be performed. There are risks that private Confidential and Proprietary Information of ZTE CORPORATION 13...
- Page 16 MAC Address: Set the MAC address that are approved to connect to this Wi-Fi hotspot Click Apply to confirm your configuration. Select Settings > Wi-Fi Settings > WPS, the WPS configuration is shown in the following figure: 14 Confidential and Proprietary Information of ZTE CORPORATION...
- Page 17 You can change the administrator’s password. Click Apply to confirm your configuration. SIM PIN Management Select Settings > Device Settings > SIM PIN Management and the PIN management is shown in the following figure: Confidential and Proprietary Information of ZTE CORPORATION 15...
- Page 18 After you changed the PIN code, you don’t need to input the PIN code again. It is required after the • device is reset. Power Save Select Settings > Device Settings > Power Save. You can set Wi-Fi performance and Wi-Fi sleep to save power. Wi-Fi Performance Settings 16 Confidential and Proprietary Information of ZTE CORPORATION...
- Page 19 You can set up Port Mapping to enable external computers to access www, FTP or other services provided by LAN. Select Settings > Firewall > Port Mapping and the Port Mapping page is shown in the following figure: Confidential and Proprietary Information of ZTE CORPORATION 17...
- Page 20 Destination Port: Set the destination port of the computer that provides services. • Protocol: Set which protocol will be applied by services. • Comment: Type comment for the port mapping settings. • Click Apply to add a new rule. 18 Confidential and Proprietary Information of ZTE CORPORATION...
- Page 21 This function allows you to receive messages from your ISP. Operating Messages in Inbox You can check the messages saved in your device. Inbox Select SMS > Inbox to access the following figure: Confidential and Proprietary Information of ZTE CORPORATION 19...
-
Page 22: Using Your Device
•Handle the device carefully. Do not drop, bend or strike it. Otherwise the device may be damaged. •Only qualified personnel can dismantle and repair the device. •An operating temperature between -10 ° C ° and +60 C and a humidity between 5% and 95% are recommended. 20 Confidential and Proprietary Information of ZTE CORPORATION... -
Page 23: Using The Battery
Any other cause beyond the range of normal usage intended for the product. End users have no right to reject or return the product, or receive a refund for the product from ZTE under the above-mentioned situations. -
Page 24: Fcc Compliance (Only For America)
—Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. 22 Confidential and Proprietary Information of ZTE CORPORATION... -
Page 25: Disposal Of Your Old Appliance
Device Info on the LCD screen to check the password. For more assistance, please: • Send E-mail to mobile@zte.com.cn • Visit www.ztedevice.com • Call Service Hotline: +86–755–26779999 Confidential and Proprietary Information of ZTE CORPORATION 23...
