ZTE MOBILE HOTSPOT
QUICK START GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z289L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zte Z289L

Summary of Contents for Zte Z289L

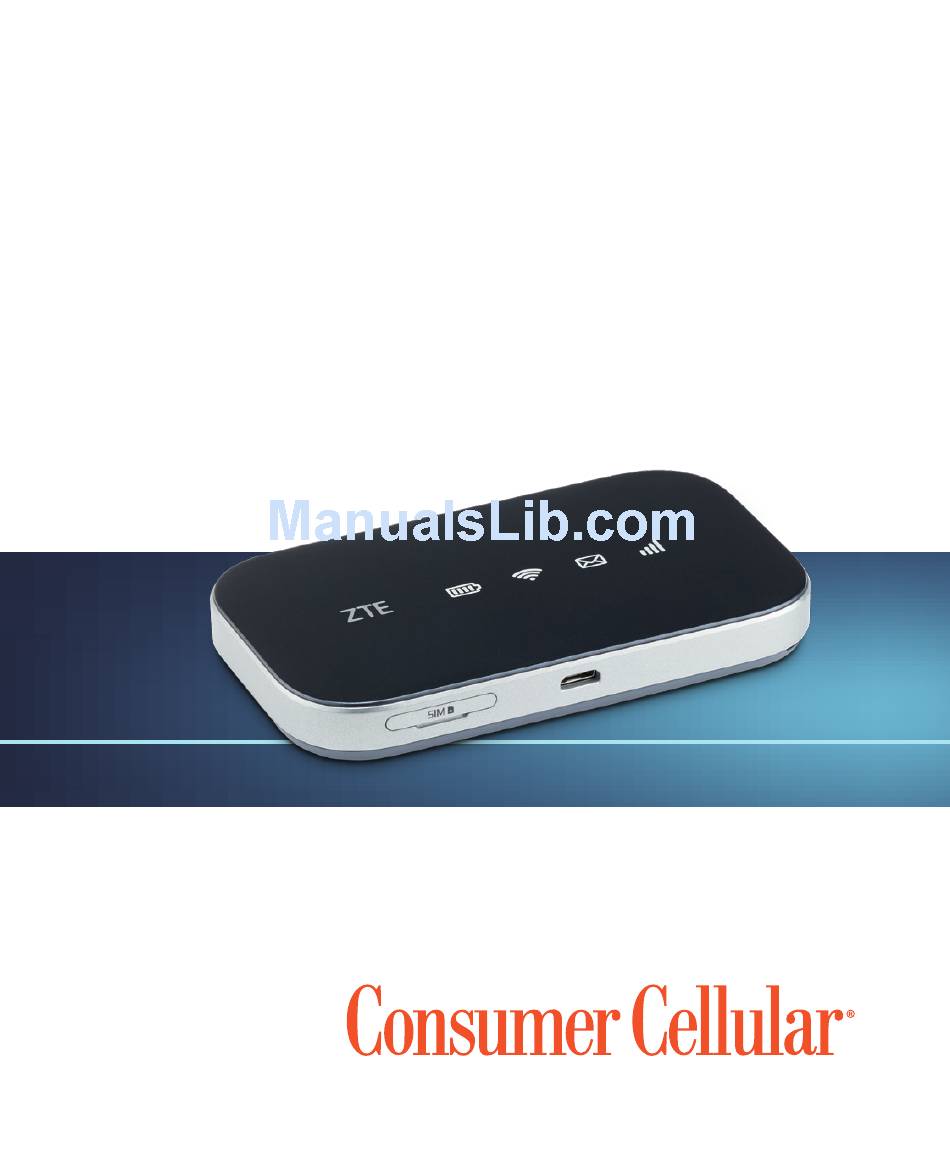

  • Page 1 ZTE MOBILE HOTSPOT QUICK START GUIDE...

  • Page 2: Introduction

    INTRODUCTION Thank you for choosing Consumer Cellular! We know you’re excited to use your new ZTE Mobile Hotspot, and this short guide will help you get familiar with it, so you can start using it as soon as possible. Each section includes instructions and pictures to make it easy to start using your device.

  • Page 3: Table Of Contents

    INTRODUCTION TABLE OF CONTENTS Introduction Getting to Know Your Device Initial Set-up Charging Your Device Connection Scenario Connecting to Your Device 1 2- 1 6 Configuring Your PC 1 7- 20 Resetting Your Device 21-23 Troubleshooting 24-25 For Your Safety 26-29 Warranty Contact Us...

  • Page 4: Getting To Know Your Device

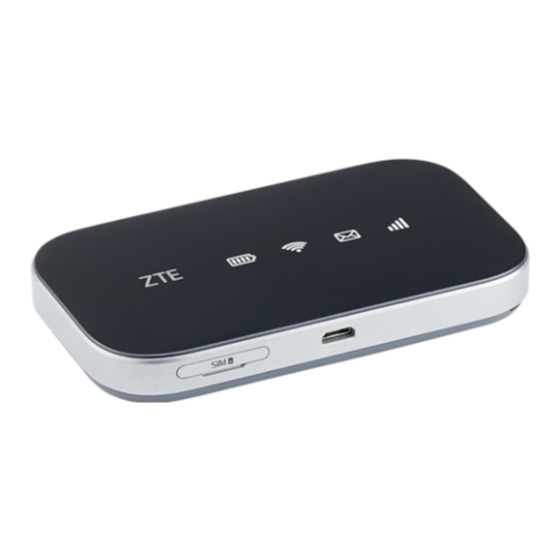

    GETTING TO KNOW YOUR DEVICE GETTING TO KNOW YOUR DEVICE APPEARANCE The following diagram is for your reference only. The actual product may be different. 1. ON/OFF switch 2. WPS key 3. LED indicators 4. Charging/USB port 5. micro-SIM card slot...
  • Page 5 GETTING TO KNOW YOUR DEVICE Part Description Slide it to turn on/off the ON/OFF switch hotspot. micro-SIM card slot Install the micro-SIM card here. • When the Wi-Fi function is enabled, hold it for more than 3 seconds to activate WPS key the WPS function.
  • Page 6 GETTING TO KNOW YOUR DEVICE INDICATORS When the hotspot is powered on, the following icons will light up. For a description of the icons, refer to the following table. Indicator Status Description Limited or no service, no Red solid SIM card, SIM card error or SIM card locked.

  • Page 7: Getting To Know Your Device

    GETTING TO KNOW YOUR DEVICE Indicator Status Description Blue solid Wi-Fi is on. Wi-Fi Blue blinking WPS is active. LED light off Wi-Fi is off. The battery level is medium or high (charging Green solid from 95% to 100%, not charging from 34% to 100%).

  • Page 8: Initial Set-Up

    INITIAL SET-UP Initial Set-up INSERT THE SIM CARD Lift the micro-SIM card cover. Insert the micro-SIM card. NOTE: Do not bend or scratch your SIM card. Avoid exposing your SIM card to static electricity, water or dirt.
  • Page 9 INITIAL SET-UP INSERT THE BATTERY Remove the battery cover. Insert the battery.

  • Page 10: Charging Your Device

    CHARGING YOUR DEVICE CHARGING YOUR DEVICE You can charge your Mobile Hotspot by using the USB cable or adapter. Please charge your device for more than 2 hours when you use it the first time or when you haven’t used it for a long time. USE THE USB CABLE TO CONNECT YOUR DEVICE AND PC DIRECTLY.

  • Page 11: Connection Scenario

    CONNECTION SCENARIO CONNECTION SCENARIO Your Mobile Hotspot allows you to use your SIM card to access the Internet and supports multiple devices for surfing the Internet at the same time. It is compatible with Windows 7, 8, and 10; iOS; and Android™...

  • Page 12: Connecting To Your Device 1 2- 1

    CONNECTING TO YOUR DEVICE CONNECTING TO YOUR DEVICE 1 . Power on your Mobile Hotspot. It will take 1 to 2 minutes to initialize. 2. On your computer or other Wi-Fi enabled device, use your normal Wi-Fi application to search for available wireless networks.
  • Page 13 CONNECTING TO YOUR DEVICE 3. Select the SSID of your Mobile Hotspot, and then press Connect. NOTE: Please check the label on your Mobile Hotspot.
  • Page 14 CONNECTING TO YOUR DEVICE 4. Input the password, and then press Next. NOTE: Please check the label on your Mobile Hotspot.
  • Page 15 CONNECTING TO YOUR DEVICE 5. Your computer or other Wi-Fi enabled device will then connect to the Mobile Hotspot. You will see Connected once this takes place.
  • Page 16 CONNECTING TO YOUR DEVICE ACCESSING THE INTERNET After your Wi-Fi enabled device is connected to your Mobile Hotspot successfully, you can access the Internet automatically. NOTE: To change the Mobile Hotspot’s settings, log in to the configuration page on your Wi-Fi enabled device at http://192.168.0.1 or http://mobile.hotspot.

  • Page 17: Configuring Your Pc

    CONFIGURING YOUR PC CONFIGURING YOUR PC Follow these steps and images for Windows 10 to configure the Internet Protocol for your Wi-Fi connection. Steps may vary if you use a different operating system. 1 . Access Network and Sharing Center from the Control Panel, and then click the hotspot name next to Connections.
  • Page 18 CONFIGURING YOUR PC 2. Press Properties.
  • Page 19 CONFIGURING YOUR PC 3. Select Internet Protocol Version 4 (TCP/IPv4), and then press Properties.

  • Page 20: Configuring Your Pc 1

    CONFIGURING YOUR PC 4. Select Obtain an IP address automatically and Obtain DNS server address automatically, and then press OK to finish the configuration.

  • Page 21: Resetting Your Device

    RESETTING YOUR DEVICE RESETTING YOUR DEVICE There are two ways to reset your Mobile Hotspot to factory default settings. VIA WEB CONFIGURATION PAGE 1. Go to http://192.168.0.1 or http://mobile.hotspot and log in with the default password (Admin). 2. Select Settings > Device Settings > Reset.
  • Page 22 RESETTING YOUR DEVICE 3. Select Reset > Yes. The Mobile Hotspot will restart automatically.
  • Page 23 RESETTING YOUR DEVICE VIA HOTSPOT 1. Remove battery cover. 2. Find a hole labeled RESET on the bottom surface of the device. It should be located near one side. 3. Press and hold the RESET key hidden in the hole with a pin for 3 seconds or longer.

  • Page 24: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING Problem Suggested Solution Cannot • Make sure the Wi-Fi function is establish the active. Wi-Fi connection • Refresh network list and select between the the correct SSID. Mobile Hotspot • Check the IP address to make and your Wi-Fi sure your Wi-Fi enabled device enabled device can obtain an IP address...
  • Page 25 TROUBLESHOOTING Problem Suggested Solution Cannot access • Enter the correct address. the web The default address is http://192.168.0.1 or http:// configuration mobile.hotspot. page • Only use one network adapter for your PC. • Do not use any proxy server. Forgot the •...

  • Page 26: For Your Safety

    FOR YOUR SAFETY FOR YOUR SAFETY TO THE OWNER • Do not use the device in an enclosed environment or where heat dissipation is poor. Prolonged work in such spaces may cause excessive heat and raise ambient temperature, which may lead to automatic shutdown of the device for your safety.
  • Page 27 FOR YOUR SAFETY • Be aware of the usage limitation when using your device at places such as oil warehouses or chemical factories, where there are explosive gases or explosive products being processed. Power off your device if required. • The use of electronic transmitting devices is forbidden in aircrafts, at gas stations and in hospitals.
  • Page 28 FOR YOUR SAFETY • Avoid using your device near or inside metal structures or establishments that can emit electromagnetic waves; it may influence signal reception. • Your device is not waterproof. Please keep it dry and store in a shaded and cool place. •...

  • Page 29: For Your Safety

    FOR YOUR SAFETY • To avoid explosion, do not store the battery in hot areas or dispose of it in a fire. • Do not disassemble or modify the battery. • When you are not using the battery for a long period, remove it from your device and store it in a cool, dry place.

  • Page 30: Warranty

    WARRANTY WARRANTY This product is guaranteed for a period of 12 months from the date of purchase. In the unlikely event of a fault occurring during this period, please contact the place of purchase. Proof of purchase is required for any service or support needed during the guarantee period.

  • Page 31: Contact Us

    CONTACT US CONTACT US For assistance, please contact: Email: Service@ConsumerCellular.com Website: ConsumerCellular.com/Help (800) 686-4460 Telephone:...
  • Page 32 © 2018 Consumer Cellular, Inc. Consumer Cellular and the Consumer Cellular logo are trademarks of Consumer Cellular, Inc. ZTE and the ZTE logos are trademarks of the ZTE Corporation. Android is a trademark of Google LLC. Wi-Fi is a registered trademark of Wi-Fi Alliance.
