PCE Americas PCE-SMM 1 Manual

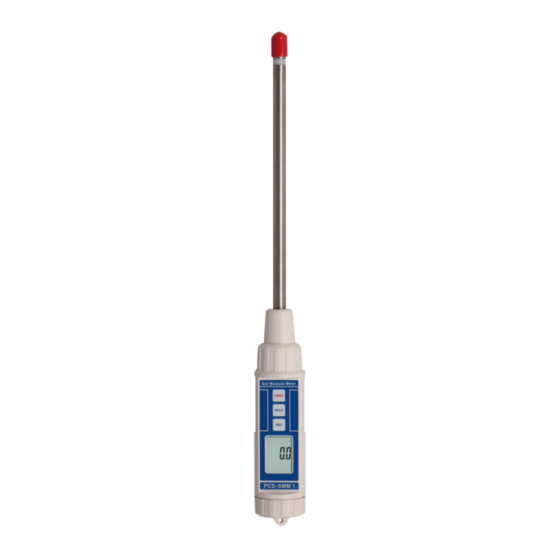

Soil moisture meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

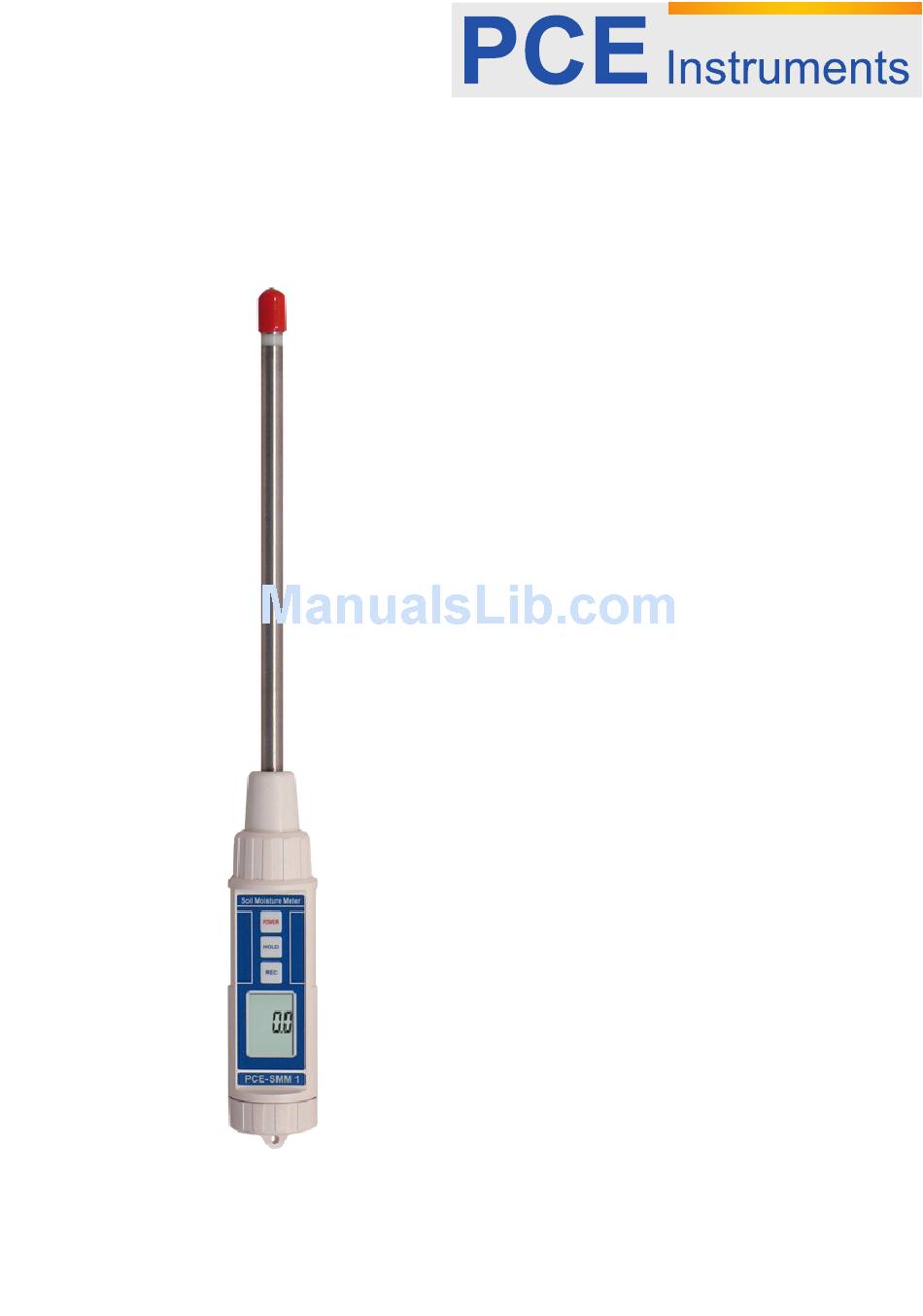

Manual
PCE-SMM 1
SOIL
MOISTURE METER
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
Your purchase of this SOIL
MOISTURE METER marks a
step forward for you into
the
field
measurement.
this
SOIL
METER is a complex and
delicate
instrument,
durable
structure
allow many years of use if
p r o p e r
techniques are developed.
Please read the following
instructions carefully and
always keep this manual
within easy reach.
PCE Instruments UK Ltd.
Southpoint Business Park
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.com
of
precision
Although
MOISTURE
its
will
o p e r a t i n g
Units 12/13
Ensign way

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-SMM 1 and is the answer not in the manual?

Questions and answers

Related Manuals for PCE Americas PCE-SMM 1

Summary of Contents for PCE Americas PCE-SMM 1

  • Page 1 Manual PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 PCE-SMM 1 Suite 8 Southpoint Business Park Jupiter Ensign way SOIL FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF MOISTURE METER From outside US: +1 From outside UK: +44...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............1 3. FRONT PANEL DESCRIPTION........3 3-1 Soil moisture Probe..........3 3-2 Moisture Sensing Head.........3 3-3 Power Button............3 3-4 Hold Button............3 3-5 REC Button............3 3-6 LCD Display............3 3-7 Battery Compartment/Cover......... 3 4. MEASURING PROCEDURE.......... 4 4-1 Measurement by selecting the different material............4 4-2 Data Hold............5...

  • Page 3: Features

    1. FEATURES * Designed to check the moisture level of soil or other similar material. * Measurement range : 0 % to 50 % moisture content of soil sample with 0.1 % resolution. * All in one digital soil meter, easy to make operation. * Data hold function to freeze the desired value on display.
  • Page 4 Measurement 0 % to 50 % moisture content on soil. Range Resolution 0.1 %. Accuracy ± ( 5 % + 5 d ) F.S. @ 23± 5 , F.S. : full scale. ℃ Circuit Custom one-chip of microprocessor LSI circuit. Probe 2 pins moisture electrode.

  • Page 5: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Soil moisture Probe 3-2 Moisture Sensing Head 3-3 Power Button 3-4 Hold Button 3-5 REC Button 3-6 LCD Display 3-7 Battery Compartment/Cover...

  • Page 6: Measuring Procedure

    4. MEASURING PROCEDURE 4-1 Soil measurement 1) Turn on the meter by pressing the " Power Button " ( 3-3, Fig. 1 ) momentarily. * Press the " Power Button " ( 3-3, Fig. 1 ) momentarily again will turn off the meter. 2) Insert the "...

  • Page 7: Data Hold

    4-2 Data Hold * During the measurement, press the " Hold Button " ( 3-4, Fig. 1 ) momentarily to hold the measured value. The LCD will show a " HOLD " symbol. * Press the" Hold Button " once again to release the data hold function.

  • Page 8: Battery Replacement

    5. BATTERY REPLACEMENT * Replace the batteries when the left corner of the LCD displays the low battery icon " ", using 4 fresh 1.5 V ( UM4, AAA ) batteries. * To change the batteries, open ( rotate clockwise direction ) the "...
