T

LINE OUT

TER POST MASTER
17b
16 TUNeR
This jack is provided for connection to an electronic
tuner and is always "live", even when the Raptor is in
"BREAK" (#9) mode. This allows for silent tuning as well
as providing a monitor feed which stays hot even when
the house mix is muted.
17 LINe OUT
This „LINE OUT PRE MASTER" jack (#17a) provides a line
level signal for connection to a separate power amp, PA
mixing console or recording equipment. The volume of
the signal is not controlled by the "MASTER" control
(#8). Note that the output is muted when the "BREAK"
function (#9) is engaged. The „LINE OUT POST MASTER"
jack (# 17b) can connect to an additional power amplifier.
The volume of the signal is controlled by the "MASTER"
control (#8). Note that the output is muted when the
"BREAK" function (#9) is engaged.

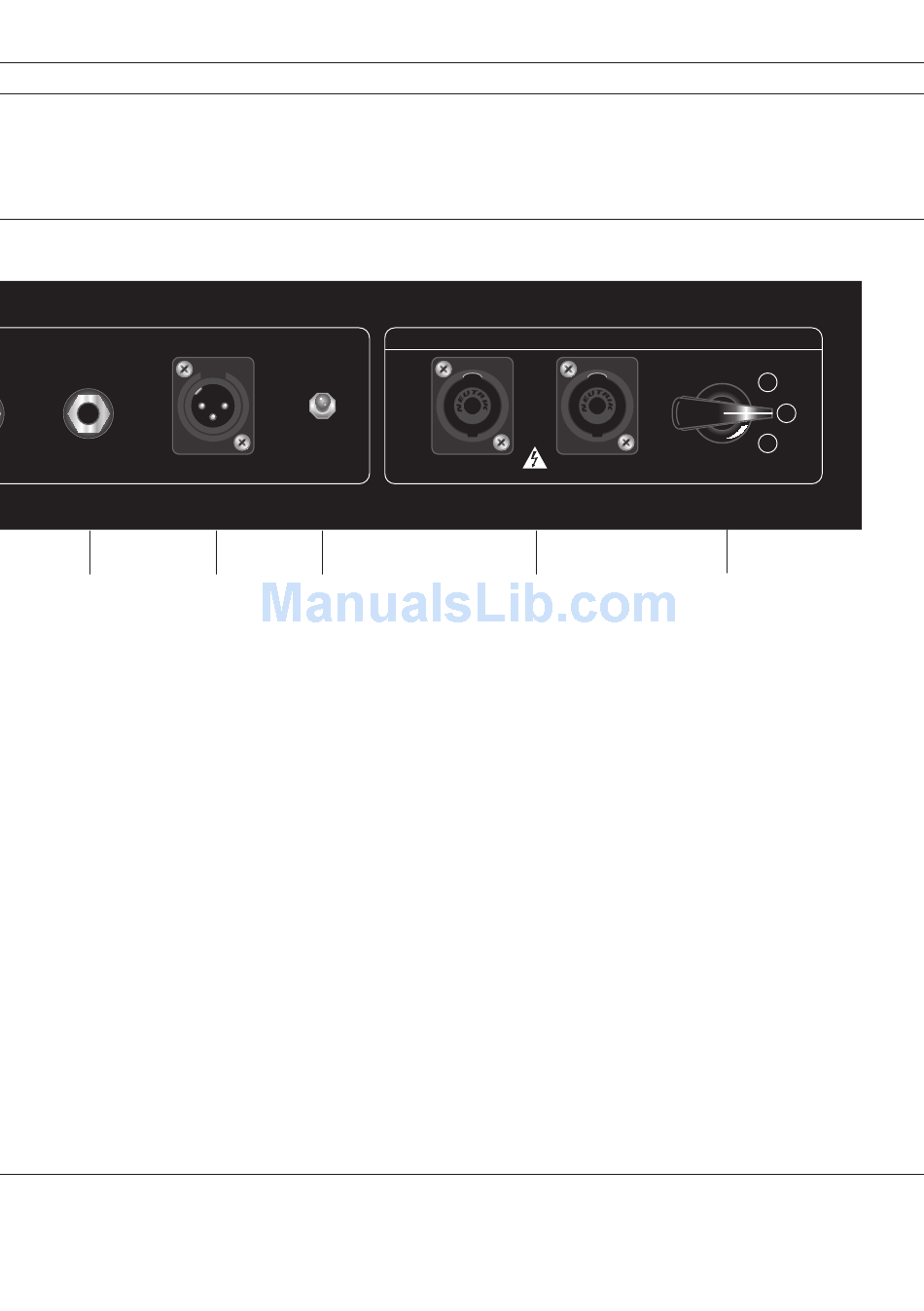

DI OUT
GRD LIFT
POST MASTER GROUND
18 19
SPEAKER OUTPUT
20
18 DI OUT
The RAPTOR supplies a transformer balanced line output
signal for connecting to a house mixing board, recording
console or external amplifier(s) with balanced inputs. The
need for an additional DI box is obsolete. Due to the ad-
vanced valve amp circuit design and the use of only the
best components available the high sound quality of the
DI output makes it the amp of choice in any recording
studio. Connect a shielded 3-core mic cable with XLR
plugs to the male XLR output (#18). The volume of the
signal is controlled by the"MASTER" control (#8). Note
that the output is muted when the "BREAK" function
(#9) is engaged.
19 GROUND
The RAPTOR provides a ground lift switch for the "DI
OUT" (#18), to isolate ground loops in multiple ground-
ing. If you disconnect the wiring to hum with the PA
9
IMPEDANCE
2
4
8
21
