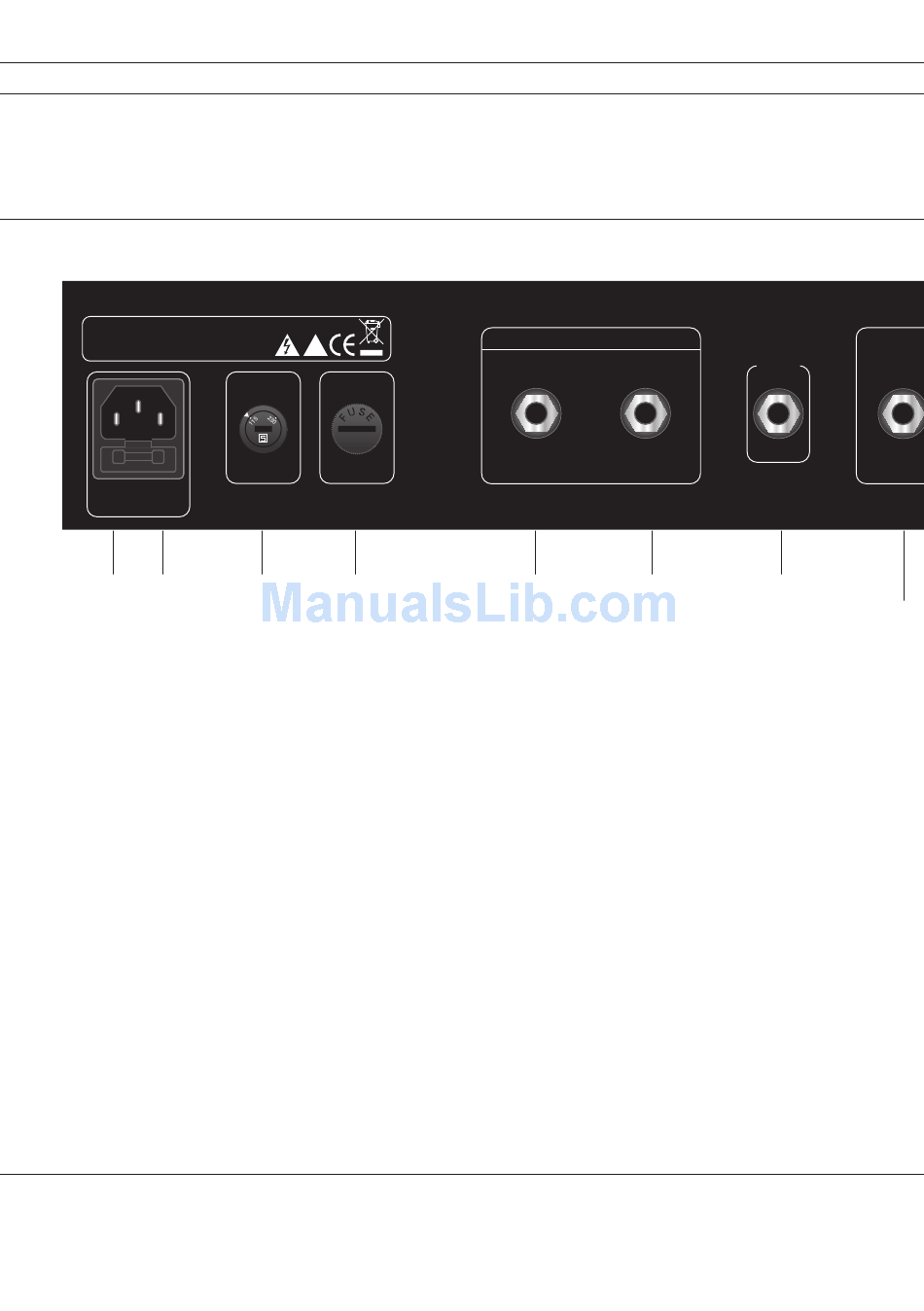

>> Back Panel
HIGH VOLTAGE! CAUTION: TO PREVENT THE RISK OF FIRE AND SHOCK HAZARD
DON'T EXPOSE THIS APPLIANCE TO MOISTURE OR RAIN.
DO NOT OPEN CASE. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
VOLTAGE
SELECTOR
USE ONLY WITH A 250V FUSE
FUSE
230 V T 6,3 A (SB)
115 V T 12 A (SB)
12 12a
12 POWeR ReCePTACLe
Connect the supplied AC power cord to the POWER CON-
NECTOR (#12). Make sure the Euro plug is firmly inserted
in the socket. The other end of the cable should be con-
nected to any standard grounded AC outlet or into a power
strip of proper voltage (before you plug in do make sure
that the voltage is correct). Just in case you lose the cord
provided, the jack accepts a standard 3-prong IEC cord like
those found on most professional gear and computers –
you can get at any electronics, music or computer store.
Never (!) remove or otherwise attempt to defeat the
ground pin of the power cord in order to get rid of a
hum induced by a ground loop.
13 VOLTAGe SeLeCTOR
The RAPTOR features a "VOLTAGE SELECTOR" allowing
you to use your amplifi er anywhere in the world just by
the flick of a switch. The unit is set to 230 V when we
!
HI TENSION
FUSE
2A /SB
13 14
SERIAL FX LOOP
SEND RETURN
15a
ship to a country in Europe. Should you wish to use your
Raptor in the USA set the "VOLTAGE SELECTOR" to "115 V".
ATTENTION: Don't forget to set it back to "230 V"
when you return home! TecAmp cannot be made
responsible for damages to the unit caused by
improper voltage selection. Therefore it is a good
idea to always check the "VOLTAGE SELECTOR"
before powering up the unit.
14 HI TeNSION FUSe
This fuse provides protection against overvoltage the pre-
cursor of the Raptor. The value of the fuse is 2 A/slowblow.
15 SeRIAL FX LOOP
These two 1/4" jacks are the serial patch points for
external signal processing effects. Connect the Jack
„SEND" (# 15a) to the input and the jack „RETURN" (#
15b) with the output of your effects device.
8
TUNER
15b 16
LINE OUT
PRE MAST
17a
