Speaker Output - Tecamp Raptor Top Manual

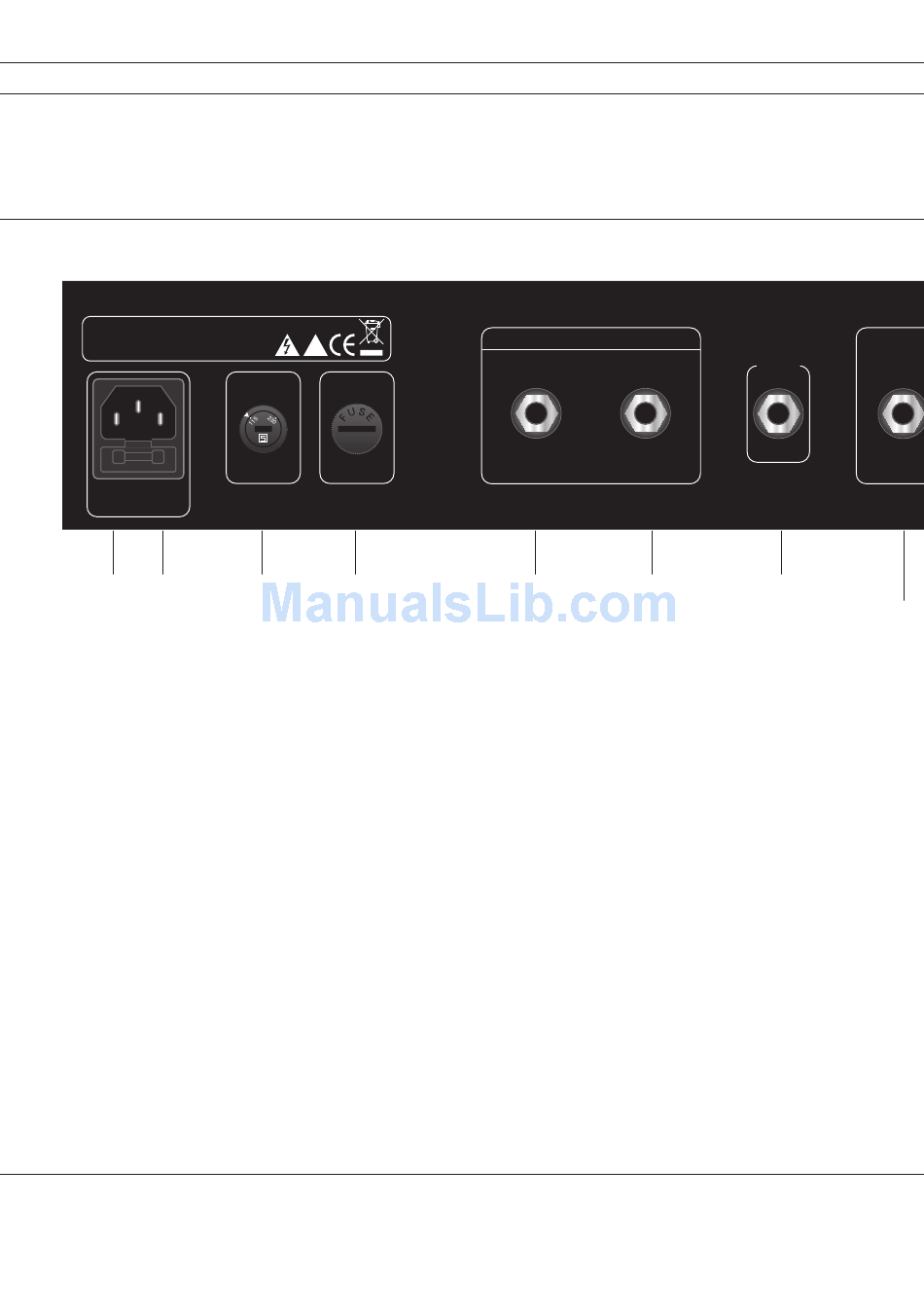

>> Back Panel
HIGH VOLTAGE! CAUTION: TO PREVENT THE RISK OF FIRE AND SHOCK HAZARD
DON'T EXPOSE THIS APPLIANCE TO MOISTURE OR RAIN.
DO NOT OPEN CASE. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
VOLTAGE
SELECTOR
USE ONLY WITH A 250V FUSE
FUSE
230 V T 6,3 A (SB)
115 V T 12 A (SB)
12 12a
comes, the „GROUND LIFT" switch (# 19) should be set
into the "GRD LIFT" position.

20 SPeAkeR OUTPUT

RAPTOR sports two Neutrik Speakon-Combo connectors
type NLJ 2 MD-V that also handle ¼" Jacks. The wiring
of the pins is as follows: 1+ = hot, 1- = ground Attention:
Please note that It is essential in the operation of the
RAPTOR required a load (speaker) at least one of the
two Speakon sockets to connect! This also applies
®
in case that the RAPTOR only for the use of the DI
OUT (# 18) is operated.
21 IMPeDANCe
With the impedance selector switch, the impedance va-
lues adapted to the connected speakers to the Raptor
are. Note: When using two 8 ohm speakers must set the
impedance selector to 4 ohms.
!
HI TENSION
FUSE
2A /SB
13 14
SERIAL FX LOOP
SEND RETURN
15a
When using two 4 ohm cabs, the impedance selector
mus set to 2 Ohms. If you use four 8 ohm the impedance
selector mus set to 2 Ohms.
Attention! The Raptor has six measurement points
and two adjustment controls for bias adjustment
for the power tubes. Work on these adjustment
knobs should with extreme caution and only by
Personnel are made. The value for the bias setting
is 50mA per tube.
10
TUNER
15b 16
LINE OUT
PRE MAST
17a
