Silva 37312-1 Manual

FULL VERSION MANUAL
jogger
Art.no 37312-1 (Turquoise)
Art.no 37312-2 (White)
2. 2.
1. 1.
3
5
1 s 1 s
Visit: www.silva/enviroment
for more information about the
Waste Electrical and Electronic
Equipment (WEEE) Directive.
2
4
1
0.5 s
2
6
1 s 1 s

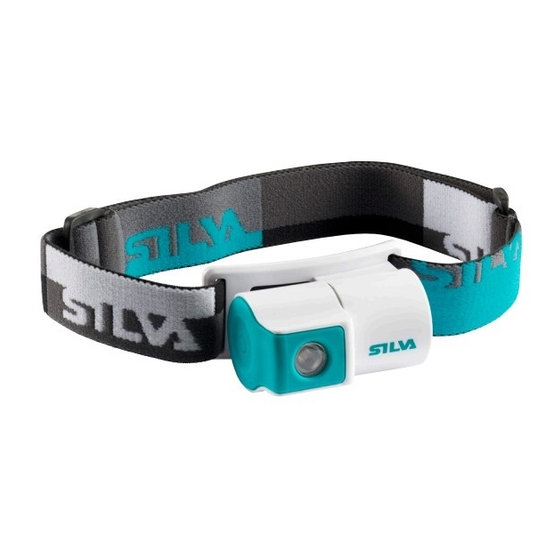

Thank you for choosing Silva Jogger headlamp. This compact headlamp is
designed for the leisure training runner and walker who require a comforta-
ble flood light for evening training on paths, tracks and un-lit roads.
PRODUCT OVERVIEW
The Jogger headlamp consists of the following parts:
• Headlamp unit with battery compartment
• Headband
• 3 pcs AAA batteries
• Quick guide
BEFORE USE
INSERT BATTERIES
1. Twist the headlamp body so it points 90 degrees upward
2. Pull out the light unit from the headlamp body
3. Insert the 3 pcs AAA batteries as per the sketch
4. Assemble by putting back the light unit into the headlamp body
5. Ready!
ADJUST THE HEADBAND
The elastic headband is designed to give a comfortable fit when running or
walking. Adjust the headband by moving the sliding buckle to fit it onto your
head. 3
DURING USE
SWITCH ON YOUR HEADLAMP
On the side of the headlamp body there is a push button which controls all
light modes.
Each press on the button gives you the following light:
1. Turns the headlamp ON with the LED in maximum power
2. Puts the headlamp in min mode
3. Starts over from 1
1 1
To turn OFF the headlamp; press and hold the button for 1 second.
0.5 s 0.5 s
The flash function, which is used to attract attention, is started from OFF
mode by pressing and holding the button for 1 second. To turn OFF; press and
2 2
hold the button for 1 second.
AFTER USE
MAINTENANCE
To make sure you get maximum performance from your Jogger headlamp,
clean it regularly with a damp cloth.
Headband cleaning – wash in washing machine at 40C.
If stored for a long period the batteries should be removed.
TECHNICAL SPECIFICATIONS
Weight (including batteries): 82g
Battery type: 3 pcs AAA Alkaline
1 s
Light distance (Max/Min): 32m/19m
Lumen: 45
Burn time (Max/Min/Blink): 20h/50h/100h
Water resistance: IPX3
Operative temperature range: -20 - +60 ºC
PROTECT THE ENVIRONMENT
Headlamp and batteries should be recycled and must not be thrown in the
regular trash. Dispose these items in accordance with applicable local
regulations.
WARRANTY
Silva warrants that, for a period of two (2) years, your Silva Product will be
substantially free of defects in materials and workmanship under normal
use. Silva's liability under this warranty is limited to repairing or replacing
the product. This limited warranty extends only to the original purchaser.
If the Product proves defective during the Warranty Period please contact
the original place of purchase. Make sure to have your proof of purchase
on hand when returning the product. Returns cannot be processed without
the original proof of purchase. This warranty does not apply if the Product
has been altered, not been installed, operated, repaired, or maintained in
accordance with instructions supplied by Silva, or has been subjected to
abnormal physical or electrical stress, misuse, negligence or accident. Nei-
ther does the warranty cover normal wear and tear. Silva is not responsible
for any consequences, direct or indirect, or damage resultant from use of
this product. In no event will Silva's liability exceed the amount paid by you
for the product. Some jurisdictions do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion
may not apply to you. This Warranty is valid and may be processed only in the
country of purchase.
For more information please visit www.silva.se
