Ports (Decoder Front) - ZeeVee ZyPerUHD User Manual

ZyPerUHD
Port Name Index
HDMI Out E
IR Input F
IR Output G

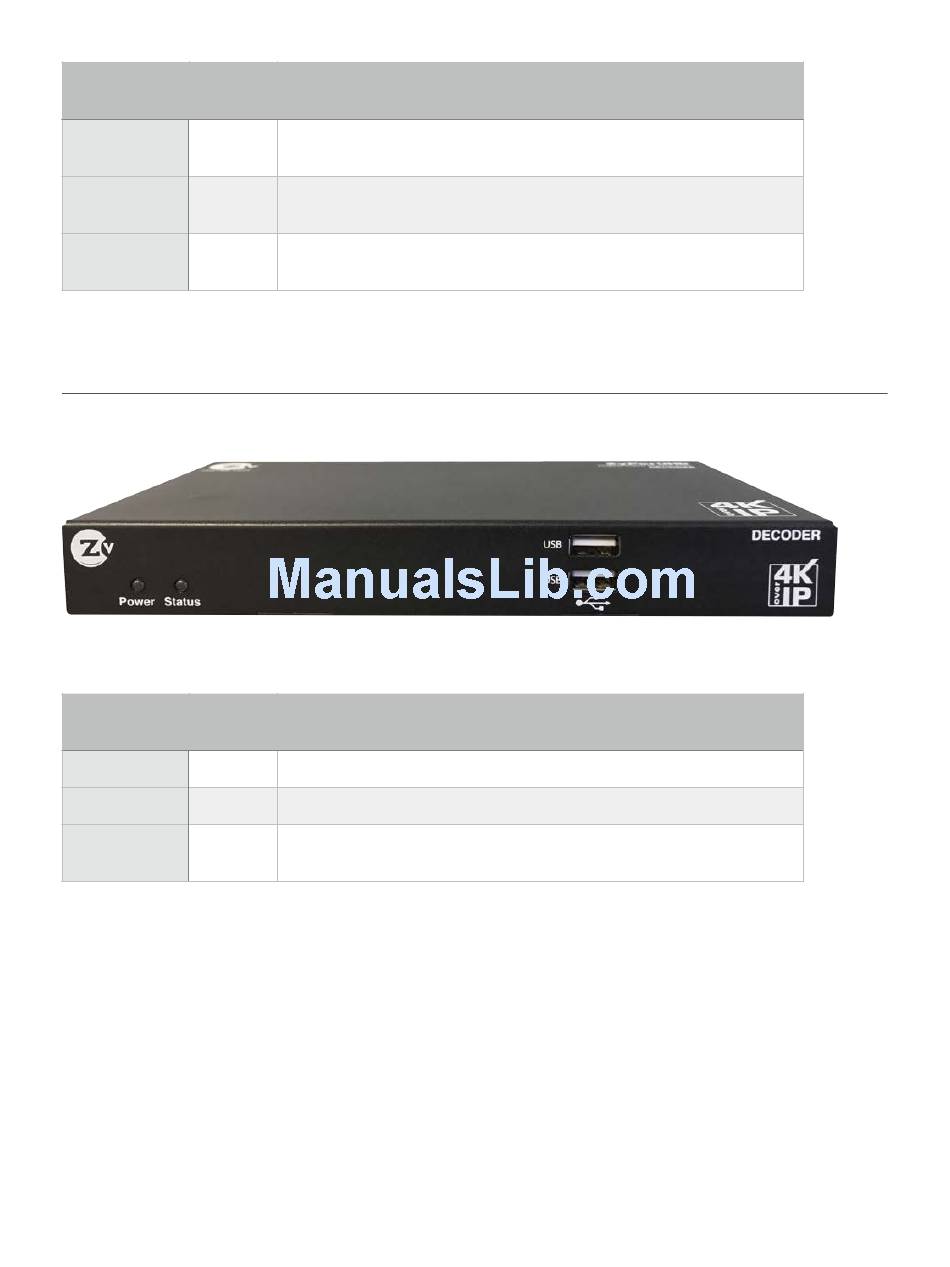

Ports (Decoder Front)

A B
Port Name Index
Power LED A
Status LED B
USB C
User Manual
Definition
HDMI 2.0a output port capable of up to 4KP30 4:4:4 with
embedded audio and HDCP 2.2 encryption.
Infrared Commands to be passed TO Encoders as configured by
Maestro-Z.
Infrared Commands information passed FROM Encoders to
Decoders as configured by Maestro-Z.
Definition
LED illuminated when unit is powered.
LED Illuminated when active video is being processed.
2 ports of USB 2.0 Type-A connectivity. Either port may be used
and both operate simultaneously.
Page
C
10 of 29
