ZyPerUHD

Decoder

The function of the ZyPerUHD Decoder is to accept a 1Gb IP feed containing the video
information to be displayed. It decodes and formats the video and audio information for display
on the attached viewing device.

Enclosure

There is one size of the ZyPerUHD Decoder unit enclosure.
Input Function
HDMI Output

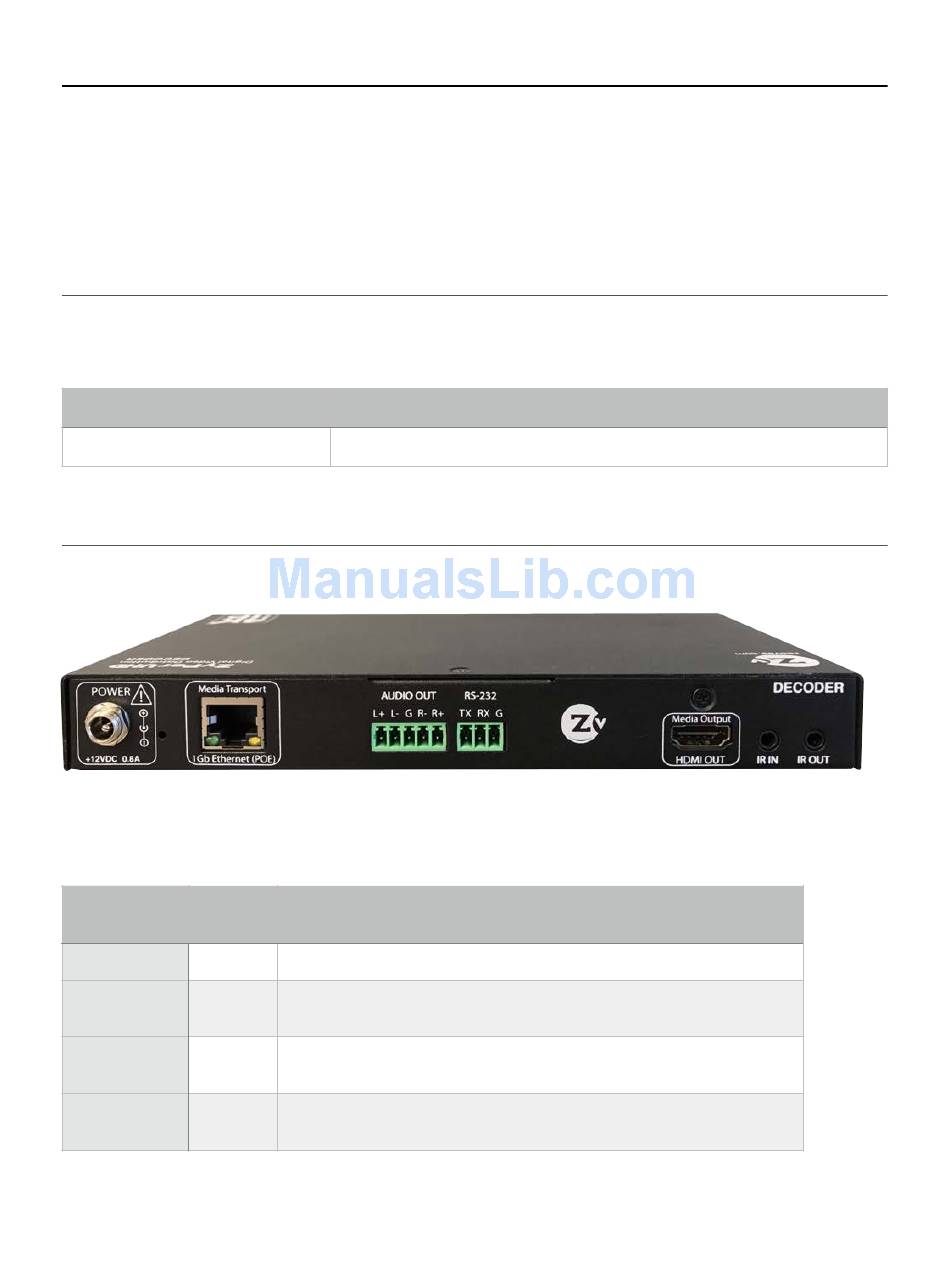

Ports (Decoder Back)

A B
Port Name Port Name Index
Power A
Ethernet B
(PoE)
Audio Out C
RS232 D
User Manual
Box Size
Base unit: 200mm Wide x 25mm High x 120mm Deep
C
Definition
12VDC from supply. Center Post is + Ring is -
1Gb Ethernet over Cat6 (or better) cabling. RJ45 with PoE.
Audio Output connector. Output of balanced stereo audio on
Phoenix connector.
RS232 Control Port for sending and receiving side-band serial
traffic to/from decoders as directed by Maestro-Z management.
Page
D
9 of 29
E F G
