Ports (Encoder Front) - ZeeVee ZyPerUHD User Manual

ZyPerUHD
Port Name Index Definition
HDMI Input G
HDMI H
Output
IR Input I
IR Output J

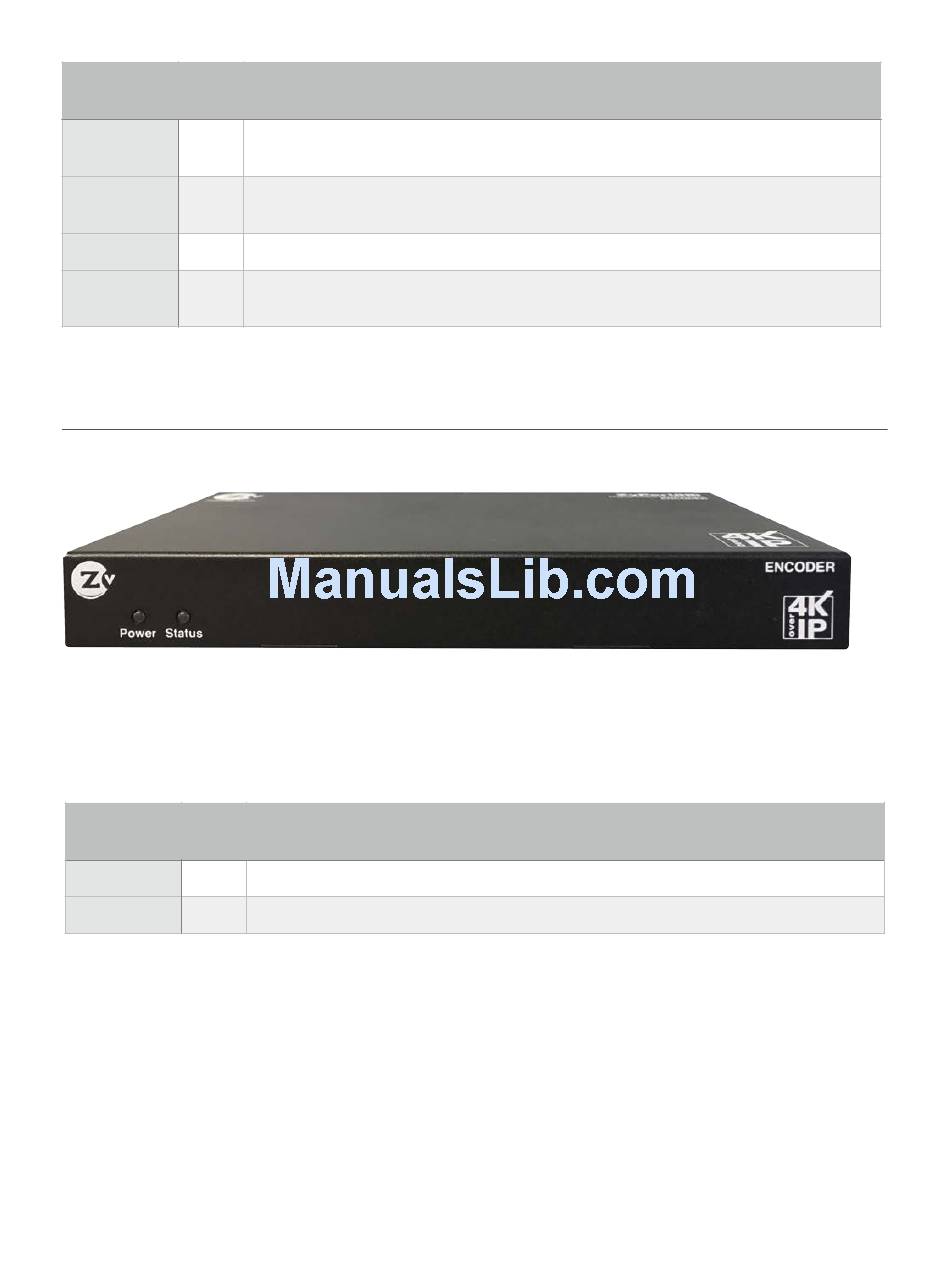

Ports (Encoder Front)

A B
Port Name Index Definition
Power LED A
Status LED B
User Manual
HDMI 2.0a input port capable of up to 4KP60 4:2:0 with embedded audio and
HDCP 2.2 encryption.
HDMI loop-out of video/audio received on HDMI Input port.
Infrared Commands to be passed TO Decoders as configured by Maestro-Z.
Infrared Commands information passed FROM Decoders to Encoders as
configured by Maestro-Z.
LED illuminated when unit is powered.
LED Illuminated when active video is being processed.
