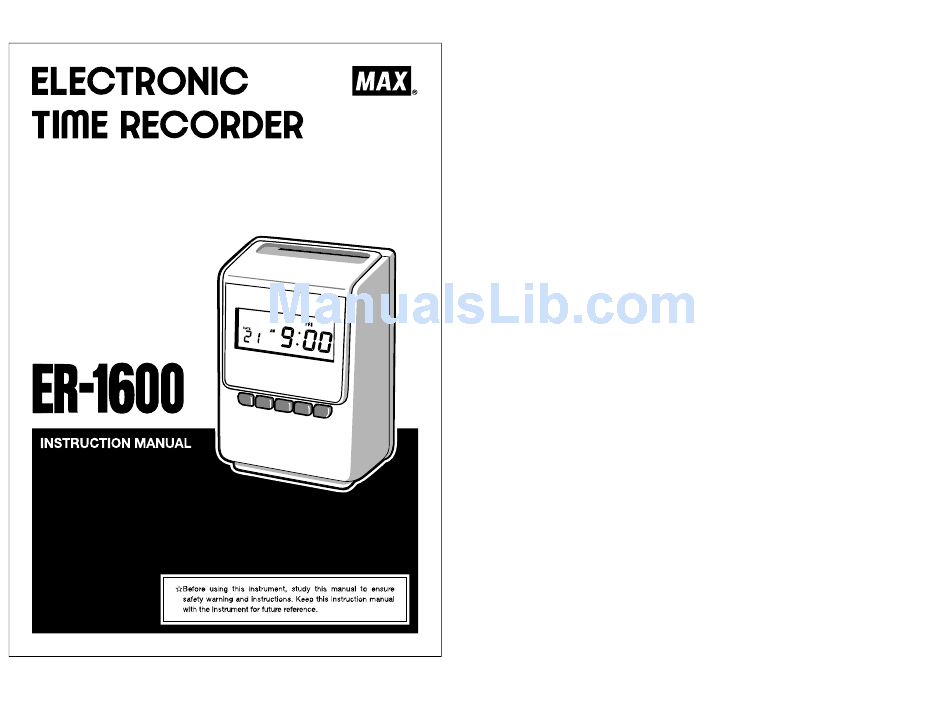

Max ER-1600 Instruction Manual

Electronic time recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Max ER-1600

Summary of Contents for Max ER-1600

  • Page 2: Table Of Contents

    CONTENTS BEFORE USE BEFORE USE ........................2 SAFETY INSTRUCTIONS ....................2 SAFETY INSTRUCTIONS ACCESSORIES ........................ 3 MAIN FEATURES ......................5 INDICATIONS PARTS DESCRIPTIONS ....................5 This instruction manual and the product use various indications to help you use this instrument safely and properly.

  • Page 3: Accessories

    CAUTION Do not drop or hit the instrument. The data stored in the internal memory or the memory card cannot be stored perma- Install this instrument away from the following places: nently. We will not be responsible for damages and lost profits caused by loss of data attributed to battery consumption, trouble, repair, and so on.

  • Page 4: Main Features

    MAIN FEATURES KEYBOARD AND DISPLAY 1. Printing the daily total time for regular working time or overtime Excluding ER-1600E . 2. Can select fully automatic or manual operation. KEYBOARD LAYOUT 3. Printing regular minutes (1/60) or 1/100 of an hour. 4.

  • Page 5: Display Layout

    SETTING MACHINE MODE, PAY CLOSING DATE, 60 or 100 AUTOMATIC OPERATION SCALE, DAILY TOTAL TIME, LCD BACKLIGHT AND ER-1600 shifts the column for printing automatically in the order of IN1, OUT1, IN2 and PASSWORD (MODE 1) OUT2 without the user pressing any external keys.
  • Page 6 1. The time is printed only in 24-hour format. 1. When 1 or 2 is selected, ER-1600 does not print the Daily Total Time. 2. When setting in the Laid Down Position, only 24-hour format is displayed.
  • Page 7 Regular work time Overtime work 1. If 2(Overtime work) is set but the Starting time of Overtime Work is not set in MODE 3, ER-1600 prints 0:00 or 0.00 as the Daily Total Time in the 5 col- umn. 2. If time is not printed in the 4 column, the Daily Total Time is not printed.

  • Page 8: Setting Year, Month, Date, Hour, And Minute (Mode 2)

    Password protection for settings (Code No: 06) SETTING YEAR, MONTH, DATE, HOUR, AND MINUTE Password is shown on the display after setting LCD Backlight. (MODE 2) A 4-digit password can be set to prevent someone other than the administrator from modifying the time or changing the settings.

  • Page 9: Setting Line Shift Time, In/Out And Daylight Saving Time (Mode 3)

    Procedure SETTING LINE SHIFT TIME, IN/OUT AND DAYLIGHT SAV- Setting IN & OUT and starting time of Overtime Work ING TIME (MODE 3) [Example] Line Shift Time (Day change time) 4 : 00 Starting time of work 9 : 00 Starting time of lunch : 12 : 00 Procedure...

  • Page 10: Late-In, Early-Out, Overtime Working And Next Day Overtime Symbols

    DAY OVERTIME SYMBOLS After setting Starting time of Overtime work, the display moves to Starting Date of Daylight Saving Time. ER-1600 can automatically print the symbols Late-In ( ), Early-Out ( ), Overtime Work ) at the right position, in accordance with the set time of IN1 OUT2 (Code No.

  • Page 11: Replacing The Ink Ribbon Cassette

    Disconnect the power cord from the plug socket. Wash your hands/body immediately with soap if the ink ribbon rubs off on Wall Mounting them. If hanging ER-1600 on a wall, use the following procedure. 1. Remove screw (A) and the attached wall mounting plate as illustrated. Procedure Screw (A) 1.

  • Page 12: Error Codes

    Improper print was made by manual operation. CAUTION 150 or 50 time cards have been (ER-1600 can handle up to 150 or 50 time Never disassemble the instrument by yourself. already inserted in a day/month. cards a day/month.) Time card used last month is Insert a new time card.

  • Page 13: Specifications

    SPECIFICATIONS Product description Max Electronic Time Recorder ER-1600 Power supply Europe AC230V 50/60Hz 0.2A Other countries AC220/230V 50/60Hz 0.2A Outside dimensions 202 (H) 140 (W) 104 (D) mm Weight 1.8kg Clock system Crystal quartz oscillation Monthly tolerance 15 seconds (Normal temperature : 25...
  • Page 14 This instruction manual is subject to change without notice due to functional enhancement 6-6, NIHONBASHI HAKOZAKI-CHO, CHUO-KU, TOKYO, JAPAN POST CODE: #103-8502 TELEPHONE: 81-3-3669-8131 FAX: 81-3-3669-7104 URL: http://wis.max-ltd.co.jp/int/ N12ASZ Vol.2 - 25 - - 26 -...
