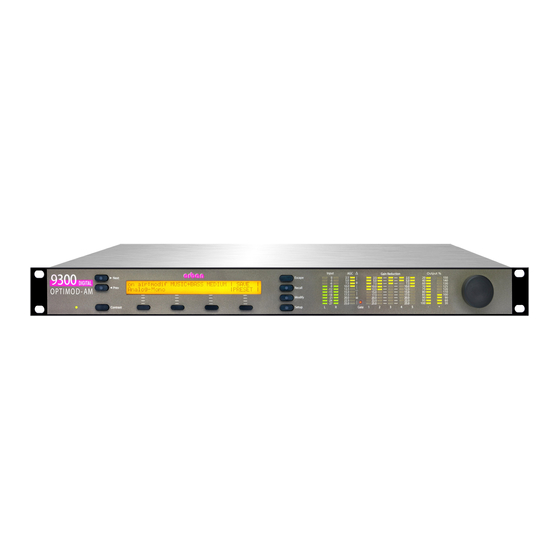

Orban OPTIMOD-AM 9300 Operating Manual

Digital audio processor
Hide thumbs Also See for OPTIMOD-AM 9300:
Table of Contents

Advertisement

Quick Links

Operating Manual
OPTIMOD-AM
9300
Digital Audio Processor
Version 2.0 Software

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTIMOD-AM 9300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Orban OPTIMOD-AM 9300

Summary of Contents for Orban OPTIMOD-AM 9300

  • Page 1 Operating Manual OPTIMOD-AM 9300 Digital Audio Processor Version 2.0 Software...
  • Page 2 European Parliament, this product must not be discarded into the municipal waste stream in any of the Member States. This product may be sent back to your Orban dealer at end of life where it will be reused or recycled at no cost to you.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS All the safety and operating instructions should be read before the appliance is operated. Retain Instructions: The safety and operation instructions should be retained for future reference. Heed Warnings: All warnings on the appliance and in the operating instructions should be adhered to. Follow Instructions: All operation and user instructions should be followed.
  • Page 4 Safety Instructions (German) Gerät nur an der am Leistungsschild vermerkten Spannung und Stromart betreiben. Sicherungen nur durch solche, gleicher Stromstärke und gleichen AbschalAMerhaltens ersetzen. Sicherungen nie überbrücken. Jedwede Beschädigung des Netzkabels vermeiden. Netzkabel nicht knicken oder quetschen. Beim Abziehen des Netzkabels den Stecker und nicht das Kabel enfassen.
  • Page 5 (2) Check the other sections of the Manual (consult the Table of Contents and Index) to see if there might be some sug- gestions regarding your problem. (3) After reading the section on Factory Assistance, you may call Orban Customer Service for advice during normal Cali- fornia business hours. The number is +1 856.719.9900.
  • Page 6 All trademarks are property of their respective companies. Published November 2016 © Copyright Orban. This document may be freely printed and distributed by Orban’s customers, but its text may not be incorporated into derivative works. Orban Labs Inc., 7209 Browning Road, Pennsauken NJ 08110 USA...
  • Page 7 Operating Manual OPTIMOD-AM 9300 Digital Audio Processor Version 2.0 Software...

  • Page 8: Table Of Contents

    Table of Contents Index.........................0-8 Section Introduction ............................1-1 .......................1-1 BOUT THIS ANUAL OPTIMOD-AM 9300 D ............1-1 IGITAL UDIO ROCESSOR Making the Most of the AM Channel..............1-2 Controllable and Adjustable...................1-2 Versatile Installation....................1-3 OPTIMOD-AM....................1-4 RESETS IN Factory Presets ......................1-5 User Presets ......................1-5 ..................1-5...
  • Page 9 EAS T ........................1-22 PC C ................1-23 ONTROL AND ECURITY ASSCODE NRSC S ?...............1-23 HY THE ORTH MERICAN TANDARD AM Stereo Introduces a Preemphasis Dilemma ............1-23 Figure 1-2: NRSC Modified 75 µs Deemphasis ............... 1-24 NRSC Standard Preemphasis and Low-pass Filtering ............ 1-24 Figure 1-3: NRSC Lowpass Filter ..................
  • Page 10 ONTROL 9300 PC R ............2-44 NSTALLING EMOTE ONTROL OFTWARE Installing the Necessary Windows Services............2-44 Check Hardware Requirements................2-45 Running the Orban Installer Program ..............2-46 Setting Up Ethernet, LAN, and VPN Connections ..........2-46 Conclusion......................2-47 .............2-47 YNCHRONIZING PTIMOD TO A ETWORK IMESERVER .............2-51...
  • Page 11 ....................3-17 QUALIZER ONTROLS Table 3-2: Equalization Controls ..................3-17 Figure 3-1: HF Receiver Equalizer Curves............... 3-21 AGC C ......................3-23 ONTROLS Table 3-3: AGC Controls....................3-24 Advanced AGC Controls..................3-26 ......................3-28 LIPPER ONTROLS Table 3-4: Clipper Controls ..................... 3-28 ................3-30 ULTIBAND YNAMICS ROCESSING Table 3-5: Multiband Controls ..................
  • Page 12 System Will Not Pass Line-Up Tones at 100% Modulation ..........5-5 System Will Not Pass Emergency Alert System (“EAS” USA Standard) Tones at the Legally Required Modulation Level ................5-5 System Receiving 9300’s Digital Output Will Not Lock ..........5-5 General Dissatisfaction with Subjective Sound Quality..........
  • Page 13 Function Description Drawing Page 6-21 Chassis Circuit Board Locator and Basic In- Top view terconnections (not to scale) 6-22 Control board Control microprocessor. Services Parts Locator front panel, serial port, Ethernet, Drawing and DSP+I/O board. Contains: 6-23 General Purpose bus, address de- Schematic 1 of 5 coder, DSP, and I/O interface 6-24...

  • Page 14: Index

    Index analog input 2- · 8 analog landline 1- · 12 analog output circuit description 6- · 9 6300 2- · 13 compensating for 600 ohm load 2- · 24 analog output 2- · 9 antenna system 1- · 17 archiving presets 3- ·...
  • Page 15 bounce 1- · 13 computer interface buttons RS-232 2- · 7 serial 2- · 7 escape 2- · 12, 1 computer interface 1- · 7 modify 2- · 12, 1 connecting next 2- · 12, 1 previous 2- · 12, 1 through Win XP direct serial 2- ·...
  • Page 16 troubleshooting 5- · 4 gain reduction meters 2- · 12, 2 gate threshold control 3- · 32 modulation low 5- · 5 gate 3- · 25 test tones 1- · 22 gate LED 2- · 12, 2 easy setup 2- · 13 Gateway 2- ·...
  • Page 17 optimum · 8 idle gain 3- · 27 lock input driven equipment cannot lock to 9300 output analog, connecting 2- · 8 5- · 5 analog, specifications 6- · 2 lockout digital, specifications 6- · 3 immediate 2- · 38 meters 2- ·...
  • Page 18 NAB Broadcast and Audio System Test CD recovering from lost 2- · 40 4- · 5 network Orban installer program 2- · 46 timeserver 2- · 47 PC board locator diagram 6- · 21 networking 2- · 41 PC control NEXT button 2- ·...

  • Page 19: R Outine M Aintenance

    factory 1- · 5 RFI 5- · 1 factory programming 3- · 13 ringing saving user 3- · 5, 12 photo showing 2- · 31 sharing between 9300s 3- · 42, 45 reducing audible 3- · 22 user presets 1- · 5 testing for 2- ·...
  • Page 20 spare parts troubleshooting obtaining 6- · 13 installation 5- · 1 specifications 6- · 1 tv presets 3- · 15 spectrum analyzer 4- · 5 sports 3- · 32 Stanford Research Systems 4- · 5 station ID unlock front panel 2- · 39 setting 2- ·...

  • Page 21: Section 1 Introduction

    Because OPTIMOD-AM incorporates several audio processing innovations exclusive to Orban products, you should not assume that it can be operated in the same way as less sophisticated processors. If you do, you may get disappointing results.

  • Page 22: Making The Most Of The Am Channel

    AM mud, it is very important that the source audio be as clean as possible. Orban's publication Maintaining Audio Quality in the Broadcast Facility (available in .pdf form from ftp.orban.com) contains valuable information and specific suggestions for...

  • Page 23: Versatile Installation

     OPTIMOD-AM's software can be upgraded by running Orban-supplied downloadable upgrade software on a PC. The upgrade can occur remotely through the 9300’s Ethernet port or serial port (connected to an external mo- dem), or locally (by connecting a Windows®...

  • Page 24: Presets In Optimod-Am

    (with 351  impedance) to ensure highest transparency and accurate pulse response.  All input, output, and power connections are rigorously RFI-suppressed to Orban’s traditional exacting standards, ensuring trouble-free installation.  The 9300 is designed and certified to meet all applicable international safe- ty and emissions standards.

  • Page 25: Factory Presets

    OPTIMOD-AM DIGITAL INTRODUCTION Factory Presets The Factory Presets are our “factory recommended settings” for various program formats or types. The description indicates the processing structure and the type of processing. Each Factory Preset on the Preset list is really a library of more than 20 separate presets, selected by navigating to M >...

  • Page 26: Analog Input/Outputs

    INTRODUCTION ORBAN MODEL 9300 The left/right digital input is on one XLR-type female connector on the rear panel; the mono digital output is on an XLR-type male connector on the rear panel. You can select whether OPTIMOD-AM uses its digital or analog input either locally or by remote interface.

  • Page 27: Computer Interface

    OPTIMOD-AM DIGITAL INTRODUCTION Computer Interface On the rear panel of the 9300 are an RS-232 serial port and a 100 Mbps Ethernet port for interfacing to IBM-compatible PCs either locally or through a TCP/IP net- work. These computer interfaces support remote control and metering, and allow downloading software upgrades.

  • Page 28: Best Location For Optimod-Am

    INTRODUCTION ORBAN MODEL 9300 2) The low-frequency 3 dB point of the system must be placed at 0.15Hz or lower (this is not a misprint!). This is necessary to ensure less than 1% overshoot in a 50Hz square wave and essentially constant group delay to 30Hz.

  • Page 29: If The Transmitter Is Accessible

    OPTIMOD-AM DIGITAL INTRODUCTION output of OPTIMOD-AM and then to restore the preemphasis at the transmitter. The best one can do is to use NRSC preemphasis, apply NRSC deemphasis before the lossy link’s input, and then re-apply NRSC preem- phasis at the link’s output. If only an analog link is available, use a 9300’s audio output and feed the audio di- rectly into the link.

  • Page 30: Digital Links

    1-10 INTRODUCTION ORBAN MODEL 9300 Digital Links Digital links may pass audio as straightforward PCM encoding or they may apply los- sy data reduction processing to the signal to reduce the number of bits per second required for transmission through the digital link. Such processing will almost in- variably distort peak levels;...

  • Page 31: Analog Microwave Stls

    Nevertheless, in an analog microwave system, the 9300 is usually located at the main AM transmitter and is driven by the microwave receiver. One of Orban’s studio level control systems (like our 6300) protects the microwave transmitter at the studio from overload.

  • Page 32: Analog Landline (Ptt/Post Office Line)

    1-12 INTRODUCTION ORBAN MODEL 9300 frees the system from potential overshoot. (The Orban 6300 can be configured to produce a pre-emphasized output.) Further, it is common for a microwave STL to bounce because of a large infrasonic peak in its frequency response caused by an under-damped automatic frequency control (AFC) phase-locked loop.

  • Page 33: Power Supplies

    1-13 OPTIMOD-AM DIGITAL INTRODUCTION The highly processed output of OPTIMOD-AM is carefully band-limited and peak- controlled. This output will often contain waveforms with flattops like square waves. If the transmitter has constant group delay above 30Hz, these difficult wave- forms will be transmitted intact and peak modulation will be accurately controlled. However, if low-frequency response is more than 3dB down at 0.15Hz, as would be true if a high-pass filter is present, the group delay above 30Hz will not be constant.

  • Page 34: Pre-1965 Transmitters

    1-14 INTRODUCTION ORBAN MODEL 9300 Sag is a result of inadequate steady-state regulation. It causes the conventional car- rier shift that is seen on a modulation monitor. Good transmitter engineering prac- tice usually limits this shift to -5% (which corresponds to about 0.5dB — not a highly significant loudness loss).

  • Page 35: Asymmetry

    1-15 OPTIMOD-AM DIGITAL INTRODUCTION Asymmetry While the physics of carrier pinch-off limit any AM modulation system to an absolute negative modulation limit of 100%, it is possible to modulate positive peaks as high as desired. In the United States, the FCC permits positive peaks of up to 125% modu- lation.
  • Page 36 1-16 INTRODUCTION ORBAN MODEL 9300 OPTIMOD-AM was designed with the assumption that one audio processor would be devoted to no more than two transmitters, usually called main and standby (or main and alternate). Each transmitter might be required to change power at night or to drive a different antenna array.

  • Page 37: Antenna System

    1-17 OPTIMOD-AM DIGITAL INTRODUCTION mission bandwidth from 5 kHz to 9.5 kHz will produce virtually no audible differ- ence on these radios.) Antenna System AM antenna systems, whether directional or non-directional, frequently exhibit in- adequate bandwidth or asymmetrical impedance. Often, a system will exhibit both problems simultaneously.

  • Page 38: About Transmission Levels And Metering

    1-18 INTRODUCTION ORBAN MODEL 9300 or over landlines. Sometimes, several encode/decode cycles will be cascaded before the material is finally presented to OPTIMOD-AM’s input. All such algorithms operate by increasing the quantization noise in discrete fre- quency bands. If not psychoacoustically masked by the program material, this noise may be perceived as distortion, “gurgling,”...

  • Page 39: Studio Line-Up Levels And Headroom

    1-19 OPTIMOD-AM DIGITAL INTRODUCTION ABSOLUTE PEAK Figure 1-1: Absolute Peak Level, VU and PPM Reading Studio Line-up Levels and Headroom The studio engineer is primarily concerned with calibrating the equipment to pro- vide the required input level for proper operation of each device, and so that all de- vices operate with the same input and output levels.

  • Page 40: Transmission Levels

    1-20 INTRODUCTION ORBAN MODEL 9300 Transmission Levels The transmission engineer is primarily concerned with the peak level of a program to prevent overloading or overmodulation of the transmission system. This peak overload level is defined differently, system to system. In FM modulation, it is the maximum-permitted RF carrier frequency deviation. In AM modulation, it is negative carrier pinch-off.

  • Page 41: Monitoring

    1-21 OPTIMOD-AM DIGITAL INTRODUCTION clipper, and transmitter equalization. The negative safety clipper threshold is set to 105% modulation. The positive threshold is determined by the active transmission preset (see System Presets and Transmitter Equalization on page1-15), as are the set- tings of the highpass filter and transmitter equalizer.

  • Page 42: Eas Test

    INTRODUCTION ORBAN MODEL 9300 Orban offers the optional model MRF-023 Monitor Rolloff Filter for this purpose. This filter is a small passive unit designed to be installed between the modulation monitor and the monitor amplifier. (See step 8 on page 2-5 for installation instruc- tions).

  • Page 43: Pc Control And Security Passcode

    This cutting of the bandwidth had the effect of reducing the receiver's high-frequency response, but it was felt that lower fidelity would be less obnoxious than interference. As long ago as 1978, Orban proposed and imple- mented preemphasis and low-pass filtering for AM broadcast to provide brighter sound at the receiver while minimizing interference.

  • Page 44: Nrsc Standard Preemphasis And Low-Pass Filtering

    1-24 INTRODUCTION ORBAN MODEL 9300 for conventional receivers (which implies a relatively extreme preemphasis), the newer receivers might sound strident or exceptionally bright. If the choice favored the newer receivers (less preemphasis and probably less processing), the majority of receivers would be deprived of much high-end energy and would sound both qui- eter and duller.

  • Page 45: Figure 1-3: Nrsc Lowpass Filter

    1-25 OPTIMOD-AM DIGITAL INTRODUCTION cupied bandwidth specifications of the NRSC-2 standard by June 30, 1990. The NRSC- 2 standard is an RF mask that was derived from the NRSC-1 audio standard. The purpose of the NRSC-2 RF mask is to provide a transmitted RF occupied bandwidth standard that any station with a properly operating transmitter will meet if NRSC-1 audio processing is used prior to the transmitter and if the station is not overmodu- lating.

  • Page 46: Warranty, User Feedback

    However, the limitation of any right or remedy shall not be effective where such is prohibited or restricted by law. Simply take or ship your Orban products prepaid to our service department. Be sure to include a copy of your sales slip as proof of purchase date. We will not repair transit damage under the no-charge terms of this warranty.

  • Page 47: Section 2 Installation

    Complete the Registration Card and return it to Orban. (please) The Registration Card enables us to inform you of new applications, per- formance improvements, software updates, and service aids that may be...
  • Page 48 INSTALLATION ORBAN MODEL 9300 2. Install the appropriate power cord. TYPE 18/3 SVT COR, TYP (3 x .82 mm WIRE COLOR CONDUCTOR NORMAL LINE BROWN BLACK NEUTRAL BLUE WHITE EARTH GND GREEN-YELLOW GREEN PLUG FOR 115 VAC (USA) TYPE H05VV - F - 0.75...

  • Page 49: Figure 2-2: Wiring The 25-Pin Remote Interface Connector

    OPTIMOD-AM DIGITAL INSTALLATION PIN ASSIGNMENT COMMON REMOTE REMOTE REMOTE REMOTE REMOTE REMOTE REMOTE INTERFACE REMOTE REMOTE TALLY TALLY POWER COMMON REMOTE REMOTE REMOTE REMOTE REMOTE REMOTE REMOTE REMOTE 22-24. N/C +12 VOLTS DC Figure 2-2: Wiring the 25-pin Remote Interface Connector 4.

  • Page 50: Figure 2-3: 9300 Serial Port Pin Identification

    INSTALLATION ORBAN MODEL 9300 Figure 2-3: 9300 Serial Port Pin Identification In a high-RF environment, these wires should be short and should be run through foil-shielded cable, with the shield connected to CHASSIS GROUND at both ends. 6. Connect tally outputs (optional) See the schematic on page 6-26.

  • Page 51: Olloff

    8. Install Monitor Rolloff Filter. (optional) Orban Monitor Rolloff Filters are accessories that can be ordered from your au- thorized Orban Broadcast Dealer. The Orban model number is MRF-023. The Orban Monitor Rolloff Filter alters the flat response typical of a modulation...

  • Page 52: Figure 2-6: Monitor Rolloff Filter Schematic Diagram

    INSTALLATION ORBAN MODEL 9300 receiver. It is a passive filter, requiring no power supply. It can be mounted to one rail of a standard rack. (See page 1-21 for more about studio monitoring.) A) Select rolloff response. The Monitor Rolloff Filter is supplied jumpered for NRSC...

  • Page 53: 9300 Rear Panel

    OPTIMOD-AM DIGITAL INSTALLATION output of an opamp), connect the source between the 0 OHM SOURCE and COM terminals on the rolloff filter chassis. If the output impedance of the source is 600 ohms, connect the source be- tween the 600-OHM SOURCE and COM terminals. If the output impedance is some value in between, connect a resistor be- tween the source's output and the Monitor Rolloff Filter's 600-OHM SOURCE terminal so that the total source impedance seen by the Moni-...

  • Page 54: Input And Output Connections

    INSTALLATION ORBAN MODEL 9300 that limits current to 10mA. Voltage is available at this connector to facilitate use of contact closures. The Ethernet Port accepts an Ethernet cable terminated with an RJ45 connector. Digital AES3 Input and Output are provided to support two-channel AES3- standard digital audio signals through XLR-type connectors.

  • Page 55: Analog Audio Outputs

    OPTIMOD-AM DIGITAL INSTALLATION fessional and semi-professional audio equipment, balanced or unbalanced, hav- ing a source impedance of 600 or less. The input is EMI suppressed.  Input connections are the same whether the driving source is balanced or unbal- anced. ...

  • Page 56: Aes3 Digital Input And Output

    2-10 INSTALLATION ORBAN MODEL 9300 to the pin on the XLR-type connector (#3 or #2) that is considered L by the standards of your organization. AES3 Digital Input and Output There is one AES3 input and one AES3 output. The program input and output are both equipped with sample rate converters and can operate at 32, 44.1, 48, 88.2,...

  • Page 57: Power Ground

    2-11 OPTIMOD-AM DIGITAL INSTALLATION The 9300 has balanced inputs.  All equipment circuit grounds must be connected to each other; all equipment chassis grounds must be connected together.  In a low RF field, cable shields should be connected at one end only — prefera- bly the source (output) end.
  • Page 58 2-12 INSTALLATION ORBAN MODEL 9300  Next and Prev ( and ) buttons scroll the screen horizontally to accommo- date menus that cannot fit in the available space. They also allow you to move from one character to the next when you enter data into your 9300. These flash when such a menu is in use.

  • Page 59: Quick Setup

    1. If your signal path includes a studio level controller, set it up. We recommend Orban’s 6300 Multipurpose Digital Audio Processor. The 6300 substitutes for the AGC in the 9300 at the transmitter and provides protection limiting for the STL. See Using OPTIMOD 6300 as a Studio Level Controller in the 6300’s operating manual.
  • Page 60 2-14 INSTALLATION ORBAN MODEL 9300 5. Set the time, date, and Daylight Saving Time. [Skip this step if you will be using an Internet timeserver to set time, date, and Daylight Saving Time. See Synchronizing Optimod to a Network Timeserver on page 2-47.
  • Page 61 AGCs do not “fight” each other and so they do not simultaneously increase gain, resulting in increased noise. As of this writing, the currently manufactured Orban products that can be used as external AGCs are Optimod-PC 1101 and Optimod 6300. Their manuals contain instructions on how to use them in this application.
  • Page 62 9300 AGC status to be determined by the selected preset. If you are using an Orban 4000 Transmission Limiter, set field to N that the AGC function in the 9300 continues to work). The Orban 4000 is a transmission system overload protection device and is normally oper- ated below threshold.
  • Page 63 2-17 OPTIMOD-AM DIGITAL INSTALLATION B) Feed normal program material to the 9300. C) Play program material from your studio, peaking at normal program levels (typically 0 VU if your console or mixing desk uses VU meters). D) [Skip this step if you are not using the analog input.] Hold down the A soft button and adjust the knob so that the AGC NALOG...
  • Page 64 2-18 INSTALLATION ORBAN MODEL 9300 If you plan to modulate asymmetrically, you must leave headroom for the positive peaks. For example, you must set the DO 100% control lower than –2.0 dBfs to support 125% modulation. The most accurate way to set this control is by observing a modulation monitor or oscilloscope connected to your transmitter’s common point.

  • Page 65: Analog And Digital I/O Setup

    (e.g., “KABC”). The name can be up to eight characters long. It is used to identify your 9300 to Orban’s 9300 PC Remote application and appears on the Main Screen when the 9300 is being con- trolled by the PC Remote application.
  • Page 66 > E AGC and set E AGC to N ETUP If you are using a external AGC like the Orban 6300, you should restore this set- ting to Y after the setup procedure is complete. 3. Adjust Input selector. A) Navigate to S >...
  • Page 67 (typically 0VU if your console uses VU meters). If you are using a studio level controller that performs an AGC function, such as an Orban 6300, adjust it for normal operation. c) Adjust the AI R (VU or PPM) control to make the 9300’s AGC meter indicate 10 dB gain reduction.
  • Page 68 2-22 INSTALLATION ORBAN MODEL 9300 To describe their most common application, the four system presets are labeled TX1/DAY, TX1/NIGHT, TX2/DAY, and TX2/NIGHT, although they can be applied in a completely general way to the requirements of your transmission facility. System presets can be recalled by remote control (GPI or PC Remote) and/or at preset times by the 9300’s clock-based au-...

  • Page 69: Figure 2-7: Effect Of Lowpass Filter Shape Control On 5 Khz Lowpass Filter

    2-23 OPTIMOD-AM DIGITAL INSTALLATION For countries where narrowband lowpass filtering is required, we rec- ommend setting OPTIMOD-AM’s lowpass filter to 6.0 kHz. This will meet the requirements of ITU-R 328-5 without further lowpass filtering in the transmitter. Any such lowpass filters already in the transmitter should be removed to prevent overmodulation caused by the filter's overshoot and ringing.
  • Page 70 2-24 INSTALLATION ORBAN MODEL 9300 a) Press E b) Press the soft key labeled with the system preset you wish to adjust. c) Adjust the filter frequencies as you did in the steps above. 7. Configure analog output(s). [Skip this step if you will not be using the analog output(s).] A) Navigate to S >...
  • Page 71 2-25 OPTIMOD-AM DIGITAL INSTALLATION [In] or [Out] When set to In, the 9300 adds “high-pass” dither before any truncation of the output word. The amount of dither automatically tracks the set- ting of the W control. This first-order noise shaped dither con- siderably reduces added noise in the midrange by comparison to white PDF dither.
  • Page 72 2-26 INSTALLATION ORBAN MODEL 9300 10. Set output and configuration level. This is a preliminary level adjustment. Later in this installation procedure, you will set 9300 for the highest modulation level that your facility can produce. If your transmission facility proves to have overshoot, tilt, or ringing when you test it in step 11 on page 2-27, you will have to go through the Transmitter Equalizer adjustment procedure, which starts with step 12 on page 2-27.
  • Page 73 2-27 OPTIMOD-AM DIGITAL INSTALLATION 11. Test the equipment downstream from OPTIMOD-AM. Test the RF envelope at the transmitter’s output to determine if it exhibits tilt, overshoot, or ringing. If you observe these problems, you can often adequately equalize it them with the 9300’s transmitter equalizer, whose settings are de- termined by the on-air System Preset.

  • Page 74: Overview Of Transmitter Equalization

    2-28 INSTALLATION ORBAN MODEL 9300 Overview of Transmitter Equalization The Transmitter Equalizer has a low frequency section to equalize tilt and a high frequency section to equalize overshoot and ringing. The Transmitter Equalizer setup parameters are stored independently in the four System Presets (See page 1-15).

  • Page 75: Figure 2-8: Unequalized Rf Envelope (Showing Tilt)

    2-29 OPTIMOD-AM DIGITAL INSTALLATION D) Turn on the carrier. E) Observe the RF envelope at the common point with a DC-coupled oscilloscope and advance the S control to produce 30% modulation. QUARE F) Navigate to S > M > TX1/D ETUP ODIFY G) If necessary, press N...
  • Page 76 2-30 INSTALLATION ORBAN MODEL 9300 not be produced by adjusting the LF FREQ control, transmitter low- frequency response is inadequate and there is too much low-frequency rolloff. Because equalization occurs below the audible frequency range, a trans- mitter that cannot be fully equalized can cost up to 4dB average modula- tion even though audible frequency response measures essentially flat.

  • Page 77: Figure 2-10: Unequalized Rf Envelope (Showing Ringing)

    2-31 OPTIMOD-AM DIGITAL INSTALLATION Adjustment of the high frequency transmitter equalizer controls cannot be done into a dummy load because the transmitter will overshoot and ring differently when loaded by the reactance of your antenna system. F) Set the HF DELAY and HF GAIN controls to O If no overshoot is observed, skip to step (H).
  • Page 78 2-32 INSTALLATION ORBAN MODEL 9300 a) Navigate to S > T ETUP b) Set the M to O PERATE 14. Test the polarity and LF transmitter equalization settings under program conditions. A) Apply program material to OPTIMOD-AM's input at normal operating levels.
  • Page 79 Orban accepts no responsibility for transmitter failures introduced by such re-adjustments, or by the high average power, bass and treble pre- emphasis, or by any other characteristics of OPTIMOD-AM audio process- ing.

  • Page 80: Automation Using The 9300'S Internal Clock

    2-34 INSTALLATION ORBAN MODEL 9300 transmitter equalization. If the station is to achieve the full benefits of OPTIMOD-AM processing, these transmitters must be either repaired, modified, or replaced. 15. If you will be using other System Presets, repeat steps 11 through 14 to adjust them.
  • Page 81 2-35 OPTIMOD-AM DIGITAL INSTALLATION c) Press the E SCAPE key to back out of the daylight saving screen. D) (Optional) Press the S ID button to specify your station’s identifier (call TATION sign or call letters). a) Use the knob to select characters. Use the P and N buttons to move the cursor.
  • Page 82 2-36 INSTALLATION ORBAN MODEL 9300 b) Turn the knob to set the desired event. The available events are:  No function  Recall factory preset  Recall user preset  Recall System TX preset  Mono-from left-channel (MONO-L) mode ...

  • Page 83: Security And Passcode Programming

    2-37 OPTIMOD-AM DIGITAL INSTALLATION This action will immediately delete the event. There is no “are you sure” warning message. To abort the deletion, press the E button, not the button. ELETE VENT Security and Passcode Programming [Skip this step if you do not plan to use PC Remote software or do not plan to lock out the front panel locally.] The 9300 has several levels of security to prevent unauthorized people from chang- ing its programming or operating state.

  • Page 84: To Edit A Passcode

    2-38 INSTALLATION ORBAN MODEL 9300 Passcodes can be up to eight characters long but can only contain the characters “1,” “2,” “3,” and “4.” This limitation makes it easy to enter a passcode using the four available soft buttons. C) When you have finished entering your new passcode, write it down so you do not forget it.

  • Page 85: To Program Local Lockout

    2-39 OPTIMOD-AM DIGITAL INSTALLATION B) If the L soft button is not visible, press the N button until you see C) Press the L soft button. To Program local lockout: A) Navigate to S > S ETUP ECURITY If the front panel is already password protected, you can only access this screen by entering a passcode with A privileges.

  • Page 86: If You Have Forgotten Your Passcode

    2-40 INSTALLATION ORBAN MODEL 9300 If You Have Forgotten Your Passcode You can reset factory defaults and wipe out security passcodes (in case you forgot your A CCESS passcode). A) Remove power from the 9300. B) While pressing both the E and S buttons, restore power.

  • Page 87: Networking And Remote Control

    2-41 OPTIMOD-AM DIGITAL INSTALLATION  Bypass: switches the Bypass Test Mode on the air.  Tone: switches the Tone Test Mode preset on the air.  Exit Test: If a test preset is presently on the air, EXIT TEST reverts to the previous processing preset.
  • Page 88 2-42 INSTALLATION ORBAN MODEL 9300 1. Prepare the 9300 for an Ethernet network connection: [Skip this step if you will not be using an Ethernet connection.] See your network administrator to get the data required in the following proce- dure.
  • Page 89 You will need two modems and two available phone lines, one of each for your PC and your 9300. Orban Customer Service supports only the 3Com / U.S. Robot- ics® 56kbps fax modem EXT on the 9300 side of your connection, although other 56kbps modems will usually work OK.

  • Page 90: Installing 9300 Pc Remote Control Software

    9300’s serial port. (These services are also used to upgrade your 9300’s firmware when updates are available from Orban.) The exact process will vary, depending on how you wish to set up the communications. That is:...

  • Page 91: Check Hardware Requirements

    If connecting by modem: a 3Com / U.S. Robotics® 56kbps fax modem EXT and nor- mal (not null) modem cable for the 9300 side of the connection. Note that Orban Customer Service does not support any other type of modem for connecting to the 9300.

  • Page 92: Running The Orban Installer Program

     You might have obtained the automatic installer application from some other source than Orban’s CD, like Orban’s ftp site or another computer on your net- work. If so, just run the application and follow the on-screen instructions. ...

  • Page 93: Conclusion

    Windows services and connected to your 9300. However, if you experience any problems with this process, or have any other 9300 questions, please contact Orban Customer Service. Contact information is found at http://www.orban.com/contact/ For details on your new 9300 software, from new features to operational sugges- tions, refer to our FTP site (ftp.orban.com/9300).
  • Page 94 2-48 INSTALLATION ORBAN MODEL 9300 C) Set the O FFSET to the difference (in hours) between your time zone and Uni- versal Time (UTC). UTC is also known as GMT, or Greenwich Mean Time.  The value can range between –12 and +12 hours. If this value is set to 0, your Optimod’s time will be the same as UTC.
  • Page 95 2-49 OPTIMOD-AM DIGITAL INSTALLATION  If your connection failed, the gateway address might not be set correctly on your Optimod. The gateway address for the timeserver connection is the same gateway address that you set in step (1.D) on page 2-42. If you do not know the correct gateway address, you can often discover it by connecting a Windows computer to the same Ethernet cable that is ordinarily plugged into your Optimod.
  • Page 96 2-50 INSTALLATION ORBAN MODEL 9300  If you are running Windows XP, PC Remote will download your computer’s currently specified timeserver into your Optimod.  PC Remote will adjust your Optimod’s O FFSET setting to correspond to your computer’s time zone setting.

  • Page 97: Appendix: Setting Up Serial Communications

    Windows 7, use the instructions that Microsoft provides for this operating system. (Note that the screen shots were prepared for Orban’s Optimod-FM 8300 and refer to that product. They are directly applicable to the 9300 too.) Preparing for Communication through Null Modem Cable 1.
  • Page 98 2-52 INSTALLATION ORBAN MODEL 9300 If you cannot access the Internet after making a Direct or Modem connection, you will have to reconfigure certain networking parameters in Windows. Please see You Cannot Access the Internet After Making a Direct or Modem Connection of the 9300 on page 5-7.
  • Page 99 2-53 OPTIMOD-AM DIGITAL INSTALLATION i) In the drop-down box, select the serial port you will be using to make the connection. j) Click “Next.” k) Select either “For all users” or “Only for myself.” The correct setting depends on how your net- work and security are configured.
  • Page 100 2-54 INSTALLATION ORBAN MODEL 9300 o) Click “Yes.” B) Edit your new Direct Connection properties: a) Click “Settings.” b) Click the “General” tab. c) Select the device you set up in step (i) on page 2-53. This will usually be “Communications...
  • Page 101 2-55 OPTIMOD-AM DIGITAL INSTALLATION e) Set “Maximum speed (bps)” “115200.” f) Check “Enable hardware flow con- trol.” g) Make sure that all other boxes are not checked. h) Click “OK.” i) Select the Networking tab. j) Make sure that “PPP: Windows 95 / 98 / NT 4 / 2000, Internet”...

  • Page 102: Connecting Using Windows Xp Direct Serial Connection

    2-56 INSTALLATION ORBAN MODEL 9300 2. Launch an existing Windows 2000 Direct connection. Once you have set up a “connection” specifying Direct Connect in the 9300 PC Remote application (see To set up a new connection on page 3-38), choosing this connection from 9300 PC Remote automatically opens a Windows Direct Connec- tion to your 9300.
  • Page 103 2-57 OPTIMOD-AM DIGITAL INSTALLATION c) Give your 9300 a name (e.g., “KABC”) by entering this name in the “9300 Alias” field. d) If you wish to have 9300 PC Remote remember password this Optimod, enter the password in the “Password“ field. e) Select “Serial Connection.”...
  • Page 104 2-58 INSTALLATION ORBAN MODEL 9300 k) Type in a name for your Connection such “Connection to 9300.” l) Click “Finish.” m)Click “Yes.” B) Edit your new Direct Connection properties: a) Click “Settings.”...
  • Page 105 2-59 OPTIMOD-AM DIGITAL INSTALLATION b) Click the “General” tab. c) Select the device you set up in step (i) on page 2-57. This will usually be “Communications cable between two computers (COM1).” d) Click “Configure.” e) Set the “Maximum Speed (bps)” to 115200.
  • Page 106 2-60 INSTALLATION ORBAN MODEL 9300 i) Select the Networking tab. j) Make sure that “PPP: Windows 95 / 98 / NT 4 / 2000, Internet” appears in the “Type of dial-up server I am calling” field. k) Make sure that “Internet Protocol (TCP/IP) is checked.

  • Page 107: Connecting Using Windows 7 Direct Serial Connection

    2-61 OPTIMOD-AM DIGITAL INSTALLATION 3. To change the properties of an existing connection: Right-click the connection in the “connection List” window and choose “Proper- ties.” The “Connection properties” window opens (see page 2-52). Connecting Using Windows 7 Direct Serial Connection: You must install the Windows 7 direct serial connection as a modem device using the Modem setup procedures as shown in the steps below.
  • Page 108 2-62 INSTALLATION ORBAN MODEL 9300 B) In the Phone and Modem applet, click on the Mo- dems tab and click “Add.” You need ad- ministrator's rights to do this. If UAC comes up, provide the relevant creden- tials and pro- ceed.
  • Page 109 2-63 OPTIMOD-AM DIGITAL INSTALLATION D) The Install New Modem window will appear. a) Select Communications cable between two computers. b) Proceed to next step by clicking on the NEXT button. E) Select the Serial com port to which the NULL cable is con- nected.
  • Page 110 2-64 INSTALLATION ORBAN MODEL 9300 F) At the Modem installation is finished window, click FINISH to complete the in- stallation. G) Once you are back at the Phone and Modem win- dow, you will see your newly installed communi- cation cable attached to the serial com port that you specified earlier.
  • Page 111 2-65 OPTIMOD-AM DIGITAL INSTALLATION A) Go to the Network and Sharing Center and click on Set up a new connection or network link. B) In the Choose a connection op- tion window, select Set up a di- al-up connection.
  • Page 112 2-66 INSTALLATION ORBAN MODEL 9300 C) If you are asked Which mo- dem do you want to use?, se- lect Communications cable between com- puters/modem. This only query will open appear if you have configured more than modem device. D) When prompted to “Type...
  • Page 113 2-67 OPTIMOD-AM DIGITAL INSTALLATION Windows will emit a message stating The connection is ready for use. How- ever, you must to configure some of the PPP settings before you can make a connection to your Optimod Although you did not specifically install any-...
  • Page 114 2-68 INSTALLATION ORBAN MODEL 9300 B) In the Network adapter window, right-click the Direct Serial PPP icon and click on the properties. You need ad- ministrator rights to pro- ceed from here. If UAC comes up, pro- vide the rele-...
  • Page 115 2-69 OPTIMOD-AM DIGITAL INSTALLATION c) If it is not correct, reset it to 115200 bps. d) Click OK to close the window. e) Click OK to dismiss the Properties window. f) Restart your computer. Restarting should ensure that the bps setting is saved. G) Select the Networking tab.
  • Page 116 2-70 INSTALLATION ORBAN MODEL 9300 H) In the Advance TCP/IP Set- tings window, click on the Advance button. a) Unselect default gateway remote network. b) Click OK to close this window. This prevents Win- dows 7 from rout- ing all networking...

  • Page 117: Preparing For Communication Through Modems

    You will need two modems and two available phone lines, one of each for your PC and your 9300. Reminder: Orban supports only the 3Com / U.S. Robotics® 56kbps fax modem EXT on the 9300 side (although other 56kbps modems will often work OK).
  • Page 118 2-72 INSTALLATION ORBAN MODEL 9300 b) On your PC, click “Start / Settings / Control Panel / Phone and Modem Options.” c) Click the “Modems” tab. d) Verify that your modem appears in the list available under “The following Modems are installed.”...
  • Page 119 2-73 OPTIMOD-AM DIGITAL INSTALLATION g) Select “Dial-up to private network.” h) Click “Next.” i) Enter the phone number of the modem connected to the 9300 that you are setting up. j) Click the “Next” button. k) Select either “For all users” or “Only for myself.”...
  • Page 120 2-74 INSTALLATION ORBAN MODEL 9300 m)Click the “Next” but– ton. n) Type in a name for your Connection such “Connection 9300 – Modem.” o) Click the “Finish” but– ton. p) Click “Yes.” D) Edit your new Direct Connection properties: a) Click “Settings.”...
  • Page 121 2-75 OPTIMOD-AM DIGITAL INSTALLATION b) Click the “General” tab. c) In the “Connect using” field, select the modem you will be using to make the connection on the PC side. d) Click “Configure.” e) Set “Maximum speed (bps)” “115200.” f) Check “Enable hard-ware flow...
  • Page 122 2-76 INSTALLATION ORBAN MODEL 9300 k) Select the Networking tab. l) Make sure that “PPP: Windows 95 / 98 / NT 4 / 2000, Internet” appears in the “Type of dial-up server I am calling” field. m)Make sure that “Inter- net Protocol (TCP/IP) is checked.

  • Page 123: Connecting Using Windows Xp Modem Connection

    2-77 OPTIMOD-AM DIGITAL INSTALLATION 3. To change the properties of an existing connection: Right-click the connection in the “connection List” window and choose “Proper- ties.” The “Connection properties” window opens (see page 2-72). Connecting using Windows XP Modem Connection 1. Add and configure modem for Windows XP: Skip this step if your modem is already configured and working.
  • Page 124 2-78 INSTALLATION ORBAN MODEL 9300 If you are using an external modem, connect the modem to a serial port on your PC and make sure the modem is connected to a working phone line. b) On your PC, click “Start / Settings / Control Panel / Phone and Modem Options.”...
  • Page 125 2-79 OPTIMOD-AM DIGITAL INSTALLATION e) Click “Add.” The Windows New Connection Wizard starts up. f) Select “Serial Connection.” g) Click the “Add” button. h) Select “Dial-up to private network.” i) Click “Next.” j) Enter the phone number of the modem connected to the 9300 you are setting up.
  • Page 126 2-80 INSTALLATION ORBAN MODEL 9300 n) Click “Yes.” D) Edit your new Direct Con- nection properties: a) Click “Settings.” b) Click the “General” tab. c) Select the modem you will be using to make the connection on the PC side.
  • Page 127 2-81 OPTIMOD-AM DIGITAL INSTALLATION e) Set “Maximum speed (bps)” “115200.” f) Check “Enable hardware flow control.” g) Check “Enable modem error control.” h) Check “Enable modem compression.” i) Make sure that no other box is checked. j) Click “OK.” k) Select the Networking tab. l) Make sure that “PPP: Windows 95 / 98 / NT4 / 2000, Internet”...

  • Page 128: Updating Your 9300'S Software

    2-82 INSTALLATION ORBAN MODEL 9300 You can connect by selecting the desired con- nection from the drop-down list in the C ONNECT menu. You can also connect by double-clicking the connection in the “Connection List” window. If the connection is successful, a dialog bubble will appear on the bottom right hand corner of the screen verifying your connection.

  • Page 129: Snmp Support

    2-83 OPTIMOD-AM DIGITAL INSTALLATION 4. Update your 9300. A) Attempt to initiate communication to your 9300 via your connection. See To initiate communication on page 3-39. 9300 PC Remote will automatically detect that the 9300 software version on your 9300 is not the same as the version of 9300 PC Remote. PC Re- mote will then offer to update your 9300 automatically.

  • Page 130: Snmp Network Setup

    Secondary Manger Port: (162) sets the address of a Secondary SNMP Port. SNMP Mib file The orban9300.mib file is in the location where you installed your PC Remote appli- cation. The default 9300 install location is: Program Files\Orban\Optimod 9300 PC Remote Program Files(x86)\Orban\Optimod 9300 PC Remote...

  • Page 131: Snmp Default Settings

    Secondary Manger (Alarm) Port: 162 SNMP Features Get/Query: o Station Name o System Diagnostics Orban (walks through all of the “get” commands and dis- plays their status.) o Primary and Secondary Manager IP o Primary and Secondary Manager Port...
  • Page 132 2-86 INSTALLATION ORBAN MODEL 9300 SNMP Community String: The “SNMP Community string” is like a user id or password that allows access to a router's or other device's statistics. It is set at Optimod PC Remote to implement SNMP security. PRTG sends the community string along with all SNMP requests. If the community string is correct, the device responds with the requested information.

  • Page 133: Section 3 Operation

    OPTIMOD-AM DIGITAL OPERATION Section 3 Operation 9300 Front Panel  Screen Display labels the four soft buttons and provides control-setting infor- mation.  Screen Contrast button adjusts the optimum viewing angle of the screen dis- play.  Four Soft buttons provide access to all 9300 functions and controls. The func- tions of the soft buttons change with each screen, according to the labels at the bottom of each screen.

  • Page 134: Some Audio Processing Concepts

    OPERATION ORBAN MODEL 9300  Input meters show the peak input level applied to the 9300’s analog or digital inputs with reference to 0 = digital full-scale. If the input meter’s red segment lights up, you are overdriving the 9300’s analog to digital converter, which is a very common cause of audible distortion.

  • Page 135: Loudness And Density

    NRSC, boosting at 18dB/octave with 2 kHz up about 3 dB. Without very artful processing, this preemphasis will radically increase the level of the peaks and force you to decrease the average level proportionally. Orban's high frequency limiting and distortion-cancelling clipping systems greatly ease this trade-off, but cannot eliminate it.

  • Page 136: Optimod-Am Processing

    HF boost, you will have to turn down the L control to avoid audible distortion.  A five-band compressor with Orban's exclusive multiband distortion-cancelling clipper. This system embeds the clipper within the multiband crossover to permit the crossover to filter out clipping distortion products that would otherwise be audible.
  • Page 137 OPTIMOD-AM DIGITAL OPERATION sion and limiting to ensure that the received signal will override the noise and inter- ference over the maximum possible geographical area. It also requires high fre- quency boost to compensate for the high-frequency rolloff in all AM radios. The 9300’s GEN PURPOSE MEDIUM factory preset at a L setting of 7 meets these requirements and provides a sound that is subjectively undistorted even on...

  • Page 138: Shortwave/Hf Processing

    OPERATION ORBAN MODEL 9300 format requiring long-term listening to achieve market share, great care should be taken not to alienate women by excessive stridency, harshness, or distortion. AM radio has been losing its market share to FM in many countries because the pub- lic perceives that AM has lower sound quality.

  • Page 139: Monitor Rolloff Filter

    OPTIMOD-AM DIGITAL OPERATION Quality in the Broadcast Facility (an Orban publication downloadable from ftp.orban.com) for a discussion of how to improve source quality. A high-quality monitor system is essential. To modify your air sound effectively, you must be able to hear the results of your adjustments. Maintaining Audio Quality in the Broadcast Facility also contains a detailed discussion of how to efficiently create an accurate monitoring environment.

  • Page 140: Modulation Monitors

    OPERATION ORBAN MODEL 9300 steep rolloff above that frequency. The steepness of the rolloff eliminates the possibility of improving the audio through preemphasis. In our opinion, these radios must be written off as producing hopelessly bad sound. Very few people would enjoy listening to music on these radios ...

  • Page 141: Judging Loudness

    OPTIMOD-AM DIGITAL OPERATION programming the L curves, we have made it easy for you to make this trade-off. As you advance the L control for a given factory preset, the sound gets louder but distortion increases. However, for each setting of the L control, other processing parameters are automatically adjusted to give you the lowest possible distortion for the amount of loudness you are getting.

  • Page 142: Basic Control

    We believe that most 9300 users will never need to go beyond the Basic level of con- trol. Orban’s audio processing experts have optimized the combinations of subjec- tive setup control settings produced by this control by drawing on years of experi- ence designing audio processing and hundred of hours of listening tests.

  • Page 143: Full Control

    It allows you to adjust the dynamics section at approximately the level of “full con- trol” available in Orban’s 9200 processor. These controls are somewhat risky (al- though not as much as the controls in Advanced Control). Most people will never have any reason to go beyond Full Control, even if they want to create a “signature...

  • Page 144: Gain Reduction Metering

    3-12 OPERATION ORBAN MODEL 9300 great on some program material and fall apart embarrassingly on other material. We therefore recommend that you create custom presets at the Advanced Control level only if you are experienced with on-air sound design, and if you are willing to take the time to double-check your work on many different types of program mate- rial.

  • Page 145: Factory Programming Presets

    3-13 OPTIMOD-AM DIGITAL OPERATION Some non-alphanumeric characters (such as < and >) are reserved and cannot be used in preset names. D) Use the knob to set the each character in the preset name. Use the N buttons to control the cursor position. E) Press the S button.

  • Page 146: Description Of The Factory Presets

    Basic Control and make small changes to the Bass, Mid EQ, and HF EQ controls. Un- like some earlier Orban’s processors, the 9300 lets you make changes in EQ, AGC, and stereo enhancement without losing the ability to use L settings.

  • Page 147: Table 3-1: Factory Programming Presets

    3-15 OPTIMOD-AM DIGITAL OPERATION NEWS is based on the Fast multiband release time. Because of this, the unit adapts quickly to different program material, providing excellent source-to-source consistency. This “automatic equalization” action of the multiband compressor has been adjusted to produce less bass than in the G ENERAL URPOSE presets, and the...
  • Page 148 We tuned it to sound very similar to the legendary Gregg Laboratories 2540 AM processor (designed by Orban’s Vice President of New Product Development, Greg Ogonowski, in the 1980s), using a direct A/B comparison with the Gregg processor to ensure accuracy. This required setting the B1/B2 CROSSOVER to 200 Hz and setting other controls appropriately.

  • Page 149: Equalizer Controls

    This is particularly true with general-purpose AM programming. Low Frequency Parametric Equalizer is a specially designed parametric equalizer whose boost and cut curves closely emulate those of a classic Orban analog para- metric equalizer with conventional bell-shaped curves (within 0.15 dB worst-case).
  • Page 150 3-18 OPERATION ORBAN MODEL 9300 LF FREQ determines the center frequency of the equalization, in Hertz. Range is 20-500Hz. LF GAIN determines the amount of peak boost or cut (in dB) over a 10 dB range. LF WIDTH determines the bandwidth of the equalization, in octaves. The range is 0.8-4.0 octaves.
  • Page 151 The equalizer, like the classic Orban analog parametrics such as the 622B, has constant “Q” curves. This means that the cut curves are narrower than the boost curves.
  • Page 152 3-20 OPERATION ORBAN MODEL 9300 stant) to prevent excessive stridency in program material that already has a great deal of presence power. Therefore, with large amounts of gain reduction, the den- sity of presence region energy will be increased more than will the level of energy in that region.

  • Page 153: Figure 3-1: Hf Receiver Equalizer Curves

    3-21 OPTIMOD-AM DIGITAL OPERATION The high-frequency receiver equalizer is designed to compensate for the high fre- quency rolloff in average AM radios. The typical AM radio is down 3dB at 2kHz and rolls off at least 18dB/octave after that. The HF equalizer provides an 18dB/octave shelving preemphasis that can substantially improve the brightness and intelligibility of sound through narrowband radios that do not have an abrupt rolloff.
  • Page 154 = 10 and HF G = 10dB. HF URVE URVE = 10 corresponds to the RED preemphasis module in Orban's analog 9100-series OPTIMOD-AM processors. Note that the added brightness caused by using an HF C of 10 (as opposed to...

  • Page 155: Agc Controls

    3-23 OPTIMOD-AM DIGITAL OPERATION The amount of bass boost will depend on the fundamental frequency of a given voice. If the fundamental frequency is far above 100Hz, there will be little voice en- ergy in the bottom band and little or no audio bass boost can occur even if the gain of the bottom band is higher than the gain of its neighbor.

  • Page 156: Table 3-3: Agc Controls

    (such as a classical or fine arts preset). The AGC is also ordinarily defeated if you are using a studio level controller (like Orban’s 6300). However, in this case it is better to defeat the AGC globally in System Setup.
  • Page 157 3-25 OPTIMOD-AM DIGITAL OPERATION AGC R ELEASE control to fast settings sounds different from the increase in density caused by setting the multiband compressor’s M control to F ULTIBAND ELEASE and you can trade the two off to produce different effects. Unless it is purposely speeded-up (with the AGC R control), the automatic ELEASE...

  • Page 158: Advanced Agc Controls

    3-26 OPERATION ORBAN MODEL 9300 If the MB G (Gate Threshold) control is turned O , the DJ B control is disabled. AGC B CPL (“AGC Bass Coupling”) control clamps the amount of dynamic bass boost (in units of dB) that the two-band AGC can provide.
  • Page 159 3-27 OPTIMOD-AM DIGITAL OPERATION than the window size, the AGC W INDOW ELEASE control determines the attack and release times. This is usually much slower than the normal AGC time constants. This prevents the AGC from building up density in material whose level is already well controlled.

  • Page 160: Clipper Controls

    ORBAN MODEL 9300 Clipper Controls B1-B5 Clip Thresh controls set the thresholds of four clippers in Orban’s patented embedded multiband distortion-canceled clipper in units of dB with reference to the final clipper. These clippers are embedded in the multiband crossover so that any distortion created by clipping is rolled off by part of the crossover filters.
  • Page 161 3-29 OPTIMOD-AM DIGITAL OPERATION amount of clipping. 0dB refers to the average setting that we have found to be the best compromise for many settings of the other controls. If the MB R control is set to FAST or MFAST (medium-fast), perceived clipping ELEASE distortion will increase as the MB D control is advanced, and the MB C...

  • Page 162: Multiband Dynamics Processing

    3-30 OPERATION ORBAN MODEL 9300 Multiband Dynamics Processing Multiband Controls Full Name Advanced Name Range MB DRIVE Multiband Drive 0 ... 25 MB GATE Multiband Gate Threshold Off, –44 ... –15 dB DWNEXP TH Downward Expander Off, –6.0 … 12.0 dB...

  • Page 163: Table 3-6: Mb Attack/Release Controls

    3-31 OPTIMOD-AM DIGITAL OPERATION We recommend no more than 10 dB gain reduction as shown on the meters for band 3. More than 10dB, particularly with the F release time, will often create a “wall of sound” effect that many find fatiguing. To avoid excessive density with the F multiband release time, we recommend us- ing no more than 5 dB gain reduction in band 3, and compensating for any lost...
  • Page 164 3-32 OPERATION ORBAN MODEL 9300 formats. This is the sound texture for the station that values a clean, easy- to-listen-to sound with a tasteful amount of punch, presence, and brightness added when appropriate. This is an unprocessed sound that sounds just right on music and voice when listened to on small table ra- dios, car radios, portables, or home hi-fi systems.

  • Page 165: Table 3-7: Mb Band Mix Controls

    3-33 OPTIMOD-AM DIGITAL OPERATION put drives the AGC gate detector; the output of the 9300’s AGC drives the MB gate detector. The multiband compressor gate causes the gain reduction in bands 2 and 3 of the applicable multiband compressor to move quickly to the average gain reduction oc- curring in those bands when the gate first turns on.

  • Page 166: Advanced Multiband Controls

    3-34 OPERATION ORBAN MODEL 9300 program material without audible side effects. You will get best results if you set the D control of the noise reduction system to com- plement the program material you are processing. The D should be set higher when the input is noisy and lower when the input is relatively quiet.
  • Page 167 3-35 OPTIMOD-AM DIGITAL OPERATION graphic equalizer to fine-tune the spectral balance of the program material over a 3 dB range. Their range has been purposely limited because the only gain control element after these controls is the back-end clipping system (including the final clipper and over- shoot compensator), which can produce considerable audible distortion if over- driven.
  • Page 168 3-36 OPERATION ORBAN MODEL 9300 ULTIBAND ELEASE control. In our example, the release time in band 3 will always be two “click stops” slower than the setting of the M ULTIBAND ELEASE control. If your setting of a given D...

  • Page 169: Test Modes

    3-37 OPTIMOD-AM DIGITAL OPERATION Test Modes The Test Modes screen allows you to switch between O , and S PERATE YPASS , and . When you switch to B or either tone mode (sine wave or square QUARE YPASS wave), the preset you have on air is saved and will be restored when you switch back to O PERATE The sine and square frequencies are adjustable.

  • Page 170: To Set Up A New Connection

    Before running 9300 PC Remote, you must have installed the appropriate Windows communications services on your computer. By default, the installer installs a short- cut to 9300PC.exe on your desktop and in your Start Menu under Orban\Optimod 9300. 9300 PC Remote can control only one 9300 at a time, but it can readily switch be- tween several 9300s.

  • Page 171: To Initiate Communication

    “Loading system files, please wait.” When run, the Orban PC Remote software installer makes copies of all 9300 fac- tory preset files on your local hard drive. The PC Remote software reads these files to speed up its initialization.

  • Page 172: To Modify A Control Setting

    3-40 OPERATION ORBAN MODEL 9300 To modify a control setting: A) Choose P from the E ROCESSING ARAMETERS menu. B) Select menu tabs for L , Stereo Enhancer, and EQ to access Basic Con- trol controls. All other menu tabs contain Full or Advanced Control controls.

  • Page 173: To Back Up User Presets, System Files, And Automation Files Onto Your Computer's Hard Drive

    The encryption options prevent archived presets, system files, and auto- mation files from being restored if the user does not have the password used for the encryption. There is no “back door” — Orban cannot help you to decrypt a preset whose password is unknown.
  • Page 174 OPERATION ORBAN MODEL 9300 All User Presets are compatible with all 9300 software versions. If Orban adds new controls to a software version, the new software will assign a reasonable default value to any control missing in an old User Preset. If...

  • Page 175: To Modify Input /Output And System Setup

    3-43 OPTIMOD-AM DIGITAL OPERATION This User Preset will be downloaded to the 9300 to which 9300 PC Re- mote is currently connected. If the User Preset is encrypted, PC Remote will request its password. To modify I and S NPUT UTPUT YSTEM ETUP...

  • Page 176: About Aliases Created By Optimod 9300 Pc Remote Software

    Optimod 9300 PC Re- mote (usually \Program Files\Orban\Optimod 9300). The folder has the same name as the Alias name. Once you establish the initial connection to the 9300, all presets for that 9300 are automatically copied to the Alias folder;...

  • Page 177: To Share An Archived User Preset Between 9300S

    3-45 OPTIMOD-AM DIGITAL OPERATION Each version of 9300 PC Remote will display all 9300 Aliases, even those pointing to 9300s with incompatible version numbers. If you attempt to connect to an older ver- sion of 9300 from a newer version of 9300 PC Remote, 9300 PC Remote will offer to upgrade the software in the target 9300 so that it corresponds to the version of 9300 PC Remote that is active.
  • Page 178 3-46 OPERATION ORBAN MODEL 9300...

  • Page 179: Section 4 Maintenance

    OPTIMOD-AM DIGITAL MAINTENANCE Section 4 Maintenance Routine Maintenance The 9300 OPTIMOD-AM Audio Processor uses highly stable analog and digital cir- cuitry throughout. Recommended routine maintenance is minimal. 1. Periodically check audio level and gain reduction meter readings. Become familiar with normal audio level meter readings, and with the normal performance of the G/R metering.

  • Page 180: Subassembly Removal And Replacement

    MAINTENANCE ORBAN MODEL 9300 Subassembly Removal and Replacement See page 6-21 for the Circuit Board Locator and Basic Interconnections diagram. 1. Removing the Top Cover: To access any internal board (including the display assembly), you must remove the top cover.
  • Page 181 EMI. If the power supply fails, please contact Orban Customer Service (custserv@orban.com) to obtain an exact replacement. A) Verify that the 6300 is disconnected from the AC line.
  • Page 182 MAINTENANCE ORBAN MODEL 9300 E) Unplug the cable connecting the output of the power supply to the I/O+DSP board. F) Using a hex nutdriver, remove the threaded standoff that supports the power supply’s insulating cover. G) Remove the three Phillips screws holding the power supply to the main chas- sis.

  • Page 183: Field Audit Of Performance

    OPTIMOD-AM DIGITAL MAINTENANCE D) Place the two side brackets over the captive screws located on each side of the front panel. Be sure that the large side of each bracket is oriented toward the rack-screw cutouts in the panel. E) Place the metal shield over the captive screws on each side of the front panel. Align the shield so that its cutouts are aligned with the cables attached to the circuit board assembly.
  • Page 184 MAINTENANCE ORBAN MODEL 9300 Accurate to ±0.1%.  Oscilloscope DC-coupled, triggered sweep, with 5M Hz or greater vertical bandwidth.  Two 620 ±5% resistors.  Optional: Audio Precision System 1 (without digital option) or System 2 (for digi- tal tests).
  • Page 185 OPTIMOD-AM DIGITAL MAINTENANCE R CH BAL..................0.0 dB b) Navigate to S > IO C > I > D . Set controls as in the ETUP ALIB NPUT ALIB table below: DI Ref VU ................–15.0 dBFS R CH BAL..................0.0 dB c) Navigate to S >...
  • Page 186 MAINTENANCE ORBAN MODEL 9300 D) Adjust output trim VR200 to make the meter read +10.6 dBu. (0 dBu = 0.775V rms.) Verify a frequency reading of 400 Hz. E) Verify THD+N reading of <0.05% (0.02% typical) using a 22 kHz low pass filter in the distortion analyzer.
  • Page 187 OPTIMOD-AM DIGITAL MAINTENANCE Frequency THD+N Typical THD+N Maximum 50 Hz 0.015% 0.03% 100 Hz 0.015% 0.03% 400 Hz 0.015% 0.03% 1 kHz 0.015% 0.03% 2.5 kHz 0.015% 0.03% 5 kHz 0.015% 0.03% 7.5 kHz 0.015% 0.03% 9.5 kHz 0.015% 0.03% G) Repeat these measurements for Analog Output #2.
  • Page 188 4-10 MAINTENANCE ORBAN MODEL 9300 Sample Rate Tolerance (PPM) Tolerance ( Hz) 32.0 kHz 100 PPM ±1.60 Hz 44.1 kHz 100 PPM ±4.41 Hz 48.0 kHz 100 PPM ±2.40 Hz 88.2 kHz 100 PPM ±8.82 Hz 96.0 kHz 100 PPM ±4.80 Hz...

  • Page 189: Section 5 Troubleshooting

    Many commercial monitors have this problem, but most of these problem units can be modified to indicate peak levels accurately. Orban uses the Belar “Wizard” series of DSP-based monitors internally for testing, because these units do not have this difficulty.

  • Page 190: Excessively Low Positive Peak Modulation

    TROUBLESHOOTING ORBAN MODEL 9300 Excessively Low Positive Peak Modulation The polarity of the 9300’s active output might be reversed. You can test this by edit- ing the P OLARITY field in the active System Preset. You may have not allowed enough peak headroom in the 9300’s output level set- ting.

  • Page 191: Audible Noise On Air

    STL may only be 70-75 dB. In this case, it is wise to use the Orban 6300 Studio AGC to perform the AGC func- tion prior to the STL transmitter and to control the STL's peak modulation. This will optimize the signal-to-noise ratio of the entire transmission system.

  • Page 192: Dull Sound

    TROUBLESHOOTING ORBAN MODEL 9300 To reduce the audible effect of such ringing, minimize the amount of 5 or 6 kHz en- ergy applied to the filter. The most effective way to do this is to implement pre- emphasis with the HF parametric equalizer instead of the HF shelving equalizer. By boosting 3 kHz with the parametric equalizer, you will improve speech intelligibility on narrowband radios, yet the parametric’s bell-shaped boost curve will produce...

  • Page 193: System Will Not Pass Line-Up Tones At 100% Modulation

    Section 1 of this manual provides a thorough discussion of system engineering con- siderations, particularly with regard to minimizing overshoot and noise. Orban's publication Maintaining Audio Quality in the Broadcast Facility (available for down- load from www.orban.com) provides many suggestions for maximizing source qual-...

  • Page 194: Security Passcode Lost (When Unit Is Locked Out)

    TROUBLESHOOTING ORBAN MODEL 9300 Further, almost all AM transmitters have a sound of their own. The very latest transmitters (using digital modulation schemes) will create an on-air sound that is audibly superior to transmitters of older design because the new transmitters have dramatically lower nonlinear distortion.

  • Page 195: You Cannot Access The Internet After Making A Direct Or Modem Connection To The 9300

    OPTIMOD-AM DIGITAL TROUBLESHOOTING If you are connecting via Direct Serial Connection or modem, review the Proper- ties you have set on that connection. Double-check to ensure that you have set Windows parameters as described in Appendix: Setting Up Serial Communica- tions on page 2- 51.

  • Page 196: Os-Specific Troubleshooting Advice

    TROUBLESHOOTING ORBAN MODEL 9300 If this “Use default gateway on remote network” box is not selected, the gateway will not point to the 9300 unit when you establish a direct or modem connection. OS-Specific Troubleshooting Advice Troubleshooting Windows XP Direct Connect: If you are having trouble establishing a connection, check your New Connection’s...

  • Page 197: Troubleshooting Windows Xp Modem Connect

    OPTIMOD-AM DIGITAL TROUBLESHOOTING This resets the serial port and reduces the likelihood that you will en- counter problems connecting to the 9300. Troubleshooting Windows XP Modem Connect: If you are having trouble establishing a connection, check your New Con- nection’s properties to make sure they are set up correctly. A) Click “Start >...

  • Page 198: Technical Support

    After expiration of the warranty, a reasonable charge will be made for parts, labor, and packing if you choose to use the factory service fa- cility. Returned units will be returned C.O.D. if the unit is not under warranty. Orban...

  • Page 199: Shipping Instructions

    5-11 OPTIMOD-AM DIGITAL TROUBLESHOOTING will pay return shipping if the unit is still under warranty. In all cases, the customer pays transportation charges to the factory (which are usually quite nominal). Shipping Instructions Use the original packing material if it is available. If it is not, use a sturdy, double- walled carton no smaller than 7...

  • Page 201: Section 6 Technical Data

    OPTIMOD-AM DIGITAL TECHNICAL DATA Section 6 Technical Data Specifications It is impossible to characterize the listening quality of even the simplest limiter or compressor based on specifications, because such specifications cannot adequately describe the crucial dynamic processes that occur under program conditions. There- fore, the only way to evaluate the sound of an audio processor meaningfully is by subjective listening tests.

  • Page 202: Installation

    TECHNICAL DATA ORBAN MODEL 9300 High-Pass Filter: Constrained by user settable fifth-order “quasi-elliptical” highpass filter to 50, 60, 70, 80, 90, or 100 Hz. All filters have equal-ripple (Chebychev-like) passbands and a 25 Hz notch for transmitter protection. Channel Configuration: Processing is monophonic.
  • Page 203 OPTIMOD-AM DIGITAL TECHNICAL DATA Digital Audio Input Configuration: Stereo per AES3 standard, 24 bit resolution, software processing selection of mono from left, mono from right or mono from sum. Sampling Rate: 32, 44.1, 48, 88.2, or 96 kHz, automatically selected. Connector: XLR-type, female, EMI-suppressed.

  • Page 204: Circuit Description

    RFI/EMI: Tested according to Cenelec procedures. FCC Part 15 Class A device. Shipping Weight: 19 lbs / 8.7 kg Warranty Two Years, Parts and Service: Subject to the limitations set forth in Orban's Standard Warranty Agreement. Because engineering improvements are ongoing, specifications are subject to change with- out notice.

  • Page 205: Control Circuits

    9300 has rebooted for some reason. (Of course, it could also be caused by the 9300’s audio feed’s being interrupted.) Be prepared to convey this fact to Orban customer service if you call for technical assistance. The control board contains interface circuitry, the CPU, the Ethernet interface chip, the flash memory, the DRAM, the RS-232 serial interface circuitry, the GPI/O interface circuitry, and the real-time clock, which keeps time for the 9300’s automation func-...
  • Page 206 TECHNICAL DATA ORBAN MODEL 9300 Remote Interface and RS-232 Interfaces Located on control board A remote interface connector and circuitry implements remote control of certain operating modes; Optimod 9300 has eight remote contact closure inputs. A valid remote signal is a momentary pulse of current flowing through remote signal pins.

  • Page 207: Input Circuits

    OPTIMOD-AM DIGITAL TECHNICAL DATA Component-Level Description: The meter LED matrix consists of ten 10-segment LED bar graph assemblies (CR1-CR9, CR16) and one discrete LED (CR10). Row selector latches IC4, IC5, IC6, and IC9 are controlled by the host microprocessor and alternately sink cur- rent through the LEDs selected by column selector latches IC1 and IC2, which are also controlled by the SC520.

  • Page 208: Output Circuits

    TECHNICAL DATA ORBAN MODEL 9300 verter IC107. IC105A and associated components comprise a servo amp to cor- rectly DC-bias the signal feeding the A/D converter. R137-139, C109, C110 make an attenuator / RC filter necessary to filter high frequency energy that would otherwise cause aliasing distortion in the A/D converter.
  • Page 209 OPTIMOD-AM DIGITAL TECHNICAL DATA Stereo Digital-to-Analog (D/A) Converter Located on input/output/DSP board The D/A, IC211, is a stereo, 24-bit delta-sigma converter. It receives the serial left and right audio data samples from the DSP at 64 kHz sample rate, and converts them into audio signals requiring further, relatively undemanding analog filter- ing.

  • Page 210: Dsp Circuit

    During system initialization, the SC520 queries the DSP hardware about its opera- tional status and will display an error message on-screen if the DSP fails to initialize normally. Please note any such messages and be ready to report them to Orban Cus- tomer Service.

  • Page 211: Abbreviations

    6-11 OPTIMOD-AM DIGITAL TECHNICAL DATA Abbreviations Some of the abbreviations used in this manual may not be familiar to all readers: A/D (or A to D) analog-to-digital converter Audio Engineering Society automatic gain control analog input analog output balanced (refers to an audio connection with two active conductors and one shield sur- rounding them).
  • Page 212 6-12 TECHNICAL DATA ORBAN MODEL 9300 inductor/capacitor liquid crystal display light-emitting diode low-frequency low-pass level midrange / high-frequency midrange / low-frequency modulation N&D noise and distortion N / C no connection OSHOOT overshoot IBM-compatible personal computer pulse code modulation peak program meter...

  • Page 213: Parts List

    Consult the factory if the listing of a part includes the note “selected” or “realignment required.” Orban normally maintains an inventory of tested, exact replacement parts that can be supplied quickly at nominal cost. Standardized spare parts kits are also available.
  • Page 214 6-14 TECHNICAL DATA ORBAN MODEL 9300 Control Board PART # DESCRIPTION COMPONENT IDENTIFIER 20130.475.01 RESISTOR, 4.75K, 0805 (R36, NO, STUFF), R205, R207, R209, R211, R213, R215, R217 20130.562.01 RESISTOR, 1/8W, 1%, 5.62K, 0805 20131.100.01 RESISTOR, 10K, 0805 R1, R2, R9, R33, R37, R38, R39, 20131.113.01...

  • Page 215: Combined Input/Output And Dsp (I/O+Dsp) Board

    6-15 OPTIMOD-AM DIGITAL TECHNICAL DATA Control Board PART # DESCRIPTION COMPONENT IDENTIFIER 24972.520.01 IC MICROPROCESSOR ELANSC520 BGA388 24979.000.01 IC, BAT54C-7 CR11, CR12 24983.000.01 IC, 7064STC100-10 25008.000.01 IC, PS2506-4 * U17, U19 27017.009.01 CONNECTOR, RT AGL, PC MNT, 9P 27017.025.01 CONNECTOR, RT AGL, PC MNT, 25P 27147.124.01 IC, SCKT, DIP, 24 PIN, DUAL SU12...
  • Page 216 6-16 TECHNICAL DATA ORBAN MODEL 9300 I/O+DSP BOARD R811, R813, R820 20128.075.01 RESISTOR, 75Ω, 1%, 0805 R158, R303 20129.100.01 RESISTOR, 100 Ω, 0805 R257, R258, R259, R260 20129.110.01 RESISTOR 110Ω 0805 1% R249, R250, R300, R400 20129.150.01 RESISTOR, 1/8W, 1%, 150Ω, 0805 R138, R151, R815 20129.249.01...
  • Page 217 6-17 OPTIMOD-AM DIGITAL TECHNICAL DATA I/O+DSP BOARD 21141.000.01 CAPACITOR, NPO, 1000PF, 1%, 0805 C236, C237, C238, C239, C305 21142.000.01 CAPACITOR, NPO, 100PF, 1%, 0805 C989 21143.000.01 CAPACITOR, NPO, 1500PF, 1%, 0805 C221, C222, C240, C241, C242, C243, C987, C990, C993 21144.000.01 CAPACITOR, 5%, 100V, 47PF, 1206 C101, C103, C105, C107, C108,...

  • Page 218: Display Board (Front)

    6-18 TECHNICAL DATA ORBAN MODEL 9300 I/O+DSP BOARD 27426.003.01 CONNECTOR, HEADER, 3 PIN, SINGLE J801 27451.009.01 HEADER STR DBLRW 60P PCMT J701 27630.001.01 JUMPER, PC MNT, TEST POINT TP900, TP903, (TP901, TP902, TP904, NO, STUFF) 28083.000.01 OSC-XTAL CLOCK-27MHZ-3 VO IC805 29015.000.01...

  • Page 219: Display Board (Back)

    6-19 OPTIMOD-AM DIGITAL TECHNICAL DATA Display Board (Back) PART # DESCRIPTION COMPONENT IDENTIFIER 42007.100 FLAT CABLE 26P 10" JP203 15065.355.01 LED-MNT-1 POS-0.355 FOR, CR1 USE 2 20122.110.01 RESISTOR, TF, 1/8W, 1%, 110 ohm R17, R18, R19, R20, R21, R22, R23, 20124.100.01 RESISTOR TF 1/8W 1% 1206 10K R29, R30...
  • Page 220 6-20 TECHNICAL DATA ORBAN MODEL 9300 Function Description Drawing Page 6-21 Chassis Circuit Board Locator and Basic In- Top view terconnections (not to scale) 6-22 Control board Control microprocessor. Services Parts Locator front panel, serial port, Ethernet, Drawing and DSP+I/O board.
  • Page 221 6-21 OPTIMOD-AM DIGITAL TECHNICAL DATA...
  • Page 222 6-22 TECHNICAL DATA ORBAN MODEL 9300 CONTROL BOARD PARTS LOCATOR...
  • Page 223 6-23 OPTIMOD-AM DIGITAL TECHNICAL DATA C44 10UF +3.3V 10.0K 0.1UF SYSTEM_RESET-N (SHT 5) U5 MIC8115TU +3.3V U1B SC520 MR-n PIO14/GPIRQ9 RESET-n PWRGOOD PIO14/GPIRQ9 AC22 GP_RESET GPRESET PRGRESET PRGRESET MCP120-475I/TT 10.0K (SHT 5) 7x 4.75K DACK1-N PIO11/GPDACK1 AF10 DREQ1 PIO7/GPDRQ1 PIO16/GPIRQ7 PIO16/GPIRQ7 PIO17/GPIRQ6 PIO17/GPIRQ6...
  • Page 224 6-24 TECHNICAL DATA ORBAN MODEL 9300 MD[0..31] MA[0..12] U2A MT48LC16 U3A MT48LC16 U1A SC520 MA12 MA12 MD15 MA12 MD31 MA12 DQ15 DQ15 MA11 MA11 MD14 MA11 MD30 MA11 DQ14 DQ14 MA10 MA10 MD13 MA10 MD29 MD31 +3.3V MD31 MA10 A10/AP...
  • Page 225 6-25 OPTIMOD-AM DIGITAL TECHNICAL DATA +3.3V PCI_AD[0..31] RNET4.7K +3.3V U1C SC520 U10A DP83816AVNG +3.3V PCI_AD31 PCI_AD31 REQ4 AD31 AD31 PCI_AD30 PCI_AD30 REQ3 AD30 AD30 PCI_AD29 PCI_AD29 REQ2 AD29 AD29 PCI_AD28 PCI_AD28 REQ1 AD28 AD28 PCI_AD27 PCI_AD27 AD27 AD27 PCI_AD26 PCI_AD26 AD26 AD26 PCI_AD25...
  • Page 226 6-26 TECHNICAL DATA ORBAN MODEL 9300 PWRGOOD +3.3V (SHT2) +3.3V 100K 100K 100K 0 OHM U1D SC520 (NO-STUFF) 4.75K AF25 AC13 TRIG/TRACE TRIG/TRACE AF23 AD24 BR/TC BR/TC AE21 JTAG_TMS JTAG_TMS AE25 AF21 JTAG_TDI JTAG_TDI AE24 AD21 JTAG_TCK JTAG_TCK AD26 PIO31/RING2-N...
  • Page 227 6-27 OPTIMOD-AM DIGITAL TECHNICAL DATA +3.3V U10B DP83816AVNG +3.3V +3.3V (NO-STUFF) +3.3V U2B MT48LC16 U3B MT48LC16 U4B E28F128 C201 RESERVED 1.0UF RESERVED RESERVED +3.3V VCCQ VSSQ VDDQ VSSQ VDDQ VSSQ VDDQ VSSQ VDDQ VSSQ VDDQ VSSQ VDDQ VSSQ VDDQ VSSQ VDDQ AUXVDD AUXVDD...
  • Page 228 6-28 TECHNICAL DATA ORBAN MODEL 9300...
  • Page 229 6-29 OPTIMOD-AM DIGITAL TECHNICAL DATA I/O+DSP BOARD: LEFT AND RIGHT ANALOG INPUTS...
  • Page 230 6-30 TECHNICAL DATA ORBAN MODEL 9300 I/O+DSP BOARD: ANALOG OUTPUTS...
  • Page 231 6-31 OPTIMOD-AM DIGITAL TECHNICAL DATA...
  • Page 232 6-32 TECHNICAL DATA ORBAN MODEL 9300 IC400 IC403 AES/EBU DIGITAL PICSDI PICSCK OUTPUT 1 IC410A MMODE_2 (SHT8) SDA/CDOUT SCL/CCLK (SHT8) IC409A IC410B J400 L400 MCLK_C AESOUT1CS-N PICSDO (SHT9) MCLK_IN MMODE_1 (SHT8) AD0/CS AD1/CDIN (SHT8) MALE R400 T400 74ACT32 MCLK_OUT MMODE_0...
  • Page 233 6-33 OPTIMOD-AM DIGITAL TECHNICAL DATA E34 E35 IC501A IC502A IC503A IC504A E36 E37 DSP56367-150 DSP56367-150 DSP56367-150 DSP56367-150 SD03 SD32 (SHT9) SDI0 SDO0 SDI0 SDO0 SDI0 SDO0 SDI0 SDO0 (SHT9) SD04 SD33 (SHT9) SDI1 SDO1 SDI1 SDO1 SDI1 SDO1 SDI1 SDO1 (SHT9) SD01 SD00...
  • Page 234 6-34 TECHNICAL DATA ORBAN MODEL 9300 IC501C IC502C IC503C IC504C DSP56367-150 DSP56367-150 DSP56367-150 DSP56367-150 AA0/RAS0 AA0/RAS0 AA0/RAS0 AA0/RAS0 AA1/RAS1 AA1/RAS1 AA1/RAS1 AA1/RAS1 AA2/RAS2 AA2/RAS2 AA2/RAS2 AA2/RAS2 SSI_DO (SHT8) SSI_DI (SHT8) SSI_CLK (SHT8) DSPEN0-N DSPEN1-N DSPEN2-N DSPEN3-N (SHT8) (SHT8) (SHT8) (SHT8)
  • Page 235 6-35 OPTIMOD-AM DIGITAL TECHNICAL DATA IC702 74LVX4245 +3.3V IC703 C700 PIC16C67-20L IC700 0.1µF E712 ISA_D[0..7] E713 E714 E703 (SHT4) RD0/PSP0 RC0/T1OSO/T1CKI E704 IORD-N E715 RC1/T1OSI/CCP2 B to A ADRST-N RD1/PSP1 E705 ISA_D0 DSP_BUSEN-N (SHT9) DARST-N RD2/PSP2 RC2/CCP1 ISA_D1 (SHT9) PICSCK SRCRST-N RD3/PSP3 RC3/SCK/SCL...
  • Page 236 6-36 TECHNICAL DATA ORBAN MODEL 9300 +3.3V +3.3V +3.3V JTAG PORT +3.3V IC807G R816 R817 R818 IC800 74ACT04D 100.0K 100.0K 100.0K C809 +3.3V VCCINT 0.1µF J800 VCCINT VCCIO VCCIO VCCIO VCCIO VCCIO HDR 5X2 VCCIO UNSHRD +3.3V IC804A IC807E C804...
  • Page 237 6-37 OPTIMOD-AM DIGITAL TECHNICAL DATA FROM POW ER SUPPLY TO CONTROL COMBO PCA TP902 (NO-STUFF) TP-DUAL J900 J901 C946 10µF C947 C948 C949 C950 C951 C952 C953 C954 C955 C956 C957 C958 C959 C1003 C1004 + C995 C996 0.1µF 0.1µF 0.1µF 0.1µF 0.1µF...
  • Page 238 6-38 TECHNICAL DATA ORBAN MODEL 9300 FRONT VIEW REAR VIEW FRONT PANEL PARTS LOCATOR DIAGRAM...
  • Page 239 6-39 OPTIMOD-AM DIGITAL TECHNICAL DATA CR1A CR1B CR1C CR1D CR1E CR1F CR1G CR1H CR1I CR1J CR2A CR2B CR2C CR2D CR2E CR2F CR2G CR2H CR2I CR2J CR3A CR3B CR3C CR3D CR3E CR3F CR3G CR3H CR3I CR3J CR4A CR4B GNDF T O GND PLA NE ON LY GNDF GNDF RY10...
  • Page 240 6-40 TECHNICAL DATA ORBAN MODEL 9300 RP 2 IC7C IC7F 74HC14A 74HC14A IC7D RES_NET 74HC14A D[0..7] D[0..7] 100 OHM 74AC574 74FCT574 IC7E DI SROW A DI SCOL B FY10 FY11 74HC14A FY12 FY13 SPARES 47PF FY14 FY15 8x2 POSTS 8x2 POSTS...
  • Page 241 6-41 OPTIMOD-AM DIGITAL TECHNICAL DATA R INPUT 50 - 100 HZ 4.5 - 9.5 KHZ TWO-BAND 5-BAND 5-BAND HIGH EQUALIZER LOWPASS PASS LIMITER COMPRESSOR HF ENHANCER FILTER FILTER L INPUT (SWITCHABLE BETWEEN ANALOG & DIGITAL) COMPRESSOR/LIMITER CONTROL COUPLING ANALOG OUTPUT #1 DISTORTION- OVERSHOOT TRANSMITTER...
  • Page 242 6-42 TECHNICAL DATA ORBAN MODEL 9300 [NOTES]...
