Empi Direct Tens User Manual page 17

Direct TENS
™

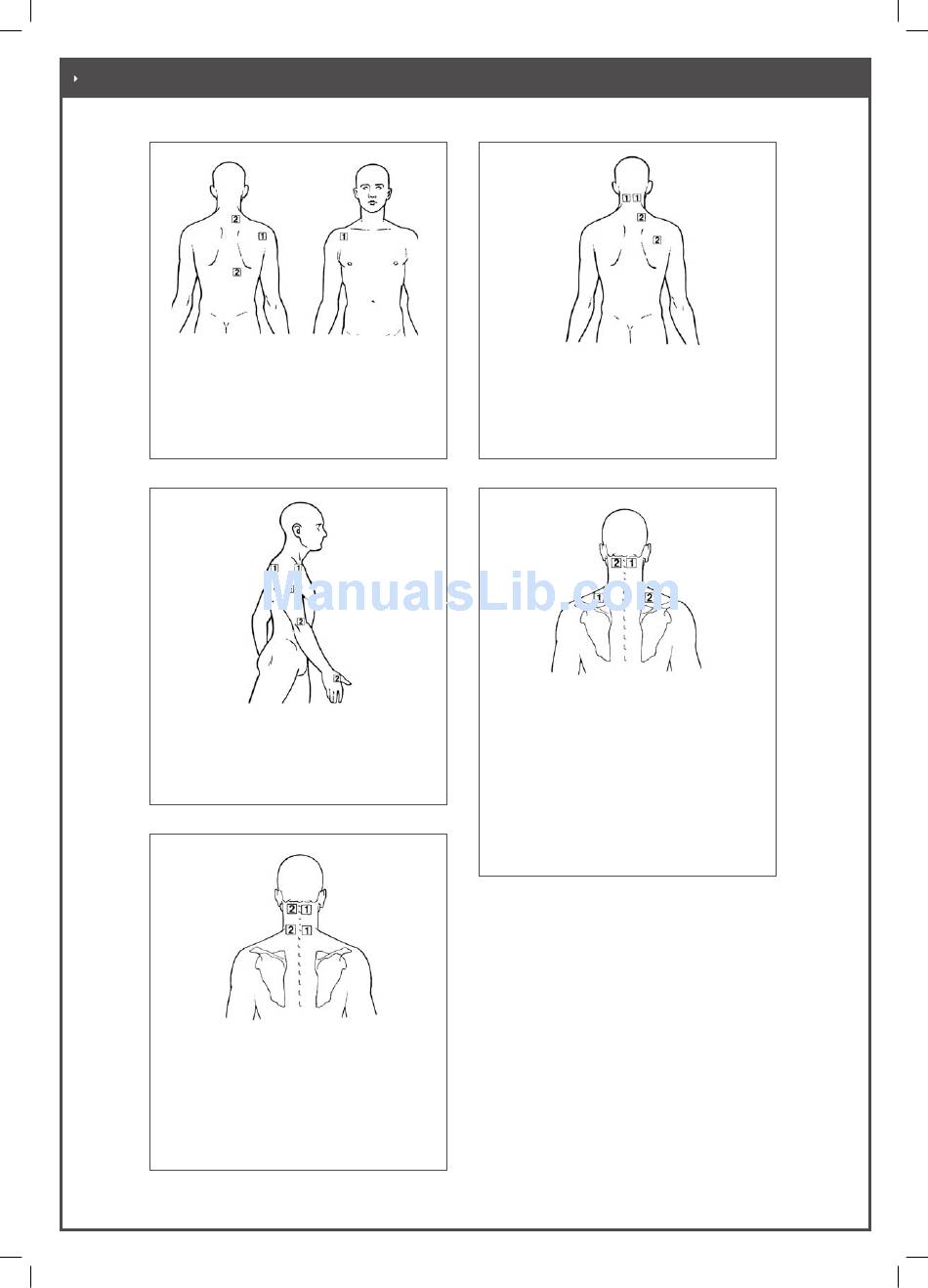

Figure 3-11 Electrode application in pain
conditions involving the shoulder and
shoulder blade
Figure 3-13 Electrode application on the
shoulder joint
Indications:
e.g. General pain in the shoulder, bursitis
Figure 3-15 Electrode application on the
cervical spine Picture to be replaced
Indications:
e.g. for conditions of pain in the muscles or
soft parts, see also Figure 3-15
Recommended electrode placement:
Parallel
Figure 3-12 Electrode application on the
shoulder blade
Indications:
e.g. General pain in the shoulder
accompanied by headache
Figure 3-14 Electrode application on the
cervical spine
Indications:
e.g. pain caused by intervertebral disk or
vertebral arch joint problems , cervical
spine syndrome, cervical syndrome, tension
headache, migraine
Recommended electrode placement:
Diagonal
