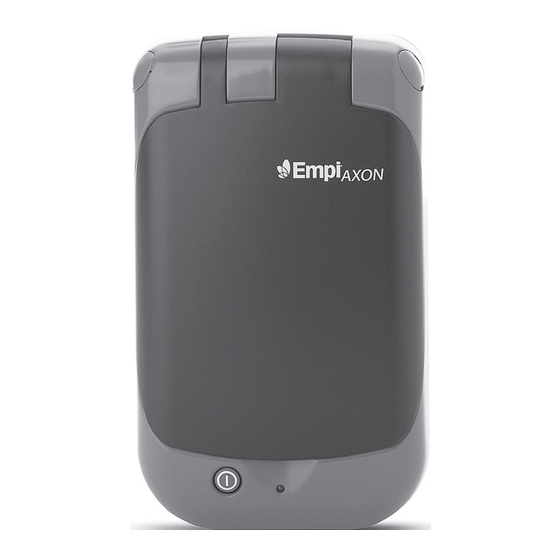

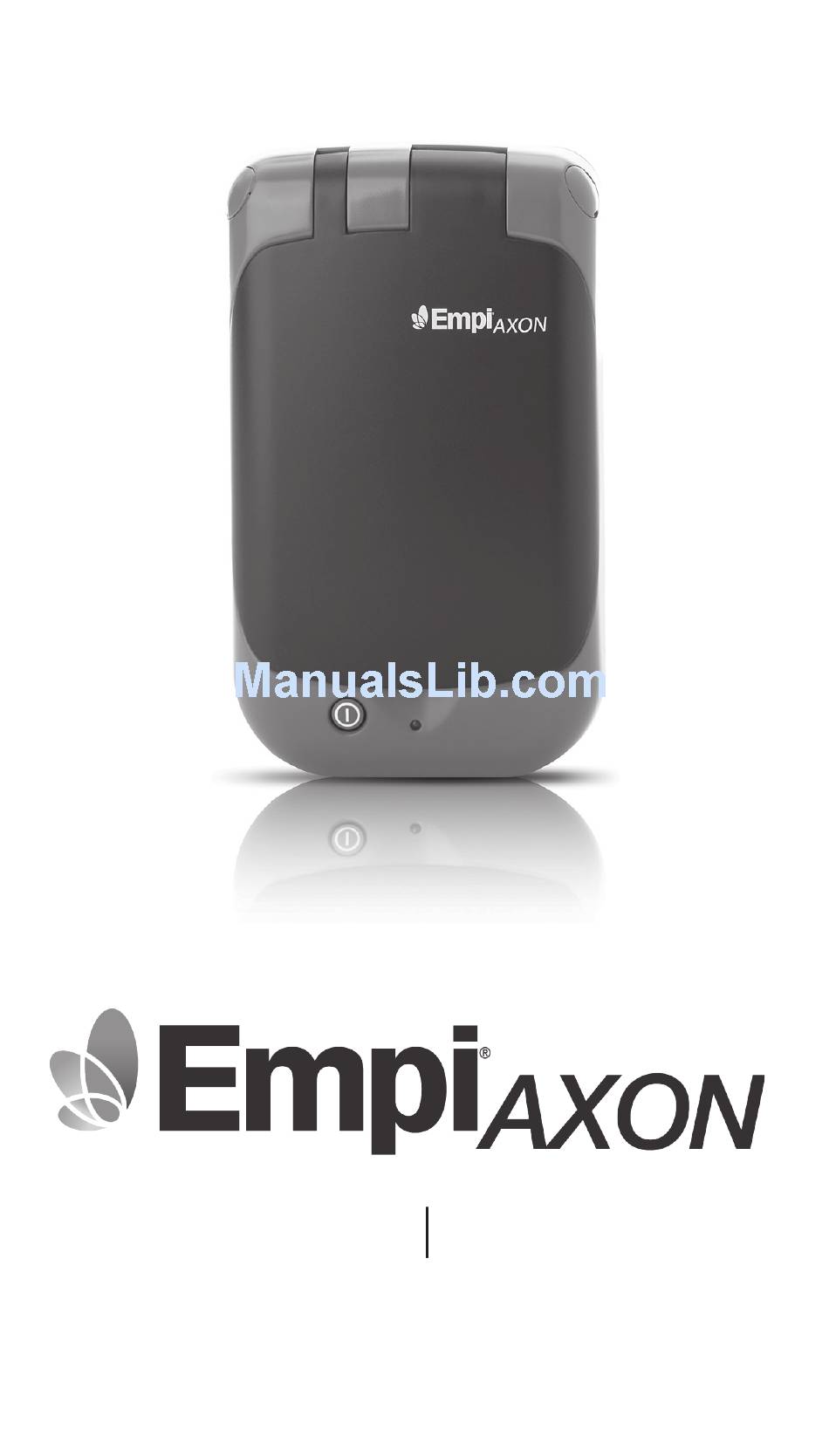

- Page 1 Instruction Manual Interferential Therapy Distributed by Empi, Inc.
- Page 2 Thank you for choosing Empi Axon which provides an interferential therapy to treat conditions where inflammation is a problem such as Back Pain, Osteoarthritis, Rheumatoid Arthritis, Muscular Pain / Strain, and Sports injuries. Axon produces the low frequency current treatment that uses two medium frequency currents, which “interfere”...
-
Page 3: Table Of Contents
Warranty ........12 Axon Instruction Manual... -
Page 4: Safety Information
14. Stimulation should not be applied while the patient is driving, operating machinery, or during any activity in which electrical stimulation can put the patient at risk of injury. 15. Device might get warm for prolonged use. Do not place it in close contact with skin while operating. Axon Instruction Manual... -
Page 5: Adverse Reactions
2. Headache and other painful sensations have been reported during or following the application of electrical stimulation near the eyes and to the head and face. 3. Use electrodes size area of less than 40mm x 40mm increases chance of skin irritation. Axon Instruction Manual... -
Page 6: Operation Keys
Press this button to increase frequency. 8. 2/4 PAD, KEY LOCK 5. DECREASE FREQUENCY Click once to select for 2 or 4 pads. Press this button to decrease frequency. Press & hold for 2 seconds to lock or unlock a program. Axon Instruction Manual... -
Page 7: Lcd Display
Flashes when battery low. program; total of 6 programs. 8. FREQUENCY ADJUSTMENT 4. LOCK “Manual Icon” turns on when Turn on when program is frequency can be adjusted. locked. “Auto Icon” turns on when frequency cannot be adjusted. Axon Instruction Manual... -
Page 8: Operations
Channel 2 delivers a sine wave with frequency ranges between 4002Hz and 4160Hz. In 2-PADS TREATMENT MODE, 2 sine waves will be superimposed inside the device to form a new amplitude-modulated waveform. The resulting output is simultaneously delivered to Channel 1 and 2. Axon Instruction Manual... - Page 9 3 hour 21 minutes. To cancel the accumulated Usage Timer, press the TIMER KEY for another 2 seconds and it starts at zero again. After 2 second eclipsed, LCD will show back the ordinary contents. Axon Instruction Manual...
-
Page 10: Treatment Programs
4 electrodes will allow the intersection of the 2 sinusoidal outputs, which will result in the required beat frequency. In 2-Pads treatment mode, 2 separate pairs of electrodes can simultaneously treat two different body regions. Axon Instruction Manual... -
Page 11: Battery Replacement
The device requires neither routine maintenance nor calibration. When needed, for occasional cleaning/disinfecting of the plastic covers, use alcohol wipes. DO NOT immerse the device in water. IMPORTANT. Only use the AC adaptor supplied together with the device. Use of other adaptors may compromise safety. Axon Instruction Manual... -
Page 12: Trouble Shooting
• Scar, cut or damage? • Moisturize the skin with a wet towel. • Remove all chemicals or cosmetics from the • Too dry? • Applied chemicals? skin. • Stop using and consult a doctor. • Allergy? Axon Instruction Manual... -
Page 13: Specification
Channel 1 and 2 will simultaneously deliver an amplitude- modulated output with beat frequency varies between 2 and 160Hz. Temperature 0-40°C Environment For Storage Air humidity 30-75% & Use Air pressure 700hPa-1060hPa Expected Service Life 5 years Axon Instruction Manual... -
Page 14: Important Symbols
Date of manufacture. Limited Warranty Warning While, in the opinion of Empi (“Empi”), the use of the Empi Axon (“the Product”) has met with some success, Empi makes no warranties to the purchaser as to the effectiveness of the product. - Page 15 Limitation of Liabilities and Disclaimer of Warranties A. Empi’s sole obligation in the case of any breach of its warranties set forth in Paragraph A above, shall be, at Empi’s option, to repair or replace the Product without charge to Purchaser or to refund the purchase price of the Product.
- Page 16 State in which he/she practices to use or order the use of the device. Made in China Distributed by Empi, Inc. Empi, Inc. 205 Hwy 22 East Clear Lake, SD, 57226 USA 651.415.9000; 1.800.328.2536 360431 Rev. B © 2014 Empi, Inc.
