Installing the Transmitter Batteries

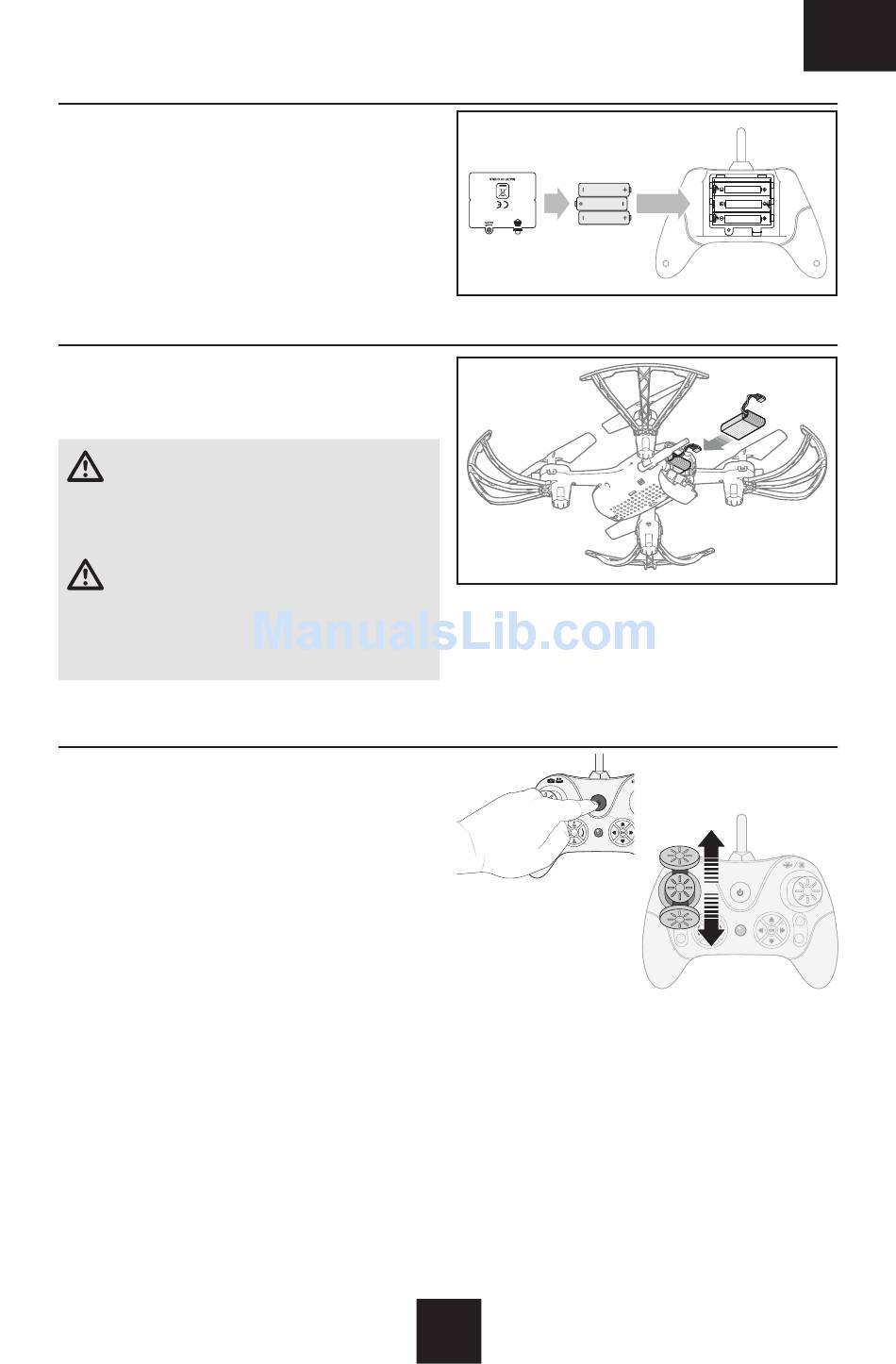

To install batteries in the included transmitter:
1. Remove the screw from the battery cover on
the back of the transmitter.
2. Install 3 AA batteries, noting correct polarity.
3. Replace the battery cover.
4. Replace the screw on the battery cover.
The transmitter will beep intermittently to indicate low
battery power.

Installing the Flight Battery

1. Slide the battery into the back of the drone, as shown,
until it is fully seated.
2. Connect the battery lead to the drone power lead, noting
correct polarity.
CAUTION: Connecting the battery to the drone
power lead with reversed polarity will cause
damage to the drone and the battery. Damage caused by
incorrectly connecting the battery is not covered under
warranty.
CAUTION: Always remove the Li-Po battery
from the drone when not flying to avoid over-
discharging the battery. Batteries discharged to a
voltage lower than the lowest approved voltage may
become damaged, resulting in loss of performance and
potential fire when batteries are charged.
Connecting the Drone and the Transmitter
To connect the drone and transmitter, follow this start
up sequence:
1. Power ON the transmitter.
2. With the drone on a level surface, power ON the drone.
The drone's LEDs will blink rapidly.
3. Fully raise the throttle stick.
4. Fully lower the throttle stick. The transmitter emits two
short beeps.
5. After the beep, connection is successful. The drone's
LEDs stay solid.
