Summary of Contents for Revolution VIZO

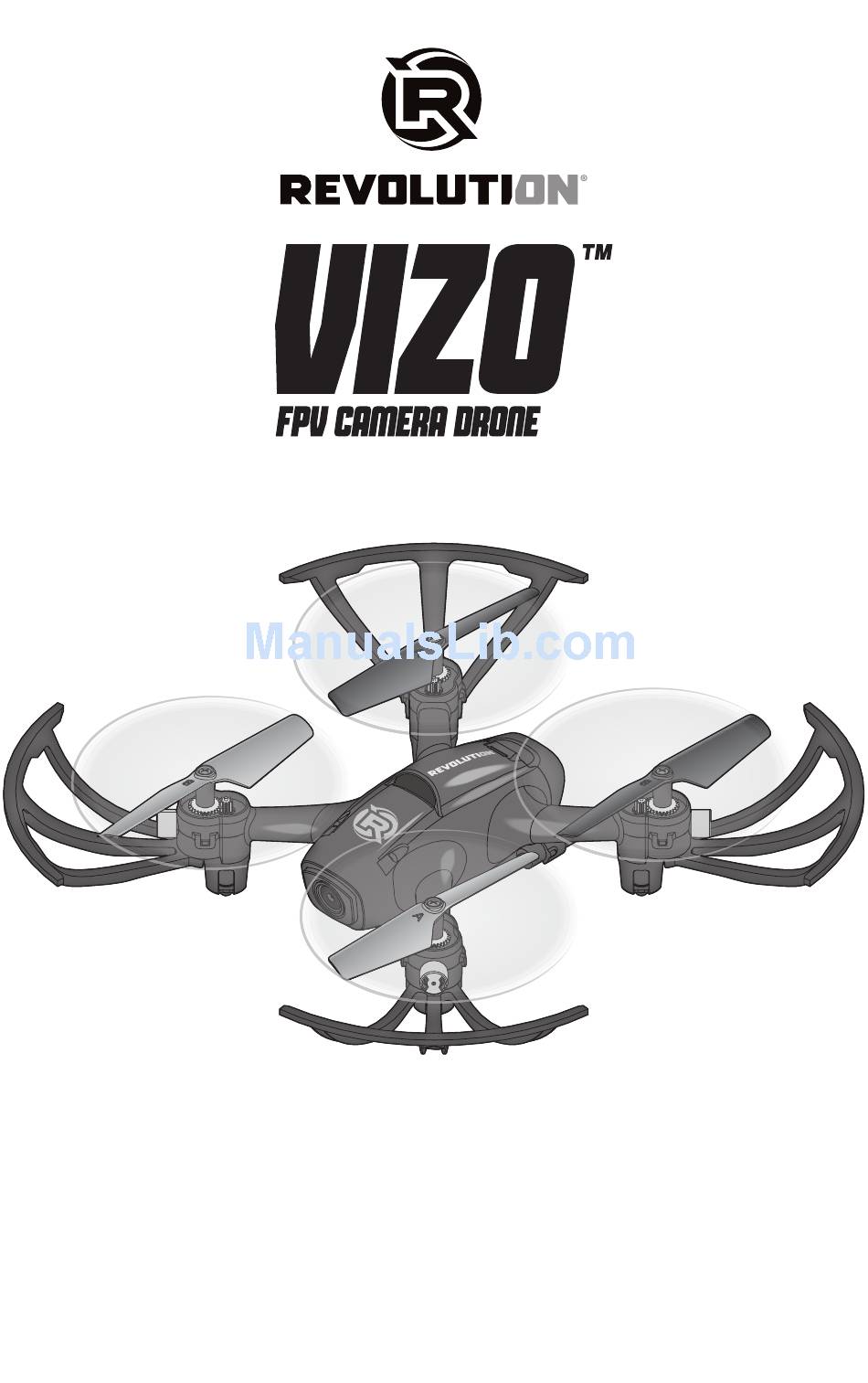

- Page 1 Instruction Manual Manuel d’utilisation...
-
Page 2: Table Of Contents
Replacing the Propellers ........... 9 First Flight Preparation ............4 Installing the Smart Device Mount ........9 Flying Checklist ..............4 Using the Vizo View App ............ 9 Charging Warnings............4 Camera Use ..............10 Charging the Flight Battery ..........4 Troubleshooting Guide ............ -
Page 3: Box Contents
Propeller Length 2.75 in (68mm) Height 1.6 in (40mm) Flying Weight 1.8 oz (53 g) Box Contents • Revolution Vizo FPV Camera Drone • A (2) and B (2) Replacement Propellers ® ™ • 380mAh 1S 3.7V 25C Li-Po • Screwdriver (1) • USB Li-Po Charger • 3 AA batteries (for transmitter) -
Page 4: First Flight Preparation
First Flight Preparation Flying Checklist • Remove and inspect the contents ❏ Power on the transmitter • Charge the flight battery ❏ Plug the flight battery into the drone • Install the batteries in the transmitter ❏ Fly the drone • Familiarize yourself with the controls ❏... -
Page 5: Installing The Transmitter Batteries
Installing the Transmitter Batteries To install batteries in the included transmitter: 1. Remove the screw from the battery cover on the back of the transmitter. 2. Install 3 AA batteries, noting correct polarity. 3. Replace the battery cover. 4. Replace the screw on the battery cover. The transmitter will beep intermittently to indicate low battery power. -
Page 6: Understanding The Primary Flight Controls
Flight Rate Selection The Vizo camera drone has 3 available flight rates. Press RATE+ button to increase the flight rate from Easy to Intermediate to Pro. Press the RATE– button to decrease the flight rate from Pro to Intermediate to Easy. The transmitter beeps, indicating the active flight rate. -
Page 7: Flying The Vizo Camera Drone
Flying the Vizo Camera Drone Power on the transmitter and drone, place it on the floor When you are comfortable with basic flight, you can with the nose pointed away from you and step back away explore the different flight rates and functions explained from the drone. -
Page 8: 360° Flip Mode
360° Flip Mode The Vizo drone can flip 360° during flight. To perform a flip, press the FLIP button and use the right control stick to give a directional flip command. For optimal results, ensure the drone is at least 5–10 feet (1.5–3 m) off the ground. -
Page 9: Replacing The Propellers
• control the Vizo drone using a smart device 1. Install the Vizo View app from Google Play or the App NOTICE: The transmitter must stay powered off to Store (or use the QR code [right] to download the Vizo completely control your drone via the Vizo View App. -
Page 10: Camera Use
Camera Use The Vizo drone is equiped with an FPV camera to shoot photos and video via the Vizo View app in real time*. You can save photos/videos to an optional 1–16GB capacity micro memory card (located in the micro memory card slot) or your smart device. -
Page 11: Post-Flight Inspection And Maintenance Checklist
Post-Flight Inspection and Maintenance Checklist √ Make sure the battery is not installed before cleaning. Remove dust and debris with a soft brush Cleaning or a dry, lint-free cloth. Make sure there are no loose screws, other fasteners or connectors. Do not over-tighten metal Fasteners screws in plastic parts. -
Page 12: Limited Warranty
Limited Warranty What this Warranty Covers please visit our website at www.horizonhobby.com, submit a Horizon Hobby, LLC, (Horizon) warrants to the original purchaser Product Support Inquiry, or call the toll free telephone number that the product purchased (the “Product”) will be free from referenced in the Warranty and Service Contact Information defects in materials and workmanship at the date of purchase. -
Page 13: Warranty And Service Contact Information
Warranty and Service Contact Information Country Horizon Hobby Contact Information Address of Purchase Horizon Service Center servicecenter.horizonhobby.com/RequestForm/ (Repairs and Repair Requests) productsupport@horizonhobby.com Horizon Product Support United States 4105 Fieldstone Rd (Product Technical Assistance) 877-504-0233 of America Champaign, Illinois, 61822 USA websales@horizonhobby.com Sales 800-338-4639... - Page 14 ©2017 Horizon Hobby, LLC. Revolution, the Revolution logo, Vizo, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. All other trademarks, service marks or logos are property of their respective owners. Patents pending. Updated 7/17 55190.1...
