Post-Flight Inspection and Maintenance Checklist

√
Make sure the battery is not installed before cleaning. Remove dust and debris with a soft brush
Cleaning
or a dry, lint-free cloth.
Make sure there are no loose screws, other fasteners or connectors. Do not over-tighten metal
Fasteners
screws in plastic parts. Tighten screws so the parts are mated together, then turn the screw only
1/8th of a turn more. Do not use threadlock on or near plastic parts.
Make sure there is no damage to the propellers or other parts that move at high speed. Damage to
Propellers these parts includes cracks, burrs, chips or scratches. Replace damaged parts and remove debris
before flying.

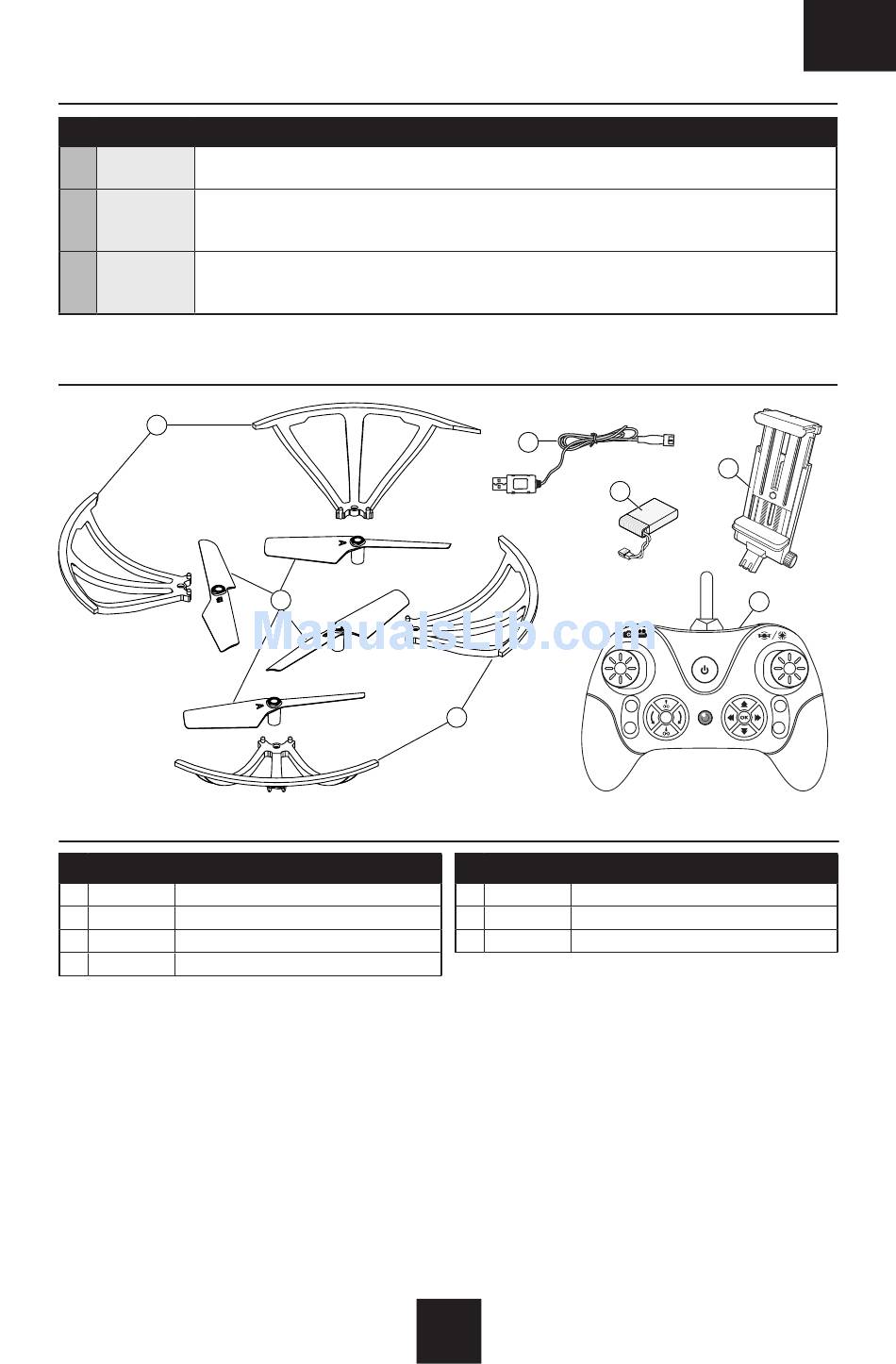

Exploded View

4

Parts Listings

Part # Description
1 RVOH1201 Prop Set
2 RVOH1202 Prop Guard Set
3 RVOH1203 Battery
4 RVOH1204 Charger
1
11
3
2
4
Part # Description
5 RVOH1205 Transmitter
6 RVOH1206 Complete Replacement Air Frame
7 RVOH1207 Smart Device Mount
EN
7
5
