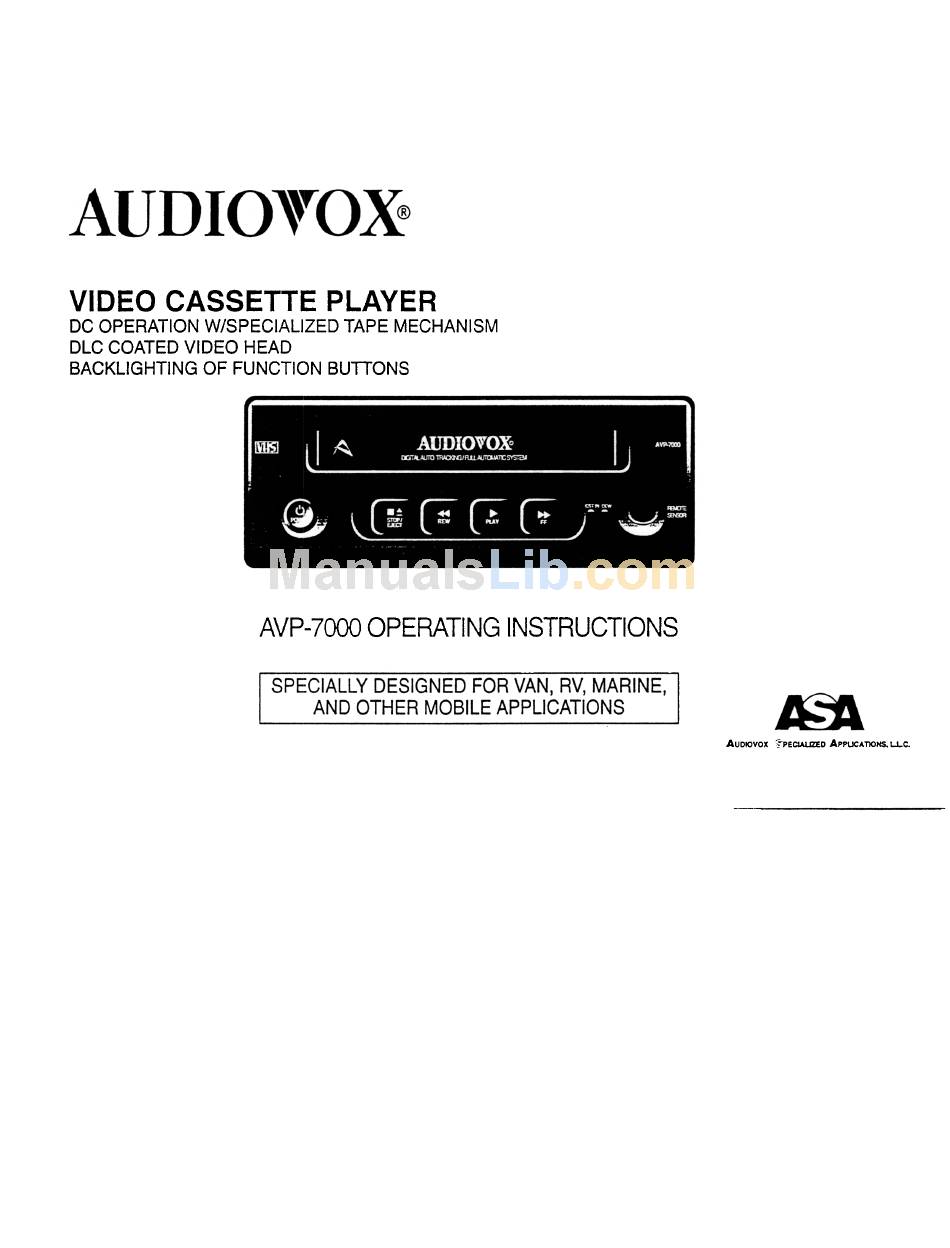

- Page 1 VIDEO CASSETTE PLAYER DC OPERATION W/SPECIALIZED TAPE MECHANISM DLC COATED VIDEO HEAD BACKLIGHTING OF FUNCTION BUTTONS AVP-7000 OPERATING INSTRUCTIONS AUDIOVDX ~peCI.WZED APPUCAT1ONS. LLC.
- Page 2 RECOMMENDED GUIDEUNES FOR THE USE OF A VIDEO MONITORf1V IN A MOTOR VEHICLE .A VIDEO MONITOR!TV is designed for rear passenger viewing only. This product may only be installed in the rear seat compartment of the vehicle, out of the driver's view. .Installation in any other area of the vehicle, including anywhere within the driver's view, is illegal in most states, provinces and countries and may lead to driver distraction resulting in an accident, injury and/or death.
-
Page 3: Table Of Contents
CONTENTS IMPORTANT SAFEGUARDS. IMPORTANT NOTES . FEATURES MOISTURE CONDENSATION VIDEO HEAD CLEANING BASIC OPERATIONS SPECIAL OPERATIONS. IDENTIFICATION CONNECTION. BEFORE CALLING SERVICE PERSONNEL TROUBLE SHOOTING SPECIFICATION... - Page 4 Thank you for purchasing AUDIOVOX VCP, developed to provide advanced features and functions for high quality performance To obtain the best results and to avoid malfunction, please read the following instructions carefully before using. WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
- Page 5 Note to CATV system Installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, ground shall be connected to the grounding building, as close to the point of cable entry as practical. NOTE: This equipment has been tested and found to comply with the limit for a Class Bdigital device, pursuant to Part 15 of the FCC...
-
Page 6: Important Safeguards
Power Sources- This set should operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied at your home. consult your dealer or local power company. For those sets designed to operate from... - Page 7 Cleaning- Unplug the set from the wall -Never place the set in a confined space such as a bookcase, or txJlit in cabinet, outlet before cleaning it. Do not use liquid cleaners or aerosol cleaners. Use a cloth unless proper ventilation is provIded. lightly dampened with water tor cleaning the exterior of the set.
- Page 8 SERVICE Damage Requiring Service-Unplug the set from the wall outlet and refer servicing to qualified personnel under the following conditions -When the power cord or plug is damaged or frayed. FRAYEO OR TAUT OC LINE .If liquid has been spilled or objects have fallen into the set.
-
Page 9: Important Notes
.Note that main voltage is supplied to the unit whenever the main plug is connected to the supply socket. .To avoid the risk of fire or electric shock, do not expose the unit to rain or moisture, .Do not attempt to open the cabinet. There are no user-serviceable parts inside. Refer all servicing to qualified service personnel. .Keep the unit away from radiators or other sources of heat. -
Page 10: Digital Auto Tracking
.DIGITAL AUTO TRACKING This VCP plays clear pictures without special operations. In the Auto tracking mode the play lamp will blink. 2. SELF PICTURE ADJUSTMENT Since the HEAD DRUM rotates regularly independent of voltage change or tape condition. the picture is always stable. 3. -
Page 11: Moisture Condensation
0) At room temperature, if you pour ice water into a glass, water vapour in the air will condense on the surface of the glass. This is moisture condensation. The moisture condensation occur inside of VCPs. If used in this condition, it will cause damage to the head and the tape. -
Page 12: Video Head Cleaning
VIDEO HEAD CLOGGING The video heads are the means by which the VCP reads pictures from the tape during playback. In the unlikely event that they become dirty enough to be clogged, no picture will be played back. This can easily be determined if, during playback of a known good tape, there is good sound, but the picture is extremely snowy. -
Page 13: Basic Operations
-,,--~,"'-~-, ."-..~." """~..,;."' "' LOADING .Push the cassette into the cassette compartment gently. (Arrow mark at the top) * An inverted cassette cannot be inserted .The cassette-in indicator lamp is lit up. * Upon inserting the cassette, the power turns on even , if the power was off as long as the DC power cord is plugged in. - Page 14 <D LOADING , \ /- (" 11... I' .1/- "-2/ The power is on automatically when the cassette is inserted even if the power is off. FAST FORWADING Press the FF key in the STOP mode. The tape advances at a high speed without any picture and sound.
-
Page 15: Special Operations
The VCP enters the playback mode during special operations as soon as the PLAY key is pressed. During special operations noise bars and loss of color may affect the picture. This is not a fault with this unit. CD TO VISUALLY SEARCH FORWARD .Press... -
Page 16: Identification
IDENTIFICATION FRONT PANEL CD Cassette Compartment @ Power key When power is supplied to the set, the power indicator lamp will always light up in red. The Power ON and Power OFF mode will be toggled by pressing this key. When the POWER is switched on, the power lamp will light up in red and the other keys will light up in green. -
Page 17: Fast Forward/Cue
(5) PLAY KEY Press this button to playbad< a recorded tape, or to release special operations such as the search modes. In the playback mode the indicator playback lamp will be ON in orange, and in the AUTO Tracking mode this indicator lamp will blink. -
Page 18: Rear Panel
REAR PANEL CDFUSEHOLDER The main line fuse is accessible with the external fuse holder simply by unscrewing the cap. If the main line fuse should blow then replace the fuse with a proper rated fuse (125V, 2A). ~ RF OUT CHANNEL SELECTION SWITCH Set to channel 3 or channel broadcasted in your area. -
Page 19: Video Out
@ANT. IN For connecting the 1V antenna to this terminal. @ VIDEO OUT Connect this terminal to VIDEO IN terminal of your television, using the RCA cord provided. (5) AUDIO OUT Connect this terminal to AUDIO IN terminal of your television, using the RCA cord provided. (2) RF. -
Page 20: Connection
.You can apply this method to DC 12V output only. .Please connect to the vehicle only after making sure of the polarity of the cigarette lighter s~et. (negative earth) - Page 21 HOW TO USE THIS METHOD .You can apply this method to only DC 12V output. .If you apply more than 18 volts then the power will automatically turn off. .Please connect after making sure of the polarity of the cigarette lighter socket. .If the polarity is reversed the unit will not operate.
- Page 22 PLAY...
- Page 23 SYMPTOMS POWER NO POWER PLAYBACK No picture on screen when playing back a recorded tape. Noise bars on screen. OTHERS Operation keys do not work Cassette is ejected upon inserting CAUSE .The power cord is not connected. .The polarity of power cord is not correct. .The TV is not set to the video channel 3or4.
- Page 24 SYMPTOMS NO POWER No backlighting at power button. Power indicated with backlighting-unit will not operate. Mode indicators flashing unit will not operate. Play mode indicated no audio or video to TV. CAUSE NO 12VDC (Unit in dew mode) Dew feature activated (see owners manual) No tape in Unit.
- Page 25 SYMPTOMS Play mode indicated no audio or Video toTV. Play mode indicated-No audio or video toW. (continued from previous page) Poor Video/Snowy picture or lines on screen. CAUSE Output of VCP AN RCA cables or coax not connected to TV input. Switchable input device used between TV and VCP (game prep), Poor connection between VGP output...
- Page 26 MODEL POWER SUPPLY POWER CONSUMPTION DIMENSION WEIGHT APPROX. VIDEO SIGNAL SYSTEM VIDEO SIGNAL, OUTPUT(RF) TAPE TYPE TAPE SPEED FF/REW TIME(T-120) VIDEO SIGNAL OUTPUT(LINE) AUDIO SIGNAL OUTPUTlLINE) OPERATING CONDITION HUMIDITY OPERATING POWER VOLTAGE AVP-7000 DC 12V 265x89x295 (WxHxD)mm 3.4kg NTSC COLOR 75.0.
- Page 27 Studio Quality Headphones Unlike household electronics, all of our products have been specifically designed and tested for the mobile environment and are only available through ASA. To order any of these products please call Audiovox AuDIovox @PECIALIZED ApPLICATIONS, ACCESSORIES LIST...
- Page 28 Operates for over an hour on full charge, charging stand included, built-in charge indicator, magnetic mount for "hands free" operation, reflector assembly can be angled DC charging cord included. Payment Method: Visa. Master Card. Cashiers Check. or Bank Monev Order AUDIOVOX @pECIAUZED ~pLlcA ACCESSORY PART LIST and filter element Headphones cord.
-
Page 29: Specification
23319 COOPER DR, ELKHART,IN 46514 For Service Information Call: 1-800-688-3135 90 DAY/12 MONTH LIMITED WARRANTY Applies to Audiovox Video Product (the company) warrants to the original retail purchaser of this product that should this neglect, or accident. THE EXTENT OF THE COMPANY'S PROVIDED ABOVE.
