4. While holding the handle, insert the short end of the hex key
into the upper hole and slightly rotate the hex key until it is
engaged in the setscrew.
5. Using a clockwise motion, tighten the setscrew until it begins
to contact the shoulder screw.
6. Repeat steps 4 and 5 to begin fastening the lower setscrew.
7. Once both setscrews have been partially tightened as outlined
in the previous steps, fully tighten both the upper and lower
setscrews.
IMPORTANT: When the screws feel tight, tighten them an
additional quarter-turn. The handle is not properly installed
without this extra tightening.
8. Open the refrigerator door and close the freezer door. Repeat
steps 2 through 7 to install the other handle onto the freezer
door with the setscrews facing the refrigerator.
9. Save the hex key and all instructions.
To Remove the Handles:
1. While holding the handle, insert the short end of the hex key
into the lower setscrew hole and slightly rotate the hex key
until it is engaged in the setscrew.
2. Using a counterclockwise motion, loosen the setscrew a
quarter-turn at a time.
3. Repeat steps 1 and 2 for the upper setscrew. Gently pull the
handle away from the door.
4. If necessary, use a Phillips screwdriver to remove the shoulder
screws from the door.

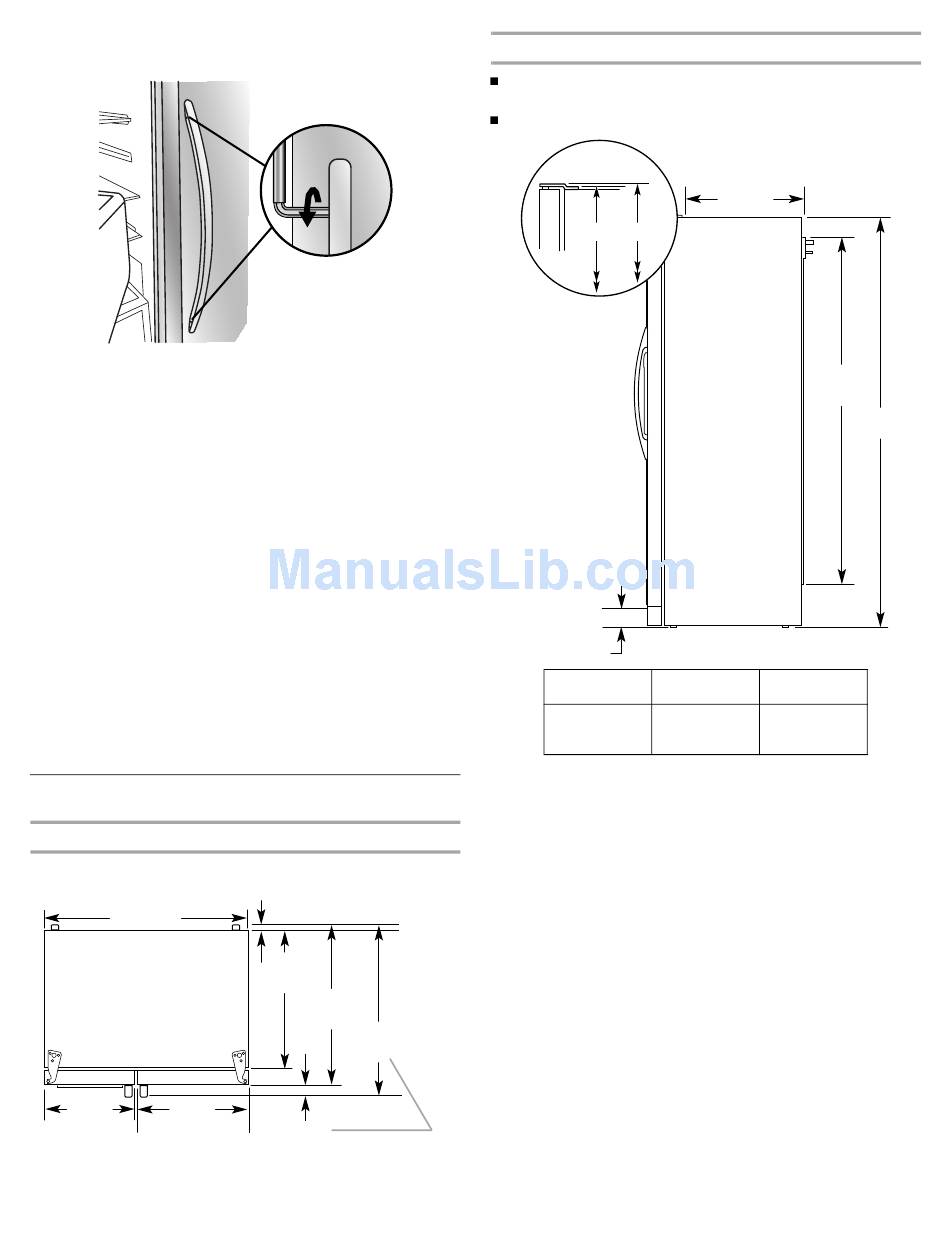

Product Dimensions

Top View
⁵⁄₈
35
"
(90.5 cm)
⁵⁄₈
¹⁄₂
15
"
19
"
(39.6 cm)
(49.5 cm)
A. Dimensions may vary based on the model.
³⁄₈
"
(9.53 mm)
24"
(61.0 cm)
¹⁄₂
27
"
(69.7 cm)
¹⁄₈
30
"
(76.4 cm) max.
⁵⁄₈
2
"
(6.7 cm) max.
Side View
Height dimensions are shown with the leveling legs extended
to the minimum height of ¹⁄₄" (6.35 mm) below the refrigerator.
The power cord is approximately 85" (215 cm) long.
A
⁵⁄₈
3
" (9.2 cm)
A
68³⁄₄"
(174.6 cm)
When leveling legs are fully extended to 1" (25 mm) below the
refrigerator, add ³⁄₄" (19 mm) to the height dimensions.
A
¹⁄₄"
21
(54.1 cm)
B
85" (215 cm)
B
C
68⁷⁄₈"
68¹⁄₂"
(175.0 cm)
(174.0 cm)
Approx.
C
7
