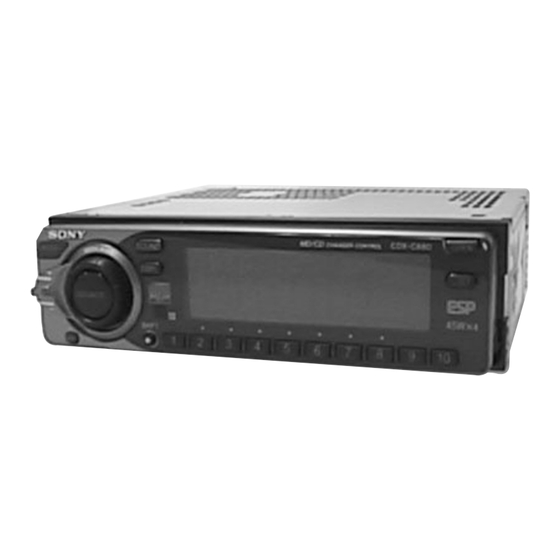

Sony CDX-C680 Service Manual

Hide thumbs Also See for CDX-C680:
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
Ver 1.1 2001. 08
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
17 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than
1 % total harmonic distortion.
Other specifications
CD player section
System
Compact disc digital audio
system
Signal-to-noise ratio
99 dB
Frequency response
10 - 20,000 Hz
Wow and flutter
Below measurable limit
Laser Diode Properties
Material
GaAlAs
Wavelength
780 nm
Emission Duration
Continuous
Laser output power
Less than 44.6 µW*
* This output is the value measured at a distance of
200 mm from the objective lens surface on the Optical
Pick-up Block.
Tuner section
FM
Tuning range
87.5 - 107.9 MHz
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity
8 dBf
Selectivity
75 dB at 400 kHz
50 dB at 200 kHz
Signal-to-noise ratio
62 dB (stereo),
65 dB (mono)
Harmonic distortion at 1 kHz
0.9% (stereo),
0.5% (mono)
Separation
35 dB at 1 kHz
Frequency response
30 - 15,000 Hz
Capture ratio
2 dB
Sony Corporation
9-925-779-12
2001H0400-1
e Vehicle Company
© 2001. 8
Shinagawa Tec Service Manual Production Group
CDX-C680/C780
Photo : CDX-C680
– 1 –
Model Name Using Similar Mechanism
CD Drive Mechanism Type
Optical Pick-up Name
AM
Tuning range
530 - 1,710 kHz
Antenna terminal
External antenna connector
Intermediate frequency 10.71 MHz/450 kHz
Sensitivity
30 µV
Power amplifier section
Outputs
Speaker outputs
(sure seal connectors)
Speaker impedance
4 - 8 ohms
Maximum power output 45 W × 4 (at 4 ohms)
FM/AM COMPACT DISC PLAYER
US Model
NEW
MG-363S-121
KSS-520A
– Continued on next page –

Advertisement

Table of Contents
loading

Related Manuals for Sony CDX-C680

Summary of Contents for Sony CDX-C680

  • Page 1 CDX-C680/C780 SERVICE MANUAL US Model Ver 1.1 2001. 08 Photo : CDX-C680 Model Name Using Similar Mechanism SPECIFICATIONS CD Drive Mechanism Type MG-363S-121 Optical Pick-up Name KSS-520A AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION 17 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 1 % total harmonic distortion.
  • Page 2 THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. breakdown because of the potential difference generated by the REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE charged electrostatic load, etc. on clothing and the human body. PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR During repair, pay attention to electrostatic breakdown and also use IN SUPPLEMENTS PUBLISHED BY SONY.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. GENERAL Location of Controls ..............4 Getting Started ................. 4 Setting the Clock ..............5 CD Player ................5 Radio ..................8 Other Functions ............... 9 CD/MD Unit ................11 DSP ..................14 TV/Video ................17 Connections ................
  • Page 4 SECTION 1 GENERAL This section extracted from CDX-C780's instruction manual. – 4 –...
  • Page 5 – 5 –...
  • Page 6 – 6 –...
  • Page 7 – 7 –...
  • Page 8 – 8 –...
  • Page 9 – 9 –...
  • Page 10 – 10 –...
  • Page 11 – 11 –...
  • Page 12 – 12 –...
  • Page 13 – 13 –...
  • Page 14 – 14 –...
  • Page 15 – 15 –...
  • Page 16 – 16 –...
  • Page 17 – 17 –...
  • Page 18 – 18 –...
  • Page 19 – 19 –...
  • Page 20 – 20 –...

  • Page 21: Cover

    SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 2-1. COVER 1 claw 4 cover 3 claws 2 claw 2-2. FRONT PANEL ASSY 3 Push the bearing (L). 2 Push the bearing (R). 4 front panel assy 1 Push the button (open).

  • Page 22: Mechanism Block

    2-3. MECHANISM BLOCK 8 mechanism block 5 PTT 2.6x6 7 CN401 3 claws 4 sub panel assy 2 PTT 2.6x6 6 PTT 2.6x6 1 PTT 2.6x6 2-4. SUB PANEL ASSY 1 PTT 2.6x6 3 EL inverter unit 2 CN602 6 CN801 5 claw 4 PTT 2.6x6 7 sub panel assy...

  • Page 23: Main Board

    2-5. MAIN BOARD 3 ground point screws (PTT 2.6x6) 4 ground point screw (PTT 2.6x6) 2 PTT 2.6x10 5 MAIN board 1 PTT 2.6x10 2-6. HEAT SINK 2 cord (with connector) (ANTENNA) 1 cord (with connector) (EQ OUT) (C780) 3 PTT 2.6x10 4 PTT 2.6x10 5 heat sink –...

  • Page 24: Chassis (T) Sub Assy

    2-7. CHASSIS (T) SUB ASSY 1 P 2x3 2 P 2x3 3 chassis (T) sub assy 2-8. LEVER ASSY 5 guide (disc) 6 lever (R) assy 3 tension spring (LR) 7 lever (L) assy 1 PS 2x4 2 DISC IN SW board 4 claws –...

  • Page 25: Servo Board

    2-9. SERVO BOARD 3 PS 2x5 2 PS 2x5 4 heat sink 8 CN2 1 PS 2x4 5 CN6 !™ SERVO board !¡ PS 2x4 !º CN4 9 CN5 6 P 2x3 7 loading motor assy 2-10. ROLLER ASSY • When installing, take note of the positions arm (roller) and washers.

  • Page 26: Chassis (Op) (O/S) Assy

    2-11. CHASSIS (OP) (O/S) ASSY 6 chassis (OP) (O/S) assy 8 compression spring (FL) 1 tension spring (angle) 7 compression spring (FL) 4 Fit lever (D) in the direction of the arrow. 5 Turn loading ring in the direction of the arrow. 3 damper (T) 2 damper (T) 2-12.

  • Page 27: Electrical Adjustments

    SECTION 3 ELECTRICAL ADJUSTMENTS CD SECTION FM Auto Scan/Stop Level Adjustment Setting : CD section adjustments are done automatically in this set. SOURCE button : FM 0 dB = 1 µV TUNER SECTION FM RF signal Cautions during repair generator When the tuner unit is defective, replace it by a new one antenna terminal...
  • Page 28 Ver 1.1 FM Stereo Separation Adjustment (WIDE) FM Stereo Separation Adjustment (NARROW) Setting : Setting : SOURCE button : FM SOURCE button : FM FM RF signal FM RF signal generator generator level meter level meter antenna antenna terminal 10 k Ω terminal 10 k Ω...
  • Page 29 AM Auto Scan/Stop Level Adjustment Adjustment Location : tuner unit (TU10) Setting : SOURCE n MODE button : AM –set upper view– 30 Ω 15 pF 65 pF AM RF signal generator AM dummy antenna(50 Ω ) TU10 antenna terminal Carrier frequency : 1000 kHz 30% amplitude AM AUTO SCAN/...

  • Page 30: Diagrams

    SECTION 4 DIAGRAMS 4-1. IC PIN DESCRIPTIONS • IC501 CXD2548R (DIGITAL SERVO, DIGITAL SIGNAL PROCESSOR) (SERVO BOARD) Pin No. Pin Name Pin Description SYSM System mute input (Not used.) RMUT1 R-ch, “0” detection output. (“H” : ON, “L” : OFF) (Not used.) LMUT2 L-ch, “0”...
  • Page 31 Pin No. Pin Name Pin Description ASY.I Asymmetry comparate voltage input ASY.O EFM full-swing output (“L” : VSS, “H” : VDD) Center voltage input Focus error signal input Sled error signal input Tracking error signal input Center error signal input RFDC RF signal input Condenser connection pin for LPF time constant of RF signal.
  • Page 32 Pin No. Pin Name Pin Description AVSS2 — R-ch, Analog GND. ROUT2 R-ch, LINE output. (Not used.) AIN2 R-ch, OP amplifier input. (Not used.) AOUT2 R-ch, Analog output. (Not used.) AVDD2 — R-ch, Analog power supply. AVSS2 — R-ch, Analog GND. VSS0 —...
  • Page 33 • IC501 MB90574PFV-G-123-BND (SYSTEM CONTROL) (MAIN BOARD) Pin No. Pin Name Pin Description SEKOUT SEEK OUT output AF-SEEK AF SEEK output (Not used in this set.) WIDE WIDE/NARROW select output ST-MONO Use a thing both as ST-IND display input and force MONO output. TUNMUTE Tuner mute output FM-ON...
  • Page 34 Pin No. Pin Name Pin Description RAMBU RAM reset detection input POWSEL Power select initial setting input EQ-SEL Equalizer connection with/without detection initial input TESTIN Test mode setting detection input DOORIND Door indicator output TIRPLAY Audio line select control output at TIR playback. (Not used in this set.) 61, 62 SUB-SW1, 0 Simple SUB WOOFER control output 1, 0...

  • Page 35: Circuit Boards Location

    4-2. CIRCUIT BOARDS LOCATION Pin No. Pin Name Pin Description AMSON Tape AMS control output (Not used in this set.) DOLBC Tape DOLBY B/C select control input/output (Not used in this set.) DOLBY Tape DOLBY control input/output (Not used in this set.) CSV-NAR Not used in this set.

  • Page 36: Block Diagram -Cd Section

    CDX-C680/C780 4-3. BLOCK DIAGRAM — CD SECTION — DIGITAL SERVO/ OPTICAL PICK-UP RF AMP, LD-APC ERROR AMP DIGITAL SIGNAL PROCESSOR DRAM CONTROLLER D/A CONVERTER KSS-520A IC501 IC401 LINE AMP IC403 3 PD1 59 RFDC PCMD 9 DATI DATA 2 DATA...

  • Page 37: Block Diagram -Display Section

    CDX-C680/C780 4-4. BLOCK DIAGRAM — DISPLAY SECTION — SYSTEM CONTROL LCD DRIVE IC501 (2/2) IC900 RESET BU5V DATA IC601 LCD900 SW801 RESET VLC5 RESET D501 COLOR BUFFER VLC4 GREEN SELECT BUS INTERFACE BUS SO Q900, 902 Q501 IC505 SECTION VLC3...

  • Page 38: Block Diagram -Tuner Section

    CDX-C680/C780 4-5. BLOCK DIAGRAM — TUNER SECTION — CN202 LINE DRIVER IC207 C780 C680 R-CH CN201 ELECTRONIC VOLUME FNTO1 BUS AUDIO IN IC202 AUXINL SW201 Q207 FRONT TUNER UNIT CDINL (LINE OUT/IN) TU10 LINE AMP R-CH CDINL IC203 (ANTENNA) LINE...

  • Page 44: Ic Block Diagrams

    • IC Block Diagrams IC1 CXA1791N-T4 IC6 LB1638MTP-T1 N.C. VREF LD AMP PD AMP 1.25V OUT1 20 VCC – – 19 APC ON OUT2 18 RFI – – 17 RFO N.C. IV AMP1 SUMMING AMP – – 16 FE FOCUS IV AMP2 ERROR AMP 15 FE BIAS...
  • Page 45 IC4 MB814400C-70PFTN IC201 BU4052BCFV WRITE DATA INPUT DATA OUTPUT CLOCK BUFFER BUFFER GENERATOR SELECT A CLOCK GENERATOR 4M BIT SENSE AMP COLUMN SELECT B MEMORY DECODER I/O GATE CELL BOARD CLOCK BIAS GENERATOR DECODER GENERATOR REFRESH MODE ADDRESS PRE- ADDRESS CONTROL DECODER BUFFER...
  • Page 46 IC10 BU2624FV IC205, 207, 208 TDA8574 XOUT VCCL VCCL BUFFER PHASE SVRL CL– LIFT REFERENCE BUFFER DIVIDER MAIN FMIN PRESCALER COUNT REFERENCE VCCL LGND SIGNAL SHIFT REGISTER LATCH AMIN OUTL INML IF COUNT VCCR INMR OUTR SIGNAL RGND 20BIT COUNT IFIN REFERENCE VCCR...
  • Page 47 IC204 CXA1846N IC401 PCM1716E 20 19 13 12 11 LRCIN M/IIS SERIAL 8 x OVER MC/DM1 – INPUT I/F 8dB STEP 1dB STEP SAMPLING BCKIN MD/DM0 VOLUME VOLUME MODE DIGITAL MUTE CONTROL FILTER CLKO CRYSTAL & MODE FUNCTION CS/IWO CONTROLLER LATCH BUFFER LATCH...

  • Page 48: Exploded Views

    SECTION 5 EXPLODED VIEWS NOTE: • The mechanical parts with no reference • Color Indication of Appearance Parts The components identified by number in the exploded views are not supplied. mark ! or dotted line with mark. Example : • Items marked “*” are not stocked since ! are critical for safety.

  • Page 49: Front Panel Section

    5-2. FRONT PANEL SECTION not supplied (KEY board) EL900 LCD900 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-022-329-01 BUTTON (SOURCE) 3-022-332-01 BUTTON (10 KEY) 3-022-322-01 KNOB * 63 3-022-327-01 PLATE (LCD), GROUND 3-022-323-11 LEVER (SHUTTLE) 1-694-414-11 CONDUCTOR BOARD, CONNECTION 3-022-325-01 PLATE (RING), LIGHT GUIDE * 65...

  • Page 50: Cd Mechanism Section (1)

    5-3. CD MECHANISM SECTION (1) (MG-363S-121) M903 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 101 1-659-836-11 DISC IN SW BOARD 3-936-756-01 ROLLER (D) * 102 A-3291-816-B CHASSIS (T) SUB ASSY 3-321-393-01 WASHER, STOPPER 3-931-909-01 SPRING (LR), TENSION * 113 3-939-139-01 SPACER X-3371-501-1 LEVER (L) ASSY...

  • Page 51: Cd Mechanism Section (2)

    5-4. CD MECHANISM SECTION (2) (MG-363S-121) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-931-893-01 ARM, CHUCKING 3-931-914-01 SPRING (ANGLE), TENSION 3-931-897-01 DAMPER (T) * 159 A-3291-677-G CHASSIS (M) ASSY 3-931-879-02 LEVER (D) 3-931-883-01 SPRING (TR), TENSION * 154 3-913-404-11 RETAINER (DISC) 3-931-881-01 LEVER (LOCK)

  • Page 52: Cd Mechanism Section (3)

    5-5. CD MECHANISM SECTION (3) (MG-363S-121) M901 M902 The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 201...

  • Page 53: Electrical Parts List

    SECTION 6 DISC IN SW ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in • Items marked “*” are not stocked since The components identified by the parts list may be different from the they are seldom required for routine service. mark ! or dotted line with mark.
  • Page 54 LIMIT SW LOAD SW MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R912 1-216-045-00 METAL CHIP 1/10W 1-659-837-11 LOAD SW BOARD R913 1-216-045-00 METAL CHIP 1/10W *************** R914 1-216-049-11 RES,CHIP 1/10W R915 1-216-053-00 METAL CHIP 1.5K 1/10W <...
  • Page 55 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-163-251-11 CERAMIC CHIP 100PF C248 1-124-234-00 ELECT 22uF 1-163-251-11 CERAMIC CHIP 100PF (C780) 1-137-368-11 FILM 0.0047uF 5% C249 1-104-953-11 ELECT 47uF C201 1-164-004-11 CERAMIC CHIP 0.1uF (C780) C202 1-126-157-11 ELECT 10uF...
  • Page 56 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C286 1-115-566-11 CERAMIC CHIP 4.7uF C426 1-164-336-11 CERAMIC CHIP 0.33uF (C780) C427 1-126-295-11 ELECT 10uF C287 1-163-009-11 CERAMIC CHIP 0.001uF C428 1-163-077-00 CERAMIC CHIP 0.1uF (C780) C429 1-163-077-00 CERAMIC CHIP 0.1uF C288...
  • Page 57 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * CN203 1-564-506-11 PIN, CONNECTOR (PC BOARD) 3P (C780) D801 8-719-977-12 DIODE DTZ6.8B CN401 1-764-617-12 PIN, CONNECTOR (PC BOARD) 30P D802 8-719-977-12 DIODE DTZ6.8B CN501 1-580-907-31 PLUG, CONNECTOR (BUS CONTROL IN) D803 8-719-977-12 DIODE DTZ6.8B CN601...
  • Page 58 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < JUMPER RESISTOR > Q210 8-729-420-74 TRANSISTOR 2SD1328-RST Q211 8-729-021-94 TRANSISTOR 2SK1657-T1B JC10 1-216-295-00 SHORT Q212 8-729-920-21 TRANSISTOR DTC314TKH04 JC201 1-216-295-00 SHORT 0 (C680) Q213 8-729-920-21 TRANSISTOR DTC314TKH04 JC202 1-216-295-00 SHORT 0 (C680)
  • Page 59 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-216-081-00 METAL CHIP 1/10W R239 1-216-049-11 RES,CHIP 1/10W 1-216-081-00 METAL CHIP 1/10W (C780) 1-216-081-00 METAL CHIP 1/10W R240 1-216-049-11 RES,CHIP 1/10W 1-216-089-00 RES,CHIP 1/10W (C780) 1-216-089-00 RES,CHIP 1/10W R241 1-216-214-00 RES,CHIP...
  • Page 60 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R288 1-216-081-00 METAL CHIP 1/10W R516 1-216-065-00 RES,CHIP 4.7K 1/10W R289 1-216-081-00 METAL CHIP 1/10W R520 1-216-097-00 RES,CHIP 100K 1/10W R290 1-216-061-00 METAL CHIP 3.3K 1/10W R524 1-216-017-00 RES,CHIP 1/10W (C780)
  • Page 61 MAIN RELAY SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R809 1-216-025-00 RES,CHIP 1/10W JC802 1-216-295-00 SHORT R810 1-216-049-11 RES,CHIP 1/10W R811 1-216-049-11 RES,CHIP 1/10W < DIODE > R812 1-216-049-11 RES,CHIP 1/10W R813 1-216-049-11 RES,CHIP 1/10W LED802 8-719-033-14 LED CL-170PG-CD-T (CD WINDOW) LED803 8-719-033-14 LED CL-170PG-CD-T (CD WINDOW)
  • Page 62 SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C501 1-164-004-11 CERAMIC CHIP 0.1uF R106 1-216-001-00 METAL CHIP 1/10W C502 1-135-145-11 TANTALUM CHIP 0.47uF R108 1-216-051-00 METAL CHIP 1.2K 1/10W C503 1-164-232-11 CERAMIC CHIP 0.01uF R109 1-216-057-00 METAL CHIP 2.2K 1/10W...
  • Page 63 CDX-C680/C780 SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R505 1-216-061-00 METAL CHIP 3.3K 1/10W ACCESSORIES & PACKING MATERIALS R506 1-216-073-00 METAL CHIP 1/10W ******************************** R507 1-216-125-00 METAL CHIP 1.5M 1/10W R508 1-216-105-00 RES,CHIP 220K...
  • Page 64 CDX-C680/C780 US Model SERVICE MANUAL SUPPLEMENT-1 File this supplement with the service manual. Subject : Change of Key, Main, Relay and Servo Boards (ECN-CS800990) When performing service and inspection, check the suffix of the part number of the key, main, relay and servo boards.
  • Page 65 1. IC PIN DESCRIPTION • IC5 CXP84640-011Q (CD SYSTEM CONTROL) Pin No. Pin Name Pin Description 1 – 5 — Not used in this set. FP OPEN Front panel open detection input FP CLOSE Front panel close control output LINKOFF Bus interface link input (Not used in this set.) DRV OE Focus/tracking coil/sled motor control output...
  • Page 66 Pin No. Pin Name Pin Description BU.IN Back-up power detection input BUSON Bus on control input IN SW Disc in switch input (SW2) SELF SW Self switch input (SW2) TX CE EEPROM chip enable output SCK2 Sub Q read clock output Sub Q 80 bit, PCM peak and level data 16 bit input CD DATA™...
  • Page 72 DISC IN SW 8. ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in • Items marked “*” are not stocked since When indicating parts by reference the parts list may be different from the they are seldom required for routine service. number, please include the board.
  • Page 73 LIMIT SW LOAD SW MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R909 1-216-065-00 RES,CHIP 4.7K 1/10W 1-659-835-12 LIMIT SW BOARD R910 1-216-069-00 METAL CHIP 6.8K 1/10W ************** R911 1-216-045-00 METAL CHIP 1/10W R912 1-216-045-00 METAL CHIP 1/10W <...
  • Page 74 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-115-565-11 CERAMIC CHIP 2.2uF C244 1-124-234-00 ELECT 22uF 1-115-565-11 CERAMIC CHIP 2.2uF (C780) 1-164-004-11 CERAMIC CHIP 0.1uF C245 1-124-234-00 ELECT 22uF 1-109-982-11 CERAMIC CHIP (C780) 1-115-565-11 CERAMIC CHIP 2.2uF C246 1-163-141-00 CERAMIC CHIP...
  • Page 75 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C283 1-115-566-11 CERAMIC CHIP 4.7uF C419 1-124-257-00 ELECT 2.2uF (C780) C420 1-115-651-11 ELECT 100uF C284 1-115-566-11 CERAMIC CHIP 4.7uF C421 1-163-038-00 CERAMIC CHIP 0.1uF (C780) C422 1-163-213-00 CERAMIC CHIP 0.0022uF 5% C285 1-115-566-11 CERAMIC CHIP...
  • Page 76 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < CONNECTOR > D640 8-719-049-38 DIODE 1N5404TU D642 8-719-423-23 DIODE MA8110-M * CN10 1-506-984-11 PIN, CONNECTOR (PC BOARD) 2P D643 8-719-976-96 DIODE DTZ4.7C CN201 1-774-699-12 JACK, PIN 4P (LINE OUT/IN) D644 8-719-422-97 DIODE MA8091-M CN202...
  • Page 77 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < JACK > Q207 8-729-420-74 TRANSISTOR 2SD1328-RST Q208 8-729-420-74 TRANSISTOR 2SD1328-RST J801 1-566-822-41 JACK (REMOTE IN) Q209 8-729-420-74 TRANSISTOR 2SD1328-RST Q210 8-729-420-74 TRANSISTOR 2SD1328-RST < JUMPER RESISTOR > Q211 8-729-021-94 FET 2SK1657-T1B JC10...
  • Page 78 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-216-081-00 METAL CHIP 1/10W R239 1-216-049-11 RES,CHIP 1/10W 1-216-081-00 METAL CHIP 1/10W (C780) 1-216-089-00 RES,CHIP 1/10W R240 1-216-049-11 RES,CHIP 1/10W 1-216-089-00 RES,CHIP 1/10W (C780) 1-216-061-00 METAL CHIP 3.3K 1/10W R241...
  • Page 79 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R288 1-216-081-00 METAL CHIP 1/10W R516 1-216-065-00 RES,CHIP 4.7K 1/10W R289 1-216-081-00 METAL CHIP 1/10W R520 1-216-097-00 RES,CHIP 100K 1/10W R290 1-216-061-00 METAL CHIP 3.3K 1/10W R524 1-216-017-00 RES,CHIP 1/10W (C780)
  • Page 80 MAIN RELAY SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R812 1-216-049-11 RES,CHIP 1/10W < DIODE > R813 1-216-065-00 RES,CHIP 4.7K 1/10W R814 1-216-049-11 RES,CHIP 1/10W LED802 8-719-033-14 LED CL-170PG-CD-T (CD WINDOW) R815 1-216-049-11 RES,CHIP 1/10W LED803 8-719-033-14 LED CL-170PG-CD-T (CD WINDOW) R816...
  • Page 81 SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C502 1-135-145-11 TANTALUM CHIP 0.47uF R106 1-216-001-00 METAL CHIP 1/10W C503 1-163-021-00 CERAMIC CHIP 0.01uF R108 1-216-051-00 METAL CHIP 1.2K 1/10W C504 1-163-251-11 CERAMIC CHIP 100PF R109 1-216-057-00 METAL CHIP 2.2K 1/10W...
  • Page 82 SERVO Ref. No. Part No. Description Remark R505 1-216-061-00 METAL CHIP 3.3K 1/10W R506 1-216-073-00 METAL CHIP 1/10W R507 1-216-125-00 METAL CHIP 1.5M 1/10W R508 1-216-105-00 RES,CHIP 220K 1/10W R509 1-216-113-00 METAL CHIP 470K 1/10W R510 1-216-061-00 METAL CHIP 3.3K 1/10W R511 1-216-073-00 METAL CHIP...
  • Page 83 CDX-C680/C780 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2001. 08 The CORRECTION-1 is included into Ver 1.1...

This manual is also suitable for:

Cdx-c780

Table of Contents
