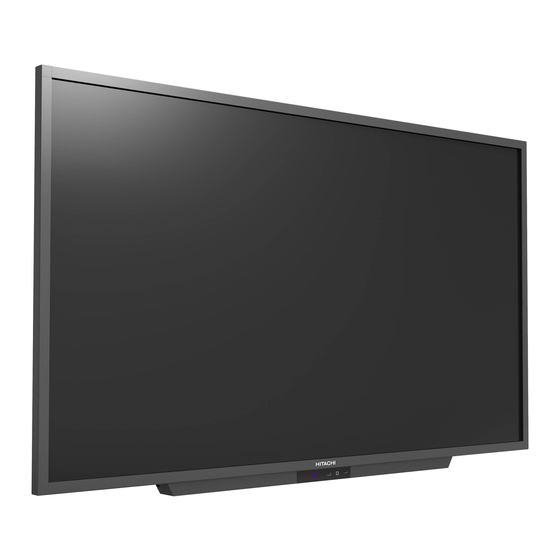

Hitachi HILU86101 User Manual

86” interactive led/lcd
Hide thumbs

Advertisement

Quick Links

User Manual

86"
(85.60")
Model: HILU86101
86" Interactive LED/LCD

Advertisement

loading

  Also See for Hitachi HILU86101

  Related Manuals for Hitachi HILU86101

  Summary of Contents for Hitachi HILU86101

  • Page 1: User Manual

    User Manual 86” (85.60”) Model: HILU86101 86” Interactive LED/LCD...
  • Page 2: Table Of Contents

    Contents 1. Important safety Instruction……………………………………………………………………………...…3 1.1 Safety precautions 1.2 Maintenance 2. Introduction………………………………………………………………………………………………..…9 3. Product Description…..……………………………………………………………………………………10 3.1 Front View 3.2 Rear View 3.3 Connection 4. Remote Control…..……………………………………………………………………………………..…15 5. OSD Menu Description………………………………………………………………………..……..……17 6. Product Specifications……………………………………………………………………………….……28 7. Product Dimensions………………………………………………………………………………….……30 8. Troubleshooting……………………………………………………………………………………………31 9.1 Product Self-Diagnosis 9.2 Before Requesting Service Version 1.0...
  • Page 3: Important Safety Instruction

    1. Important Safety instructions [SAFETY WARNING] • To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. • To prevent injury, this product must be securely attached to the floor/wall in accordance with the installation instructions.
  • Page 4: Safety Precautions

    1.1 SAFETY PRECAUTION Note) The color and design may different by each model and the product specification are subject to change without notice for performance enhancement. 1.1.1 Power [Warning] • Do not use damaged power cord, plug nor loose socket. It may cause electric shock or fire. •...
  • Page 5 • Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation. If not, it may cause fire. • Keep the packing anti-moisture material or vinyl packing out of the reach of children. Anti- moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital.
  • Page 6 • Before moving or lifting the product, disconnect the power cord and all cables. • The route cords and cables connected to the product so that they cannot be tripped over, pulled or grabbed. • Do not stick metal objects or any other conductive material into the power cord. Do not touch the end of the power cord while it is plugged in.
  • Page 7 • To prevent to swallow the small accessories for children, keep the accessories out of the reach of children.  The product must keep horizontal and upright position when moving. Hold the top and bottom of the frame firmly. Handles are only for the supporting purpose. ...
  • Page 8: Maintenance

    1.2 MAINTENANCE 1.2.1 Cleaning [Warning] • When cleaning, unplug the power cord and wipe gently with a soft dry cloth to prevent scratching. • Do not spray water or other liquids directly on the screen as electric shock may occur. •...
  • Page 9: Introduction

    2. Introduction  Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. LCD/LED Display User Manual Warranty Card Accessory...
  • Page 10: Product Description

    ④ HDMI Input (connected to HDMI 2) Important Notice  The USB cable (3 m) that Hitachi provides in this accessory box is for use of connection to Touch USB at the back. Therefore, in case of connecting USB cable to Touch USB in front, separate USB cable is required and the length of cable is strongly recommended to be less than 3 m to make sure signal intensity of touch sensor work properly.
  • Page 11: Rear View

    3.2 Rear View ③ ④ ① ② ① Button Control ON / OFF Display the main screen menu VGA, OPS, HDMI 2, HDMI 1,DP Volume Up (Right) Volume Down (Left) Move Up Move Down ② Rear Panel Connections POWER SWITCH : ON / OFF VGA AUDIO IN AC IN : 100V~ 240V, 50/60HZ AUDIO LINE OUT...
  • Page 12 ③ When you need to install OPS PC. There is a slot on ③ for OPS PC. When you need to install OPS, remove screws and existing cover first and screw up again after mounting OPS PC in the slot.HDMI Input ④...
  • Page 13: Connection

    3.3 Connection 1) HDMI/Display Port Connection To transmit digital video and audio signals from an external device to the screen, connect the HDMI/Display Port cables as shown in the following illustration. HDMI Output – Connect the other monitor to transmit video data 2,3,4 HDMI 1, 2, 3 Input –...
  • Page 14 3) Speaker Connection To utilize an optional external audio system instead of the built-in speaker, if you connect Ø3.5 stereo (L/R) cable in the port. If it is connected to external speakers, internal speaker may not sound. The connection is as below. ※...
  • Page 15: Remote Control

    4. Remote Controller Key Name Description Power ON/OFF. Activates OSD menu of input source selecting. SOURCE Navigates input source. Navigates upper menu in main OSD menu. Navi ▲ gates input source. Navigates down menu in main OSD menu.Navi ▼ gates input source ▶...
  • Page 16 5. OSD Menu Description 5.1 Menu Overview In this menu system, there are several ways to customize the menu settings provided. If you press the MENU button, only the first and second level of the menu system will appear on the monitor screen. The third level can be displayed by pressing SELECT.
  • Page 17: Osd Menu Description

    5-2 Picture menu Press the [MENU] Button. The OSD Main MENU will be shown. <Picture mode> 1) Go to Picture Menu by pressing Menu button on remote controller or OSD key 2) Set Picture Mode, Color Mode, Screen Size, Noise Reduction, Dynamic Contrast and Color Range in Picture Menu by pressing ◀/▶...
  • Page 18 <Picture mode> 1) Go to Color Mode by pressing ▲/▼ on the remote controller or OSD key. 2) Select Color Temperature (Normal/Warm/Cold) by pressing ◀/▶ icon <Screen Size> 1) Go to Screen Size by pressing ▲/▼ on the remote controller or OSD key.
  • Page 19 <Dynamic Contrast> 1) Go to Dynamic Contrast by pressing ▲/▼ on the remote controller or OSD key. 2) Available in Full HD resolution below 3) Select On or Off to adjust contrast by pressing ◀/▶ icon <Color Range> 1) Go to Color Range by pressing ▲/▼...
  • Page 20: Audio Menu

    5-3 Audio menu Press the [MENU] Button. The OSD Main MENU will be shown. <Audio menu> 1) Go to Audio Menu by pressing Menu button on remote controller or OSD key 2) Set Sound Mode, Surround, Audio Only, Equalizer in Audio Menu by pressing ◀/▶ icon <Sound Mode>...
  • Page 21 <Surround> 1) Go to Surround by pressing ▲/▼ on the remote controller or OSD key. 2) Turn on or off spatial impression, direction and reverberation of sound by pressing ◀/▶ icon. <Equalizer Setting> 1) Go to Equalizer Setting by pressing ▲/▼ on the remote controller or OSD key.
  • Page 22: Time Menu

    5-4 Time menu Press the [MENU] Button. The OSD Main MENU will be shown. <TIME MENU> 1) Go to Time Menu by pressing Menu button on remote controller or OSD key 2) Set Sleep Timer, Time Format, Clock, Wake Up, No Signal Power Off by pressing ◀/▶...
  • Page 23 <Clock> 1) Adjust Present Time by pressing ◀/▶ icon : Year, Month, Day, Hour, Minute <Wake Up> 1) Set Wake Up Time by pressing ◀/▶ icon : Year, Month, Day, Hour, Minute 2) It turns on automatically when it is Wake Up Time <No Signal Power Off>...
  • Page 24: Setup Menu

    5-5 Setup menu Press the [MENU] Button. The OSD Main MENU will be shown. <Setup menu> 1) Go to SETUP Menu by pressing Menu button on remote controller or OSD key 2) Set Menu Language, Menu Transparency, OSD Time Out, All Reset, Blue Background, CEC, COM ID, HDMI Setting by pressing ◀/▶...
  • Page 25 <OSD Time Out> 1) Go to OSD Time Out by pressing ▲/▼ on OSD. 2) Set OSD Time Out by pressing ◀/▶: 5/15/30/45/60 seconds 3) OSD disappears when it is OSD Time Out <All Reset> 1) Go to All Reset by pressing ▲/▼...
  • Page 26 <CEC> 1) Go to CEC by pressing ▲/▼ on remote controller or OSD 2) Press OK or SELECT button to perform CEC control 3) Then, it activate Device Auto Power Off, TV Auto Power On, Audio Receiver with TV source only <COM ID>...
  • Page 27 5-6 Lock menu Press the [MENU] Button. The OSD Main MENU will be shown. <Keypad lock> 1) Go to Lock Menu by pressing ▲/▼ on remote controller or OSD 2)Set Keypad Lock On or Off by pressing ◀/▶ Version 1.0...
  • Page 28: Product Specifications

    7. Product Specification LED PANEL Diagonal size 85.60 "/217.4(cm) Display Resolution (Max.) 3840 x 2160 (UHD) Brightness (average) 410 cd/㎡ Viewing Angle H: 178° / V: 178° Contrast ratio 1200:1 (Typ.) Supported Colors 1.07B colors (10bit) Response Time 8 ms (GTG) Display Frame Rate 60Hz (Actual) Installation...
  • Page 29 MECHANICAL Dimensions Landscape 1,971 x 1,197 x 109mm Weight 92 kg VESA mount 600 x 400 (mm), M8 Screw Front Glass Tempered Glass 4.0t (Anti-glare Type) ELECTRICAL Power Requirement 100 - 240V AC, 50/60 Hz Power Consumption Max. 333W Power Consumption (Standby) <...
  • Page 30: Product Dimensions

    8. Product Dimensions Version 1.0...
  • Page 31: Troubleshooting

    9. Troubleshooting 9-1. Product Self-Diagnosis ∙ You can check if the product is working properly using the Self-Diagnosis function. ∙ If a blank screen is displayed and the Power LED blinks even if the product and the PC are properly connected, perform the self-diagnosis function according to the procedures below.
  • Page 32 Revision date version Description 170501 release Version 1.0...
