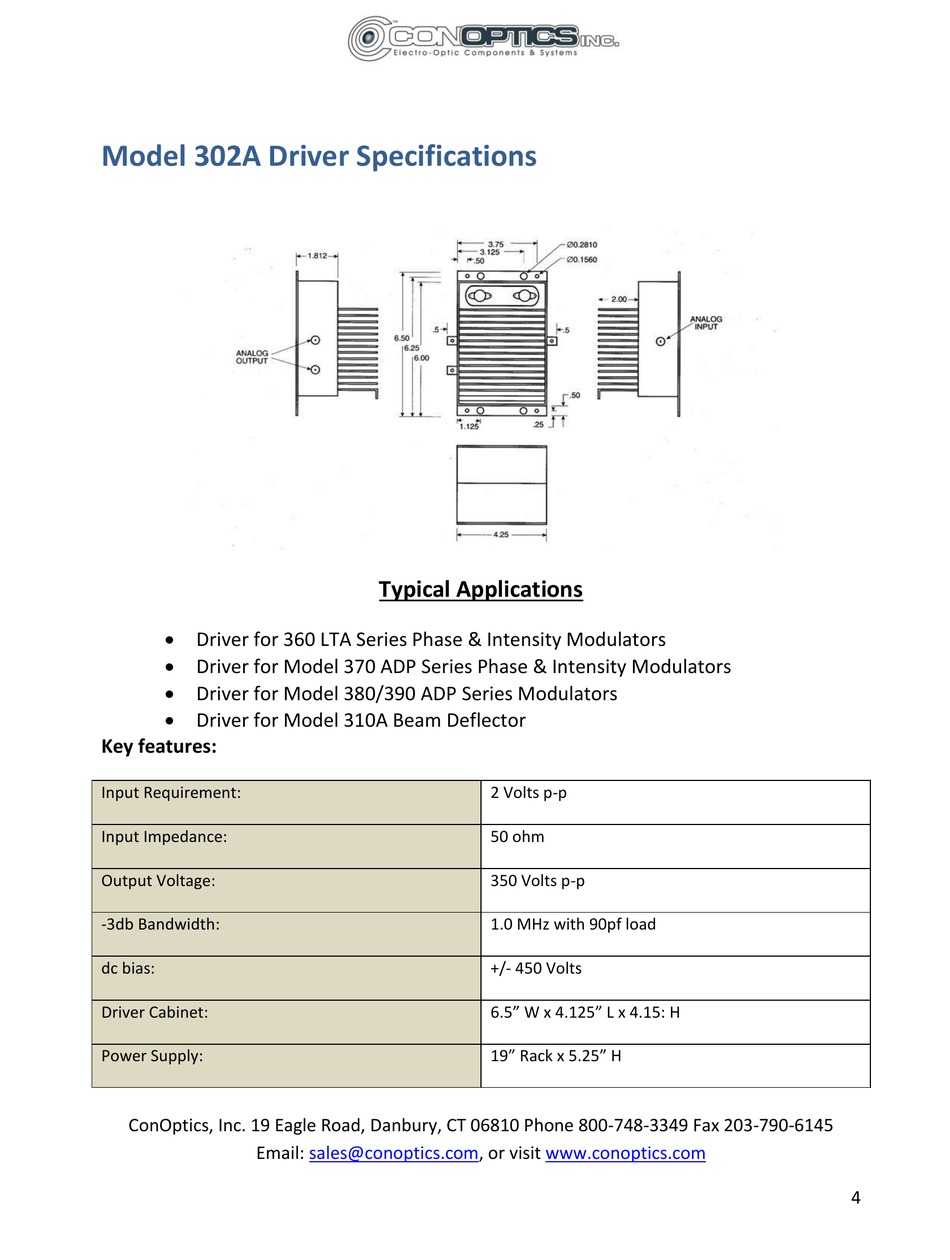

Model 302A Driver Specifications
 Driver for 360 LTA Series Phase & Intensity Modulators
 Driver for Model 370 ADP Series Phase & Intensity Modulators
 Driver for Model 380/390 ADP Series Modulators
 Driver for Model 310A Beam Deflector
Key features:
Input Requirement:
Input Impedance:
Output Voltage:
-3db Bandwidth:
dc bias:
Driver Cabinet:
Power Supply:
ConOptics, Inc. 19 Eagle Road, Danbury, CT 06810 Phone 800-748-3349 Fax 203-790-6145
Email: sales@conoptics.com, or visit

Typical Applications

2 Volts p-p
50 ohm
350 Volts p-p
1.0 MHz with 90pf load
+/- 450 Volts
6.5" W x 4.125" L x 4.15: H
19" Rack x 5.25" H
