M302A OPERATING MANUAL
Product Overview:
The Model 302A amplifier is designed to drive a number of different Conoptics E.O. modulators
350, 360 and 370 series. All types of modulators supplied with the system are configured as
lumped capacitors (two terminal devices). The amplifier has a 50/1K ohm, single ended input
(J3 SIGNAL INPUT) and a push/pull output (J1 & J2).
Special Notes:
Special instructions for Model 302A with Model 350-160 for Thorlabs
1. The Model 350-160-02-BK is very close to "0" volts null when operating between
crossed polarizer's
2. The Model 302A when set for "Uni-Polar Positive" input automatically puts 175Volts
across the modulators terminals
3. Do No Adjust the Bias for "0". Adjust the Bias Meter Voltage to +175Volts, which should
then yield close to zero volts across the modulator
ConOptics, Inc. 19 Eagle Road, Danbury, CT 06810 Phone 800-748-3349 Fax 203-790-6145
Email: sales@conoptics.com, or visit
www.conoptics.com
Advertisement
Table of Contents
Related Manuals for conoptics 302A
Summary of Contents for conoptics 302A
-
Page 1: Product Overview
M302A OPERATING MANUAL Product Overview: The Model 302A amplifier is designed to drive a number of different Conoptics E.O. modulators 350, 360 and 370 series. All types of modulators supplied with the system are configured as lumped capacitors (two terminal devices). The amplifier has a 50/1K ohm, single ended input (J3 SIGNAL INPUT) and a push/pull output (J1 &... -
Page 2: Intended Use
This equipment is designed for general laboratory use. It is intended to be used with a number of Conoptics Electro-Optic Modulators only. The amplifier is designed to drive a capacitive load that is floating with respect to ground. Any use other than in direct connection with supplied optical modulator can result in severe damage to the amplifier and potentially hazardous voltages to external equipment and personnel. -
Page 3: Service Caution
Hazardous voltages are present within the instrument and contact may result in personal injury. Any attempt to trouble shoot or adjust any controls within the system should be discussed with Conoptics first at support@conoptics.com. ConOptics, Inc. 19 Eagle Road, Danbury, CT 06810 Phone 800-748-3349 Fax 203-790-6145 Email: sales@conoptics.com, or visit www.conoptics.com... -
Page 4: Typical Applications
1.0 MHz with 90pf load dc bias: +/- 450 Volts Driver Cabinet: 6.5” W x 4.125” L x 4.15: H Power Supply: 19” Rack x 5.25” H ConOptics, Inc. 19 Eagle Road, Danbury, CT 06810 Phone 800-748-3349 Fax 203-790-6145 Email: sales@conoptics.com, or visit www.conoptics.com... - Page 5 Bias voltage for positioning the modulators quiescent operating point obtained from the differential amplifier Q and Q This amplifier is capable of +/-550V, bias voltage at the driver output terminals. ConOptics, Inc. 19 Eagle Road, Danbury, CT 06810 Phone 800-748-3349 Fax 203-790-6145 Email: sales@conoptics.com, or visit www.conoptics.com...
-
Page 6: User Operation
3. When operating in the Bipolar Mode, either direction is acceptable as the static offset of the driver is zero volts. ConOptics, Inc. 19 Eagle Road, Danbury, CT 06810 Phone 800-748-3349 Fax 203-790-6145 Email: sales@conoptics.com, or visit www.conoptics.com... - Page 7 BIPOLAR: INPUT SIGNAL TO DRIVER GOES BOTH POS. AND NEG. ABOUT OVDC +/- 1 VP-P MAX CONOPTICS INC. DANBURY, CT. 06810 Size Document Number 302A INSTALLATION DWG. Date: Thursday, June 25, 2009 Sheet ConOptics, Inc. 19 Eagle Road, Danbury, CT 06810 Phone 800-748-3349 Fax 203-790-6145 Email: sales@conoptics.com, or visit www.conoptics.com...
Need help?
Do you have a question about the 302A and is the answer not in the manual?
Questions and answers

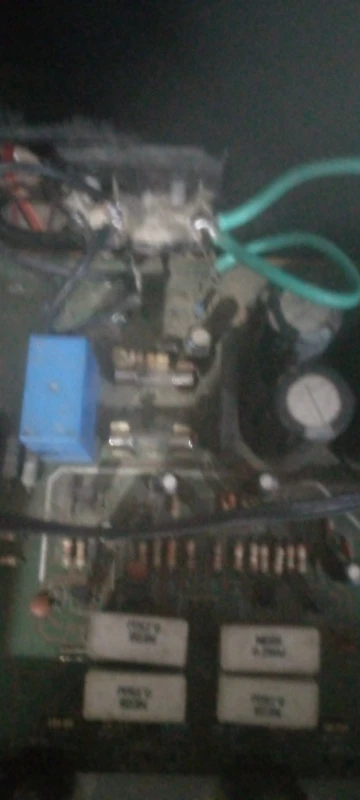

Cambié los fusibles porque el equipo prendía pero dejó de funcionar el ventilador y estaba súper caliente. Al cambiarlo prende el ventilador pero ahora uno de los fusibles enciende una luz roja como para prenderse y se calienta que hago
If the Conoptics 302A fan is not working and a fuse is heating up and showing a red light, you should not attempt to troubleshoot or adjust any controls yourself. Hazardous voltages are present, and contact may result in personal injury. You should discuss the issue with Conoptics first by contacting their support at support@conoptics.com or calling 800-748-3349. Ensure the equipment is turned off before making any connections or disconnections.
This answer is automatically generated
