CB2 RADIUS Assembly Instructions

Chaise

Hide thumbs

page of 4

/ 4
Bookmarks

Quick Links

Download this manual

radius

CHAISE

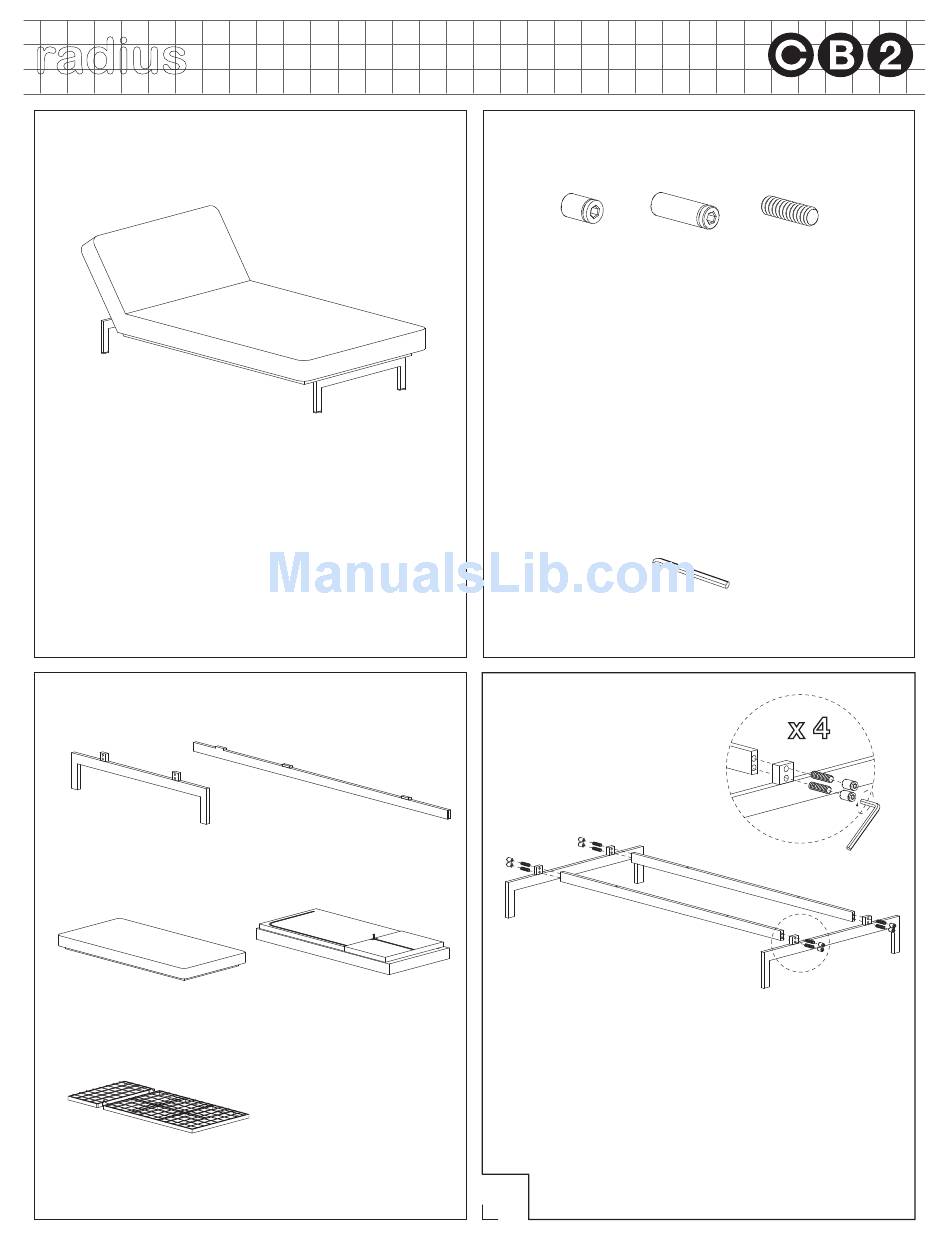

Thank you for purchasing the Radius Chaise This

page lists all the contents included in the box. Please

take the time to identify the hardware as well as the

individual components to this product. As you unpack

and prepare for assembly, place the contents on a

carpeted or padded area to protect them from

damage.

Note: 2 people are required to safely assemble this product.

components

2 - leg frames

1 - mattress

1 - frame

Made in China - r02

2 - crossbars

1 - mattress

cover

Customer Service 800.606.6252 | Latest instructions available at www.cb2.com

hardware

4 - large

8 - small

bolt caps

Missing hardware?

Please call 800.606.6387 for replacements.

tools required

allen wrench

(included)

NOTE: Do not over

tighten the bolt caps

crossbar

Attach crossbars to each leg frame with 4

threaded inserts and 4 small bolt caps as

shown. Secure, but do not over tighten, the bolt

caps using an allen wrench.

12 - threaded

inserts

leg frame
