CB2 RODNEY Assembly Instructions

rodney

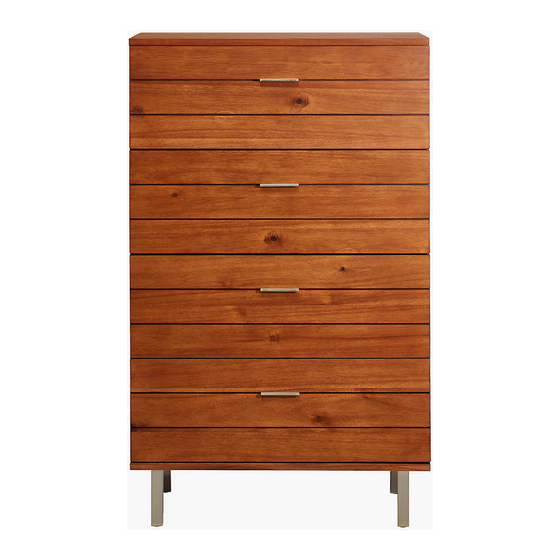

TALL CHEST
Thank you for purchasing the Rodney Tall Chest. This
page lists all the contents included in the box. Please take
the time to identify the hardware as well as the individual
components to this product. As you unpack and prepare
for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.

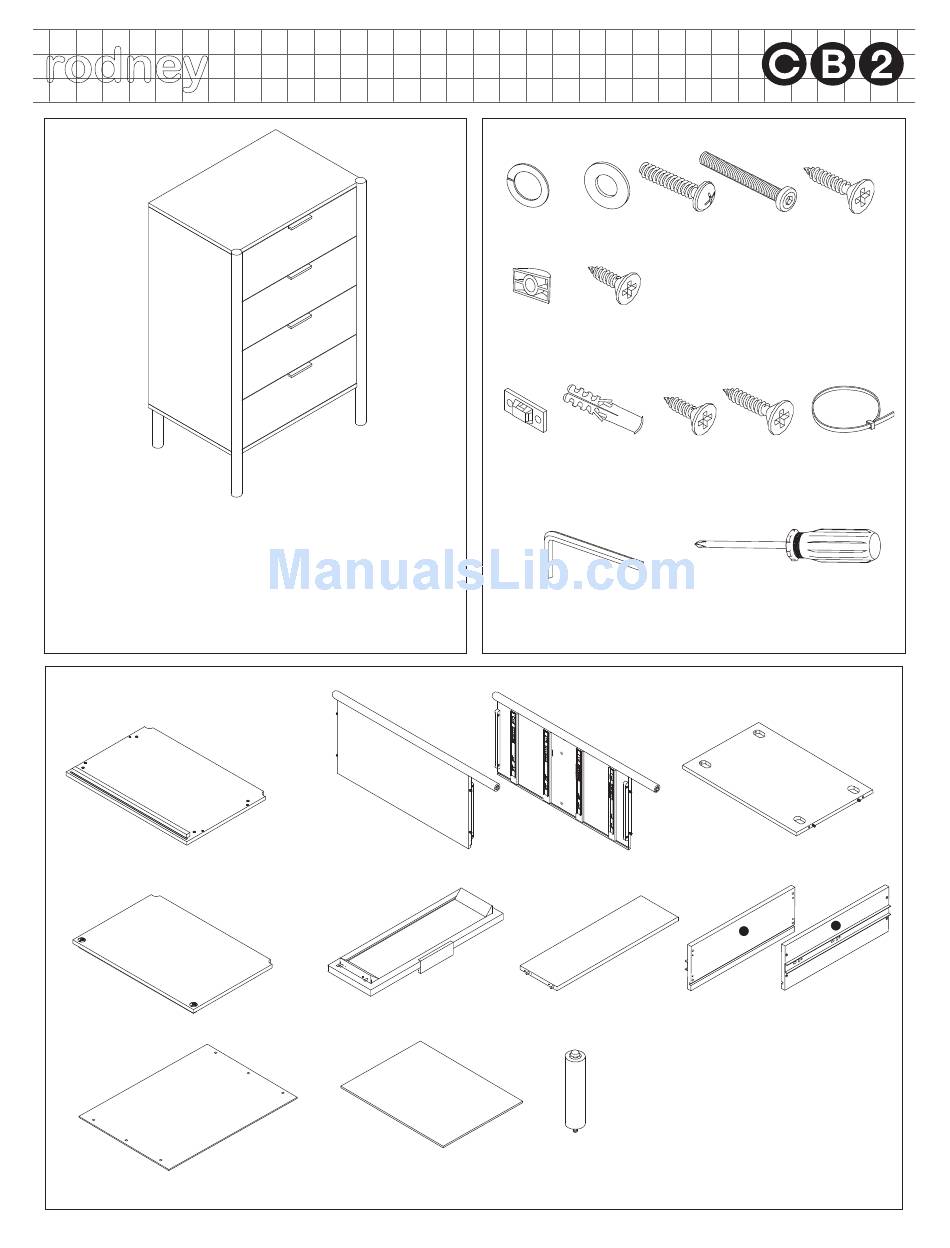

components
1 - top panel
1 - bottom panel
1 - back panel
Made in Vietnam - r06
4 - drawer
fronts
4 - drawer
bottoms
Customer Service 800.606.6252 I Latest instructions available on www.cb2.com
hardware
12 - spring 12 - flat 8 - small
washers washers bolts
Missing hardware? Please call
800.606.6387 for replacements.
4 - brackets 6 - small
screws
mounting hardware
4 - wall 4 - plastic 4 - small
brackets anchors screws

tools required

allen wrench
(included)
(We recommend the use of hand tools instead of power tools)
2 - side panels
(1 left, 1 right)
4 - drawer
backs
2 - legs
4 - large 32 - screws
bolts
4 - large
2 - wall
screws
straps
philips head screwdriver
1 - middle panel
R
L
8 - drawer sides
(4 left, 4 right)
Page 1 of 5
