CB2 GRID Assembly Instructions page 2

grid
MEDIA CONSOLE
NOTE: Do not over
tighten the cam
left and right
A
screws
side panels

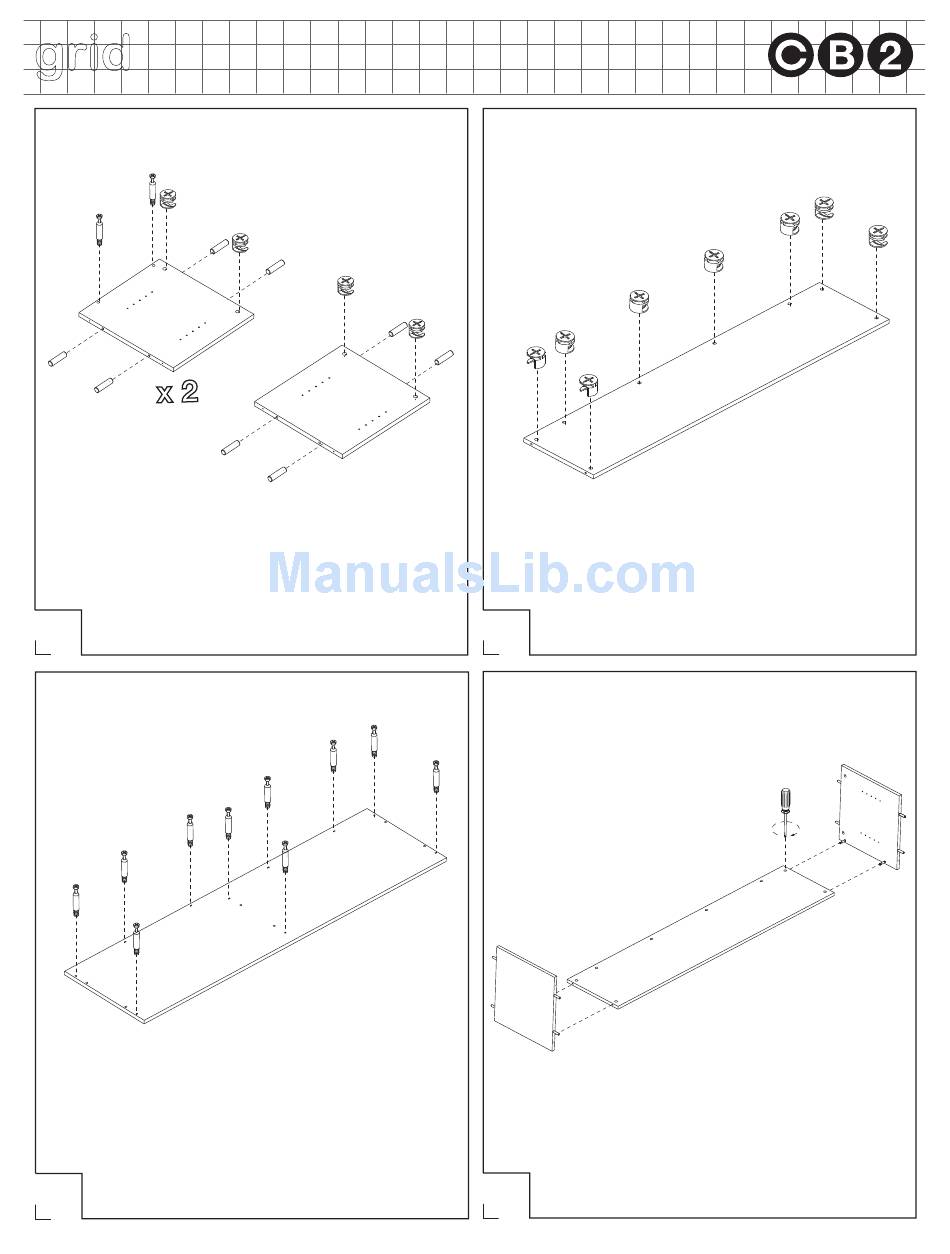

A. Insert 2 cam screws, 4 wood dowels and 2
cams into left and right side panels as shown.
Secure, but do not over tighten, cam screws with a
phillips head screwdriver. Make sure arrows on
each cam point toward nearest edge with holes.
1
B. Insert 2 cams and 4 wood dowels into partition.
3
Insert 10 cam screws into top panel as shown.
Made in China - r07
NOTE: Make sure arrows
on each cam point toward
nearest edge with holes
B
partition
top
panel
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
2
Insert 8 cams into back panel as shown.
left side
panel
Fit cam screws of left and right side panels into
corresponding holes of back panel as shown. Turn
each cam clockwise with a screwdriver until it
4
securely engages each cam screw.
back
panel
right side
panel
back panel
Page 2 of 5
