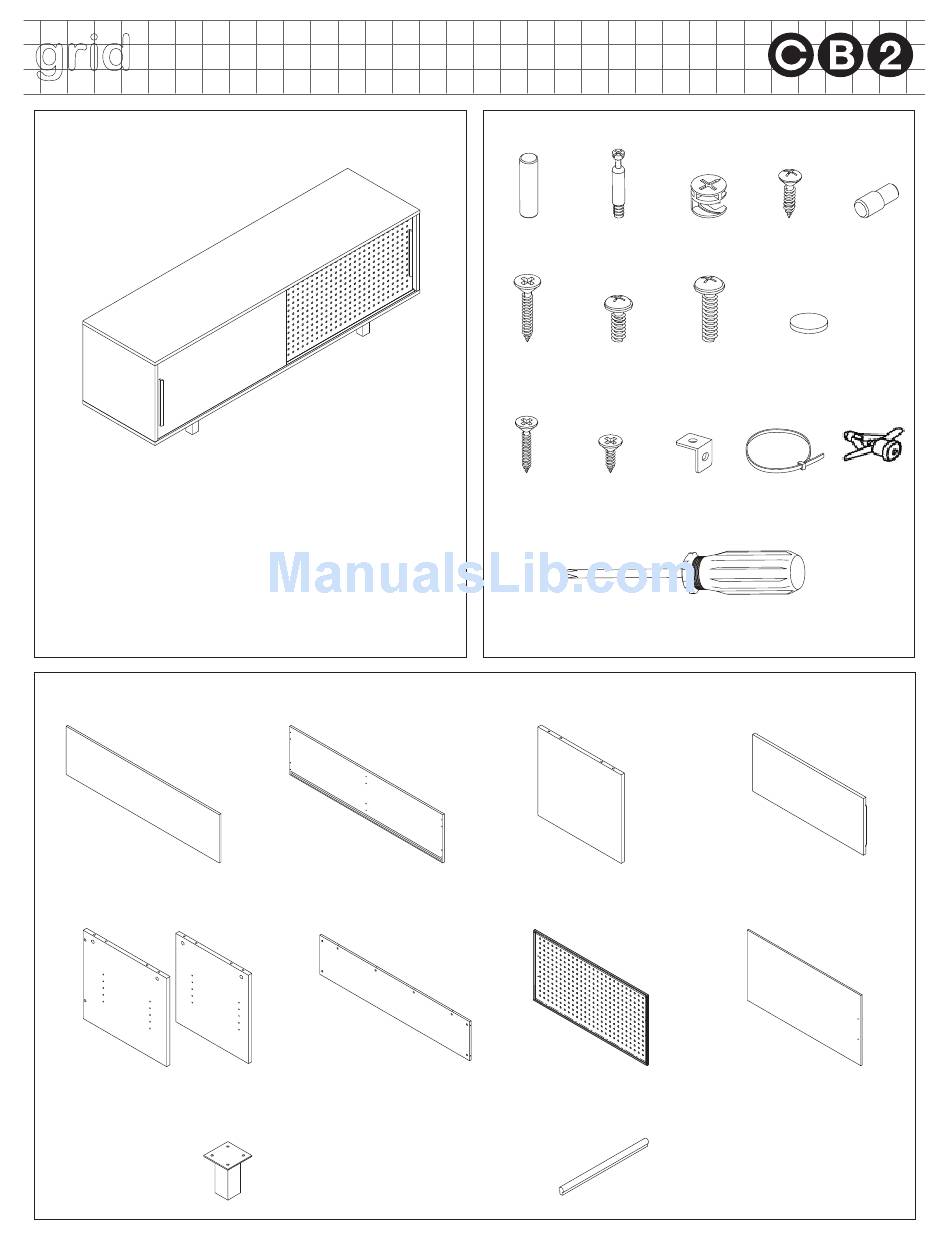

Thank you for purchasing the Grid Media Console. This
page lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components to this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
NOTE: Due to size, 2 people are required to safely
assemble this product.
components
1 - top
panel
2 - side panels
(1 left, 1 right)
Made in China - r07
1 - bottom
panel
1 - back
panel
5 - legs
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
hardware
Missing hardware?
Please call 800.606.6387 for replacements.
12 - wood
14 - cam
dowels
screws
6 - large
2 - small
screws
bolts
mounting hardware
2 - large
2 - small
screws
screws
tools required
phillips head screwdriver
(We recommend the use of hand tools instead of power tools
1 - partition
1 - right
door
2 - pulls
14 - cams 20 - small
8 - shelf
screws
pins
2 - large
14 - cam
bolts
covers
4 - wall
2 - wall
2 - plastic
brackets
straps
anchors
2 - adjustable
shelves
1 - left
door
)
Page 1 of 5
