CB2 FUEL Assembly Instructions

fuel

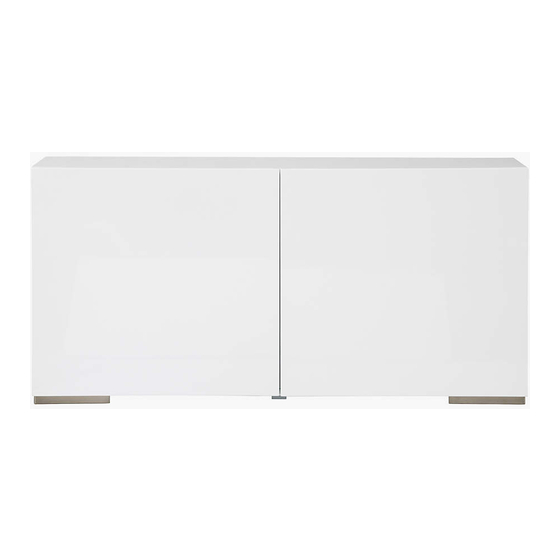

CREDENZA
Thank you for purchasing the Fuel Credenza. This page
lists all the contents included in the box. Please take the
time to identify the hardware as well as the individual
components to this product. As you unpack and prepare
for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.

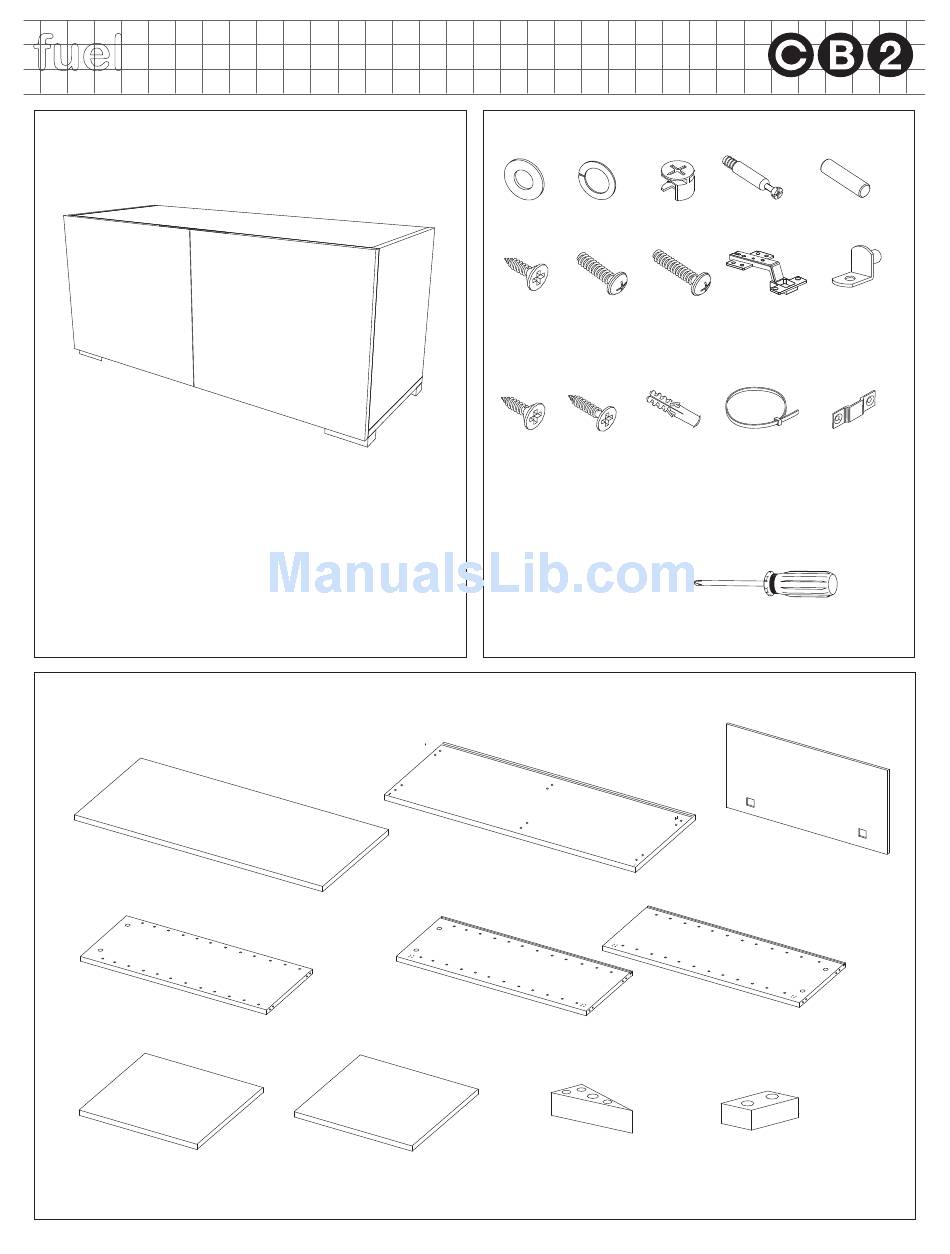

components
1 - top panel
1 - partition
2 - doors
Made in Vietnam - r06
1 - bottom panel
1 - left side panel
2 - adjustable
shelves
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
assembly hardware
8 - flat 8 - spring 6 - cams
washers washers
24 - small 8 - small 12 - large
screws bolts bolts
mounting hardware
4 - small
4 - large 4 - plastic
screws
screws anchors
Missing hardware? Please call 800.606.6387 for replacements.

tools required

phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
4 - feet
(2A, 2B)
6 - cam 12 - wood
screws dowels
4 - hinges 8 - shelf
supports
2 - wall 4 - mounting
straps brackets
1 - back panel
1 - right side panel
1 - support
foot
Page 1 of 5
