CB2 Finn Lounger Quick Start Manual

Advertisement

Quick Links

finn
LOUNGER
Thank you for purchasing the Finn Lounger. This page
lists all the contents included in the box. Please take
the time to identify the hardware as well as the
individual components to this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from
damage.
Note: 2 people are required to safely assemble this product.

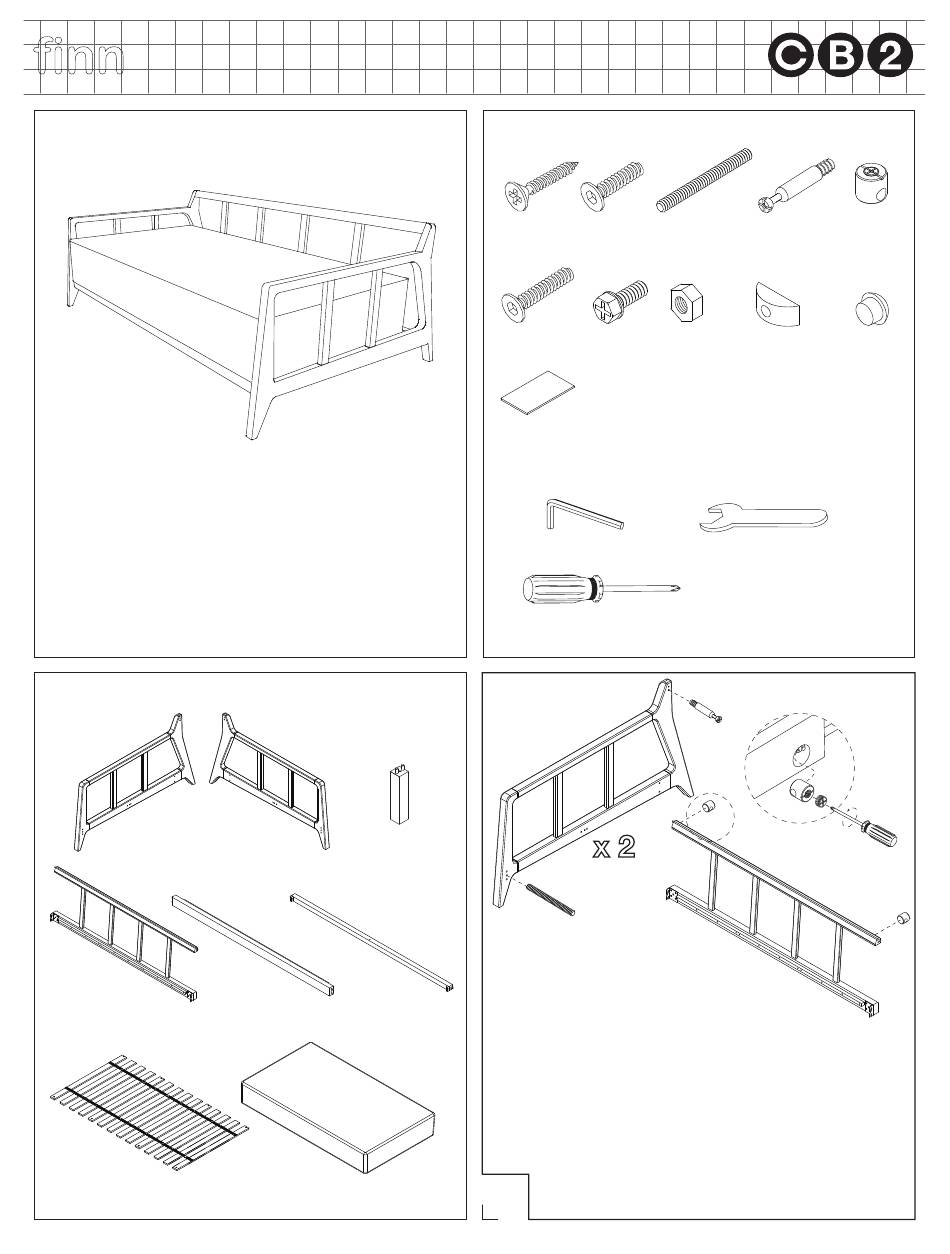

components
2 - side frames
(1 left, 1 right)
1 - back
frame
1 - slat roll
Made in China - r08
1 - support
leg
1 - front
1 - center
crossbar
rail
1 - matress
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
hardware
2 - threaded
2 - allen
8 - screws
bolts
bolts
1 - support
4 - hex
2 - hex
leg bolt
bolts
nuts
Missing hardware?
Please call 800.606.6387 for replacements.
5 - pads
tools required
allen wrench
( We recommend the use of hand tools instead of power tools )
left and right
side frames
A
A. Insert 1 barrel screw and 1 threaded bolt into
left and right side frames as shown. Secure, but
do not over tighten, the barrel screws with a
phillips head screwdriver.
B. Using a screwdriver, remove set screws from
each barrel nut and set aside. Insert barrel nuts
into the back frame as shown. Align the hole on
the side of each barrel nut with the hole on the
1
end of the back frame.
2 - barrel
2 - barrel
nuts
screws
2 - connectors
2 - caps
hex wrench
phillips head screwdriver
(not included)
B
B
back
frame
Page 1 of 3
