stella
CABINET

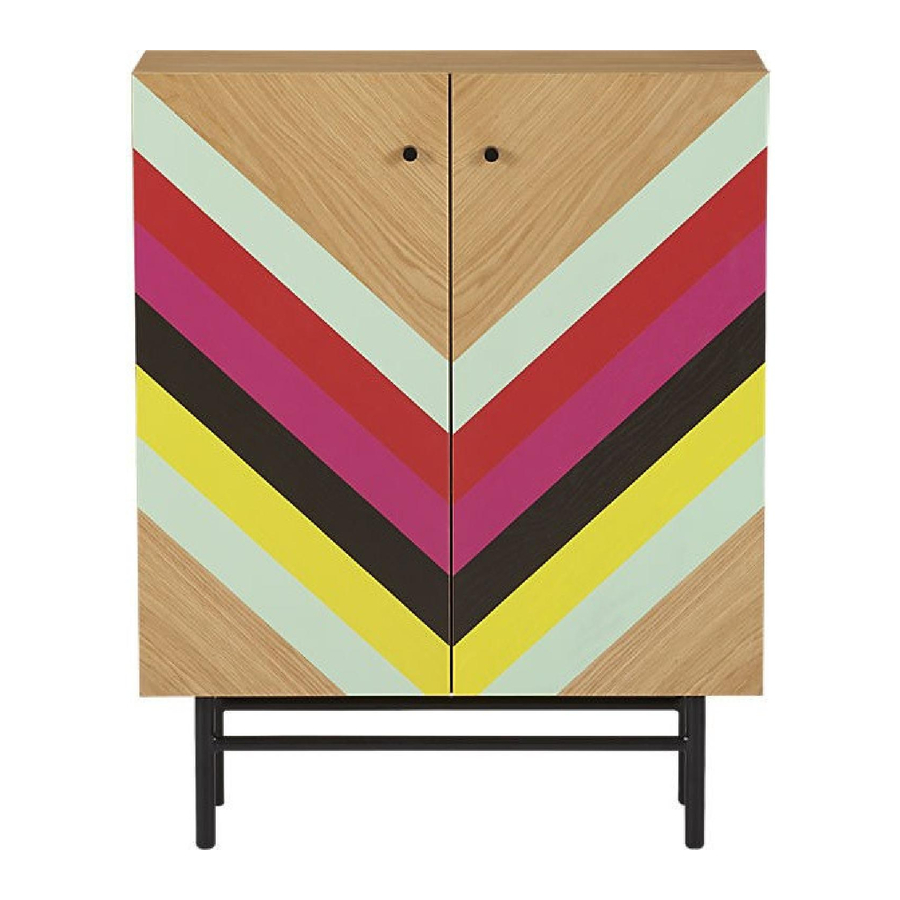

Thank you for purchasing the Stella Cabinet. This page
lists all the contents included in the box. Please take the
time to identify the hardware as well as the individual
components to this product. As you unpack and prepare
for assembly, place the contents on a carpeted or padded
area to protect them from damage.
Note: 2 people are recommended to safely assemble this product.
components
1 - top
panel
2 - side panels
(1 left, 1 right)
Made in Vietnam - r05
1 - bottom
1 - adjustable
panel
shelf
2 - doors
(1 left, 1 right)
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
assembly hardware
12 - wood
12 - large
dowels
bolts
4 - hinges
4 - shelf
supports
mounting hardware
4 - plastic
4 - small
4 - large
anchors
screws
screws
Missing hardware? Please call 800.606.6387 for replacements.

tools required

allen wrench (included)
phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
1 - fixed
1 - leg frame
shelf
12 - medium
2 - door
bolts
pull bolts
24 - screws
4 - mounting
brackets
2 - pulls
1 - back
panel
2 - wall
straps
Page 1 of 5
